Abstract
本实用新型公开了一种土木工程建筑废料处理装置，包括机体、碾压辊和磁铁板，所述机体内转动连接有所述碾压辊，所述碾压辊有两个，所述机体一侧正对所述碾压辊位置处通过螺栓连接有减速电机，所述减速电机的传动输出轴与所述碾压辊通过键连接，所述碾压辊下方设置有所述磁铁板，所述磁铁板与所述机体通过螺栓连接，所述磁铁板下方设置有传送带，所述传送带与所述机体通过螺栓连接。有益效果在于：本实用新型通过设置过滤网、活性炭层和风机，可以对建筑废料中的废液进行过滤净化，然后将净化后的水直接排放到河流中，环保性好，同时风机可以对废料进行干燥处理，从而便于回收利用，提高装置的使用效果。
The utility model discloses a civil engineering construction waste treatment device, which comprises a body, a rolling roller and a magnet plate. The rolling roller is rotatably connected in the body, there are two rolling rollers, and the body is one A geared motor is connected by bolts at the position facing the rolling roller on the side, the transmission output shaft of the geared motor is connected with the rolling roller by a key, the magnet plate is arranged under the rolling roller, and the The magnet plate is connected with the body by bolts, a conveyor belt is arranged below the magnet plate, and the conveyor belt is connected with the body by bolts. The beneficial effects are: the utility model can filter and purify the waste liquid in the construction waste by setting the filter screen, the activated carbon layer and the fan, and then directly discharge the purified water into the river, which has good environmental protection, and at the same time, the fan can clean the waste. Drying treatment is carried out, so as to facilitate recycling and improve the use effect of the device.
Description
Technical Field
The utility model relates to a construction waste treatment device technical field, concretely relates to civil engineering construction waste treatment device.
Background
The construction waste refers to residue soil, waste materials, residual mud and other wastes generated in the process of constructing, laying, dismantling and repairing various buildings, structures, pipe networks and the like by construction, construction units or individuals, most of the treatment of the construction waste is carried out in a landfill or stacking mode, the treatment seriously occupies land resources, the treatment can also damage soil and reduce the quality of the soil, meanwhile, the construction waste can also generate harmful gas and pollute air in the stacking process, so the construction waste needs to be treated, the resource utilization rate is improved, and the environment is protected.
Current construction waste treatment device simple function, waste water in the effective processing construction waste can not, and can not carry out drying process to construction waste after handling, thereby make construction waste more moist, influence recycle, current construction waste treatment device is when handling construction waste in addition, some construction waste can produce harmful gas, and also can produce the dust in the processing procedure, not only can harm operating personnel's healthy, still cause the pollution to the environment easily, consequently, a civil engineering construction waste treatment device is required to solve current problem.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
In order to overcome prior art not enough, present a civil engineering construction waste treatment device, it is simple to have solved current construction waste treatment device function, can not effectively handle the waste water in the construction waste, and can not carry out drying process to construction waste after handling to make construction waste more moist, influence the problem of recycle.
(II) technical scheme
The utility model discloses a following technical scheme realizes: the utility model provides a civil engineering construction waste material processing apparatus, including organism, grinding roller and magnet board, the rotation is connected with in the organism the grinding roller, there are two grinding rollers, just to the grinding roller position department is connected with gear motor through the bolt, gear motor's transmission output shaft with the grinding roller passes through the key-type connection, be provided with the magnet board below the grinding roller, the magnet board with the organism passes through bolted connection, be provided with the conveyer belt below the magnet board, the conveyer belt with the organism passes through bolted connection, conveyer belt one end is provided with the discharge gate, the discharge gate is formed in on the organism, be provided with the fan above the discharge gate, the fan with the organism passes through bolted connection, the conveyer belt below is provided with the filter screen, be provided with the activated carbon layer below the filter screen, a water outlet is formed in one side of the bottom end of the machine body.
Further, the rotation directions of the two rolling rollers rotate towards the middle.
Through adopting above-mentioned technical scheme, make gear motor drives the roller extrudees the breakage to construction waste, then broken construction waste can fall into on the conveyer belt, in the in-process that falls down the magnet board can be siphoned away the metal product in the construction waste, and the recycle of being convenient for, then passes through the conveyer belt conveys construction waste after the breakage discharge gate department discharges, when discharging, the fan can carry out drying process to the waste material, and recycle of being convenient for, and waste liquid in the construction waste can pass through the filter screen filters and falls into bottom of the body, then the process activated carbon layer carries out filtration purification, then can directly discharge the water after purifying in the river, and the feature of environmental protection is good.
Further, the conveyer belt adopts hollow out construction design.
By adopting the technical scheme, the waste liquid in the waste materials is conveniently discharged to the bottom of the machine body.
Furthermore, the middle part of the upper end of the machine body is connected with a feeding cylinder through a bolt.
By adopting the technical scheme, the construction waste can be poured into the machine body.
Further, an air pump is arranged on one side of the feeding barrel, an air purifier is arranged on one side of the air pump, an air conveying end and an air pumping end of the air pump are connected with an air pipe through pipe hoops, the air pipe connected with the air pumping end is connected with the machine body through the pipe hoops, and the air pipe connected with the air conveying end is connected with the air purifier through the pipe hoops.
Through adopting above-mentioned technical scheme, can retrieve the purification with waste gas, the dust that produce in the construction waste disposal process, avoid direct effusion, both can protect staff's healthy, can protect the environment again.
Furthermore, both sides of the bottom end of the machine body are connected with supporting legs through bolts.
By adopting the technical scheme, stable support can be provided for the machine body.
(III) advantageous effects
Compared with the prior art, the utility model, following beneficial effect has:
1. in order to solve the problems that the existing construction waste treatment device has simple function, can not effectively treat the waste water in the construction waste, and can not dry the construction waste after treatment, thereby causing the construction waste to be wet and influencing the recycling use, the utility model discloses a filter screen, an active carbon layer and a fan are arranged, the waste liquid in the construction waste can be filtered and purified, and then the purified water is directly discharged into a river, the environmental protection is good, and simultaneously the fan can dry the waste, thereby being convenient for recycling and improving the use effect of the device;
2. when solving current construction waste processing apparatus when handling construction waste, some construction waste can produce harmful gas, and also can produce the dust in the processing procedure, not only can harm operating personnel's healthy, still cause the problem of pollution to the environment easily, the utility model discloses a set up aspiration pump, trachea and air purifier, can retrieve the purification with waste gas, the dust that produces in the construction waste processing procedure, avoid gaseous direct escape, both can protect staff's healthy, can protect the environment again.
Drawings

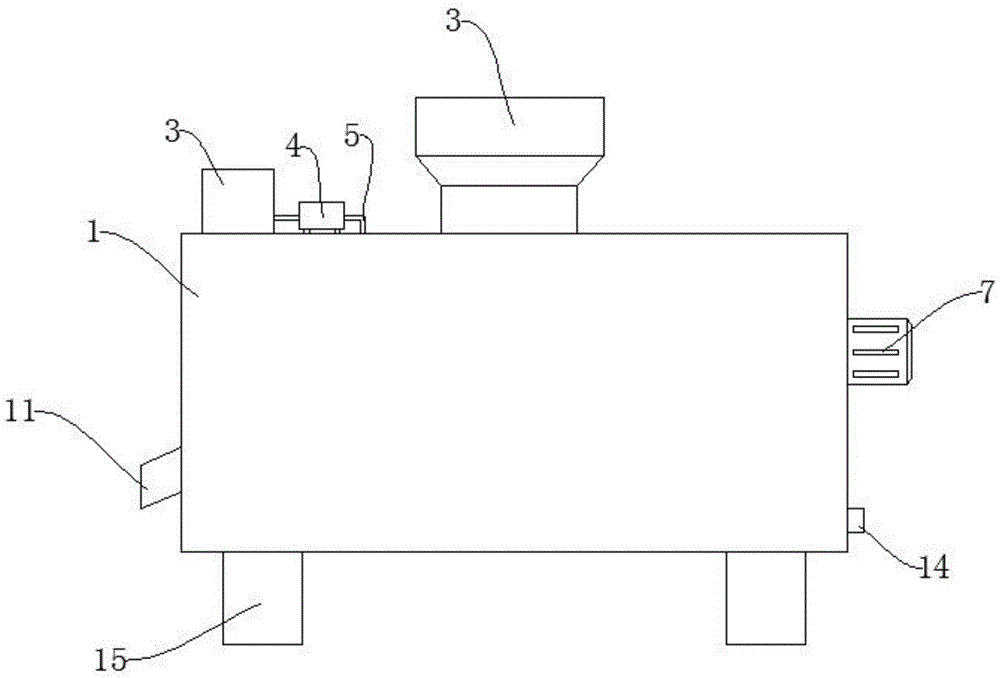

FIG. 1 is a front view of the civil engineering construction waste treatment apparatus of the present invention;
FIG. 2 is a main sectional view of the civil engineering construction waste treatment apparatus of the present invention;
figure 3 is the utility model discloses a civil engineering construction waste material processing apparatus's cut-away view that bends.
The reference numerals are explained below:
1. a body; 2. an air purifier; 3. a feeding cylinder; 4. an air pump; 5. an air tube; 6. rolling a roller; 7. a reduction motor; 8. a magnet plate; 9. a fan; 10. a conveyor belt; 11. a discharge port; 12. a filter screen; 13. an activated carbon layer; 14. a water outlet; 15. and (5) supporting legs.
Detailed Description
In order to make the objects, technical solutions and advantages of the present invention more clearly understood, the present invention is further described in detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are merely illustrative of the invention and are not intended to limit the invention.
As shown in fig. 1-3, the civil engineering construction waste treatment device in this embodiment comprises a machine body 1, two rolling rollers 6 and two magnet plates 8, the rolling rollers 6 are rotatably connected in the machine body 1, a reduction motor 7 is connected to a position of one side of the machine body 1 opposite to the rolling rollers 6 through bolts, a transmission output shaft of the reduction motor 7 is connected to the rolling rollers 6 through a key, the two rolling rollers 6 rotate towards the middle, the magnet plate 8 is arranged below the rolling rollers 6, the magnet plate 8 is connected to the machine body 1 through bolts, a conveyor belt 10 is arranged below the magnet plate 8, the conveyor belt 10 is connected to the machine body 1 through bolts, a discharge port 11 is arranged at one end of the conveyor belt 10, the discharge port 11 is formed on the machine body 1, a fan 9 is arranged above the discharge port 11, the fan 9 is connected to the machine body 1 through bolts, so that the reduction motor 7 drives the rolling rollers 6 to extrude and crush the construction waste, then broken construction waste can fall into on conveyer belt 10, metal product among the in-process magnet board 8 that falls can be siphoned away construction waste falls down, recycle of being convenient for, then convey discharge gate 11 department through conveyer belt 10 with broken construction waste and discharge, when discharging, fan 9 can carry out drying process to the waste material, recycle of being convenient for, conveyer belt 10 below is provided with filter screen 12, filter screen 12 below is provided with activated carbon layer 13, 1 bottom one side shaping of organism has delivery port 14, waste liquid among the construction waste can fall into organism 1 bottom through filter screen 12 filtration, then filter through activated carbon layer 13 and purify, then can directly discharge the water after purifying in the river, the feature of environmental protection is good, 1 bottom both sides of organism have supporting leg 15 through bolted connection, can provide the outrigger for organism 1.
As shown in fig. 1-3, in this embodiment, the conveyor belt 10 is designed to have a hollow structure, so that waste liquid in the waste material can be conveniently discharged to the bottom of the machine body 1, and the middle of the upper end of the machine body 1 is connected to the feeding cylinder 3 through a bolt, so that the construction waste material can be poured into the machine body 1.
As shown in fig. 1-3, in this embodiment, an air pump 4 is disposed on one side of a feeding cylinder 3, an air purifier 2 is disposed on one side of the air pump 4, an air delivery end and an air exhaust end of the air pump 4 are both connected with an air pipe 5 through pipe hoops, the air pipe 5 connected with the air exhaust end is connected with a machine body 1 through pipe hoops, the air pipe 5 connected with the air delivery end is connected with the air purifier 2 through pipe hoops, waste gas and dust generated in the construction waste treatment process can be recovered and purified, direct escape is avoided, the physical health of workers can be protected, and the environment can be protected.
The specific implementation process of this embodiment is as follows: when the waste water treatment machine is used, construction waste is poured into the machine body 1 through the feeding cylinder 3, then the rolling roller 6 is driven to rotate through the speed reducing motor 7 to extrude and crush the construction waste, then the crushed construction waste can fall onto the conveyor belt 10, the magnet plate 8 can suck metal products in the construction waste in the falling process to facilitate recycling, the crushed construction waste is conveyed to the discharge port 11 through the conveyor belt 10 to be discharged, the fan 9 can dry the waste to facilitate recycling, waste liquid in the construction waste can fall into the bottom of the machine body 1 through the filter screen 12 and then is filtered and purified through the activated carbon layer 13, purified water can be directly discharged into a river, the environment friendliness is good, meanwhile, in the construction waste treatment process, suction can be generated through the suction pump 4, and therefore waste gas generated in the machine body 1 through the air pipe 5, The dust is sent into air purifier 2 and is retrieved the purification, then discharges clean air, both can protect staff's healthy, can protect the environment again.
The above-described embodiments are merely illustrative of the preferred embodiments of the present invention and are not intended to limit the spirit and scope of the present invention. Without departing from the design concept of the present invention, various modifications and improvements made by the technical solution of the present invention by those skilled in the art should fall into the protection scope of the present invention, and the technical contents claimed by the present invention have been fully recorded in the claims.
