Abstract
一种装饰装修工程用灰浆搅拌装置，包括底座和设置在底座上端面的搅拌箱；搅拌箱的上下端分别设置有进料管和排料管，搅拌箱内设置有转动轴，搅拌箱顶部设置有用于驱动转动轴进行转动的第一电机，转动轴的两侧均横向设置有多个固定杆，固定杆上设置有搅拌叶片，位于同侧的固定杆上且远离转动轴一端纵向设置有竖向刮板，搅拌箱内部底端倾斜设置有斜板，斜板上方设置有连接杆，连接杆与转动轴和两侧竖向刮板均固定连接，且搅拌箱顶端设置有喷水装置。本实用新型通过设置的竖向刮板和连接杆能够对搅拌箱内壁进行清理，避免大量的泥浆附着在搅拌箱的内壁上；且斜板倾斜设置在搅拌箱内，方便了泥浆快速排出，避免大量的泥浆残留在搅拌箱内部。
A mortar stirring device for decoration and decoration engineering, comprising a base and a stirring box arranged on the upper end face of the base; the upper and lower ends of the stirring box are respectively provided with a feeding pipe and a discharging pipe, a rotating shaft is arranged in the stirring box, and a top of the stirring box is arranged There is a first motor for driving the rotating shaft to rotate, a plurality of fixed rods are arranged laterally on both sides of the rotating shaft, a stirring blade is arranged on the fixed rod, and a vertical vertical rod is longitudinally arranged on the fixed rod on the same side and away from the rotating shaft. To the scraper, a sloping plate is inclined at the bottom end of the mixing box, a connecting rod is arranged above the sloping plate, the connecting rod is fixedly connected with the rotating shaft and the vertical scrapers on both sides, and the top of the mixing box is provided with a water spray device. The utility model can clean the inner wall of the mixing box through the vertical scraper and the connecting rod, so as to prevent a large amount of mud from adhering to the inner wall of the mixing box; A large amount of mud remains inside the mixing tank.
Description
Technical Field
The utility model relates to the technical field of construction machinery, especially, relate to a mortar agitating unit for decoration and finishing engineering.
Background
The building is a general name of buildings and structures, and is an artificial environment created by using the grasped substance technical means and applying certain scientific laws, wind and water concepts and aesthetic rules in order to meet the needs of social life of people.
At present, the adhesive used for tiling and wall building is formed by mixing and stirring yellow sand and cement, most of mud stirring work is finished manually, which wastes time and labor, and a large amount of mud stirring work cannot be finished manually; although the existing slurry stirring device can replace the existing slurry stirring device, the slurry is easy to adhere to the inner wall of the stirring box in the stirring process, and the slurry stirring device can not filter impurities in silt, so that the use of the slurry is influenced.
SUMMERY OF THE UTILITY MODEL
Objects of the invention
In order to solve the technical problems existing in the background technology, the utility model provides a mortar stirring device for decoration and finishing engineering, which can clean the inner wall of a stirring box through a vertical scraper blade and a connecting rod, thereby preventing a large amount of slurry from adhering to the inner wall of the stirring box; the inclined plate is obliquely arranged in the stirring box, so that the mud can be discharged quickly, and a large amount of mud is prevented from remaining in the stirring box; first ball through rotating on the ring rolls in the spacing collar bottom for inlet pipe and filter screen can shake from top to bottom, thereby can filter the impurity in the silt.
(II) technical scheme
The utility model provides a mortar stirring device for decoration engineering, which comprises a base and a stirring box arranged on the upper end surface of the base; the upper end and the lower end of the stirring box are respectively provided with a feeding pipe and a discharging pipe, a rotating shaft is arranged in the stirring box, the top of the stirring box is provided with a first motor for driving the rotating shaft to rotate, a plurality of fixing rods are transversely arranged on two sides of the rotating shaft, stirring blades are arranged on the fixing rods, vertical scraping plates are longitudinally arranged on the fixing rods which are positioned on the same side and far away from one end of the rotating shaft, the bottom end in the stirring box is obliquely provided with a sloping plate, the bottom end of the sloping plate faces one side of the discharging pipe, a connecting rod is arranged above the sloping plate and fixedly connected with the rotating shaft and the vertical scraping plates on the two sides, the top of the stirring box is provided with an opening for the feeding pipe to penetrate through, the feeding pipe is movably arranged in the opening, a filter screen is arranged in the feeding pipe, the outer side of the feeding pipe is annularly provided with a circle limiting ring, the bottom end of the limiting ring is evenly provided with a plurality of raised blocks, and a rotating circular ring is sleeved at the bottom end of the feeding pipe, first ball and second ball are installed respectively to the upper and lower end that rotates the ring, and the agitator tank top is seted up and is supplied the rolling circular slot of second ball, and the ring outside that rotates is provided with the round rack, and the meshing of the rack outside has the driving gear, is provided with on the agitator tank to be used for driving the driving gear to carry out pivoted second motor, and the agitator tank top is provided with water jet equipment.
Preferably, water jet equipment includes shower nozzle, water pump, booster pump and water pipe, and the shower nozzle is the ring form and inside has hollow structure, and the shower nozzle setting is on the inner wall top of agitator tank, and water pump and booster pump all set up the top at the agitator tank, and water pump, booster pump and shower nozzle all lead to the pipe intercommunication.
Preferably, the side surface and the bottom end of the spray head are both provided with a plurality of water spray nozzles.
Preferably, a plurality of vertical rods are vertically arranged on the connecting rod.
Preferably, one side of vertical scraper blade is provided with the rubber scraping strip, and the laminating of rubber scraping strip and the inner wall of agitator tank.
Preferably, the lower terminal surface of base is provided with a plurality of universal wheels, and base one side is fixed and is provided with the push rod.
Compared with the prior art, the above technical scheme of the utility model following profitable technological effect has: the inner wall of the stirring box can be cleaned through the arranged vertical scraper and the arranged connecting rod, so that a large amount of slurry is prevented from being attached to the inner wall of the stirring box; the inclined plate is obliquely arranged in the stirring box, so that the mud can be discharged quickly, and a large amount of mud is prevented from remaining in the stirring box; first ball through rotating on the ring rolls in the spacing collar bottom for inlet pipe and filter screen can shake from top to bottom, thereby can filter the impurity in the silt.
Drawings

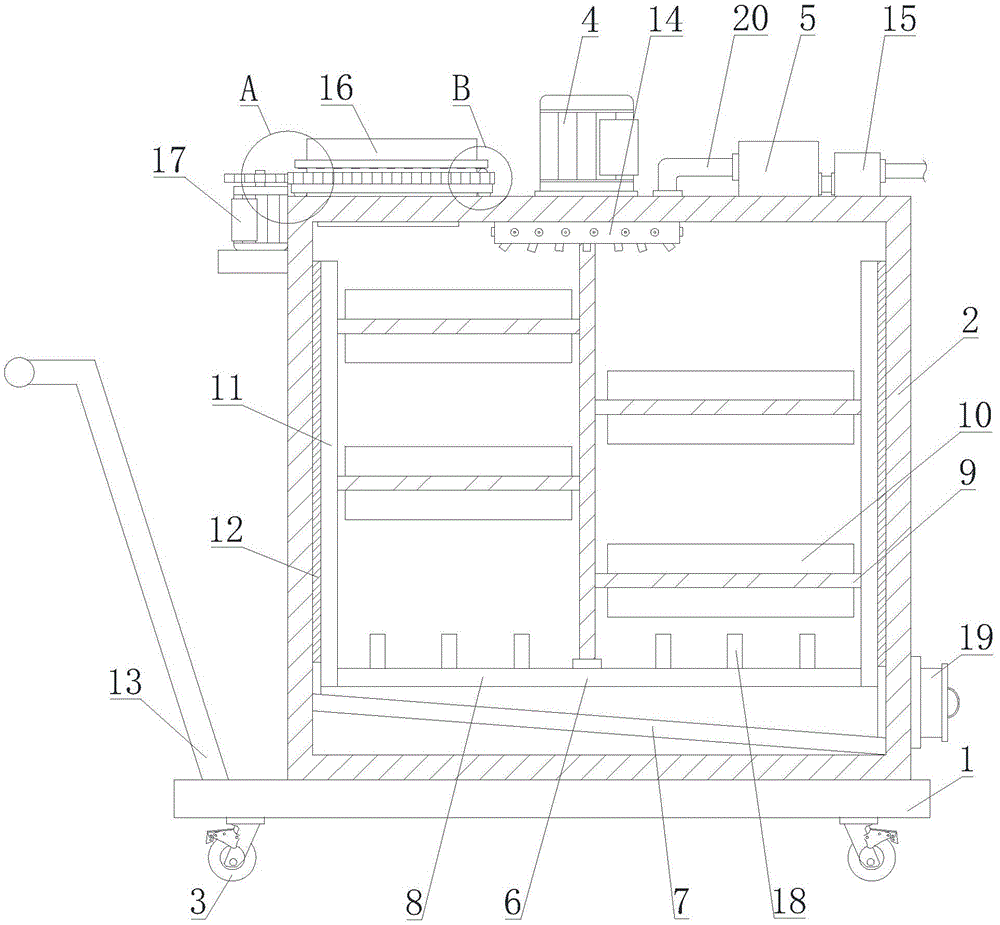

Fig. 1 is a schematic structural view of a mortar stirring device for decoration engineering of the present invention.
Fig. 2 is a schematic structural view of a portion a of fig. 1.
Fig. 3 is a schematic structural diagram at B of fig. 1.
Reference numerals: 1. a base; 2. a stirring box; 3. a universal wheel; 4. a first motor; 5. a water pump; 6. a rotating shaft; 7. a sloping plate; 8. a connecting rod; 9. fixing the rod; 10. a stirring blade; 11. a vertical scraper; 12. a rubber scraping strip; 13. a push rod; 14. a spray head; 15. a booster pump; 16. a feed pipe; 17. a second motor; 18. a vertical rod; 19. a discharge pipe; 20. a water pipe; 21. a first ball bearing; 22. rotating the circular ring; 23. a rack; 24. a limiting ring; 25. a second ball bearing; 26. a driving gear; 27. and (4) a convex block.
Detailed Description
In order to make the objects, technical solutions and advantages of the present invention more apparent, the present invention will be described in detail with reference to the accompanying drawings. It should be understood that the description is intended to be illustrative only and is not intended to limit the scope of the present invention. Moreover, in the following description, descriptions of well-known structures and techniques are omitted so as to not unnecessarily obscure the concepts of the present invention.
As shown in fig. 1-3, the utility model provides a mortar stirring device for decoration engineering, which comprises a base 1 and a stirring box 2 arranged on the upper end surface of the base 1; the upper end and the lower end of the stirring box 2 are respectively provided with a feeding pipe 16 and a discharging pipe 19, a rotating shaft 6 is arranged in the stirring box 2, the top of the stirring box 2 is provided with a first motor 4 for driving the rotating shaft 6 to rotate, both sides of the rotating shaft 6 are respectively and transversely provided with a plurality of fixed rods 9, the fixed rods 9 are provided with stirring blades 10, one ends of the fixed rods 9 which are positioned on the same side and far away from the rotating shaft 6 are longitudinally provided with vertical scrapers 11, the bottom end inside the stirring box 2 is obliquely provided with an inclined plate 7, the bottom end of the inclined plate 7 faces one side of the discharging pipe 19, a connecting rod 8 is arranged above the inclined plate 7, the connecting rod 8 is fixedly connected with the rotating shaft 6 and the vertical scrapers 11 on both sides, the top of the stirring box 2 is provided with an opening for the feeding pipe 16 to penetrate through, the 16 is movably arranged in the opening, a filter screen is arranged in the feeding pipe 16, and a circle of limiting ring 24 is arranged outside the feeding pipe 16, spacing 24 bottoms evenly are provided with the protruding piece 27 of a plurality of, inlet pipe 16 bottom pot head is equipped with rotating ring 22, first ball 21 and second ball 25 are installed respectively to rotating ring 22's last lower extreme, and 2 tops of agitator tank offer and supply the rolling circular slot of second ball 25, the rotating ring 22 outside is provided with round rack 23, the meshing of the rack 23 outside has driving gear 26, be provided with on the agitator tank 2 and be used for driving gear 26 to carry out pivoted second motor 17, and 2 tops of agitator tank are provided with water jet equipment.
In an optional embodiment, the water spraying device comprises a spray head 14, a water pump 5, a booster pump 15 and a water pipe 20, wherein the spray head 14 is annular and has a hollow structure inside, the spray head 14 is arranged at the top end of the inner wall of the stirring tank 2, the water pump 5 and the booster pump 15 are both arranged at the top of the stirring tank 2, and the water pump 5, the booster pump 15 and the spray head 14 are all communicated through the water pipe 20.
It should be noted that the provided water spraying device can provide a water source required for stirring in the stirring tank 2, and can also clean the inside of the stirring tank 2 after the stirring operation is completed.
In an alternative embodiment, the spray head 14 is provided with a plurality of water spray nozzles on both the side and bottom.
It should be noted that the provision of a plurality of water spray nozzles increases the range of water spray from the spray head 14 so that water can be sprayed to various positions within the stirring tank 2.
In an alternative embodiment, a plurality of vertical bars 18 are vertically arranged on the connecting rod 8.
It should be noted that the vertical rods 18 are arranged to enable the bottom mud to be stirred more uniformly, and the stirring effect of the mud is improved.
In an alternative embodiment, one side of the vertical scraper 11 is provided with a rubber scraper 12, and the rubber scraper 12 is attached to the inner wall of the stirring box 2.
The rubber scraper 12 is provided to be able to better adhere to the inner wall of the stirring tank 2.
In an alternative embodiment, a plurality of universal wheels 3 are arranged on the lower end surface of the base 1, and a push rod 13 is fixedly arranged on one side of the base 1.
It should be noted that a push rod 13 is provided for pushing the device to move.
In the use process of the utility model, silt is firstly put into the stirring box 2 through the inlet pipe 16, the first motor 4, the second motor 17, the water pump 5 and the booster pump 15 are started to work, the second motor 17 drives the driving gear 26 and the rotating ring 22 to rotate, the first ball 21 arranged at the top of the rotating ring 22 rolls on the bottom surface of the spacing ring 24, as the bottom end of the spacing ring 24 is provided with a plurality of convex blocks 27, the first ball 21 can drive the inlet pipe 16 to vibrate up and down when rolling, and filter and screen impurities with large volume in the silt, when the silt enters the stirring box 2, the water pump 5 extracts external water source and boosts the pressure through the booster pump 15, the boosted water flows into the spray head 14 through the water pipe 20 and is sprayed out from a plurality of water spray ports, when the injected water amount reaches a set value, the water pump 5 and the booster pump 15 are closed again, meanwhile, the first motor 4 drives the rotating shaft 6 and the stirring blades 10 to rotate, the stirring blades 10 can fully stir the slurry in the stirring box 2 when rotating, the connecting rod 8 and the vertical scraper 11 can rotate along with the rotation of the rotating shaft 6, the rubber scraping strip 12 on the vertical scraper 11 can clean the slurry attached to the inner wall of the stirring box 2, the connecting rod 8 and the vertical rods 18 can strengthen the stirring effect of the slurry at the bottom through rotation, the discharge pipe 19 is opened after the slurry stirring is completed to discharge the slurry, then the water pump 5 and the booster pump 15 are started again to work, water is sprayed out through the plurality of water spray holes on the spray head 14, and the inside of the stirring box 2 is washed.
It is to be understood that the above-described embodiments of the present invention are merely illustrative of or explaining the principles of the invention and are not to be construed as limiting the invention. Therefore, any modification, equivalent replacement, improvement and the like made without departing from the spirit and scope of the present invention should be included in the protection scope of the present invention. Further, it is intended that the appended claims cover all such variations and modifications as fall within the scope and boundaries of the appended claims or the equivalents of such scope and boundaries.
Claims (6)
1. The mortar stirring device for the decoration project is characterized by comprising a base (1) and a stirring box (2) arranged on the upper end surface of the base (1); the upper end and the lower end of the stirring box (2) are respectively provided with a feeding pipe (16) and a discharging pipe (19), a rotating shaft (6) is arranged in the stirring box (2), the top of the stirring box (2) is provided with a first motor (4) for driving the rotating shaft (6) to rotate, a plurality of fixing rods (9) are transversely arranged on both sides of the rotating shaft (6), stirring blades (10) are arranged on the fixing rods (9), one end of each fixing rod (9) positioned on the same side and far away from the rotating shaft (6) is longitudinally provided with a vertical scraper (11), the bottom end in the stirring box (2) is obliquely provided with an inclined plate (7), the bottom end of the inclined plate (7) faces one side of the discharging pipe (19), a connecting rod (8) is arranged above the inclined plate (7), the connecting rod (8) is fixedly connected with the rotating shaft (6) and the vertical scrapers (11) on both sides, the top of the stirring box (2) is provided with an opening for the feeding pipe (16) to penetrate through, and inlet pipe (16) activity sets up in the opening, be provided with the filter screen in inlet pipe (16), inlet pipe (16) outside is encircleed and is provided with round spacing collar (24), spacing collar (24) bottom evenly is provided with a plurality of protruding piece (27), inlet pipe (16) bottom cover is equipped with rotation ring (22), first ball (21) and second ball (25) are installed respectively to the upper and lower end of rotation ring (22), and agitator tank (2) top is seted up and is supplied the rolling circular slot of second ball (25), the rotation ring (22) outside is provided with round rack (23), rack (23) outside meshing has driving gear (26), be provided with on agitator tank (2) and be used for driving gear (26) to carry out pivoted second motor (17), and agitator tank (2) top is provided with water jet equipment.
2. The mortar mixing device for decoration and finishing work of claim 1, wherein the water spraying device comprises a nozzle (14), a water pump (5), a booster pump (15) and a water pipe (20), the nozzle (14) is annular and has a hollow structure inside, the nozzle (14) is arranged at the top end of the inner wall of the stirring box (2), the water pump (5) and the booster pump (15) are both arranged at the top of the stirring box (2), and the water pump (5), the booster pump (15) and the nozzle (14) are all communicated through the water pipe (20).
3. The mortar mixing apparatus for finishing work according to claim 2, wherein a plurality of water spraying ports are formed at both side and bottom ends of the spraying head (14).
4. The mortar mixing device for finishing work according to claim 1, wherein a plurality of vertical rods (18) are vertically provided on the connecting rod (8).
5. A mortar mixing device for finishing work according to claim 1, wherein a rubber scraper (12) is provided at one side of the vertical scraper (11), and the rubber scraper (12) is attached to the inner wall of the mixing box (2).
6. The mortar mixing apparatus for finishing work according to claim 1, wherein a plurality of universal wheels (3) are provided on the lower end surface of the base (1), and a push rod (13) is fixedly provided on one side of the base (1).
