Abstract
本实用新型公开了一种竹纤维生产用的竹片处理机，包括切割机构一和箱体，箱体的内壁固定连接有支撑杆一，支撑杆一的端部固定连接有滑板，滑板的表面开设有开口一，箱体的内壁固定连接有支撑杆二，支撑杆二的端部设置有用于固定与推动竹子的传动机构，箱体内壁的右侧设置有用于带动传动机构的驱动机构，箱体的内壁上侧设置有用于切割竹子的切割机构二，传动机构包括连接板，连接板固定连接在支撑杆二的端部，连接板的表面开设有导向槽，连接板通过导向槽滑动连接有两个滑柱，两个滑柱的背侧均固定连接有转板。具备了传送竹子稳定性更佳，使得切割过程更加稳定，且操作简单的效果。
The utility model discloses a bamboo chip processing machine for bamboo fiber production. There is an opening one, the inner wall of the box is fixedly connected with a supporting rod two, the end of the supporting rod two is provided with a transmission mechanism for fixing and pushing the bamboo, and the right side of the inner wall of the box is provided with a driving mechanism for driving the transmission mechanism. The upper side of the inner wall of the body is provided with a second cutting mechanism for cutting bamboo, the transmission mechanism includes a connecting plate, the connecting plate is fixedly connected to the end of the second support rod, the surface of the connecting plate is provided with a guide groove, and the connecting plate is slidably connected with the guide groove. Two sliding columns, the back sides of the two sliding columns are fixedly connected with a turning plate. It has the effect of better stability of conveying bamboo, making the cutting process more stable and simple to operate.
Description
Technical Field
The utility model relates to a bamboo wood processing technology field specifically is a bamboo chip processor of bamboo fibre production usefulness.
Background
Bamboo fiber, as a new natural fiber, has only recently been used in the field of textile and clothing. The bamboo fiber has the characteristics of good air permeability, instant water absorption, strong wear resistance, good dyeing property and the like, and simultaneously has the functions of natural antibiosis, bacteriostasis, mite removal, deodorization and ultraviolet resistance. The bamboo fiber is a real natural environment-friendly green fiber.
A bamboo treatment device for preparing bamboo fibres as disclosed in chinese patent CN201820211732, wherein: install first motor on the organism, first motor and first action wheel coaxial coupling, first action wheel is connected from the driving wheel through first drive belt and first, and first from driving wheel and initiative horizontal transport material wheel coaxial coupling, initiative horizontal transport material wheel pass through the second drive belt and are connected with three driven horizontal transport material wheel, and organism one side is equipped with the feed inlet, installs the second motor on the organism. This device adopts motor drive's mode, adopts the bamboo chip sword of special construction simultaneously, can cut open into the bamboo chip to the bamboo fast, has improved enterprise production efficiency widely, has realized automated production, has reduced the cost of enterprises.
However, the effect of fixedly conveying the bamboos in the cited article is not good, and in the actual use process, the stability of the bamboo sheet processing machine during conveying is poor, so that the use efficiency is poor.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a bamboo chip processor of bamboo fibre production usefulness, it is better to have possessed conveying bamboo stability for the cutting process is more stable, and easy operation's effect, has solved current bamboo chip processor when using, and the stability when the bamboo conveys is relatively poor, the not good problem of availability factor.
In order to achieve the above object, the utility model provides a following technical scheme: a bamboo chip processor for bamboo fiber production comprises a first cutting mechanism and a box body, wherein the inner wall of the box body is fixedly connected with a first supporting rod, the end part of the first supporting rod is fixedly connected with a sliding plate, the surface of the sliding plate is provided with a first opening, the inner wall of the box body is fixedly connected with a second supporting rod, the end part of the second supporting rod is provided with a transmission mechanism for fixing and pushing bamboos, the right side of the inner wall of the box body is provided with a driving mechanism for driving the transmission mechanism, and the upper side of the inner wall of the box body is provided with a second cutting mechanism for cutting the bamboos;
the transmission mechanism comprises a connecting plate, the connecting plate is fixedly connected to the end part of the second supporting rod, a guide groove is formed in the surface of the connecting plate, the connecting plate is connected with two sliding columns in a sliding mode through the guide groove, rotating plates are fixedly connected to the back sides of the two sliding columns, the guide groove comprises a sliding groove and a transverse groove, and the sliding groove is communicated with the transverse groove;
the driving mechanism comprises a first electric push rod, the right side of the first electric push rod is fixedly connected to the inner wall of the box body, a push rod portion of the first electric push rod is fixedly connected with a push rod, the surface of the push rod is hinged to a connecting rod, and the connecting rod is hinged to the right side of the rotating plate.
Preferably, the side surface of the rotating plate is fixedly connected with a return spring, and the side surface of the return spring is fixedly connected with a pressing block.
Preferably, the second cutting mechanism comprises a second electric push rod, the second electric push rod is fixedly connected to the inner wall of the box body, and a cutter is fixedly connected to a push rod portion of the second electric push rod.
Preferably, the number of the transmission mechanisms is two, and the two transmission mechanisms are arranged in axial symmetry by taking the sliding plate as a center.
Preferably, a cover plate is movably mounted at the box opening of the box body, and a second opening is formed in the surface of the cover plate.
Compared with the prior art, the beneficial effects of the utility model are as follows:
one, the utility model discloses an operation of an electric putter push rod portion makes push rod lateral shifting, lateral shifting through the push rod, drive connecting rod lateral shifting, lateral shifting through the connecting rod, drive commentaries on classics board lateral shifting, and because the sliding connection relation of two travellers and guide way, make two travellers get into the transverse groove by the spout, and then make commentaries on classics board counter-clockwise turning, counter-clockwise turning through changeing the board, and this drive mechanism is the axisymmetric setting for using the slide center, make two commentaries on classics board extrusion live the bamboo, as the state shown in figure 2, the effect of fixed bamboo has been reached, make the bamboo stability better in data send process.
Secondly, the utility model extrudes the bamboo through the rotating plate and drives the bamboo to move transversely, the bamboo is contacted with the first cutting mechanism through the first cutting mechanism to cut the bamboo, when the two sliding columns move to the end of the transverse groove, as shown in the state of figure 3, the second cutting mechanism starts to operate at the moment, the cutter moves longitudinally through the operation of the second electric push rod, when the cutter cuts off the bamboo, the press block extrudes the residual bamboo, the first electric push rod gives power, the state shown in the figure 3 leads the residual bamboo to be just opposite to the first opening from the state shown in figure 2, the size of the residual bamboo is always smaller than that of the first opening, the first electric push rod gives power to continue to operate at the moment, the rotating plate rotates clockwise, and then the residual bamboo is separated from the limit of the press block, the residual bamboo falls into the first opening, and the residual bamboo is collected, and then to the state as shown in figure 1, the work is finished, and the stability of the whole structure is better and the use efficiency is higher when the bamboo chip processor is used.
Drawings

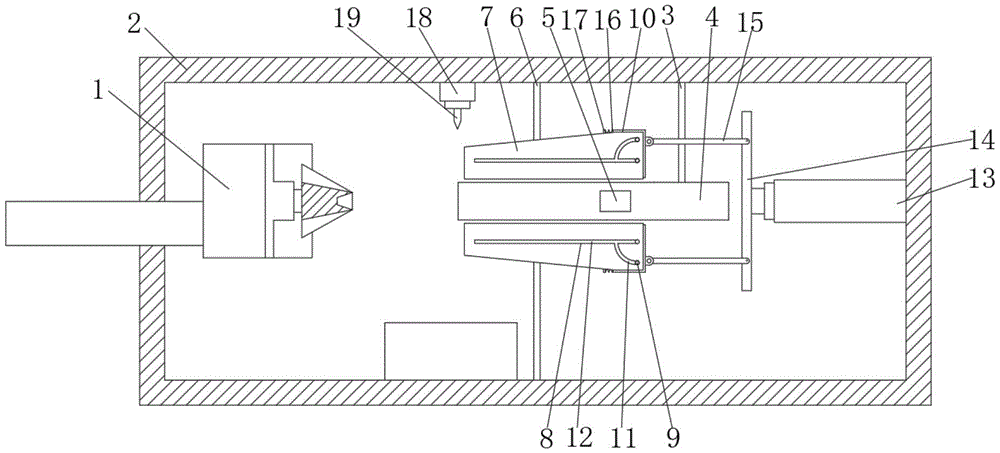

Fig. 1 is a first state diagram of the structure of the present invention and is taken as a front view;
FIG. 2 is a second state diagram of the structure of the present invention;
FIG. 3 is a third state diagram of the structure of the present invention;
FIG. 4 is a partial front view of the present invention;
fig. 5 is an enlarged view of the structure corresponding to the position a in fig. 2.
In the figure: 1. a first cutting mechanism; 2. a box body; 3. a first supporting rod; 4. a slide plate; 5. a first opening; 6. a second supporting rod; 7. a connecting plate; 8. a guide groove; 9. a traveler; 10. rotating the plate; 11. a chute; 12. a transverse slot; 13. an electric push rod I; 14. a push rod; 15. a connecting rod; 16. a return spring; 17. a pressing block; 18. a second electric push rod; 19. a cutter; 20. a cover plate; 21. and a second opening.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1 to 5, the present invention provides a technical solution: a bamboo chip processor for bamboo fiber production comprises a cutting mechanism I1 and a box body 2, the principle of fixing and conveying bamboo can be disclosed in the first paragraph of the working principle of cited documents, the inner wall of the box body 2 is fixedly connected with a support rod I3, the end part of the support rod I3 is fixedly connected with a sliding plate 4, the surface of the sliding plate 4 is provided with an opening I5, the inner wall of the box body 2 is fixedly connected with a support rod II 6, the end part of the support rod II 6 is provided with a transmission mechanism for fixing and pushing the bamboo, the right side of the inner wall of the box body 2 is provided with a driving mechanism for driving the transmission mechanism, the upper side of the inner wall of the box body 2 is provided with a cutting mechanism II for cutting the bamboo, when the bamboo chip processor for bamboo fiber production is used, the bamboo chip with bamboo joints removed is placed on the sliding plate 4, the state shown in figure 1 is started, the driving mechanism gives power to drive the transmission mechanism to operate, through drive mechanism's operation, make drive mechanism fix the bamboo and drive bamboo lateral shifting, through the lateral shifting of bamboo, make the bamboo contact cutting mechanism one to by the cutting, through cutting mechanism two this moment, make the bamboo cut off, and under drive mechanism's effect, drive surplus bamboo, in entering opening one 5, and finally to the state shown in figure 1, it is better to have reached bamboo chip processor overall structure's stability when using, the higher effect of availability factor.
Further, the transmission mechanism comprises a connecting plate 7, the connecting plate 7 is fixedly connected to the end of the second support rod 6, a guide groove 8 is formed in the surface of the connecting plate 7, the connecting plate 7 is connected with two sliding columns 9 in a sliding mode through the guide groove 8, the back sides of the two sliding columns 9 are fixedly connected with rotating plates 10, the guide groove 8 comprises sliding grooves 11 and transverse grooves 12, the sliding grooves 11 are communicated with the transverse grooves 12, due to the sliding connection relationship between the two sliding columns 9 and the guide groove 8, the two sliding columns 9 enter the transverse grooves 12 from the sliding grooves 11, the rotating plates 10 rotate anticlockwise through the anticlockwise rotation of the rotating plates 10, the transmission mechanism is arranged in axial symmetry with the center of the sliding plate 4, the two rotating plates 10 press the bamboo, the bamboo is pressed through the rotating plates 10 in the state shown in figure 2, the bamboo is driven to move transversely, the bamboo is made to contact with the first cutting mechanism through the transverse movement of the bamboo, and then make the bamboo by the cutting, reached the effect of fixed bamboo for the bamboo is better at data send in-process stability.
Further, actuating mechanism includes electric putter 13, electric putter 13's right side fixed connection is at the inner wall of box 2, electric putter 13's push rod portion fixedly connected with push rod 14, push rod 14's surface articulates there is connecting rod 15, connecting rod 15 articulates on the right side of commentaries on classics board 10, through the operation of electric putter 13 push rod portion, make push rod 14 lateral shifting, lateral shifting through push rod 14, drive connecting rod 15 lateral shifting, lateral shifting through connecting rod 15, drive commentaries on classics board 10 lateral shifting.
Further, a return spring 16 is fixedly connected to a side surface of the rotating plate 10, and a pressing block 17 is fixedly connected to a side surface of the return spring 16
Further, cutting mechanism two includes electric putter two 18, and two 18 fixed connection of electric putter are at the inner wall of box 2, and the push rod portion fixedly connected with cutter 19 of two 18 of electric putter, through the function of two 18 of electric putter, make cutter 19 longitudinal movement, make cutter 19 cut the bamboo, make the remaining bamboo of drive mechanism conveying, make remaining bamboo get into in opening one 5, reached the effect of collecting remaining bamboo, and then reached overall structure sustainability moving effect.
Further, the number of drive mechanism is two, and two drive mechanism use slide 4 as the center and be axisymmetric setting, through setting up two drive mechanism, makes two briquetting 17 all extrude the bamboo, and the stability that makes the bamboo send the in-process to is better.
Further, the case mouth department movable mounting of box 2 has apron 20, and opening two 21 has been seted up on the surface of apron 20, and through setting up apron 20, the inner member of bamboo chip processor reduces the influence by the erosion of external dust, through seting up opening two 21, makes the bamboo can get into in box 2, carries out subsequent cutting work.
The working principle is as follows: when the bamboo chip processor for producing bamboo fiber is used, bamboo with bamboo joints removed enters the box body 2 from the second opening 21, the bamboo is placed on the sliding plate 4, as shown in figure 1, the push rod 14 moves transversely through the operation of the push rod part of the electric push rod I13, the connecting rod 15 is driven to move transversely through the transverse movement of the push rod 14, the transverse movement of the connecting rod 15 drives the rotating plate 10 to transversely move, and due to the sliding connection relationship between the two sliding columns 9 and the guide groove 8, the two sliding columns 9 enter the transverse groove 12 from the sliding groove 11, thereby rotating the rotating plates 10 counterclockwise, and the transmission mechanism is arranged in axial symmetry with the center of the sliding plate 4 to make the two rotating plates 10 press the bamboo, as shown in fig. 2, the bamboo fixing effect is achieved, and the bamboo is better in stability in the conveying process.
The bamboo is squeezed by the rotary plate 10 and is driven to move transversely, the bamboo is made to contact with the first cutting mechanism through the transverse movement of the bamboo, the bamboo is cut by the first cutting mechanism, when the two sliding columns 9 move to the tail ends of the transverse grooves 12, as shown in the state shown in figure 3, the second cutting mechanism starts to operate, the cutter 19 moves longitudinally through the operation of the electric push rod two 18, when the cutter 19 cuts off the bamboo, the press block 17 squeezes the residual bamboo, power is given by the electric push rod one 13, the state shown in figure 3 is changed to the state shown in figure 2, the residual bamboo is enabled to be opposite to the opening one 5, the size of the residual bamboo is always smaller than the size of the opening one 5, at the moment, the electric push rod one 13 gives power to continue to operate, the rotary plate 10 rotates clockwise, the residual bamboo is further separated from the limit of the press block 17, the residual bamboo falls into the opening one 5, and the effect of collecting the residual bamboo, and then to the state as shown in figure 1, the work is finished, and the effects that the stability of the whole structure is better and the use efficiency is higher when the bamboo chip processor is used are achieved.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
