Abstract

The utility model belongs to the technical field of photovoltaic power generation, and specifically discloses a photovoltaic power generation device with convenient and stable installation and protection function, comprising a main body and a connecting shaft, a separation groove is arranged above the main body, and both sides of the separation groove are A groove plate is connected, a connecting block is installed inside the groove plate, and a solar panel is connected above the connecting block, a fixing block is arranged on one side of the solar panel, and a baffle plate is arranged on the right side of the fixing block . The photovoltaic power generation equipment with convenient and stable installation and protection function is covered and connected to the outside of the support rod through the middle of the triangular adjustment seat, and then the connecting shaft is passed through the triangle adjustment seat and the inside of the support rod, and the connecting shaft is connected by screws. For fixing, the interior of the connecting shaft is provided with threads passing through the triangular adjusting seat and the support rod, and then the screws are installed into the internal thread of the connecting shaft to fix the position, so that the triangular adjusting seat is easy to rotate through the connecting shaft.

Description

Photovoltaic power generation equipment convenient and stable to install and having protection function

Technical Field

The utility model relates to a photovoltaic power generation technical field specifically is a photovoltaic power generation equipment that just has protect function of installing convenient and stable.

Background

Photovoltaic power generation is a technology of utilizing the photovoltaic effect of a semiconductor interface to directly convert light energy into electric energy, a photovoltaic power generation board is installed and erected through a support, the situation that the solar panel cannot be well supported due to instable installation supports is avoided, and the photovoltaic power generation is one of new energy sources, cannot cause environmental pollution, and needs to be conveniently and stably installed in photovoltaic power generation equipment and has a protection function.

Photovoltaic power generation equipment on the market is inconvenient to adjust the turned angle of solar energy through dwang and triangle regulation seat, and inconvenient carries out slidable mounting solar panel through recess board and connecting block and carries out spacing fixed, and inconvenient protects and fixes solar panel through fixed block and baffle.

In order to solve the problems, the photovoltaic power generation equipment which is convenient to install stably and has a protection function is provided.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a photovoltaic power generation equipment that just has protect function of convenient and stable installation to solve the inconvenient turned angle that adjusts solar energy through dwang and triangle regulation seat of the current photovoltaic power generation equipment on the market that proposes in the above-mentioned background art, inconvenient carry out slidable mounting solar panel through recess board and connecting block and carry out spacing fixed, inconvenient protect and fixed problem to solar panel through fixed block and baffle.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a photovoltaic power generation equipment that just has protect function of convenient stable installation, includes main part and connecting axle, the top of main part is provided with the branch groove, and the both sides of dividing the groove all are connected with the recess board, the internally mounted of recess board has the connecting block, and the top of connecting block is connected with solar panel, one side of solar panel is provided with the fixed block, and the right side of fixed block is provided with the baffle, the below of baffle is connected with the dwang, and installs the triangle below of dwang and adjust the seat, the connecting axle sets up in the below of main part, and the below of connecting axle is connected with the bracing piece, one side of bracing piece is provided with the oblique angle support, and the inside of oblique angle support is provided with the fixed axle, the below of fixed axle is connected with the through-hole, and the below of through-hole is provided with the bottom plate.

Preferably, the solar panel forms a sliding structure through the connecting block and the groove plate, and the outer size of the connecting block is matched with the inner size of the groove plate.

Preferably, be screw connection between fixed block and the dwang, and solar panel passes through to constitute detachable construction between cooperation and the dwang between baffle and the fixed block.

Preferably, the main part passes through to constitute rotating-structure between dwang and the triangle regulation seat, and constitutes screw connection between triangle regulation seat and the dwang.

Preferably, the support rod forms a rotating structure with the triangular adjusting seat through the connecting shaft, and the support rod is connected with the oblique angle bracket through a screw.

Preferably, the supporting rod forms a rotation supporting structure with the rotating rod through the matching between the oblique angle bracket and the fixed shaft, and the oblique angle bracket is connected with the fixed shaft through a bolt.

Compared with the prior art, the beneficial effects of the utility model are as follows:

1. the utility model discloses a setting of separating groove, recess board and connecting block, the top surface of main part is provided with the separating groove, separates the top surface of main part through the separating groove and is convenient for install polylith solar panel and make the power generation bigger, and the recess board is installed to the top both sides and the middle part of main part, and the inside size of recess board is the same with the outside size of the connecting block of solar panel's below fixed, and solar panel carries out the slip block through the connecting block convenient and the recess board of main part top and carries out spacing fixed to solar panel;

2. the utility model discloses a fixed block is installed on the right side of dwang through the setting of fixed block and baffle, and the inside dimension of fixed block is identical with the outside dimension of dwang and is convenient for preceding dwang to carry out the cladding and fix with the screw, and the intermediate position welding of left and right sides fixed block installs the baffle, will protect the solar panel above the main part through the baffle, avoids solar panel and connecting block fracture and thus produce the landing and protect solar panel;

3. the utility model discloses a setting of seat, bracing piece and connecting axle is adjusted to the triangle, and the triangle is adjusted the centre of seat and is carried out the cladding with the outside of bracing piece and be connected the inside that passes the triangle again and adjust seat and bracing piece and fix its connecting axle at the utilization screw, and the inside of connecting axle is provided with the screw thread and passes and recycle behind triangle adjustment seat and the bracing piece the screw installation and advance in the inside screw thread of connecting axle and fix spacingly for the triangle is adjusted the seat and is convenient for rotate through the connecting axle.

Drawings

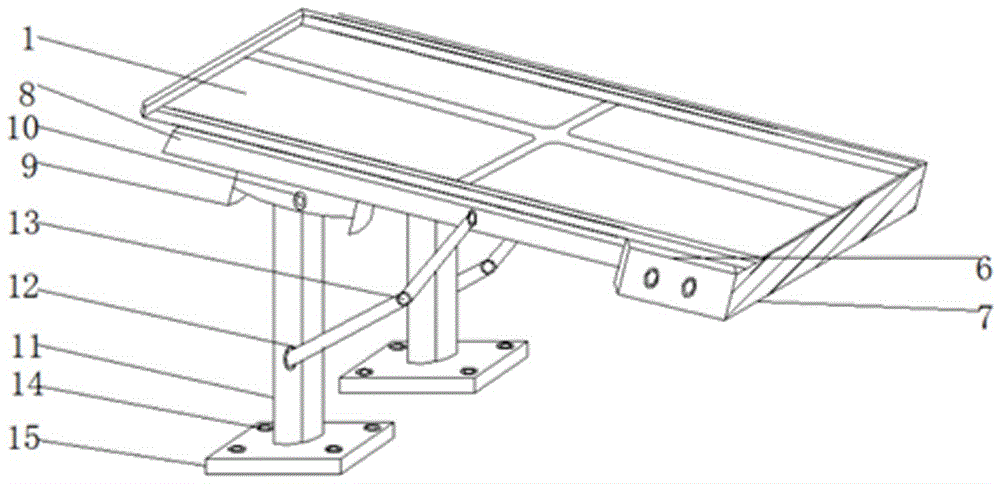

Fig. 1 is a schematic front view of the present invention;

FIG. 2 is a schematic view of the main structure of the present invention;

fig. 3 is the schematic diagram of the internal structure of the groove plate of the present invention.

In the figure: 1. a main body; 2. a separation tank; 3. a groove plate; 4. connecting blocks; 5. a solar panel; 6. a fixed block; 7. a baffle plate; 8. rotating the rod; 9. a triangular adjusting seat; 10. a connecting shaft; 11. a support bar; 12. a bevel bracket; 13. a fixed shaft; 14. a through hole; 15. a base plate.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, the present invention provides a technical solution: a photovoltaic power generation device which is convenient to install stably and has a protection function comprises a main body 1 and a connecting shaft 10, a separation groove 2 is arranged above the main body 1, both sides of the separation groove 2 are connected with groove plates 3, a connecting block 4 is arranged inside the groove plate 3, a solar panel 5 is connected above the connecting block 4, the solar panel 5 forms a sliding structure with the groove plate 3 through the connecting block 4, the external size of the connecting block 4 is matched with the internal size of the groove plate 3, the internal size of the groove plate 3 is the same as the external size of the connecting block 4 fixed below the solar panel 5, the solar panel 5 is convenient to be clamped with the groove plate 3 above the main body 1 in a sliding manner through the connecting block 4 to limit and fix the solar panel 5, a fixing block 6 is arranged on one side of the solar panel 5, a baffle 7 is arranged on the right side of the fixing block 6, and a rotating rod 8 is connected below the baffle 7, and a triangular adjusting seat 9 is arranged below the rotating rod 8, the fixing block 6 is in screw connection with the rotating rod 8, the solar panel 5 forms a detachable structure with the rotating rod 8 through the matching between the baffle plate 7 and the fixing block 6, the baffle plate 7 is welded and arranged at the middle position of the fixing block 6 at the left side and the right side, the solar panel 5 above the main body 1 is protected through the baffle plate 7, the solar panel 5 and the connecting block 4 are prevented from being fractured to slide off to protect the solar panel 5, the main body 1 forms a rotating structure with the triangular adjusting seat 9 through the rotating rod 8, the triangular adjusting seat 9 is in screw connection with the rotating rod 8, threads are arranged in the connecting shaft 10 and penetrate through the triangular adjusting seat 9 and the supporting rod 11, and then the threads are arranged in the connecting shaft 10 through screws to be fixed and limited, so that the triangular adjusting seat, the connecting shaft 10 is arranged below the main body 1, a supporting rod 11 is connected below the connecting shaft 10, an oblique angle bracket 12 is arranged on one side of the supporting rod 11, a fixed shaft 13 is arranged inside the oblique angle bracket 12, the supporting rod 11 forms a rotating structure with the triangular adjusting seat 9 through the connecting shaft 10, the supporting rod 11 is in screw connection with the oblique angle bracket 12, after the rotating rod 8 is connected with the triangular adjusting seat 9 through the connecting shaft 10, the triangular adjusting seat 9 and the supporting rod 11 rotate, the supporting and fixing are carried out through the oblique angle bracket 12 below the supporting rod 11, the supporting is prevented from being unstable in the rotating process, a through hole 14 is connected below the fixed shaft 13, a bottom plate 15 is arranged below the through hole 14, the supporting rod 11 forms a rotating supporting structure with the rotating rod 8 through the matching between the oblique angle bracket 12 and the fixed shaft 13, and the oblique angle bracket 12 is in bolt connection with the fixed shaft 13, the inclination angle of the main body 1 is adjusted through the bevel bracket 12, and after the inclination angle is adjusted to a proper position, the two sections of bevel brackets 12 are installed and fixed by locking screws through the fixing shaft 13.

The working principle is as follows: a solar panel 5 is arranged above a main body 1, a separation groove 2 is arranged on the upper surface of the main body 1, the upper surface of the main body 1 is separated through the separation groove 2 so as to be convenient for installing a plurality of solar panels 5, the power generation power is larger, groove plates 3 are arranged on two sides and the middle part of the upper part of the main body 1, the inner size of each groove plate 3 is the same as the outer size of a connecting block 4 fixed below the solar panel 5, the solar panel 5 is convenient for being in sliding clamping with the groove plate 3 above the main body 1 through the connecting block 4 to limit and fix the solar panel 5, a rotating rod 8 is arranged below the main body 1, a fixing block 6 is arranged on the right side of the rotating rod 8, the inner size of the fixing block 6 is matched with the outer size of the rotating rod 8 so that the front rotating rod 8 can be conveniently coated and fixed by screws, and baffle plates 7 are welded and arranged at the middle positions of the fixing blocks 6 on the left side and the right side, the solar panel 5 above the main body 1 is protected by the baffle 7, the solar panel 5 is prevented from sliding off due to fracture of the solar panel 5 and the connecting block 4, the triangular adjusting seat 9 is installed below the rotating rod 8 through a screw, the middle of the triangular adjusting seat 9 is connected with the outer part of the supporting rod 11 in a coating manner, then the connecting shaft 10 passes through the triangular adjusting seat 9 and the supporting rod 11 and is fixed by the screw, the connecting shaft 10 is fixed by the screw after the connecting shaft 10 passes through the triangular adjusting seat 9 and the supporting rod 11, the connecting shaft 10 is internally provided with threads and is fixed and limited by the screw installed in the threads inside the connecting shaft 10, so that the triangular adjusting seat 9 can be conveniently rotated through the connecting shaft 10, the triangular adjusting seat 9 is rotated through the connecting shaft 10 after being connected with the triangular adjusting seat 9 and the supporting rod 11, and then the oblique angle bracket 12 below the supporting rod 11 is used for supporting and fixing to avoid insufficient stability in the rotating process, the bevel support 12 is divided into two sections which are respectively in screwed connection with the support rod 11 and the rotating rod 8 for fixation, the middle positions of the two sections of bevel supports 12 are fixedly connected through a fixing shaft 13, the inclination angle of the main body 1 is adjusted through the bevel support 12, the fixing shaft 13 is used for locking screws to fixedly mount the two sections of bevel supports 12 after the bevel supports are adjusted to proper positions, a bottom plate 15 is welded and mounted below the support rod 11 and is in contact fixation with the ground, and a through hole 14 is formed in the surface of the bottom plate 15 so as to be convenient for being in screwed connection with the ground to fix the whole equipment.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. A photovoltaic power generation device which is convenient to stably install and has a protection function comprises a main body (1) and a connecting shaft (10), and is characterized in that: the solar cell panel is characterized in that a separation groove (2) is formed in the upper portion of the main body (1), both sides of the separation groove (2) are connected with groove plates (3), a connecting block (4) is arranged inside the groove plates (3), a solar panel (5) is connected above the connecting block (4), a fixing block (6) is arranged on one side of the solar panel (5), a baffle (7) is arranged on the right side of the fixing block (6), a rotating rod (8) is connected below the baffle (7), a triangular adjusting seat (9) is arranged below the rotating rod (8), a connecting shaft (10) is arranged below the main body (1), a supporting rod (11) is connected below the connecting shaft (10), an oblique angle support (12) is arranged on one side of the supporting rod (11), a fixing shaft (13) is arranged inside the oblique angle support (12), a through hole (14) is connected below the fixing shaft (13), and a bottom plate (15) is arranged below the through hole (14).

2. A photovoltaic power generation apparatus with protection function which is easy to install stably according to claim 1, wherein: solar panel (5) constitute sliding construction through between connecting block (4) and recess board (3), and identical between the inside dimension of the outside size of connecting block (4) and recess board (3).

3. A photovoltaic power generation apparatus with protection function which is easy to install stably according to claim 1, wherein: be connected for the screw between fixed block (6) and dwang (8), and constitute detachable construction between cooperation and dwang (8) between solar panel (5) through baffle (7) and fixed block (6).

4. A photovoltaic power generation apparatus with protection function which is easy to install stably according to claim 1, wherein: the main part (1) is adjusted through dwang (8) and triangle and is constituted rotating-structure between seat (9), and triangle is adjusted and is constituted screw connection between seat (9) and dwang (8).

5. A photovoltaic power generation apparatus with protection function which is easy to install stably according to claim 1, wherein: the supporting rod (11) is connected with the triangular adjusting seat (9) through a connecting shaft (10) to form a rotating structure, and the supporting rod (11) is connected with the bevel angle bracket (12) through a screw.

6. A photovoltaic power generation apparatus with protection function which is easy to install stably according to claim 1, wherein: the support rod (11) is matched with the rotating rod (8) through the bevel angle bracket (12) and the fixed shaft (13) to form a rotating support structure, and the bevel angle bracket (12) is connected with the fixed shaft (13) through a bolt.
