Abstract
本实用新型属于染色技术领域，尤其为基于环保的纤维面料染色回收装置，包括处理箱，所述处理箱的一侧设置有进料口，所述进料口的一侧设置有放料辊，所述放料辊的一端设置有支撑腿，所述进料口的另一侧设置有清洗辊，所述清洗辊的一侧设置有第一辊轮，所述处理箱的一端设置有推拉门，所述处理箱的顶部设置有储料箱，所述储料箱的顶部设置有第一输料管，所述储料箱的内部设置有第二输料管。该装置通过收集箱可以将喷洒过多的染料进行收集储藏，同时通过第四输料管将染料进行回流，从而使得这些染料能够重新使用，极大节约了成本，同时喷洒染料产生的有害气体会被风箱抽取至过滤盒内从而进行过滤，使得这些气体在排放时不会对环境造成污染。
The utility model belongs to the technical field of dyeing, in particular to an environmentally friendly fiber fabric dyeing and recycling device, comprising a processing box, one side of the processing box is provided with a feeding port, and one side of the feeding port is provided with a feeding roller, One end of the feeding roller is provided with a support leg, the other side of the feeding port is provided with a cleaning roller, one side of the cleaning roller is provided with a first roller, and one end of the processing box is provided with a sliding door , the top of the processing box is provided with a material storage box, the top of the material storage box is provided with a first material conveying pipe, and the inside of the material storage box is provided with a second material conveying pipe. The device can collect and store the excessively sprayed dyes through the collection box, and at the same time return the dyes through the fourth conveying pipe, so that these dyes can be reused, which greatly saves the cost. It is drawn into the filter box by the bellows for filtering, so that these gases will not pollute the environment when they are discharged.
Description
Technical Field
The utility model belongs to the technical field of the dyeing, concretely relates to fiber fabric dyeing recovery unit based on environmental protection.
Background
Dyeing, i.e. coloring, also known as coloring, refers to the coloring of a substance by chemically or otherwise affecting the substance itself. Under the condition that the technology allows, the object can present various colors required by people through dyeing, and people live in different colors. The dyeing method is available from old times and is continuously developed.
The fibre surface fabric has many good weaving properties and wearability, and the usage is extensive, presents bright-coloured colour after dyeing to convenient follow-up production is used, and current fibre surface fabric dyeing apparatus often directly discharges the unnecessary dyestuff after dyeing, makes manufacturing cost increase, and the harmful gas that produces when spraying the dyestuff simultaneously can not be fine filter, makes these gases can cause the pollution to the environment when discharging out.
SUMMERY OF THE UTILITY MODEL
To solve the problems set forth in the background art described above. The utility model provides a fibre surface fabric dyeing recovery unit based on environmental protection has solved current fibre surface fabric dyeing unit and often can not retrieve spraying unnecessary dyestuff, and the harmful gas who produces when can not spraying the dyestuff simultaneously handles for cause the problem of pollution to the environment after these gas emission.
In order to achieve the above object, the utility model provides a following technical scheme: the environment-friendly fiber fabric dyeing and recycling device comprises a processing box, wherein a feeding hole is formed in one side of the processing box, an emptying roller is arranged on one side of the feeding hole, supporting legs are arranged at one end of the emptying roller, a cleaning roller is arranged on the other side of the feeding hole, a first roller wheel is arranged on one side of the cleaning roller, a sliding door is arranged at one end of the processing box, a storage box is arranged at the top of the processing box, a first conveying pipeline is arranged at the top of the storage box, a second conveying pipeline is arranged inside the storage box, a first conveying pump is arranged on the surface of the second conveying pipeline, a first spraying disc is connected to one end of the second conveying pipeline, a second roller wheel is arranged on one side of the first spraying disc, an extruding roller is arranged on one side of the second roller wheel, a third roller wheel is arranged on one side of the extruding roller, and a first electric heating box is arranged on the top of the inner wall of the processing box, the inside of first electrical heating box is provided with the second exhaust fan, one side of second exhaust fan is provided with first electric heating board.
Preferably, the one end of storage case is connected with the third conveying pipeline, the surface of third conveying pipeline is provided with the second conveying pump, the one end of third conveying pipeline is connected with the second and sprays the dish, the surface that the second sprayed the dish is provided with the absorption sponge.
Preferably, a fourth roller is arranged below the first electric heating box, a second electric heating box is arranged below the fourth roller, and a second electric heating plate is arranged at one end of the second electric heating box.
Preferably, one side of first electrical heating box is provided with bellows, the one end of bellows is provided with the wind gap, the inside of bellows is provided with first turbofan, one side of first turbofan is provided with the gas-supply pipe, the one end of gas-supply pipe is connected with the filter box, the inside of filter box is provided with the deodorization net, the top of deodorization net is provided with the filter screen.
Preferably, the bottom of the inner wall of the treatment box is provided with a collection box, one end of the collection box is provided with a fourth material conveying pipe, the surface of the fourth material conveying pipe is provided with a third material conveying pump, and one end of the fourth material conveying pipe is connected with the material storage box.
Preferably, the opposite side of handling the case is provided with the discharge gate, one side of discharge gate is provided with receives the material roller, the one end threaded connection who receives the material roller has the motor, one side of receiving the material roller is provided with the support frame.
Compared with the prior art, the beneficial effects of the utility model are that:
the device can collect the storage with spraying too much dyestuff through the collecting box, simultaneously carry out the backward flow with the dyestuff through the fourth conveying pipeline, thereby make these dyestuffs can reuse, greatly practice thrift the cost, thereby the harmful gas that sprays the dyestuff simultaneously and produce can be extracted to filtering in the box by bellows and filter, make these gases can not cause the pollution to the environment when discharging, effectively solved current fiber fabric dyeing apparatus often can not retrieve spraying unnecessary dyestuff, the harmful gas that produces when can not spraying the dyestuff simultaneously handles, make these gas emission after cause the problem of pollution to the environment.
Drawings
The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention. In the drawings:

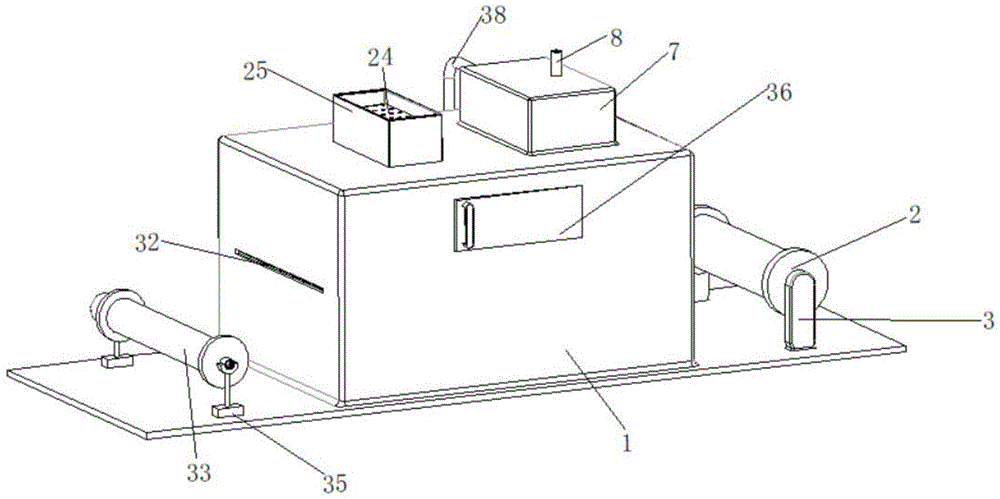

fig. 1 is a first perspective view of the present invention;
fig. 2 is a second perspective view of the present invention;
fig. 3 is a cross-sectional view of the present invention;
fig. 4 is an enlarged view of a portion a in fig. 3 according to the present invention.
In the figure: 1, a treatment box; 2, a discharging roller; 3, supporting legs; 4, a feeding hole; 5, cleaning the roller; 6 a first roller; 7, a material storage box; 8 a first feed delivery pipe; 9 a second feed delivery pipe; 10 a first feed delivery pump; 11 a first spray tray; 12 a third feed delivery pipe; 13 a second feed delivery pump; 14 a second spray tray; 15 adsorbing the sponge; 16 a second roller; 17 a squeeze roll; 18 a third roller; 19 an air box; 20 air ports; 21 a first exhaust fan; 22 a gas delivery pipe; 23, deodorizing net; 24, a filter screen; 25 a filter cartridge; 26 a first electrically heated cartridge; 27 a second exhaust fan; 28 a first electrical heating plate; 29 a second electrically heated cartridge; 30 a second electrical heating plate; 31 a fourth roller; 32 a discharge hole; 33, a material receiving roller; 34 a motor; 35 a support frame; 36 sliding doors; 37 a collection box; 38 a fourth feed conveyor pipe; 39 a third feed pump.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides the following technical solutions: the environment-friendly fiber fabric dyeing and recycling device comprises a processing box 1, wherein a feed inlet 4 is formed in one side of the processing box 1, a discharging roller 2 is arranged on one side of the feed inlet 4, a supporting leg 3 is arranged at one end of the discharging roller 2, a cleaning roller 5 is arranged on the other side of the feed inlet 4, the cleaning roller 5 can effectively clean dust on the surface of cloth, so that the cloth can be dyed more conveniently, a first roller 6 is arranged on one side of the cleaning roller 5, a sliding door 36 is arranged at one end of the processing box 1, a storage box 7 is arranged at the top of the processing box 1, a first conveying pipe 8 is arranged at the top of the storage box 7, a second conveying pipe 9 is arranged inside the storage box 7, a first conveying pump 10 is arranged on the surface of the second conveying pipe 9, one end of the second conveying pipe 9 is connected with a first spraying disc 11, a second roller 16 is arranged on one side of the first spraying disc 11, and an extrusion roller 17 is arranged on one side of the second roller 16, squeeze roll 17 can extrude the cloth after the dyeing for unnecessary dyestuff can be extruded out and fall into collection box 37 and flow back and reuse on the cloth, and one side of squeeze roll 17 is provided with third gyro wheel 18, and the top of handling the incasement 1 inner wall is provided with first electric heating box 26, and the inside of first electric heating box 26 is provided with second exhaust fan 27, and one side of second exhaust fan 27 is provided with first electric heating board 28.
Specifically, the one end of storage case 7 is connected with third conveying pipeline 12, the surface of third conveying pipeline 12 is provided with second conveying pump 13, the one end of third conveying pipeline 12 is connected with second spray tray 14, the surface of second spray tray 14 is provided with adsorbs sponge 15, can effectively adsorb the dyestuff that second spray tray 14 sprayed through adsorbing sponge 15, make can print the cloth bottom through adsorbing sponge 15 when saving the dyestuff, thereby dye the cloth bottom.
Specifically, the below of first electrical heating box 26 is provided with fourth gyro wheel 31, and the below of fourth gyro wheel 31 is provided with second electrical heating box 29, and the one end of second electrical heating box 29 is provided with second electrical heating board 30, can effectively carry out drying process to the cloth after the dyeing through both sides heating box for thereby the cloth can rapid draing carry to receiving material roller 33 department and collect.
Specifically, one side of first electrical heating box 26 is provided with bellows 19, the one end of bellows 19 is provided with wind gap 20, the inside of bellows 19 is provided with first turbofan 21, one side of first turbofan 21 is provided with air pipe 22, the one end of air pipe 22 is connected with filter box 25, can be with the harmful gas extraction to filter box 25 in that produces when dyeing and stoving through bellows 19, filter these gases through filter screen 24 and deodorization net 23 simultaneously, make these gases can reduce the pollution to all ring edge borders by a wide margin when discharging, filter box 25's inside is provided with deodorization net 23, deodorization net 23's top is provided with filter screen 24.
Specifically, the bottom of the inner wall of the treatment box 1 is provided with a collection box 37, the collection box 37 can collect dyes sprayed too much, and meanwhile, the fourth material conveying pipe 38 can enable the dyes to flow back for reuse, so that the production cost can be effectively reduced, one end of the collection box 37 is provided with the fourth material conveying pipe 38, the surface of the fourth material conveying pipe 38 is provided with a third material conveying pump 39, and one end of the fourth material conveying pipe 38 is connected with the storage box 7.
Specifically, the opposite side of handling case 1 is provided with discharge gate 32, and one side of discharge gate 32 is provided with receipts material roller 33, drives through motor 34 and receives material roller 33 function for the cloth can the efficiency dyeing process, has improved the efficiency of cloth production, and the one end threaded connection who receives material roller 33 has motor 34, and one side of receiving material roller 33 is provided with support frame 35.
The utility model discloses a theory of operation and use flow: after the utility model is installed, the cloth is placed on the discharging roller 2, the cloth is pulled to the material receiving roller 33 from the inside of the processing box 1 through the sliding door 36, the motor 34 at one side of the material receiving roller 33 is started to drive the cloth to reach the discharge port 32 from the feed port 4, the cloth reaches the lower part of the first spraying disc 11 after being cleaned by the cleaning roller 5, the dye liquor is conveyed to the spraying trays at the upper side and the lower side through the material conveying pipe, so that the cloth can be uniformly colored, the excessively sprayed dye can fall into the collecting box 37 at the bottom, the dye is returned and reused through the fourth material conveying pipe 38, after the dye is sprayed, the redundant dye is extruded through the extrusion roller 17, meanwhile, the cloth reaches the heating part along with the guidance of the second roller 16 and the third roller 18, the generated waste gas is extracted into the filter box 25 through the air box 19 for filtering, and the dried cloth is transported to the material collecting roller 33 for storage.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (6)
