Abstract
本实用新型公开了一种具有新型拉链结构的全封闭多功能医用防护服及其穿戴方法，涉及防护服技术领域。本发明包括防护服本体，防护服本体包括防护上衣前片、防护帽、防护袖、防护手套、拼接腰带、防护裤前片、防护脚套、分割式防护上衣后片、防护裤后片；所述分割式防护上衣后片和防护裤后片通过三向拉链连接；所述三向拉链的三个拉头为五边形，顶角为120°；所述五边形拉头上有部件A，部件B和部件C，所述医用防护服的拉头附近有与部件B平行的固定座，所述固定座上有凸槽和按钮，所述部件C底端有凹槽，可与固定座上的凸槽卡在一起，防止拉头滑移。本发明采用三向拉链结构、五边形拉头和拉头固定装置来提高医用防护服的穿脱方便性和封闭性。
The utility model discloses a fully enclosed multifunctional medical protective suit with a novel zipper structure and a wearing method thereof, and relates to the technical field of protective clothing. The invention includes a protective clothing body, the protective clothing body includes a front piece of a protective jacket, a protective cap, a protective sleeve, a protective glove, a spliced belt, a front piece of protective pants, a protective foot cover, a split protective jacket back piece, and a protective pants back piece; The back piece of the split protective jacket and the back piece of the protective pants are connected by a three-way zipper; the three sliders of the three-way zipper are pentagonal, and the apex angle is 120°; the pentagonal slider is provided with a component A , Part B and Part C, there is a fixing seat parallel to the part B near the slider of the medical protective clothing, the fixing seat has a convex groove and a button, and the bottom end of the part C has a groove, which can be connected with the fixing seat The grooves on the top snap together to prevent the slider from slipping. The invention adopts a three-way zipper structure, a pentagonal slider and a slider fixing device to improve the convenience of wearing and taking off and the sealing of the medical protective clothing.
Description
Technical Field
The utility model relates to a medical protective clothing field, in particular to totally closed multi-functional medical protective clothing with novel zip fastener structure.
Background
Medical protective clothing is one kind of protective clothing used by medical staff and especially for the patient sensitive to bacteria. From the perspective of wearing and comfort of the protective clothing, due to the non-integration of the protective cap, the protective mask and the mask, the face of the medical staff can be tightened to form deep marks when wearing the mask for a long time; when the medical protective clothing is put on and taken off, the front part zipper needs to be unzipped, the edges are curled from top to bottom, and the time and the labor are wasted. Due to the limitation of comfortable air permeability of the garment structure and the fabric and the lack of a ventilation device, medical personnel can feel stuffy and uncomfortable when wearing the protective garment for a long time. From the analysis of the aspects of sealing performance, antibiosis and antivirus, most of protective clothing gloves, foot covers and clothing bodies are not integrated, so that the protective clothing cannot completely isolate germs and viruses. In addition, medical personnel need use pen, cotton swab, intercom repeatedly during the work, nevertheless because of wearing thick protective clothing, does not have the pocket and can adorn the thing, will walk between ward and nurse station. Therefore, the patent application provides a totally-enclosed multifunctional medical protective garment with a novel zipper structure.
Disclosure of Invention
An object of the utility model is to provide a totally closed multi-functional medical protective clothing with novel zip fastener structure to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme does:
a totally-enclosed multifunctional medical protective garment with a novel zipper structure comprises a protective garment body, wherein the protective garment body comprises a protective hat, a protective coat, protective trousers, protective sleeves, protective gloves, protective foot covers, a splicing waistband and a three-way zipper; a sticker is fixedly arranged on the left side of the front piece of the protective coat, and an air inlet device is arranged on the right side of the front piece of the protective coat; the lower edge of the protective hat is connected with the protective coat, and the front side of the protective hat is connected with a protective eyeshade and a protective mask; the protective sleeve is a loose one-piece sleeve; a 5cm waistband is spliced between the protective trousers and the protective coat, and a material bag is fixed on the protective waistband; exhaust nozzles are symmetrically arranged on the protective sleeves and the protective trousers; the protective gloves and the protective sleeves, the protective foot sleeves and the protective trousers are connected through waterproof magic tapes; the back of the protective clothing is provided with a three-way zipper; the outer layer of the zipper is wrapped with an anti-virus fabric; the three sliders of the three-way zipper are pentagonal, the vertex angle is 120 degrees, the pentagonal sliders are provided with a component A, a component B and a component C, a fixed seat parallel to the component B is arranged near the sliders, a convex groove and a button are arranged on the fixed seat, the bottom end of the component C is provided with a groove, and the groove in the component C can be clamped with the convex groove in the fixed seat.
Preferably, black buttons are arranged at two ends of the fixed seat on the back of the protective clothing body, and the convex groove in the fixed seat can be retracted into the fixed seat when the buttons are pressed, so that the component C on the pull head is separated from the fixed seat.
Preferably, the joint of the protective eyeshade and the protective cap is bonded by a water-based polyurethane adhesive; the protective mask is connected with the protective cap through the waterproof magic tape, so that the protective mask is convenient to replace; the integration of the protective cap, the protective eye cover and the mask avoids the face discomfort caused by the fact that medical care personnel wear the mask for long time work.
Preferably, the overlapping amount of the protective sleeves and the protective gloves is 10cm, and the overlapping amount of the protective trousers and the protective foot sleeves is 15 cm.
The utility model discloses following beneficial effect has:
the three-way zipper structure is convenient for medical staff to quickly put on and take off the protective clothing; the three pentagonal vertex angles of the three-way zipper are 120 degrees, and after the zipper is pulled up, the three sliders can be tightly connected, so that the pores are reduced. Pressing the component C on the pull head from top to bottom along the fixing seat, wherein the convex groove on the fixing seat is clamped with the concave groove on the component C, so that the pull head is prevented from sliding, and viruses are prevented from entering the protective clothing body.
The totally closed performance and all sewing forms of the protective clothing adopt mutually buckled occlusal seams and then adopt adhesive tapes for heat sealing, and the waterproof magic tape design among the protective sleeves, the protective gloves, the protective trousers and the protective foot sleeves can effectively isolate viruses.
The air inlet device and the exhaust holes of the protective clothing can improve the comfortable air permeability of the protective clothing when being worn; be fixed with the material package on the protective clothing concatenation waistband, make things convenient for medical personnel to carry commonly used gadget.
Drawings
The invention will be described in further detail with reference to the accompanying drawings:

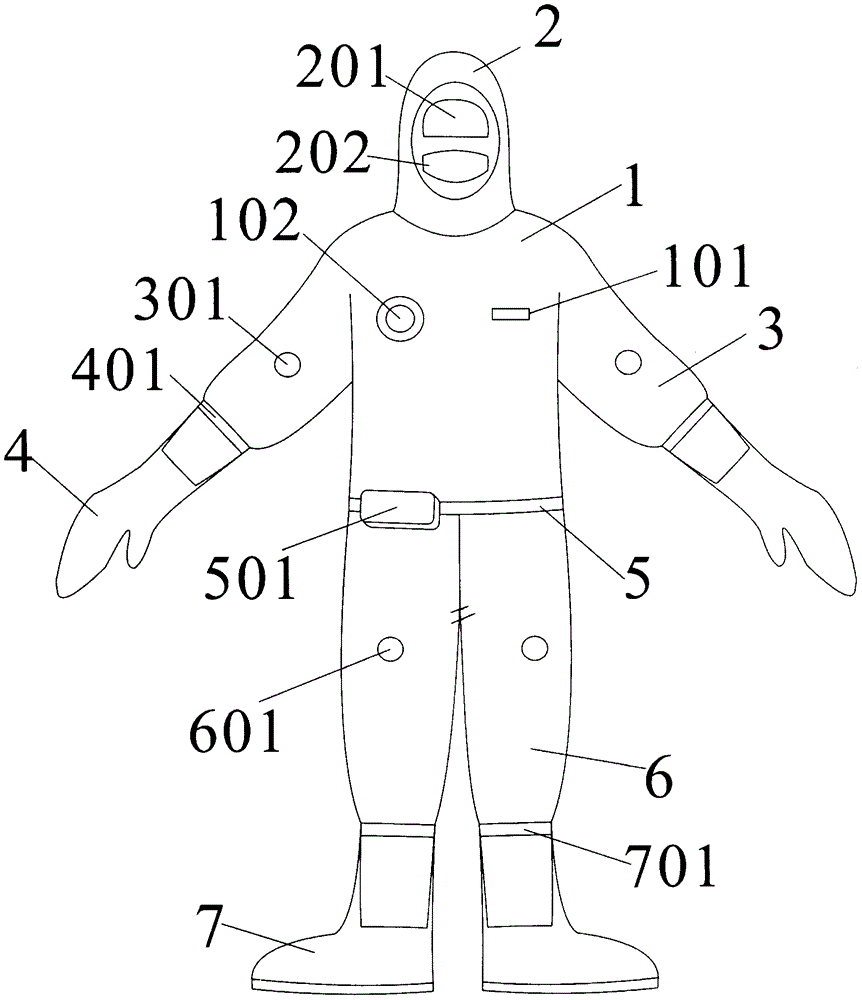

FIG. 1 is a front view of the present invention
FIG. 2 is a schematic view of the back of the present invention
FIG. 3 is a top view of the slider of the three-way slide fastener of the present invention
FIG. 4 is a partial schematic view of the three-way zipper head of the present invention
FIG. 5 is a schematic view of the contact surface between the slider member and the fixing base of the present invention
In the figure: 1-protective jacket front piece; 101-sticking a card; 102-air intake means; 2-protective cap; 201-protective eye cover; 202-protective mask; 3-protective sleeves; 301-exhaust hole; 4-protective gloves; 401-waterproof magic tape; 5, splicing the waistband; 501-material bag; 6-protective pant front pieces; 601-exhaust hole; 7-protective foot covers; 701-waterproof magic tape; 8-a rear piece of the split protective jacket; 9-protective trousers back piece; 10-three-way zipper; 11-a slider; 111-part a; 112-part B; 12-component C; 121-grooves; 13-a fixed seat; 131-a tongue; 132-black button; 14-anti-virus fabric.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1 and fig. 2, the present invention provides a technical solution: a totally-enclosed multifunctional medical protective garment with a novel zipper structure comprises a protective upper garment front piece 1, a protective cap 2, a protective sleeve 3, a splicing waistband 5 and a split protective upper garment rear piece 8, wherein a protective trousers front piece 6 is sewn with the splicing waistband 5, all sewing forms adopt mutually-buckled occlusal seams, and then adhesive tape heat sealing is adopted.
The wearing method of the protective gloves 4 comprises the following steps: wearing the protective clothing, wearing gloves, and sticking the waterproof magic tape; the protective foot covers 7 are worn in a manner similar to protective gloves.
Referring to fig. 2, 3, 4 and 5, in the three-way zipper 10 on the back of the protective suit, the vertical direction starts from the intersection point of the back center line and the waist line and ends at the top end of the protective cap 2. The other two directions start from the intersection point of the back central line and the waist line to the lower end of the protective trousers back piece 9. When the protective clothing is put on or taken off, the black buttons 132 at the two ends of the fixed seat 13 are pressed by fingers, the groove 121 on the component C is separated from the convex groove 131 on the fixed seat 13, and then the zipper can be unzipped. The utility model provides a totally closed multi-functional medical protective clothing with novel zip fastener structure designs medical protective clothing in the aspect of wearing convenience, hot and humid travelling comfort, closure.
The foregoing shows and describes the general principles, essential features, and advantages of the invention. It will be understood by those skilled in the art that the present invention is not limited to the above embodiments, and that the foregoing embodiments and descriptions are provided only to illustrate the principles of the present invention without departing from the spirit and scope of the present invention. The scope of the invention is defined by the appended claims and equivalents thereof.
Claims (2)
1. The utility model provides a totally closed multi-functional medical protective clothing with novel zip fastener structure, includes the protective clothing body, the protective clothing body includes protective clothing anter (1), helmet (2), protective sleeve (3), protective gloves (4), concatenation waistband (5), protective trousers anter (6), protection podotheca (7), disconnect-type protective clothing back part (8), protective trousers back part (9), there are eyeshield (201) and protective facial mask (202) on protective clothing (2), its characterized in that:
the split type protective coat back piece (8) is connected with the protective trousers back piece (9) through a three-way zipper (10);
wherein, the outer layer of the three-way zipper (10) is wrapped with an anti-virus fabric (14); three sliders (11) of the three-way zipper (10) are pentagonal, the vertex angle is 120 degrees, and gaps among the three sliders can be fully reduced; the three sliders (11) are respectively provided with a component A (111), a component B (112) and a component C (12), a fixed seat (13) parallel to the component B (112) is arranged near the sliders (11), a convex groove (131) and a black button (132) are arranged on the fixed seat (13), and a groove (121) is arranged at the bottom end of each component C (12) and is clamped with the convex groove (131) to prevent the sliders from sliding.
2. The fully-closed multifunctional medical protective clothing with the novel zipper structure as claimed in claim 1, is characterized in that: the three-way zipper (10) is vertically started from the intersection point of the rear central line and the waist line to the top end of the protective cap (2), and the other two directions are started from the intersection point of the rear central line and the waist line to the lower end of the protective trousers rear piece (9); when the protective clothing is put on or taken off, black buttons (132) at two ends of the fixed seat (13) are pressed by fingers, and the groove (121) on the component C (12) is separated from the convex groove (131) on the fixed seat (13), so that the zipper can be unzipped.
