本实用新型公开了一种水肥一体化加肥装置，涉及农业种植技术领域。本实用新型包括搅拌桶、底座和喷管，底座的底部通过轮轴转动连接有行走轮，底座顶部固定连接有扶推，扶推前侧的底座的顶部固定连接有搅拌桶，搅拌桶的顶部固定连接有电机，搅拌桶前侧的底座上固定连接有电源箱，电源箱的顶部固定连接有增压泵，增压泵的进水端通过连接管与搅拌桶的内部连接，电源箱前侧的底座的顶部固定连接有立柱，立柱的两侧对称活动连接有喷管。本实用新型通过电机带动搅拌轴和搅拌叶转动，能够将搅拌桶内部的肥料和水自动的混合搅拌，通过增压泵能够将搅拌桶内混合后的肥料输送至喷管处，并通过多个喷头喷出，能够提高加肥装置的加肥效率。
The utility model discloses an integrated fertilizer adding device of water and fertilizer, which relates to the technical field of agricultural planting. The utility model comprises a mixing bucket, a base and a nozzle, the bottom of the base is rotatably connected with a walking wheel, the top of the base is fixedly connected with a pusher, the top of the base on the front side of the pusher is fixedly connected with a mixing bucket, and the top of the mixing bucket is fixed A motor is connected, a power supply box is fixedly connected to the base of the front side of the mixing bucket, a booster pump is fixedly connected to the top of the power supply box, and the water inlet end of the booster pump is connected to the interior of the mixing bucket through a connecting pipe. The top of the base is fixedly connected with a column, and two sides of the column are symmetrically and movably connected with a nozzle. The utility model drives the stirring shaft and the stirring blade to rotate by the motor, and can automatically mix and stir the fertilizer and water in the stirring tank, and the fertilizer mixed in the stirring tank can be transported to the nozzle through the booster pump, The nozzle sprays out, which can improve the fertilizer efficiency of the fertilizer device.
Description
Technical Field
The utility model belongs to the technical field of farming, especially, relate to a liquid manure integration adds fertile device.
Background
Agriculture is an industry for obtaining products by artificial cultivation by utilizing growth and development rules of animals and plants. Agriculture belongs to the first industry, and the science for researching agriculture is agriculture. The agricultural working object is living animals and plants, and the obtained products are the animals and plants. Agriculture is a fundamental industry for supporting national economic construction and development. Need utilize at the farming in-process and add fertile device and add fertile to crops, current fertile device that adds has following not enough:
1. the fertilizer device is added in current liquid manure integration when adding fertile, need can spray through the manual stirring with water and chemical fertilizer after, consuming time and wasting power.
2. The existing liquid manure integrated fertilizer adding device is only provided with one or two spray heads, and in the fertilizer adding process, the spray heads need to swing back and forth manually, so that the time and the labor are consumed, and the spraying efficiency is low.
There is therefore a great need in the market for improved techniques to solve the above problems.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a liquid manure integration adds fertile device, drive (mixing) shaft and stirring leaf through the motor and rotate, can carry the fertilizer after mixing in the agitator to spray tube department with the automatic mixing stirring of water through the booster pump, and through a plurality of shower nozzles blowout, can improve the fertile efficiency that adds of adding fertile device, solved current liquid manure integration and added fertile device and can't be to fertilizer and water automatic mixing stirring, and add fertile device and add the problem that fertile inefficiency.
In order to solve the technical problem, the utility model discloses a realize through following technical scheme:
the utility model relates to a liquid manure integration adds fertile device, including agitator, base and spray tube, the bottom of base is connected with the walking wheel through the shaft rotation, base top fixedly connected with holds up to push away, hold up the top fixedly connected with agitator that pushes away the base of front side, the top fixedly connected with motor of agitator, fixedly connected with power supply box on the base of agitator front side, the top fixedly connected with booster pump of power supply box, the end of intaking of booster pump passes through the internal connection of connecting pipe with the agitator, the play water end of booster pump cup joints and is fixed with the three-way pipe, the top fixedly connected with stand of the base of power supply box front side, the bilateral symmetry swing joint of stand has the spray tube.
Further, the top of the agitator of motor one side is provided with the charge door, the output shaft of motor passes through shaft coupling fixedly connected with (mixing) shaft, and the lateral wall of (mixing) shaft goes up horizontal fixedly connected with stirring leaf, drives (mixing) shaft and stirring leaf through the motor and rotates, can carry out automatic stirring to the inside water of agitator and chemical fertilizer, reduces user's labour.
Further, the motor passes through wire and the inside power electric connection of power supply box, the booster pump passes through wire and the inside power electric connection of power supply box, and the power can provide the power to motor and booster pump, can control opening and closing of motor and booster pump simultaneously.
Further, the bilateral symmetry fixedly connected with arc card on stand upper portion, the tail end of spray tube rotates to be connected on the fixed rotatory support of stand bilateral symmetry, through rotatory support and arc card, can add fertile after, with the spray tube vertical fixed, is convenient for put with fertile device.
Further, the bilateral symmetry fixedly connected with support piece of the stand of rotatory support below, the spray tube of stand both sides level respectively places on the support piece of stand both sides, through support piece, can make the spray tube level place, sprays to crops and adds fertile.
Further, the one end and the inboard bottom intercommunication of agitator of connecting pipe, the afterbody of spray tube all is provided with the branch pipe, the three-way pipe is intake the end and is held fixed connection with the play water end of booster pump, two play water ends of three-way pipe are respectively through hose and two branch pipe fixed connection on the spray tube, fixedly connected with shower nozzle on the lateral wall of spray tube, and the shower nozzle is linear array along the spray tube and distributes, carries to the shower nozzle after pressurizing the waste material of agitator inside through the booster pump, can spray crops through a plurality of shower nozzles.
The utility model discloses following beneficial effect has:
1. the utility model discloses a set up agitator and motor, when adding fertile, through pouring into the agitator with fertilizer and water from feed inlet department, drive the (mixing) shaft and stir the leaf rotation through the motor, can mix the stirring to the inside water of agitator and fertilizer, make the realization that fertilizer can be automatic mix, avoid the manual inconvenience of bringing the fertilizer stirring of manual work, reduce user of service's labour, can make more even of fertilizer stirring simultaneously, it needs manual fertilizer to mix to have solved current liquid manure integration and added fertile device, problem consuming time and power.
2. The utility model discloses a set up the booster pump, stand and spray tube, during the use, expand the spray tube level and place on support piece, can carry the fertilizer high pressure after the inside mixture of agitator to the spray tube through the booster pump, and spout simultaneously through a plurality of shower nozzles on the spray tube, carry out the large tracts of land automation to crops and spray and add fertile, can effectual improvement add fertile efficiency of device, reduce user of service's labour, after adding fertile, through upwards overturning the spray tube and blocking on the arc card, make the spray tube vertical placing, can be convenient for deposit adding fertile device, the problem of current liquid manure integration with fertile inefficiency of device has been solved.
Of course, it is not necessary for any particular product to achieve all of the above-described advantages at the same time.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings used in the description of the embodiments will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art that other drawings can be obtained according to these drawings without creative efforts.

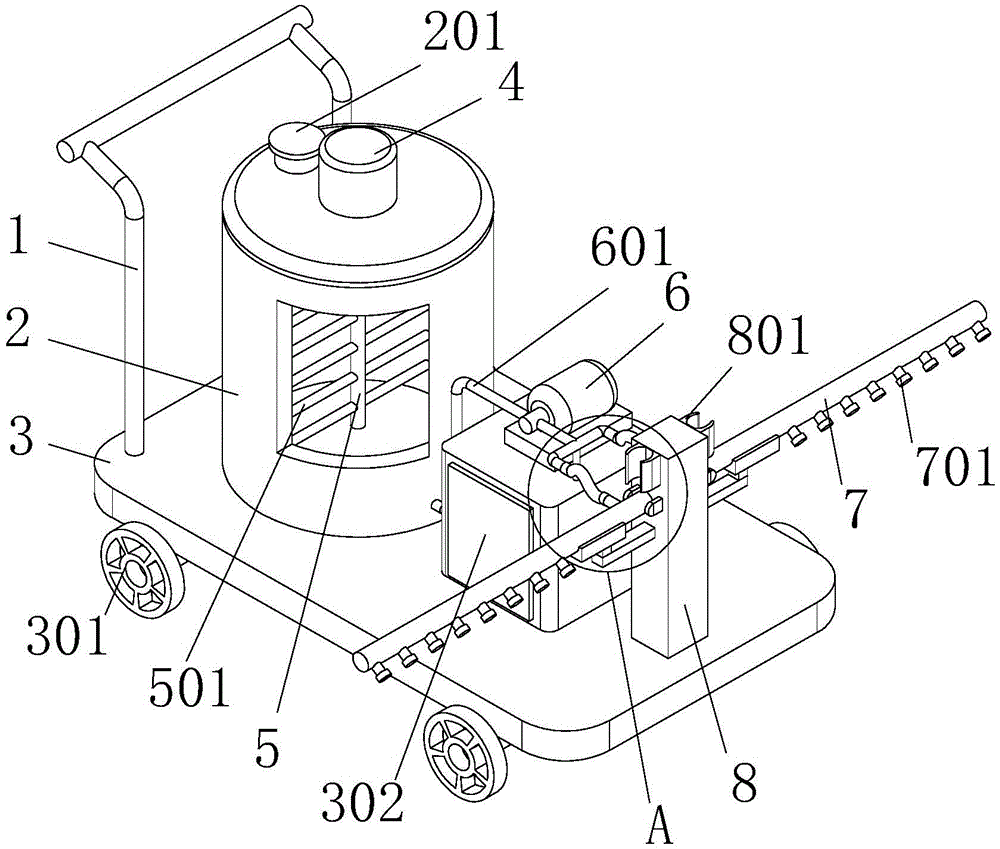

FIG. 1 is a view showing the structure of the middle nozzle of the present invention when it is deployed;
FIG. 2 is a structural diagram of the middle nozzle of the present invention when it is retracted;
FIG. 3 is an enlarged view of the structure A of FIG. 1 according to the present invention;
fig. 4 is an enlarged view of the structure B in fig. 2 according to the present invention.
In the drawings, the components represented by the respective reference numerals are listed below:
1. supporting and pushing; 2. a stirring barrel; 201. a feed inlet; 3. a base; 301. a traveling wheel; 302. a power supply box; 4. a motor; 5. a stirring shaft; 501. stirring blades; 6. a booster pump; 601. a connecting pipe; 602. a three-way pipe; 7. a nozzle; 701. a spray head; 702. a branch pipe; 8. a column; 801. an arc-shaped card; 802. rotating the support; 803. a support member; 9. a hose.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments of the present invention, all other embodiments obtained by a person of ordinary skill in the art without creative efforts belong to the protection scope of the present invention.
Referring to fig. 1-4, the utility model relates to a liquid manure integration fertilizer adding device, which comprises a mixing tank 2, a base 3 and a spray pipe 7, wherein the bottom of the base 3 is connected with a walking wheel 301 through a wheel shaft, the top of the base 3 is fixedly connected with a holding and pushing device 1, when in use, the holding and pushing device 1 is pushed manually, the walking wheel 301 is utilized to move the liquid manure integration fertilizer adding device, the top of the base 3 at the front side of the holding and pushing device 1 is fixedly connected with the mixing tank 2, the top of the mixing tank 2 is fixedly connected with a motor 4, the model of the motor 4 is IHSS57-36-20, which is a common model on the market and is not described too much, the top of the mixing tank 2 at one side of the motor 4 is provided with a feed inlet 201, the output shaft of the motor 4 is fixedly connected with a mixing shaft 5 through a coupling, and a mixing blade 501 is fixedly connected horizontally on the side wall of the mixing shaft 5, fertilizer and water are added into the stirring barrel 2 from the feed inlet 201, the motor 4 is started, the motor 4 rotates to drive the stirring shaft 5 to rotate, the stirring shaft 5 rotates to drive the stirring blade 501 to rotate, the fertilizer and water in the stirring barrel 2 are mixed and stirred, a power supply box 302 is fixedly connected on a base 3 at the front side of the stirring barrel 2, a motor 4 is electrically connected with a power supply in the power supply box 302 through a lead, a booster pump 6 is fixedly connected at the top of the power supply box 302, the booster pump 6 is electrically connected with the power supply in the power supply box 302 through a lead, the model of the booster pump 6 is 15TDB-50 which is a common model in the market, not described more, the water inlet end of the booster pump 6 is connected with the inside of the mixing tank 2 through a connecting pipe 601, the water outlet end of the booster pump 6 is fixedly sleeved with a three-way pipe 602, the top of the base 3 at the front side of the power box 302 is fixedly connected with a stand column 8, and two sides of the stand column 8 are symmetrically and movably connected with spray pipes 7.
Wherein, as shown in fig. 1-4, the two sides of the upper part of the upright post 8 are symmetrically and fixedly connected with an arc-shaped clamp 801, the tail end of the spray pipe 7 is rotatably connected with a rotary support 802 symmetrically fixed on the two sides of the upright post 8, the two sides of the upright post 8 below the rotary support 802 are symmetrically and fixedly connected with a support 803, the spray pipes 7 on the two sides of the upright post 8 are respectively and horizontally placed on the support 803 on the two sides of the upright post 8, when fertilizing, the spray pipe 7 is taken down from the arc-shaped clamps 801 on the two sides of the upright post 8 and rotates around the rotary support 802, the spray pipe 7 is placed on the support 803, as shown in fig. 1, one end of the connecting pipe 601 is communicated with the bottom of the inner side of the stirring barrel 2, the tail part of the spray pipe 7 is provided with a branch pipe 702, the water inlet end of the three-way pipe 602 is fixedly connected with the water outlet ends of the booster pump 6, the two water outlet ends of the three-way pipe 602 are respectively fixedly connected with the branch pipes 702 on the two spray pipes 7 through the hose 9, the side wall of the spray pipe 7 is fixedly connected with a spray head 701, and shower nozzle 701 is linear array along spray tube 7 and distributes, treat that spray tube 7 is horizontal to be opened the back, start booster pump 6, booster pump 6 carries the fertilizer after mixing in 2 to the three-way pipe 602 of booster pump 6 department through connecting pipe 601, carry fertilizer to spray tube 7 department through hose 9 afterwards, and finally spout through shower nozzle 701, spray crops with fertile, after adding fertile, upwards rotate spray tube 7, block spray tube 7 on arc card 801 again, as shown in fig. 2, can pack up spray tube 7.
In the description herein, references to the description of "one embodiment," "an example," "a specific example," etc., mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the invention. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.
The above is only the preferred embodiment of the present invention, and the present invention is not limited thereto, any technical solution recorded in the foregoing embodiments is modified, and some technical features are replaced by equivalent, all belonging to the protection scope of the present invention.
Claims (6)
1. The utility model provides a fertile device is added to liquid manure integration, includes agitator (2), base (3) and spray tube (7), its characterized in that: the bottom of the base (3) is rotationally connected with a traveling wheel (301) through a wheel shaft, the top of the base (3) is fixedly connected with a supporting push (1), the top of the base (3) at the front side of the supporting push (1) is fixedly connected with a stirring barrel (2), the top of the mixing tank (2) is fixedly connected with a motor (4), a base (3) at the front side of the mixing tank (2) is fixedly connected with a power box (302), the top of the power box (302) is fixedly connected with a booster pump (6), the water inlet end of the booster pump (6) is connected with the inner part of the stirring barrel (2) through a connecting pipe (601), the water outlet end of the booster pump (6) is fixedly sleeved with a three-way pipe (602), the top of the base (3) on the front side of the power box (302) is fixedly connected with a stand column (8), and two sides of the stand column (8) are symmetrically and movably connected with spray pipes (7).
2. The liquid manure integration fertilizer adding device of claim 1, wherein a feed inlet (201) is arranged at the top of the stirring barrel (2) at one side of the motor (4), the output shaft of the motor (4) is fixedly connected with the stirring shaft (5) through a shaft coupler, and the side wall of the stirring shaft (5) is horizontally and fixedly connected with the stirring blade (501).
3. The integrated liquid manure feeding device as claimed in claim 1, wherein the motor (4) is electrically connected with a power supply inside the power supply box (302) through a wire, and the booster pump (6) is electrically connected with the power supply inside the power supply box (302) through a wire.
4. The integrated liquid manure feeding device as claimed in claim 1, wherein the two sides of the upper part of the upright post (8) are symmetrically and fixedly connected with arc-shaped clamps (801), and the tail end of the spray pipe (7) is rotatably connected to rotary supports (802) symmetrically fixed on the two sides of the upright post (8).
5. The liquid manure integration fertilizer adding device of claim 4, wherein the two sides of the upright column (8) below the rotating support (802) are symmetrically and fixedly connected with supporting pieces (803), and the spraying pipes (7) on the two sides of the upright column (8) are respectively and horizontally placed on the supporting pieces (803) on the two sides of the upright column (8).
6. The liquid manure integration fertilizer adding device of claim 1, wherein one end of the connecting pipe (601) is communicated with the bottom of the inner side of the stirring barrel (2), the tail parts of the spray pipes (7) are respectively provided with a branch pipe (702), the water inlet end of the three-way pipe (602) is fixedly connected with the water outlet end of the booster pump (6), the two water outlet ends of the three-way pipe (602) are respectively fixedly connected with the branch pipes (702) on the two spray pipes (7) through hoses (9), the side walls of the spray pipes (7) are fixedly connected with spray heads (701), and the spray heads (701) are distributed along the spray pipes (7) in a linear array.
