Abstract

The utility model discloses a real-time automatic wireless maintenance system for power distribution terminals. and extends to the outside of the distribution box, and an outlet cover is fixedly installed at the output end of the fan. The utility model improves the stability of the installation block by arranging the installation rod for installing and fixing the installation block, and the sliding block and the sliding groove are arranged to cooperate with each other to slide and limit the electric element, thereby improving the stability of the electric element At the same time, it is convenient to install and disassemble the electrical components, and then it is convenient to maintain the electrical components. By setting the fan to introduce the external air into the inside of the distribution box, it solves the problem that the existing distribution box does not have the function of easy maintenance. The maintenance of the distribution box consumes a lot of human resources, the maintenance efficiency is low, and it cannot meet the needs of use.

Description

Real-time automatic wireless maintenance system for power distribution terminal

Technical Field

The utility model relates to a block terminal technical field specifically is a distribution terminal's wireless maintenance system of real-time automation.

Background

The distribution box has the advantages of small volume, simple and convenient installation, special technical performance, fixed position, unique configuration function, no limitation of places, more common application, stable and reliable operation, high space utilization rate, less occupied area and environmental protection effect, is a control center for reasonably distributing electric energy for various components in a power supply line, is a control link for reliably receiving an upper end power supply and correctly feeding out load electric energy, is also a key for acquiring satisfaction of users on power supply quality, improves the operation reliability of the power distribution box, is a target for creating quality engineering, has no function of facilitating maintenance, consumes large manpower resources when maintaining the distribution box, has low maintenance efficiency, and can not meet use requirements.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a real-time automatic wireless maintenance system of distribution terminal possesses the advantage of the maintenance of being convenient for, has solved current block terminal and has not possessed the function of the maintenance of being convenient for, and it is big to consume manpower resources when maintaining the block terminal, and maintenance efficiency is low, can not satisfy user demand's problem.

In order to achieve the above object, the utility model provides a following technical scheme: a real-time automatic wireless maintenance system of a power distribution terminal comprises a distribution box, wherein a fan is fixedly arranged at the bottom of an inner cavity of the distribution box, an input end of the fan penetrates through the left side of the distribution box and extends to the outside of the distribution box, an air outlet cover is fixedly arranged at the output end of the fan, an installation rod is fixedly arranged at the back of the inner cavity of the distribution box, an installation block is fixedly arranged at the front of the installation rod, a sliding groove is formed in the top of the installation block, a sliding block is slidably connected inside the sliding groove, an electric element is fixedly arranged at the top of the sliding block and is positioned at the top of the installation block, uniformly distributed air outlets are formed in the top of the distribution box, the front of the installation block is rotatably connected with a switch door through a second hinge, a spring is fixedly arranged at the back of the switch door, the back of the spring is in contact with the sliding block, and the front of the switch door is rotatably connected with a rotating rod, the front fixed mounting of installation piece has the kelly, the dwang is located the back of kelly.

Preferably, the front of block terminal is connected with sealing door through first hinge rotation, sealing door's front fixed mounting has the handle.

Preferably, the front surface of the sealing door is fixedly provided with an observation window, and the side of the observation window is provided with a sealing glue.

Preferably, the both sides of block terminal bottom all fixed mounting have the landing leg, the bottom fixed mounting of landing leg has the bearing plate.

Preferably, a filtering device is fixedly installed on the left side of the air inlet pipe, and a filtering net is arranged inside the filtering device.

Compared with the prior art, the beneficial effects of the utility model are as follows:

1. the utility model discloses a set up the installation pole and be used for installing and fixing the installation piece, improve the stability of installation piece, through setting up slider and spout and mutually supporting be used for sliding and spacing to electric elements, improve electric elements's stability, be convenient for simultaneously to electric elements install and dismantle, and then be convenient for maintain electric elements, through setting up the fan and being used for leading-in outside air into the inside of block terminal, and then remove dust to the inside of block terminal, through setting up switch door and spring mutually supporting be used for spacing to the slider, prevent the slider from rocking in the inside of spout, cause electric elements's unstability, through setting up dwang and kelly mutually supporting be used for controlling opening and closing of switch door, through setting up the gas vent and being used for discharging the air in the block terminal, solved simultaneously that current block terminal does not possess the function of being convenient for maintenance, when the distribution box is maintained, manpower resources are consumed greatly, the maintenance efficiency is low, and the use requirement cannot be met.

2. The utility model discloses a set up sealing door and be convenient for open and close the block terminal, and then be convenient for maintain the inside device of block terminal, be convenient for observe the inside condition of block terminal at any time through setting up the observation window, be used for installing and fixing the block terminal through setting up the landing leg, improve the stability of block terminal, prevent that block terminal in use from appearing the skew, be used for filtering the inside air of block terminal entering through setting up filter equipment, prevent that impurity in the air from causing the damage to electrical component.

Drawings

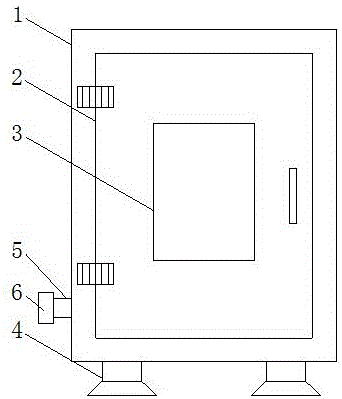

FIG. 1 is a front view of the present invention;

FIG. 2 is a schematic cross-sectional structure of the present invention;

fig. 3 is a front view of the mounting block structure of the present invention.

In the figure: 1. a distribution box; 2. a sealing door; 3. an observation window; 4. a support leg; 5. an air inlet pipe; 6. a filtration device; 7. mounting a rod; 8. mounting blocks; 9. an electrical component; 10. a slider; 11. a chute; 12. a fan; 13. an air outlet cover; 14. opening and closing the door; 15. rotating the rod; 16. a clamping rod; 17. and (7) an exhaust port.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

In the description herein, it is to be understood that the terms "center," "upper," "lower," "front," "rear," "left," "right," "vertical," "horizontal," "top," "bottom," "inner," "outer," and the like are used in the orientations and positional relationships indicated in the drawings to facilitate the description of the patent and to simplify the description, but do not indicate or imply that the referenced device or element must have a particular orientation, be constructed and operated in a particular orientation, and thus are not to be considered limiting of the patent. In the description of the present application, it should be noted that unless otherwise explicitly stated or limited, the terms "mounted," "connected," and "disposed" are to be construed broadly and can, for example, be fixedly connected, disposed, detachably connected, disposed, or integrally connected and disposed. The specific meaning of the above terms in this patent may be understood by those of ordinary skill in the art as appropriate.

Referring to fig. 1-3, a real-time automatic wireless maintenance system of a power distribution terminal comprises a distribution box 1, a fan 12 is fixedly installed at the bottom of an inner cavity of the distribution box 1, an input end of the fan 12 penetrates through the left side of the distribution box 1 and extends to the outside of the distribution box 1, an output end of the fan 12 is fixedly installed with an air outlet cover 13, an installation rod 7 is fixedly installed at the back of the inner cavity of the distribution box 1, an installation block 8 is fixedly installed at the front of the installation rod 7, a sliding groove 11 is formed at the top of the installation block 8, a sliding block 10 is slidably connected inside the sliding groove 11, an electrical element 9 is fixedly installed at the top of the sliding block 10, the electrical element 9 is located at the top of the installation block 8, exhaust ports 17 uniformly distributed are formed at the top of the distribution box 1, a switch door 14 is rotatably connected to the front of the installation block 8 through a second hinge, a spring is fixedly installed at the back of the switch door 14, and the back of the spring contacts with the sliding block 10, the front of the switch door 14 is rotatably connected with a rotating rod 15, the front of the installation block 8 is fixedly provided with a clamping rod 16, the rotating rod 15 is positioned on the back of the clamping rod 16, the installation rod 7 is arranged for installing and fixing the installation block 8, the stability of the installation block 8 is improved, the sliding and limiting of the electrical element 9 are realized by arranging the sliding block 10 and the sliding groove 11 to be matched with each other, the stability of the electrical element 9 is improved, meanwhile, the installation and the disassembly of the electrical element 9 are facilitated, the maintenance of the electrical element 9 is facilitated, the fan 12 is arranged for leading external air into the interior of the distribution box 1 and removing dust from the interior of the distribution box 1, the switch door 14 and the spring are arranged to be matched with each other for limiting the sliding block 10, the sliding block 10 is prevented from shaking in the interior of the sliding groove 11, the electrical element 9 is not stable, and the opening and closing of the switch door 14 are controlled by arranging the rotating rod 15 and the clamping rod 16 to be matched with each other, the air outlet 17 is arranged for discharging air inside the distribution box 1, the front of the distribution box 1 is rotatably connected with a sealing door 2 through a first hinge, the front of the sealing door 2 is fixedly provided with a handle, the distribution box 1 is convenient to open and close through the arrangement of the sealing door 2, and further the device inside the distribution box 1 is convenient to maintain, the front of the sealing door 2 is fixedly provided with an observation window 3, the side of the observation window 3 is provided with sealant, the condition inside the distribution box 1 is convenient to observe at any time through the arrangement of the observation window 3, two sides of the bottom of the distribution box 1 are both fixedly provided with supporting legs 4, the bottom of the supporting legs 4 is fixedly provided with a bearing plate, the supporting legs 4 are used for installing and fixing the distribution box 1, the stability of the distribution box 1 is improved, the distribution box 1 is prevented from deviating in use, the left side of the air inlet pipe 5 is fixedly provided with a filtering device 6, the inside of filter equipment 6 is provided with the filter screen, is used for filtering the inside air that gets into block terminal 1 through setting up filter equipment 6, prevents that the impurity in the air from causing the damage to electrical component 9.

During the use, start fan 12, with the leading-in inside of block terminal 1 of outside air under the effect of fan 12, through the inside that goes out fan housing 13 entering block terminal 1, pass through gas vent 17 with the inside dust of block terminal 1 and discharge, the staff of being convenient for maintains block terminal 1, open sealing door 2 through the handle, rotatory dwang 15 of rethread, break away from the kelly 16 with dwang 15 rotation, open switch door 14, be convenient for dismantle electrical component 9, thereby be convenient for maintain electrical component 9.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims (4)

1. A real-time automatic wireless maintenance system for a power distribution terminal, comprising a power distribution box (1), characterized in that: a fan (12) is fixedly installed at the bottom of the inner cavity of the power distribution box (1), and the fan ( The input end of 12) runs through the left side of the distribution box (1) and extends to the outside of the distribution box (1). The output end of the fan (12) is fixedly installed with an air outlet cover (13). A mounting rod (7) is fixedly installed on the back of the inner cavity of the electric box (1), a mounting block (8) is fixedly mounted on the front of the mounting rod (7), and a chute (8) is provided on the top of the mounting block (8). 11), a slider (10) is slidably connected to the inside of the chute (11), an electrical component (9) is fixedly installed on the top of the slider (10), and the electrical component (9) is located on the mounting block ( 8), the top of the power distribution box (1) is provided with evenly distributed exhaust ports (17), and the front side of the mounting block (8) is rotatably connected with a switch door (14) through a second hinge, so A spring is fixedly installed on the back of the switch door (14), and the back side of the spring is in contact with the slider (10). A clamping rod (16) is fixedly installed on the front of the clamping rod (16), and the rotating rod (15) is located at the back of the clamping rod (16). 2. A real-time automatic wireless maintenance system for power distribution terminals according to claim 1, characterized in that: a sealing door (2) is rotatably connected to the front of the power distribution box (1) through a first hinge, and the A handle is fixedly installed on the front of the sealing door (2). 3. A real-time automatic wireless maintenance system for power distribution terminals according to claim 2, characterized in that: an observation window (3) is fixedly installed on the front of the sealing door (2), and the observation window (3) The sides are provided with sealant. 4. A real-time automatic wireless maintenance system for a power distribution terminal according to claim 1, characterized in that: legs (4) are fixedly installed on both sides of the bottom of the power distribution box (1), and the support The bottom of the leg (4) is fixedly installed with a load-bearing plate.
