The utility model discloses a C shaped steel punching device is used in photovoltaic support production, including the piercing press, the bilateral symmetry of piercing press is provided with first frame, second frame, the top of first frame and second frame is all fixedly connected with slide rail, rack, the top of second frame, first frame is provided with first feeding mechanism, second feeding mechanism respectively, the structure of first feeding mechanism, second feeding mechanism is the same, second feeding mechanism includes the slip table, the top fixedly connected with motor of slip table, open slot has been seted up to the bottom of slip table; the utility model discloses a set up first frame, second frame, first feeding mechanism, second feeding mechanism etc. at the in-process that punches a hole, utilize the meshing of gear and rack, make first feeding mechanism and second feeding mechanism drive C shaped steel and remove to need not the manual pay-off of manual work repetition, reduced the danger of the operation of punching a hole, reduced workman's intensity of labour simultaneously, improved punching efficiency.
Description
Technical Field
The utility model relates to a photovoltaic support processing technology field especially relates to a photovoltaic production of support is with C shaped steel punching device.
Background
The worldwide energy crisis promotes the rapid development of new energy industry, and solar energy is the most important basic energy in various renewable energy sources; therefore, the solar photovoltaic bracket is a special bracket designed for placing, installing and fixing a solar panel in a solar photovoltaic power generation system, and is used as a solar power generation technology for converting solar radiation energy into electric energy, namely the photovoltaic industry develops rapidly. The general material includes aluminum alloy, carbon steel and stainless steel.
C shaped steel needs carry out a large amount of processing of punching a hole to its surface as the main section bar of photovoltaic support production usefulness, and current punching device mostly still is manual pay-off repeatedly to different positions to C shaped steel surface punch a hole, have great danger, and because C shaped steel itself is longer, artifical material loading intensity of labour is big, and efficiency is lower.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing a photovoltaic production of support is with C shaped steel punching device to solve the problem that proposes in the above-mentioned background art.
The utility model discloses a can realize through following technical scheme:
a C-shaped steel punching device for photovoltaic support production comprises a punching machine, wherein a first rack and a second rack are symmetrically arranged on two sides of the punching machine, slide rails, racks and limiting plates are fixedly connected to the tops of the first rack and the second rack, a first feeding mechanism and a second feeding mechanism are respectively arranged on the tops of the second rack and the first rack, the first feeding mechanism and the second feeding mechanism are identical in structure, the second feeding mechanism comprises a sliding table, a motor is fixedly connected to the top of the sliding table, an open slot is formed in the bottom of the sliding table, a gear is fixedly connected to the shaft extension end of the motor after penetrating through the top of the sliding table, the gear is located in the open slot and is meshed with the racks, a frame is fixedly connected to the top of the sliding table, a partition plate is fixedly connected to the inner side wall of the frame, and a guide die is arranged on the top of the partition plate, the top fixedly connected with pneumatic cylinder of frame, fixedly connected with clamp plate behind the top that the expansion end of pneumatic cylinder runs through the frame, the clamp plate is located directly over the direction mould.
By adopting the technical scheme, when the C-shaped steel needs to be punched, the C-shaped steel is positioned above the partition plate by using the guide die of the first feeding mechanism, then the C-shaped steel is pushed towards the second feeding mechanism, one end of the C-shaped steel penetrates through the punching machine and then is sleeved outside the guide die of the second feeding mechanism, then the hydraulic cylinder of the second feeding mechanism is started to drive the pressing plate to tightly press the end part of the C-shaped steel, the punching machine can be started to punch the surface of the C-shaped steel, in the punching process, the motor of the second feeding mechanism can be controlled to drive the gear to rotate, so that the sliding table of the second feeding mechanism slides on the top of the first frame by utilizing the meshing of the gear and the rack, the C-shaped steel is pulled to move to punch different positions of the outer wall of the C-shaped steel, and after the punching is finished when the C-shaped steel is close to one end of the first feeding mechanism, the hydraulic cylinder of the second feeding mechanism is closed, and starting the hydraulic cylinder of the first feeding mechanism to fixedly clamp the C-shaped steel, and starting the motor of the first feeding mechanism to drive the corresponding sliding table to move, so that one end, close to the second feeding mechanism, of the C-shaped steel can be punched.
Further setting the following steps: the sliding table is characterized in that sliding grooves are formed in the corresponding positions of the bottom of the sliding table and the sliding rails, the sliding rails are located in the corresponding sliding grooves, and the sliding rails are connected with the sliding grooves in a sliding mode.
Through adopting above-mentioned technical scheme, utilize the cooperation of slide rail and spout, can play good guide effect to the slip table to the stability that the slip table removed has been improved.
Further setting the following steps: the top symmetry fixedly connected with two slide bars of clamp plate, the top of frame is run through at the top of slide bar, slide bar and frame sliding connection.
Through adopting above-mentioned technical scheme, the sliding fit of two slide bars and frame can effectively improve the stability that the clamp plate reciprocated, and can avoid taking place relative rotation between clamp plate and the frame.
Further setting the following steps: the utility model discloses a two-way threaded rod, including baffle, frame, fixed connection rod, guide die, two movable grooves have been seted up to the bilateral symmetry that the top of baffle is located the guide die, the inside wall that the frame is located the baffle below rotates and is connected with two-way threaded rod, fixedly connected with handle behind the lateral wall of frame is run through to the one end of two-way threaded rod, two thread bush have been cup jointed through the screw thread symmetry cooperation to the outer wall of two-way threaded rod, the top fixedly connected with connecting rod of thread bush, the connecting rod passes fixedly connected with deflector behind the movable groove that corresponds.
Through adopting above-mentioned technical scheme, rotate the handle and drive two-way threaded rod and rotate, can drive two deflectors while reverse movement to adjust the spacing distance between two deflectors, utilize two deflectors, can play good guide effect to C shaped steel, avoid C shaped steel to appear swinging by a wide margin at the removal in-process, thereby guaranteed the precision of punching a hole.
Further setting the following steps: the two guide plates are symmetrically distributed on two sides of the guide die.
Further setting the following steps: the top of slip table rotates and is connected with a plurality of backing roll.
Through adopting above-mentioned technical scheme, the backing roll can play good supporting effect to the C shaped steel of overlength, avoids C shaped steel to produce great deformation under the effect of self gravity.
To sum up, the utility model discloses a beneficial technological effect does:
1. the utility model discloses a set up first frame, second frame, first feeding mechanism, second feeding mechanism etc. can utilize the meshing of gear and rack at the in-process that punches a hole, make first feeding mechanism and second feeding mechanism drive C shaped steel and remove to need not the manual pay-off of manual work repetition, reduced the danger of the operation of punching a hole, reduced workman's intensity of labour simultaneously, improved punching efficiency.
2. The utility model discloses in, rotate the handle and drive two-way threaded rod and rotate, can drive two deflectors while reverse movement to adjust the spacing distance between two deflectors, utilize two deflectors, can play good guide effect to C shaped steel, avoid C shaped steel to appear swinging by a wide margin at the removal in-process, thereby guaranteed the precision of punching a hole.
3. The utility model discloses a setting of backing roll can play good supporting effect to the C shaped steel of overlength, avoids C shaped steel to produce great deformation under self action of gravity.
Drawings

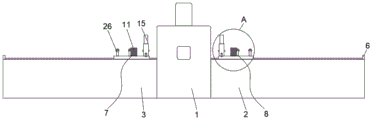

Fig. 1 is a schematic structural diagram of the present invention;
FIG. 2 is an enlarged view at A in FIG. 1;
fig. 3 is a schematic structural diagram of the first feeding mechanism of the present invention.
Reference numerals: 1. a punching machine; 2. a first frame; 3. a second frame; 4. a slide rail; 5. a rack; 6. a limiting plate; 7. a first feeding mechanism; 8. a second feeding mechanism; 9. a sliding table; 10. an open slot; 11. a motor; 12. a gear; 13. a chute; 14. a frame; 15. a hydraulic cylinder; 16. pressing a plate; 17. a slide bar; 18. a partition plate; 19. guiding a die; 20. a bidirectional threaded rod; 21. a threaded sleeve; 22. a connecting rod; 23. a guide plate; 24. a handle; 25. a movable groove; 26. and (4) supporting the roller.
Detailed Description
The technical solution in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention.
Referring to fig. 1-3, a C-shaped steel punching device for photovoltaic support production disclosed by the present invention comprises a punching machine 1, wherein a first frame 2 and a second frame 3 are symmetrically arranged on both sides of the punching machine 1, the top parts of the first frame 2 and the second frame 3 are fixedly connected with a slide rail 4, a rack 5 and a limiting plate 6, the top parts of the second frame 3 and the first frame 2 are respectively provided with a first feeding mechanism 7 and a second feeding mechanism 8, the first feeding mechanism 7 and the second feeding mechanism 8 have the same structure, the second feeding mechanism 8 comprises a sliding table 9, the top part of the sliding table 9 is fixedly connected with a motor 11, the bottom part of the sliding table 9 is provided with an open slot 10, the shaft extension end of the motor 11 penetrates through the top part of the sliding table 9 and is fixedly connected with a gear 12, the gear 12 is positioned in the open slot 10, and the gear 12 and the rack 5 are mutually engaged, the top fixedly connected with frame 14 of slip table 9, the inside wall fixedly connected with baffle 18 of frame 14, the top of baffle 18 is provided with direction mould 19, the top fixedly connected with pneumatic cylinder 15 of frame 14, fixedly connected with clamp plate 16 behind the top that pneumatic cylinder 15's expansion end runs through frame 14, clamp plate 16 is located directly over direction mould 19.
When the C-shaped steel needs to be punched, the C-shaped steel is positioned above the partition plate 18 by using the guide die 19 of the first feeding mechanism 7, then the C-shaped steel is pushed towards the second feeding mechanism 8, one end of the C-shaped steel penetrates through the punching machine 1 and then is sleeved outside the guide die 19 of the second feeding mechanism 8, then the hydraulic cylinder 15 of the second feeding mechanism is started to drive the pressing plate 16 to press the end part of the C-shaped steel, the punching machine 1 can be started to punch the surface of the C-shaped steel, in the punching process, the motor of the second feeding mechanism 8 can be controlled to drive the gear 12 to rotate, so that the sliding table 9 of the second feeding mechanism 8 slides on the top of the first frame 2 by utilizing the meshing of the gear 12 and the rack, the C-shaped steel is pulled to move to punch the outer wall of the C-shaped steel at different positions, when the end of the C-shaped steel, which is close to the first feeding mechanism 7, is punched, the hydraulic cylinder 15 of the second feeding mechanism 8 is closed, the hydraulic cylinder 15 of the first feeding mechanism 7 is started, the first feeding mechanism 7 is enabled to fixedly clamp the C-shaped steel, the motor 11 of the first feeding mechanism 7 is started to drive the corresponding sliding table 9 to move, one end, close to the second feeding mechanism 8, of the C-shaped steel can be punched, manual repeated feeding is not needed, the danger of punching operation is reduced, the labor intensity of workers is reduced, and the punching efficiency is improved.
The bottom of the sliding table 9 is provided with a sliding groove 13 corresponding to the sliding rail 4, the sliding rail 4 is positioned in the corresponding sliding groove 13, and the sliding rail 4 is connected with the sliding groove 13 in a sliding manner.
By means of the matching of the sliding rail 4 and the sliding groove 13, a good guiding effect can be achieved for the sliding table 9, and the moving stability of the sliding table 9 is improved.
The top of the pressing plate 16 is symmetrically and fixedly connected with two sliding rods 17, the top ends of the sliding rods 17 penetrate through the top of the frame 14, and the sliding rods 17 are connected with the frame 14 in a sliding mode.
The sliding fit between the two sliding rods 17 and the frame 14 can effectively improve the stability of the up-and-down movement of the pressing plate 16, and can prevent the relative rotation between the pressing plate 16 and the frame 14.
The top of baffle 18 is located the bilateral symmetry of guide die 19 and has seted up two movable slot 25, the inside wall that frame 14 is located the baffle 18 below rotates and is connected with two-way threaded rod 20, fixedly connected with handle 24 behind the lateral wall that frame 14 was run through to the one end of two-way threaded rod 20, two thread bush 21 have been cup jointed through the screw thread symmetry cooperation to the outer wall of two-way threaded rod 20, the top fixedly connected with connecting rod 22 of thread bush 21, fixedly connected with deflector 23 behind connecting rod 22 passed corresponding movable slot 25.
The handle 24 is rotated to drive the bidirectional threaded rod 20 to rotate, the two guide plates 23 can be driven to move reversely at the same time, so that the spacing distance between the two guide plates 23 can be adjusted, the two guide plates 23 are utilized, a good guiding effect can be achieved on the C-shaped steel, the C-shaped steel is prevented from swinging greatly in the moving process, and the punching precision is guaranteed.
The two guide plates 23 are symmetrically distributed on both sides of the guide die 19.
The top of the sliding table 9 is rotatably connected with a plurality of supporting rollers 26.
The supporting roller 26 can have a good supporting effect on the overlong C-shaped steel, and the C-shaped steel is prevented from being greatly deformed under the action of self gravity.
The utility model discloses a theory of operation and beneficial effect do:
when the C-shaped steel needs to be punched, the C-shaped steel is positioned above the partition plate 18 by using the guide die 19 of the first feeding mechanism 7, then the C-shaped steel is pushed towards the second feeding mechanism 8, one end of the C-shaped steel penetrates through the punching machine 1 and then is sleeved outside the guide die 19 of the second feeding mechanism 8, then the hydraulic cylinder 15 of the second feeding mechanism is started to drive the pressing plate 16 to press the end part of the C-shaped steel, the punching machine 1 can be started to punch the surface of the C-shaped steel, in the punching process, the motor of the second feeding mechanism 8 can be controlled to drive the gear 12 to rotate, so that the sliding table 9 of the second feeding mechanism 8 slides on the top of the first frame 2 by utilizing the meshing of the gear 12 and the rack, the C-shaped steel is pulled to move to punch the outer wall of the C-shaped steel at different positions, when the end of the C-shaped steel, which is close to the first feeding mechanism 7, is punched, the hydraulic cylinder 15 of the second feeding mechanism 8 is closed, the hydraulic cylinder 15 of the first feeding mechanism 7 is started, the first feeding mechanism 7 is enabled to fixedly clamp the C-shaped steel, the motor 11 of the first feeding mechanism 7 is started to drive the corresponding sliding table 9 to move, one end, close to the second feeding mechanism 8, of the C-shaped steel can be punched, manual repeated feeding is not needed, the danger of punching operation is reduced, the labor intensity of workers is reduced, and the punching efficiency is improved.
The utility model discloses in, rotate handle 24 and drive two-way threaded rod 20 and rotate, can drive two deflectors 23 simultaneous reverse movement to adjust the spacing distance between two deflectors 23, utilize two deflectors 23, can play good guide effect to C shaped steel, avoid C shaped steel to appear the wide amplitude swing at the removal in-process, thereby guaranteed the precision of punching a hole.
And simultaneously, the utility model discloses a good supporting effect can be played to the C shaped steel of overlength to backing roll 26's setting, avoids C shaped steel to produce great deformation under self action of gravity.
The above, only do the preferred embodiment of the present invention, not limit the protection scope of the present invention according to this, so: all equivalent changes made according to the structure, shape and principle of the utility model are covered within the protection scope of the utility model.
