Abstract
本实用新型公开了一种粉剂均匀混合搅拌机，包括底板，底板的表面左侧设置搅拌桶，搅拌桶瓶身的左侧设置出料口，出料口上安装有控制阀，搅拌桶的上端面固定安装有破碎桶，破碎桶内部的上端固定有轴承，轴承的中心处插入连接支撑杆，支撑杆上安装旋转轴座，支撑杆贯穿旋转轴座，旋转轴座的周身安装破碎齿。本粉剂均匀混合搅拌机，旋转轴座的周身安装破碎齿，破碎齿能够对有机肥料进行破碎，避免结块的有机肥料无法混合搅拌均匀，支撑杆的底部连接搅拌装置，通过搅拌装置对有机肥料进行充分搅拌，完成有机肥料的搅拌均匀，提高搅拌质量，转轴上安装有旋转块，通过电机带动旋转块旋转，从而带动搅拌桨的高速运转，实现了有机肥料的快速搅拌功能。
The utility model discloses a powder uniform mixing mixer, comprising a bottom plate, a stirring barrel is arranged on the left side of the surface of the bottom plate, a discharge port is arranged on the left side of the bottle body of the stirring barrel, a control valve is installed on the discharge port, and the upper end surface of the stirring barrel is fixed A crushing barrel is installed, a bearing is fixed at the upper end of the crushing barrel, a supporting rod is inserted into the center of the bearing, a rotating shaft seat is installed on the supporting rod, the supporting rod runs through the rotating shaft seat, and the whole body of the rotating shaft seat is equipped with crushing teeth. This powder uniform mixing mixer is equipped with crushing teeth around the rotating shaft seat. The crushing teeth can crush the organic fertilizer, so as to prevent the agglomerated organic fertilizer from being mixed and stirred evenly. Fully stirring, complete the stirring of organic fertilizer evenly, improve the quality of stirring, the rotating block is installed on the rotating shaft, and the rotating block is driven by the motor to rotate, thereby driving the high-speed operation of the stirring paddle, and realizing the rapid stirring function of organic fertilizer.
Description
Technical Field
The utility model relates to a mixer technical field specifically is a powder homogeneous mixing mixer.
Background
The organic fertilizer is mainly derived from plants and/or animals, and is a carbon-containing material which is applied to soil to provide plant nutrition as a main function. Is prepared from biological substances, animal and plant wastes and plant residues, eliminates toxic and harmful substances in the biological substances, and is rich in a large amount of beneficial substances, including: various organic acids, peptides and rich nutrient elements including nitrogen, phosphorus and potassium. The fertilizer not only can provide comprehensive nutrition for crops, but also has long fertilizer efficiency, can increase and update soil organic matters, promote microbial propagation, improve the physical and chemical properties and biological activity of soil, and is a main nutrient for green food production.
Need use agitating unit in the use of fertilizer, can't influence the quality of organic fertilizer easily with the organic fertilizer mixing stirring of caking in the current mixer use evenly.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a powder homogeneous mixing mixer, the broken tooth of whole body installation that has rotatory axle bed, broken tooth can carry out the breakage to the organic fertilizer, the organic fertilizer that avoids the caking can not mix the stirring, agitating unit is connected to the bottom of bracing piece, carry out the intensive mixing to the organic fertilizer through agitating unit, accomplish the stirring of organic fertilizer, improve the stirring quality, install rotatory piece in the pivot, it is rotatory to drive rotatory piece through the motor, thereby drive the high-speed operation of stirring rake, the advantage of the quick stirring function of organic fertilizer has been realized, the problem among the prior art has been solved.
In order to achieve the above object, the utility model provides a following technical scheme: a powder uniform mixing stirrer comprises a bottom plate, a stirring barrel is arranged on the left side of the surface of the bottom plate, a discharge port is arranged on the left side of a bottle body of the stirring barrel, a control valve is installed on the discharge port, a crushing barrel is fixedly installed on the upper end face of the stirring barrel, a bearing is fixed at the upper end inside the crushing barrel, a connecting support rod is inserted into the center of the bearing, a rotary shaft seat is installed on the support rod, the support rod penetrates through the rotary shaft seat, crushing teeth are installed on the whole body of the rotary shaft seat, a stirring device is connected to the bottom of the support rod and comprises a rotary shaft, a connecting cylinder, a rotary block and stirring paddles, the connecting cylinder is arranged above the rotary shaft, the rotary block is installed on the rotary shaft, grooves are formed in two sides of the rotary block, the stirring paddles are movably connected through pins in the grooves, a gear A, a gear B and a gear C are arranged below the stirring device, a belt is connected between the gear A and the gear B and the gear C, and a central shaft of the gear C is connected with a motor, the motor sets up in fixed cask, and the motor is installed on the mount, and the both ends welding of mount is in the both sides of fixed cask inner wall, and the both sides of broken bucket are equipped with the sealing plug, and the sealing plug is fixed on the agitator, and the feed inlet is seted up to the upper end of broken bucket, and feed inlet upper end flap has the apron, and fixed cask is connected on the right side of agitator.
Preferably, the lower end surface of the bearing is provided with a bolt, and the bearing is engaged on the inner wall of the upper end of the crushing barrel through the bolt.
Preferably, the bottom of the right side of the stirring barrel is communicated with the bottom of the left side of the fixed barrel.
Preferably, the crushing teeth are arranged in a plurality and distributed on the rotating shaft seat at equal intervals by taking the rotating shaft seat as a circle center.
Preferably, the gear A and the gear B are arranged in the stirring barrel, and the gear C is arranged in the fixed barrel.
Preferably, the rotating shaft is fixedly connected with the supporting rod through a connecting cylinder.
Preferably, the stirring paddles are arranged in a plurality of numbers and distributed on the rotating shaft at equal distances.
Compared with the prior art, the beneficial effects of the utility model are as follows:
this powder homogeneous mixing mixer, the broken tooth of whole body installation of rotatory axle bed, broken tooth can carry out the breakage to the organic fertilizer, the organic fertilizer of avoiding the caking can not mix the stirring, agitating unit is connected to the bottom of bracing piece, carry out the intensive mixing to the organic fertilizer through agitating unit, accomplish the stirring of organic fertilizer, improve the stirring quality, install rotatory piece in the pivot, it is rotatory to drive rotatory piece through the motor to drive the high-speed operation of stirring rake, realized the rapid mixing function of organic fertilizer.
Drawings

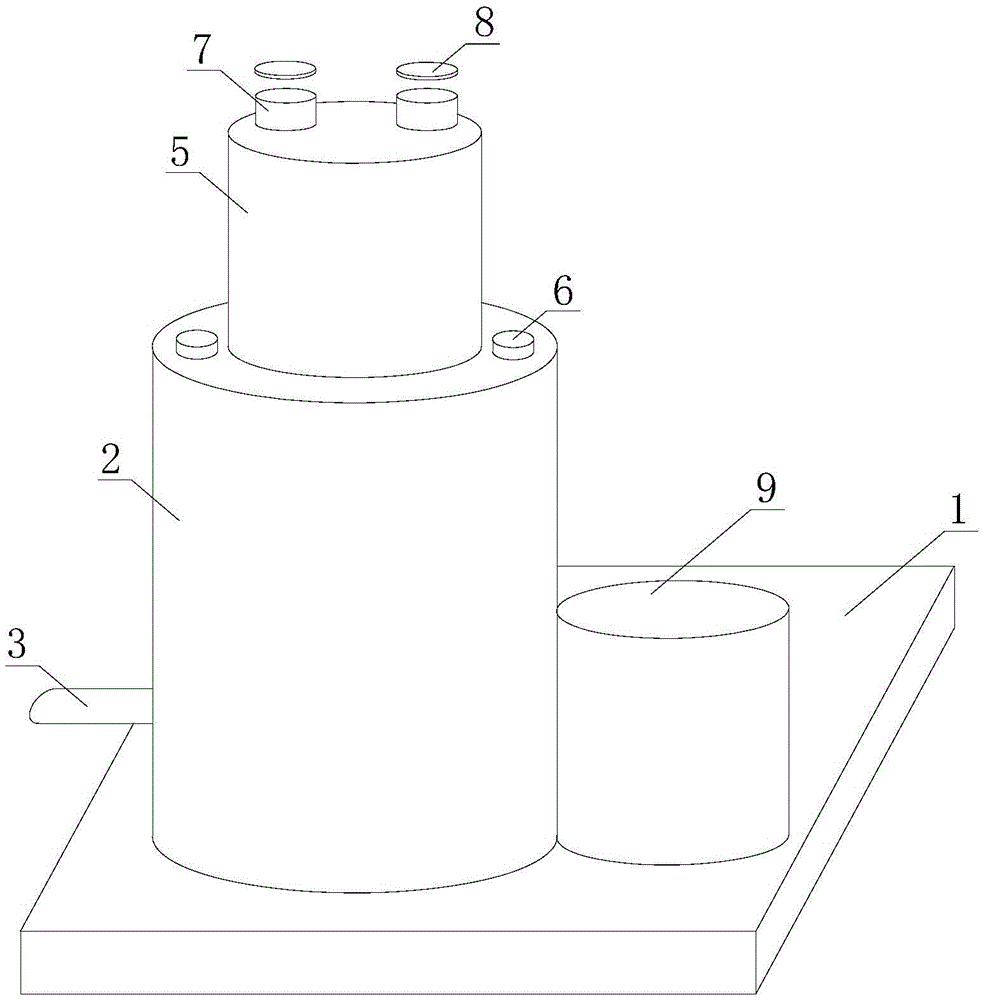

Fig. 1 is a perspective view of the present invention;
fig. 2 is a front view of the present invention;
fig. 3 is a top view of the present invention;
fig. 4 is a structural diagram of the stirring device of the present invention.
In the figure: 1. a base plate; 2. a stirring barrel; 3. a discharge port; 4. a control valve; 5. a crushing barrel; 6. a sealing plug; 7. a feed inlet; 8. a cover plate; 9. fixing the barrel; 10. a bearing; 11. a support bar; 12. a rotary shaft seat; 13. crushing teeth; 14. a stirring device; 141. a rotating shaft; 142. a connecting cylinder; 143. rotating the block; 144. a stirring paddle; 15. a gear A; 16. a gear B; 17. a gear C; 18. a belt; 19. an electric motor.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, a powder uniformly mixing mixer comprises a bottom plate 1, a mixing tank 2 is arranged on the left side of the surface of the bottom plate 1 for placing a mixing device 14, a discharge port 3 is arranged on the left side of the bottle body of the mixing tank 2 for discharging the mixed organic fertilizer from the discharge port 3, a control valve 4 is arranged on the discharge port 3, a crushing tank 5 is fixedly arranged on the upper end surface of the mixing tank 2 for placing crushing teeth 13, a bearing 10 is fixed on the upper end inside the crushing tank 5, a bolt is arranged on the lower end surface of the bearing 10, the bearing 10 is engaged with the inner wall of the upper end of the crushing tank 5 through the bolt, the connection is more fixed, the stability of the device is increased, a connecting support rod 11 is inserted into the center of the bearing 10, a rotary shaft seat 12 is arranged on the support rod 11, the support rod 11 penetrates through the rotary shaft seat 12, crushing teeth 13 are arranged on the whole body of the rotary shaft seat 12, and the crushing teeth 13 can crush the organic fertilizer, the organic fertilizer that avoids caking can not mix the stirring evenly, broken tooth 13 is provided with a plurality of, with the distribution of swivel spindle seat 12 as the centre of a circle equidistance on swivel spindle seat 12, a plurality of broken teeth 13 can carry out the omnidirectional smashing with fertilizer, the stirring is convenient, agitating unit 14 is connected to the bottom of bracing piece 11, fully stir the organic fertilizer through agitating unit 14, accomplish the stirring of organic fertilizer, improve stirring quality, agitating unit 14 includes pivot 141, connecting cylinder 142, rotatory block 143 and stirring rake 144, the connecting cylinder 142 is arranged above pivot 141, through connecting cylinder 142 fixed connection between pivot 141 and the bracing piece 11, install rotatory block 143 on pivot 141, drive rotatory block 143 to rotate through motor 19, thereby drive the high-speed operation of stirring rake 144, the quick stirring function of organic fertilizer has been realized, the recess is seted up to the both sides of rotatory block 143, through round pin bolt swing joint stirring rake 144 in the recess, the stirring paddles 144 are provided with a plurality of stirring paddles which are distributed on the rotating shaft 141 at equal distances, a gear A15, a gear B16 and a gear C17 are arranged below the stirring device 14, a belt 18 is connected between the gear A15, the gear B16 and the gear C17, the stirring of the stirring device 14 is realized through the running of the belt 18, the gear A15 and the gear B16 are arranged in the stirring barrel 2, the gear C17 is arranged in the fixed barrel 9, the central shaft of the gear C17 is connected with the motor 19, the motor 19 is arranged in the fixed barrel 9, the motor 19 is arranged on a fixed frame, two ends of the fixed frame are welded on two sides of the inner wall of the fixed barrel 9, two sides of the crushing barrel 5 are provided with sealing plugs 6, the sealing plugs 6 are fixed on the stirring barrel 2, the upper end of the crushing barrel 5 is provided with a feeding hole 7, the upper end cover plate 7 is provided with a cover plate 8, the right side of the stirring barrel 2 is connected with the fixed barrel 9, the bottom of the right side of the stirring barrel 2 is communicated with the bottom of the left side of the fixed barrel 9, the connection of the motor 19 to the stirring device 14 is facilitated.
To sum up, this powder homogeneous mixing mixer, rotatory axle bed 12's broken tooth 13 of whole body installation, broken tooth 13 can carry out the breakage to the organic fertilizer, the organic fertilizer of avoiding the caking can not mix the stirring, agitating unit 14 is connected to the bottom of bracing piece 11, carry out the intensive mixing to the organic fertilizer through agitating unit 14, accomplish the stirring of organic fertilizer, improve stirring quality, install rotatory piece 143 on the pivot 141, it is rotatory to drive rotatory piece 143 through motor 19, thereby drive the high-speed operation of stirring rake 144, the rapid mixing function of organic fertilizer has been realized.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (7)
1. The utility model provides a powder homogeneous mixing mixer, includes bottom plate (1), its characterized in that: the stirring device is characterized in that a stirring barrel (2) is arranged on the left side of the surface of a bottom plate (1), a discharge port (3) is arranged on the left side of the bottle body of the stirring barrel (2), a control valve (4) is installed on the discharge port (3), a crushing barrel (5) is fixedly installed on the upper end face of the stirring barrel (2), a bearing (10) is fixed at the upper end inside the crushing barrel (5), a connecting support rod (11) is inserted into the center of the bearing (10), a rotary shaft seat (12) is installed on the support rod (11), the support rod (11) penetrates through the rotary shaft seat (12), crushing teeth (13) are installed on the whole body of the rotary shaft seat (12), a stirring device (14) is connected to the bottom of the support rod (11), the stirring device (14) comprises a rotating shaft (141), a connecting barrel (142), a rotating block (143) and a stirring paddle (144), the connecting barrel (142) is arranged above the rotating shaft (141), and the rotating block (143) is installed on the rotating shaft (141), the recess is seted up to the both sides of rotatory piece (143), through cotter swing joint stirring rake (144) in the recess, the below of agitating unit (14) sets up gear A (15), gear B (16) and gear C (17), gear A (15), be connected with belt (18) between gear B (16) and gear C (17), central axis connecting motor (19) of gear C (17), motor (19) set up in fixed cask (9), motor (19) are installed on the mount, the both ends welding of mount is in the both sides of fixed cask (9) inner wall, the both sides of broken cask (5) are equipped with sealing plug (6), sealing plug (6) are fixed on agitator (2), feed inlet (7) are seted up to the upper end of broken cask (5), there is apron (8) feed inlet (7) upper end flap, fixed cask (9) are connected on the right side of agitator (2).
2. The powder homogenizing mixer of claim 1, wherein: and bolts are arranged on the lower end surface of the bearing (10), and the bearing (10) is meshed on the inner wall of the upper end of the crushing barrel (5) through the bolts.
3. The powder homogenizing mixer of claim 1, wherein: the bottom of the right side of the stirring barrel (2) is communicated with the bottom of the left side of the fixed barrel (9).
4. The powder homogenizing mixer of claim 1, wherein: the crushing teeth (13) are arranged in a plurality and distributed on the rotary shaft seat (12) at equal intervals by taking the rotary shaft seat (12) as a circle center.
5. The powder homogenizing mixer of claim 1, wherein: the gear A (15) and the gear B (16) are arranged in the stirring barrel (2), and the gear C (17) is arranged in the fixed barrel (9).
6. The powder homogenizing mixer of claim 1, wherein: the rotating shaft (141) is fixedly connected with the supporting rod (11) through a connecting cylinder (142).
7. The powder homogenizing mixer of claim 1, wherein: the stirring paddles (144) are arranged in a plurality and distributed on the rotating shaft (141) at equal distance.
