Abstract
本实用新型涉及搅拌装置技术领域，且公开了一种用于大型刨花充分施胶的搅拌装置，包括搅拌箱体，所述搅拌箱体的左侧固定连接有电机箱，所述电机箱的左侧壁固定连接有伺服电机，所述伺服电机的输出轴固定连接有搅拌轴，所述搅拌轴的外侧固定连接有搅拌叶片，所述搅拌轴的右端固定连接有滚动块，所述搅拌箱体的右侧固定连接有进料管，所述搅拌箱体的内侧固定连接有支撑板。该用于大型刨花充分施胶的搅拌装置，实现了搅拌装置充分施胶的目的，避免施胶枪在搅拌装置内侧施胶的过程中，造成胶水堆积的现象，可以使刨花屑和胶水混合均匀，保证刨花板后序加工的效果，提高了刨花板的生产品质，提高了搅拌装置的使用效率和使用效果。
The utility model relates to the technical field of stirring devices, and discloses a stirring device for fully sizing large shavings, comprising a stirring box body, a motor box is fixedly connected to the left side of the stirring box body, and the left side of the motor box is A servo motor is fixedly connected to the side wall, a stirring shaft is fixedly connected to the output shaft of the servo motor, a stirring blade is fixedly connected to the outer side of the stirring shaft, a rolling block is fixedly connected to the right end of the stirring shaft, and the stirring box is fixedly connected. The right side of the mixing box is fixedly connected with a feeding pipe, and the inner side of the stirring box is fixedly connected with a support plate. The stirring device for fully sizing large shavings achieves the purpose of fully sizing the stirring device, avoids the phenomenon of glue accumulation caused by the gluing gun in the process of gluing inside the stirring device, and can make the shavings and glue evenly mixed , to ensure the effect of the subsequent processing of the particleboard, improve the production quality of the particleboard, and improve the use efficiency and use effect of the stirring device.
Description
Technical Field
The utility model relates to an agitating unit technical field specifically is an agitating unit that is used for abundant glueing of large-scale wood shavings.
Background
The wood shavings have a wide range of functions, and can be used to make high-pressure wood boards after being crushed, the high-pressure boards made of wood shavings and wood chips are widely used to produce furniture products, shaving boards are also called particle boards, various branches and buds, small-diameter wood, fast-growing wood and wood chips are cut into pieces with certain specifications, and the pieces are dried and mixed with sizing materials, hardening agents, waterproofing agents and the like, and pressed into artificial boards under certain temperature and pressure, and the particles are not uniformly arranged.
The shaving board is in the in-process of production and processing, often need use agitating unit to carry out even stirring with wood shavings bits and glue, in order to guarantee the quality of shaving board production, but current agitating unit does not possess the advantage of abundant glueing, lead to the glueing rifle at the in-process of the inboard glueing of agitating unit, can cause the accumulational phenomenon of glue, make wood shavings bits and glue mix inhomogeneously, certain influence has been caused to the processing of subsequence shaving board, the production quality of shaving board has been reduced, inconvenient use, agitating unit's availability factor and result of use have been reduced, so propose an agitating unit who is used for the abundant glueing of large-scale wood shavings and solve the above-mentioned problem that provides.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
The utility model provides a not enough to prior art, the utility model provides an agitating unit for abundant glueing of large-scale wood shavings possesses advantages such as abundant glueing, has solved current agitating unit and has not possessed the advantage of abundant glueing, lead to the glueing rifle at the in-process of the inboard glueing of agitating unit, can cause the accumulational phenomenon of glue, make wood shavings bits and glue mix inhomogeneously, processing to the subsequence shaving board has caused certain influence, the production quality of shaving board has been reduced, inconvenient use, the availability factor of agitating unit and the problem of result of use have been reduced.
(II) technical scheme
In order to realize the purpose of fully applying glue, the utility model provides a following technical scheme: a stirring device for sufficiently gluing large wood shavings comprises a stirring box body, wherein a motor box is fixedly connected to the left side of the stirring box body, a servo motor is fixedly connected to the left side wall of the motor box, a stirring shaft is fixedly connected to an output shaft of the servo motor, stirring blades are fixedly connected to the outer side of the stirring shaft, a rolling block is fixedly connected to the right end of the stirring shaft, an inlet pipe is fixedly connected to the right side of the stirring box body, a supporting plate is fixedly connected to the inner side of the stirring box body, a glue storage box is fixedly connected to the top of the stirring box body, a feeding funnel is fixedly connected to the top of the glue storage box, a connecting hose is fixedly connected to the bottom of the glue storage box, a solenoid valve is fixedly mounted on the outer side of the connecting hose, a fixing pipe is fixedly connected to the bottom of the connecting hose, a glue spray gun is fixedly connected to the bottom of the fixing pipe, the utility model discloses a glue storage bin, including agitator tank's left side wall fixedly connected with electric putter, the positive fixedly connected with transparent window of glue bin, agitator tank's bottom fixedly connected with ejection of compact funnel, ejection of compact funnel's outside fixed mounting has the control valve, the equal fixedly connected with box supporting legs in four corners of agitator tank bottom, agitator tank's positive fixedly connected with observation window.
Preferably, the right end of the stirring shaft sequentially penetrates through the motor box and the stirring box body and extends to the left side of the rolling block, and the rolling block is rotatably connected with the stirring box body.
Preferably, the inner side of the supporting plate is provided with a fixing long hole, the fixing long hole is connected with the glue spray gun in a sliding mode, and the fixing pipe is movably connected with the supporting plate.
Preferably, the bottom end of the connecting hose penetrates through the glue storage tank, the stirring tank and the fixing pipe in sequence and extends to the inner side of the fixing pipe.
Preferably, inlet pipe and discharge funnel all are linked together with the agitator tank body, stirring vane's quantity is twelve, stirring vane is located the below of backup pad.
Preferably, electric putter and fixed pipe fixed connection, feed hopper is linked together with the glue storage box, the inlet pipe is located the below of backup pad.
(III) advantageous effects
Compared with the prior art, the utility model provides an agitating unit for large-scale wood shavings are fully glued possesses following beneficial effect:
the stirring device for sufficiently gluing the large wood shavings comprises an inlet pipe, wood shavings can be poured into the inner side of a stirring box body through the inlet pipe, a stirring shaft and stirring blades can be sequentially driven to rotate through a servo motor, the wood shavings can be uniformly stirred in the rotating process of the stirring blades, glue can be poured into the inner side of a glue storage box through a feeding funnel, the glue can flow into the inner side of a connecting hose, the glue on the inner side of the connecting hose can be quantitatively put into the inner sides of a fixing pipe and a glue spray gun through an electromagnetic valve, the glue can be put into the inner side of the stirring box body through the glue spray gun, the wood shavings can be glued, the fixing pipe and the glue spray gun can be sequentially driven to move left and right through an electric push rod, the wood shavings can be uniformly glued in the process of moving the glue spray gun left and right, glue is prevented from being accumulated together, and the purpose of sufficiently gluing the wood shavings is realized, cooperation stirring vane's rotation, can carry out the intensive mixing to wood shavings bits and glue, guarantee the effect of wood shavings bits processing, through setting up the observation window, can observe the effect that wood shavings bits and glue mix, overall structure is simple, convenient to use, the purpose of the abundant glueing of agitating unit has been realized, avoid the glueing rifle at the in-process of the inboard glueing of agitating unit, cause the accumulational phenomenon of glue, can make wood shavings bits and glue misce bene, guarantee the effect of shaving board epilogue processing, the production quality of shaving board has been improved, agitating unit's availability factor and result of use have been improved.
Drawings

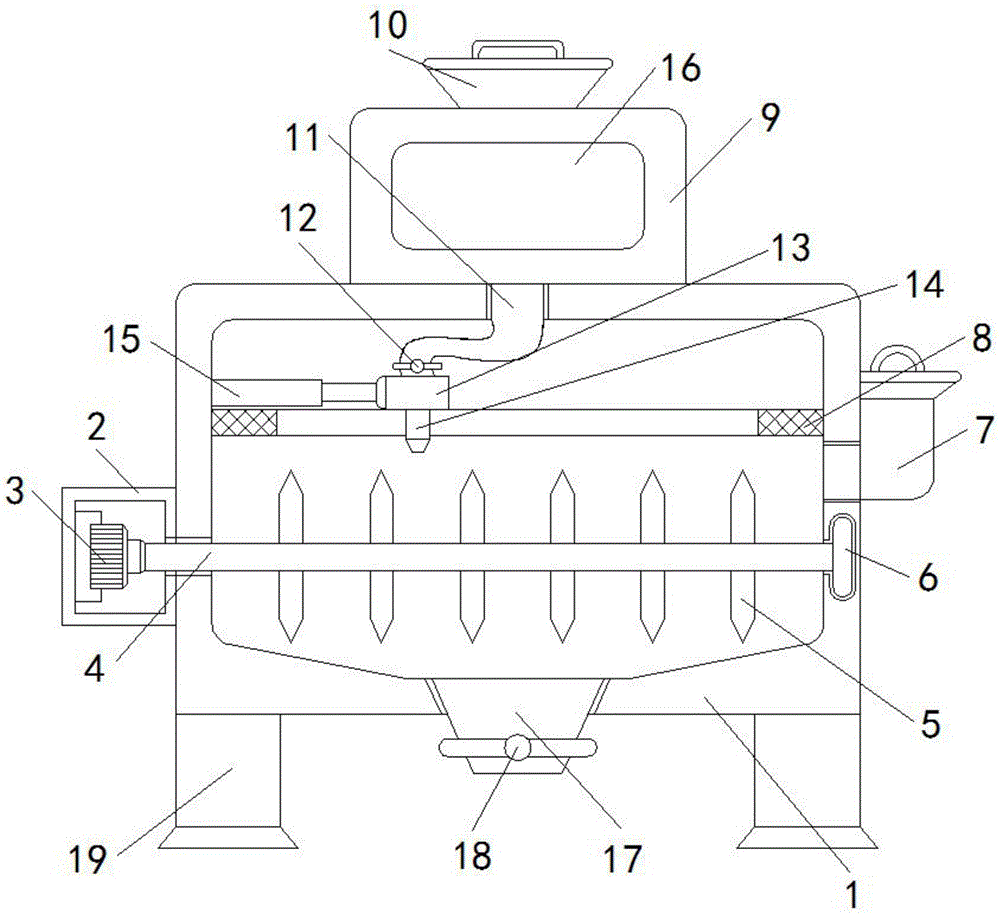

FIG. 1 is a schematic structural view of the present invention;
fig. 2 is a front view of the structure of the stirring tank body of the utility model.
In the figure: 1 stirring box body, 2 motor boxes, 3 servo motors, 4 stirring shafts, 5 stirring blades, 6 rolling blocks, 7 feeding pipes, 8 supporting plates, 9 glue storage boxes, 10 feeding hoppers, 11 connecting hoses, 12 electromagnetic valves, 13 fixing pipes, 14 glue spray guns, 15 electric push rods, 16 transparent windows, 17 discharging hoppers, 18 control valves, 19 box body supporting legs and 20 observation windows.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-2, a stirring device for sufficiently applying glue to large wood shavings comprises a stirring box body 1, a motor box 2 is fixedly connected to the left side of the stirring box body 1, a servo motor 3 is fixedly connected to the left side wall of the motor box 2, the model of the servo motor 3 can be YB2-315S-6-70, a stirring shaft 4 is fixedly connected to an output shaft of the servo motor 3, stirring blades 5 are fixedly connected to the outer side of the stirring shaft 4, a rolling block 6 is fixedly connected to the right end of the stirring shaft 4, the right end of the stirring shaft 4 sequentially penetrates through the motor box 2 and the stirring box body 1 and extends to the left side of the rolling block 6, the rolling block 6 is rotatably connected with the stirring box body 1, a feeding pipe 7 is fixedly connected to the right side of the stirring box body 1, a supporting plate 8 is fixedly connected to the inner side of the stirring box body 1, a glue storage box 9 is fixedly connected to the top of the stirring box body 1, and a feeding hopper 10 is fixedly connected to the top of the glue storage box 9, the bottom of the glue storage tank 9 is fixedly connected with a connecting hose 11, the outer side of the connecting hose 11 is fixedly provided with an electromagnetic valve 12, the model of the electromagnetic valve 12 can be Z961Y-100I DN150, the bottom end of the connecting hose 11 is fixedly connected with a fixed pipe 13, the bottom end of the connecting hose 11 sequentially penetrates through the glue storage tank 9, the stirring tank body 1 and the fixed pipe 13 and extends to the inner side of the fixed pipe 13, the inner side of the supporting plate 8 is provided with a fixed long hole, the fixed long hole is connected with a glue spray gun 14 in a sliding manner, the fixed pipe 13 is movably connected with the supporting plate 8, the bottom of the fixed pipe 13 is fixedly connected with the glue spray gun 14, the left side wall of the stirring tank body 1 is fixedly connected with an electric push rod 15, the model of the electric push rod 15 can be ANT-52, the electric push rod 15 is fixedly connected with the fixed pipe 13, the feeding funnel 10 is communicated with the glue storage tank 9, the feeding pipe 7 is positioned below the supporting plate 8, the front of the glue storage tank 9 is fixedly connected with a transparent window 16, the bottom of the stirring tank 1 is fixedly connected with a discharge funnel 17, the inlet pipe 7 and the discharge funnel 17 are both communicated with the stirring tank 1, the number of the stirring blades 5 is twelve, the stirring blades 5 are positioned below the supporting plate 8, the outer side of the discharge funnel 17 is fixedly provided with a control valve 18, four corners of the bottom of the stirring tank 1 are both fixedly connected with tank supporting legs 19, the front of the stirring tank 1 is fixedly connected with an observation window 20, shavings can be poured into the inner side of the stirring tank 1 through the inlet pipe 7, the stirring shaft 4 and the stirring blades 5 can be sequentially driven to rotate through the servo motor 3, the shavings can be uniformly stirred during the rotating process of the stirring blades 5, the glue can be poured into the inner side of the glue storage tank 9 through the inlet funnel 10, and the glue can flow into the inner side of the connecting hose 11, through setting up the solenoid valve 12, can put into the inboard of fixed pipe 13 and glue spray gun 14 with the inboard glue ration of coupling hose 11, glue can be put into the inboard of agitator tank 1 with glue spray gun 14, can glue the wood shaving bits, can drive fixed pipe 13 and glue spray gun 14 in proper order and move about through electric putter 15, in the in-process that glue spray gun 14 moved about, can carry out even glueing to the wood shaving bits, avoid glue to pile up together, the purpose of abundant glueing of wood shaving bits has been realized, cooperation stirring vane 5's rotation, can fully mix wood shaving bits and glue, the effect of guaranteeing the processing of wood shaving bits, through setting up observation window 20, the effect that wood shaving bits and glue mix can be observed, moreover, the integrated structure is simple, and convenient to use, the purpose of abundant glueing of agitating unit has been realized, avoid the glueing rifle in the inboard glueing process of agitating unit, the glue is accumulated, the shaving scraps and the glue can be uniformly mixed, the subsequent processing effect of the shaving board is guaranteed, the production quality of the shaving board is improved, and the use efficiency and the use effect of the stirring device are improved.
When using, can pour into the inboard of agitator tank 1 with the wood shavings bits through inlet pipe 7, can drive (mixing) shaft 4 and stirring vane 5 through servo motor 3 in proper order and rotate, stirring vane 5 pivoted in-process, can carry out even stirring to the wood shavings bits, can pour glue into the inboard of glue bin 9 through feed hopper 10, glue can flow into coupling hose 11's inboard, through setting up solenoid valve 12, can be with the inboard glue ration of coupling hose 11 putting into the inboard of fixed pipe 13 and glue spray gun 14, glue spray gun 14 can be with the inboard of putting into agitator tank 1 of glue, can carry out the glueing to the wood shavings bits.
To sum up, this an agitating unit for abundant glueing of large-scale wood shavings, can pour the wood shavings bits into the inboard of agitator tank 1 through inlet pipe 7, can drive (mixing) shaft 4 and stirring vane 5 through servo motor 3 in proper order and rotate, stirring vane 5 pivoted in-process can carry out even stirring to the wood shavings bits, can pour glue into the inboard of glue storage tank 9 through feed hopper 10, glue can flow into the inboard of coupling hose 11, through setting up solenoid valve 12, can be with the inboard glue ration of coupling hose 11 put into the inboard of fixed pipe 13 and glue spray gun 14, glue spray gun 14 can put glue into the inboard of agitator tank 1, can glue the wood shavings bits, can drive fixed pipe 13 and glue spray gun 14 through electric putter 15 and move about in proper order and control, the in-process that glue spray gun 14 moved about, can carry out even glueing to the wood shavings bits, prevent glue from piling up together, has realized the purpose of the abundant glueing of wood shavings bits, cooperate the rotation of the stirring vane 5, can fully mix wood shavings bits and glue, guarantee the effect of processing of wood shavings bits, through setting up the observation window 20, can observe the mixed effect of wood shavings bits and glue, overall structure is simple, easy to use, realize the purpose of the abundant glueing of agitating unit, avoid the glue that the glue gun causes in the course of the inboard glueing of agitating unit, can make wood shavings bits and glue mix evenly, guarantee the effect of shaving board subsequent processing, have improved the production quality of shaving board, has improved the availability factor and the result of using of agitating unit, solved the advantage that the existing agitating unit does not possess abundant glueing, lead to the glueing gun in the course of the inboard glueing of agitating unit, can cause the phenomenon of glue piling up, make wood shavings bits and glue mix unevenly, the processing to subsequent shaving board has led to the fact certain influence, has reduced the production quality of shaving board, and inconvenient use has reduced agitating unit's availability factor and result of use's problem.
