CN213802318U

CN213802318U - Production and winding equipment for composite fiber reinforced resin rope belt

Info

Publication number: CN213802318U
Application number: CN202022653065.XU
Authority: CN
Inventors: 杨涛
Original assignee: Jiangsu Chuangyuan Special Equipment Co ltd
Current assignee: Jiangsu Chuangyuan Special Equipment Co ltd
Priority date: 2020-11-16
Filing date: 2020-11-16
Publication date: 2021-07-27
Anticipated expiration: 2030-11-16

Abstract

The utility model discloses a winding device for producing composite fiber reinforced resin rope belt, which comprises a bottom plate, wherein the left and right sides of the top of the bottom plate are fixedly connected with a support plate, two groups of support plates are fixedly connected with an electrically controlled telescopic rod which is embedded at the front end of a side wall of the support plate which is close to each other, the electrically controlled telescopic rod is rotationally connected with the support plate, the power telescopic end of the electrically controlled telescopic rod which is close to each other is fixedly connected with a limit edge sleeve, a winding mechanism is arranged between the limit edge sleeves, the left side of the support plate is provided with a power component, the top of the support plate is provided with a rope equalizing mechanism and a portal frame, the left and right sides of the top of the portal frame are provided with a pressing component, a cutting mechanism is arranged in the middle of the top of the portal frame, a cutting groove is arranged at the top of the bottom plate, a lower cutting knife is fixedly connected with the inner cavity of the cutting groove, the utility model has reasonable structural design, the composite fiber reinforced resin rope belt can be wound and cut conveniently, time and physical force are saved, and working efficiency is improved.

Description

Production and winding equipment for composite fiber reinforced resin rope belt

Technical Field

The utility model relates to a composite fiber reinforced resin fag end production and processing technology field, concretely relates to composite fiber reinforced resin fag end production rolling equipment.

Background

The resin is any high molecular compound which can be used as a processing raw material of a plastic product, the composite fiber is one of multi-component fibers, the term is specific to the variety of the man-made fibers, two or more than two polymer fibers which are not mixed exist on the same fiber section, a bi-component fiber with the characteristics of two polymers can be obtained by utilizing the composite fiber manufacturing technology, the composite fiber needs to be spun by a composite spinning machine with a special structure, and the composite fiber is mainly used for wool, blankets, wool fabrics, thermal wadding fillers, silk fabrics, non-woven fabrics, medical and health products, special work clothes and the like.

At present, composite fiber reinforced resin rope belt is in the production and processing process, rolling work is usually required to be carried out on the composite fiber reinforced resin rope belt, rolling is carried out through manual operation under most conditions, meanwhile, after rolling is completed, the composite fiber reinforced resin rope belt needs to be cut, the composite fiber reinforced resin rope belt combines the excellent performances of resin and composite fiber, manual cutting is adopted, time and labor are wasted, working efficiency is reduced, and therefore the composite fiber reinforced resin rope belt production and rolling equipment is provided.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to overcome the above-mentioned problem that exists among the prior art, provide a composite fiber reinforced resin fag end production rolling equipment, be convenient for to the rolling of composite fiber reinforced resin fag end and cut, save time and physical power improve work efficiency.

In order to realize the technical purpose, the technical effect is achieved, the utility model discloses a realize through following technical scheme:

a winding device for composite fiber reinforced resin rope production comprises a bottom plate, wherein supporting plates are fixedly connected to the left side and the right side of the top of the bottom plate, two groups of supporting plates are fixedly connected to the front end of one side wall, close to each other, of each supporting plate in an embedded mode, electric control telescopic rods are rotatably connected with the supporting plates, two groups of electric control telescopic rods are fixedly connected to power telescopic ends, close to each other, of the electric control telescopic rods in an embedded mode, limiting edge sleeves are fixedly connected to the power telescopic ends, a winding mechanism is arranged between the two groups of limiting edge sleeves, a power assembly is arranged on the left side of the supporting plate on the left side, a rope equalizing mechanism and a door frame are arranged at the top of the supporting plates, and the door frame is located on the rear side of the rope equalizing mechanism;

the top left and right sides of portal all is provided with compresses tightly the subassembly, be provided with the truncation mechanism in the middle of the top of portal, the truncation groove has been seted up at the top of bottom plate, and the truncation groove is located truncation mechanism under, the inner chamber rigid coupling of truncation groove has lower truncation sword.

Preferably, the winding mechanism comprises a winding rod, the left end and the right end of the winding rod are fixedly connected with edge blocks, the edge blocks are connected with limiting edge sleeves in an inserting mode, the left end and the right end of the outer wall of the winding rod are connected with stop rods in a threaded mode, and assembling and disassembling between the stop rods and the winding rod are facilitated.

Preferably, the above-mentioned be arranged in compound fiber reinforced resin fag end production rolling equipment, power component includes driving motor, driving motor's top power take off end is connected with main bevel gear, main bevel gear's right side meshing has from bevel gear, and from bevel gear rigid coupling on the outer wall of the automatically controlled telescopic link in left side, under driving motor provides the effect of drive power, be convenient for drive winding mechanism to carry out the rolling to compound fiber reinforced resin fag end through main bevel gear and from the meshing transmission between the bevel gear.

Preferably, in the winding device for producing the composite fiber reinforced resin rope belt, the rope equalizing mechanism comprises a bearing strip frame, the left side and the right side of the inner cavity of the bearing strip frame are fixedly connected with supporting blocks, a displacement screw rod is rotatably connected between the two groups of supporting blocks, the right end of the displacement screw penetrates through the right side wall of the right side supporting block, the right side of the right side supporting block is provided with a positive and negative rotation motor, and the left power output end of the positive and negative rotation motor is connected with one end of a displacement screw rod penetrating through the right side wall of the right side supporting block, the displacement screw rod is in threaded connection with a rope equalizing block, the bottom of the front side wall of the rope equalizing block is provided with a rope equalizing through hole, the rope equalizing through hole is positioned below the bearing strip frame, the composite fiber reinforced resin rope belt passes through the rope equalizing through hole, when the rope equalizing block moves back and forth along the horizontal central line direction of the winding mechanism, the composite fiber reinforced resin rope belt is conveniently and uniformly wound on the winding mechanism.

Preferably, the above-mentioned be arranged in compound fibre reinforced resin fag end production rolling equipment, it includes first hydraulic push rod to compress tightly the subassembly, the flexible end activity of bottom power of first hydraulic push rod stretches into the inner chamber of portal, the one end rigid coupling that first hydraulic push rod activity stretched into the portal inner chamber has the slat that compresses tightly, and the first hydraulic push rod of being convenient for drives and compresses tightly the slat and reciprocate.

Preferably, the aforesaid is arranged in compound fibre reinforcing resin fag end production rolling equipment, the truncation mechanism includes second hydraulic rod, the flexible end activity of bottom power of second hydraulic rod stretches into the inner chamber of portal, the one end rigid coupling that the activity of second hydraulic rod stretches into the portal inner chamber has the sword slat, the bottom rigid coupling of sword slat has with lower truncation sword matched with last truncation sword, and the second hydraulic rod of being convenient for drives and goes up the truncation sword and reciprocate the cooperation down the truncation sword and realize cutting compound fibre reinforcing resin fag end.

Compared with the prior art, the beneficial effects of the utility model are as follows:

the utility model has the advantages of reasonable structural design, on one hand, through the cooperation of the power component, the electric control telescopic rod, the limiting edge sleeve, the winding mechanism and the rope equalizing mechanism, the composite fiber reinforced resin rope belt can be conveniently and uniformly wound on the winding mechanism, and meanwhile, the wound composite fiber reinforced resin rope belt and the winding mechanism can be conveniently dismounted together; the other side is convenient for all compress tightly spacing to the both ends of composite fiber reinforced resin fag end through the cooperation of two sets of subassemblies that compress tightly, through the cooperation of cutting mechanism, lower clipper and cut-off groove, is convenient for carry out fast to the composite fiber reinforced resin fag end that the rolling is good and cuts, save time and physical power improve work efficiency.

Of course, it is not necessary for any particular product to achieve all of the above-described advantages at the same time.

Drawings

In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings used in the description of the embodiments will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art that other drawings can be obtained according to these drawings without creative efforts.

Fig. 1 is a schematic view of the structure of the utility model in use;

fig. 2 is a right side view of fig. 1 of the present invention;

fig. 3 is a schematic structural diagram of the cutting mechanism of the present invention;

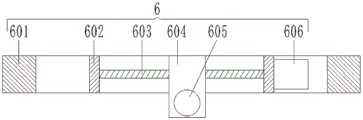

fig. 4 is a schematic structural view of the rope equalizing mechanism of the present invention;

fig. 5 is a schematic structural view of the winding mechanism of the present invention;

in the drawings, the components represented by the respective reference numerals are listed below:

1-bottom plate, 2-supporting plate, 3-rolling mechanism, 301-blocking rod, 302-rolling rod, 303-prism block, 4-electric control telescopic rod, 5-power assembly, 501-slave bevel gear, 502-main bevel gear, 503-driving motor, 6-rope balancing mechanism, 601-bearing strip frame, 602-supporting block, 603-displacement screw rod, 604-rope balancing block, 605-rope balancing through hole, 606-forward and reverse rotation motor, 7-gantry, 8-pressing assembly, 801-first hydraulic push rod, 802-pressing strip plate, 9-cutting mechanism, 901-second hydraulic push rod, 902-cutter strip plate, 903-upper cutting knife, 10-limiting prism sleeve, 11-lower cutting knife and 12-cutting groove.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments of the present invention, all other embodiments obtained by a person of ordinary skill in the art without creative efforts belong to the protection scope of the present invention.

Referring to fig. 1-5, a winding device for producing a composite fiber reinforced resin rope comprises a bottom plate 1, wherein support plates 2 are fixedly connected to the left and right sides of the top of the bottom plate 1, electrically controlled telescopic rods 4 are respectively embedded and installed at the front ends of the side walls of two adjacent groups of support plates 2, the electrically controlled telescopic rods 4 are rotatably connected with the support plates 2, limiting edge sleeves 10 are respectively fixedly connected to the power telescopic ends of the two adjacent groups of electrically controlled telescopic rods 4, a winding mechanism 3 is arranged between the two groups of limiting edge sleeves 10, the winding mechanism 3 comprises a winding rod 302, edge blocks 303 are respectively fixedly connected to the left and right ends of the winding rod 302, the edge blocks 303 are respectively inserted into the limiting edge sleeves 10, stop rods 301 are respectively connected to the left and right ends of the outer wall of the winding rod 302 by screw threads, so as to facilitate the assembly and disassembly between the stop rods 301 and the winding rod 302, a power assembly 5 is arranged on the left side of the left support plate 2, the power assembly 5 comprises a driving motor 503, the top power output end of the driving motor 503 is connected with a main bevel gear 502, the right side of the main bevel gear 502 is engaged with a secondary bevel gear 501, the secondary bevel gear 501 is fixedly connected to the outer wall of the left electric control telescopic rod 4, under the action of driving force provided by the driving motor 503, the winding mechanism 3 is driven to wind the composite fiber reinforced resin rope belt conveniently through the engagement transmission between the main bevel gear 502 and the secondary bevel gear 501, the top of the supporting plate 2 is provided with a rope equalizing mechanism 6 and a gantry 7, the gantry 7 is positioned at the rear side of the rope equalizing mechanism 6, the rope equalizing mechanism 6 comprises a bearing strip frame 601, the left side and the right side of the inner cavity of the bearing strip frame 601 are fixedly connected with supporting blocks 602, a displacement lead screw 603 is rotatably connected between the two groups of supporting blocks 602, the right end of the displacement lead screw 603 penetrates through the right side wall of the right supporting block 602, a forward and reverse rotation motor 606 is arranged on the right side of the right side supporting block 602, and the left side power output end of the forward and the displacement lead screw 603 penetrate through the right side wall of the right side supporting block 602 to be connected with one end of the displacement lead screw 603 The displacement screw 603 is connected with a rope equalizing block 604 through a thread, the bottom of the front side wall of the rope equalizing block 604 is provided with a rope equalizing through hole 605, the rope equalizing through hole 605 is positioned below the bearing strip frame 601, the composite fiber reinforced resin rope is penetrated through the rope equalizing through hole 605, when the rope equalizing block 604 moves back and forth along the horizontal central line direction of the winding mechanism 3, the composite fiber reinforced resin rope is conveniently and uniformly wound on the winding mechanism 3, the left side and the right side of the top of the portal frame 7 are respectively provided with a pressing component 8, the pressing components 8 comprise a first hydraulic push rod 801, the bottom power telescopic end of the first hydraulic push rod 801 movably extends into the inner cavity of the portal frame 7, one end of the first hydraulic push rod 801 movably extending into the inner cavity of the portal frame 7 is fixedly connected with a pressing lath 802, the first hydraulic push rod 801 drives the pressing lath 802 to move up and down, the middle of the top of the portal frame 7 is provided with a cutting mechanism 9, the cutting mechanism 9 comprises a second hydraulic push rod 901, the bottom power telescopic end of the second hydraulic push rod 901 movably extends into the inner cavity of the portal frame 7, one end, extending into the inner cavity of the portal frame 7, of the second hydraulic push rod 901 is fixedly connected with a knife strip plate 902, the bottom of the knife strip plate 902 is fixedly connected with an upper cutting knife 903 matched with a lower cutting knife 11, the second hydraulic push rod 901 drives the upper cutting knife 903 to move up and down, the lower cutting knife 11 is matched with the upper cutting knife 903 to cut the composite fiber reinforced resin rope, a cutting groove 12 is formed in the top of the bottom plate 1 and is located right below the cutting mechanism 9, and the inner cavity of the cutting groove 12 is fixedly connected with the lower cutting knife 11.

One specific application of this embodiment is: the utility model has the advantages of reasonable design, through adjusting the rope equalizing block 604 to the rightmost side first, then pass one end of the compound fiber reinforced resin rope through the rope equalizing through hole 605 and knot and fix on the rightmost end of the winding rod 302, drive the rotation of the main bevel gear 502 through the driving motor 503, drive the rotation of the electric control telescopic rod 4 on the supporting plate 2 through the meshing transmission of the main bevel gear 502 and the slave bevel gear 501, further drive the winding mechanism 3 to rotate, then drive the rotation of the displacement lead screw 603 through the positive and negative rotation motor 606 simultaneously, drive the rope equalizing block 604 to slide back and forth in the carrying strip frame 601 through the rotation of the displacement lead screw 603, when the rope equalizing block 604 moves to the leftmost end, make the compound fiber reinforced resin rope evenly wind one layer on the winding rod 302, after the rope equalizing block 604 moves to the right and resets, accomplish the second layer evenly winding on the basis of the one layer, repeat this operation, thereby facilitating the uniform winding of the composite fiber reinforced resin rope belt on the winding mechanism 3, after the winding is completed, two groups of first hydraulic push rods 801 are extended downwards to drive the pressing lath 802 to move downwards, thereby pressing and limiting the two end positions of the cut part of the composite fiber reinforced resin rope belt on the bottom plate 1, the second hydraulic push rod 901 is extended downwards to drive the knife lath 902 and the upper cutter 903 to move downwards together, the cutting matching of the upper cutter 903 and the lower cutter 11 is facilitated, the rapid cutting of the pressed and limited composite fiber reinforced resin rope at the position of the cut groove 12 is facilitated, the time and the physical force are saved, the working efficiency is improved, then the cut end is knotted and fastened with the winding mechanism 3, the winding mechanism is contracted through the splicing action of the prism blocks 303 and the limiting prism sleeves 10, and the electric control telescopic rod 4 is contracted, thereby facilitating the dismounting of the wound composite fiber reinforced resin rope belt and the winding mechanism 3 together, the winding work of the composite fiber reinforced resin rope belt of the next batch is facilitated.

In the description herein, references to the description of "one embodiment," "an example," "a specific example," etc., mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the invention. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.

The preferred embodiments of the present invention disclosed above are intended only to help illustrate the present invention. The preferred embodiments are not intended to be exhaustive or to limit the invention to the precise embodiments disclosed. Obviously, many modifications and variations are possible in light of the above teaching. The embodiments were chosen and described in order to best explain the principles of the invention and its practical applications, to thereby enable others skilled in the art to best understand the invention for and utilize the invention. The present invention is limited only by the claims and their full scope and equivalents.

Claims

1. The utility model provides a composite fiber reinforced resin fag end production rolling equipment, includes bottom plate (1), its characterized in that: the left side and the right side of the top of the bottom plate (1) are fixedly connected with supporting plates (2), the front ends of the two groups of supporting plates (2) close to each other are embedded with electric control telescopic rods (4), the electric control telescopic rods (4) are rotatably connected with the supporting plates (2), the power telescopic ends of the two groups of electric control telescopic rods (4) close to each other are fixedly connected with limiting edge sleeves (10), a winding mechanism (3) is arranged between the two groups of limiting edge sleeves (10), the left side of the supporting plate (2) is provided with a power assembly (5), the top of the supporting plate (2) is provided with a rope equalizing mechanism (6) and a gantry (7), and the gantry (7) is positioned on the rear side of the rope equalizing mechanism (6);

the top left and right sides of portal (7) all is provided with compresses tightly subassembly (8), be provided with in the middle of the top of portal (7) and cut off mechanism (9), cut off groove (12) have been seted up at the top of bottom plate (1), and cut off groove (12) and be located under cut off mechanism (9), the inner chamber rigid coupling of cut off groove (12) has down clipper (11).

2. The winding device for producing the composite fiber reinforced resin rope belt according to claim 1, wherein: winding mechanism (3) are including rolling up pole (302), the equal rigid coupling in both ends has arris piece (303) about rolling up pole (302), and arris piece (303) peg graft mutually with spacing arris cover (10), the equal threaded connection in both ends has pin (301) about the outer wall of rolling up pole (302).

3. The winding device for producing the composite fiber reinforced resin rope belt according to claim 1, wherein: the power assembly (5) comprises a driving motor (503), a power output end at the top of the driving motor (503) is connected with a main bevel gear (502), the right side of the main bevel gear (502) is meshed with a secondary bevel gear (501), and the secondary bevel gear (501) is fixedly connected to the outer wall of the left electric control telescopic rod (4).

4. The winding device for producing the composite fiber reinforced resin rope belt according to claim 1, wherein: equal rope mechanism (6) are including bearing strip frame (601), the equal rigid coupling in inner chamber left and right sides that bears strip frame (601) has supporting shoe (602), and is two sets of rotate between supporting shoe (602) and be connected with displacement lead screw (603), and the right-hand member of displacement lead screw (603) runs through the right side wall of right side supporting shoe (602), the right side of supporting shoe (602) is provided with just reverse motor (606), and just the left side power take off end of just reverse motor (606) is connected with the one end that displacement lead screw (603) run through right side supporting shoe (602) right side wall, threaded connection has equal rope piece (604) on displacement lead screw (603), equal rope through-hole (605) have been seted up to the preceding lateral wall bottom of equal rope piece (604), and equal rope through-hole (605) are located the below that bears strip frame (601).

5. The winding device for producing the composite fiber reinforced resin rope belt according to claim 1, wherein: compress tightly subassembly (8) and include first hydraulic ram (801), the flexible inner chamber that stretches into portal (7) of the flexible end activity of bottom power of first hydraulic ram (801), the one end rigid coupling that first hydraulic ram (801) activity stretched into portal (7) inner chamber has and compresses tightly slat (802).

6. The winding device for producing the composite fiber reinforced resin rope belt according to claim 1, wherein: the cutting mechanism (9) comprises a second hydraulic push rod (901), the bottom power telescopic end of the second hydraulic push rod (901) movably extends into the inner cavity of the gantry (7), one end, movably extending into the inner cavity of the gantry (7), of the second hydraulic push rod (901) is fixedly connected with a knife strip plate (902), and the bottom of the knife strip plate (902) is fixedly connected with an upper cutting knife (903) matched with the lower cutting knife (11).
