CN213800711U

CN213800711U - Intelligent medicine placing box

Info

Publication number: CN213800711U
Application number: CN202022202149.1U
Authority: CN
Inventors: 朱修玉; 陈玲玲; 毛姣丹
Original assignee: Lishui City Peoples Hospital
Current assignee: Lishui City Peoples Hospital
Priority date: 2020-09-30
Filing date: 2020-09-30
Publication date: 2021-07-27
Anticipated expiration: 2030-09-30

Abstract

The utility model discloses an intelligent swinging medicine box, which comprises a box body, a marking area is arranged on the left side of the front of the sub-packaging box, a collection bag is arranged on the right side of the front side of the cover body, and the top of the cover body is fixed A clamping block is connected, and a reminder component is arranged on the front of the cover body. The intelligent medicine medicine box can directly divide the medicines needed in the morning, noon, and evening through the packaging box and the marking area. Through the display of the display screen and the scanning of the camera, the medicines used can be entered. When there are omissions , control the sound of the alarm, and display the new doctor's order or stop the doctor's order through the display screen, and then play a reminder for medical staff to take medicine. The clearance between the plate and the sliding plate allows the position of the partition plate, the sleeve plate and the sliding plate to be adjusted arbitrarily according to the needs of use, and the internal space of the sub-packaging box can be used separately, which is suitable for a variety of medicines of different sizes, and can improve the space utilization. Rate.

Description

Intelligent medicine placing box

Technical Field

The utility model relates to a pendulum medicine box technical field specifically is an intelligence pendulum medicine box.

Background

The medicine placing box is a storage device with one or more medicine grids, different medicines can be stored simultaneously, medicine taking is facilitated when needed, the medicine placing box is generally made of plastic materials, and the medicine placing box is small in overall size, light in weight and widely applied to the field of medical treatment.

For example, a pull formula pendulum medicine box that application number is "CN 201821051890.9", including one-level pendulum medicine box, one-level lug, the second grade pendulum medicine box, the second grade lug, guide block and fixed block, although can adjust the size of pendulum medicine box, the storage capacity of medicine has been increased, middle baffle can recombine in a flexible way, according to the size of medicine, the region of marking off and putting, the space utilization who sets up the medicine box has been improved, but when using, can not be directly to the required medicine partial shipment of time period such as early, well as late, and omit the medicine use, new doctor's advice or information such as stopping doctor's advice can't play the warning effect to medical personnel, it is limited to separate the use to divide the inside space of partial shipment box simultaneously, and then be not suitable for the medicine of multiple different size of a dimension, use the suitability is poor, and space utilization is low, thereby inconvenient people use.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide an intelligence pendulum medicine box to but the pendulum medicine box among the prior art is when using in solving above-mentioned background art, can not directly be to the required medicine partial shipment of time period such as early, well, evening, and use to the medicine and omit, new doctor's advice or stop information such as doctor's advice and can't play the problem of warning effect to medical personnel.

In order to achieve the above object, the utility model provides a following technical scheme: an intelligent medicine placing box comprises a box body, wherein the top of the outer end of the box body is rotatably connected with a cover body through a round rod, a torsion spring is sleeved on the outer wall of the round rod, two ends of the torsion spring are fixedly connected with the cover body and the box body respectively, four sub-box bodies are placed inside the box body, the tops of the sub-box bodies are buckled with buckle covers, an identification area is arranged on the left side of the front of each sub-box body, a collecting bag is arranged on the right side of the front of the cover body, a clamping block is fixedly connected to the top of the cover body, a clamping pin is fixedly connected to the front of the box body, and a reminding assembly is arranged on the front of the cover body;

the reminding assembly comprises a display screen, a camera, a light supplementing lamp, an alarm, a WiFi module and a card seat;

the bottom joint of display screen has the cassette, the rear end of cassette and the positive below fixed connection of lid, the camera is installed to the front top of display screen, the both sides of camera are equipped with the light filling lamp, the light filling lamp install in the front top of display screen, the siren is installed to the right-hand member of display screen, the wiFi module is installed to the left end of display screen. Design accessible display screen like this and show the scanning of cooperation camera to control the siren sound production and play the warning effect to medical personnel with medicine.

Preferably, the light supplement lamp is arranged corresponding to the position of the camera. But the camera promotes scanning accuracy like this design.

Preferably, the display screen is a touch display screen. The design is such that the display screen can be manually touched and operated.

Preferably, the clamping block can be connected with the clamping pin in a clamping manner when the cover body is buckled with the box body. The design can make lid and box body can be detained closely.

Preferably, the inside of the identification area is pasted with morning, noon, evening and morning time identification stickers. The design can distinguish the packaging box.

Preferably, a partition component is arranged inside the split box;

the partition component comprises a vertical plate, a first slot, a partition plate, a second slot, a sleeve plate, a sliding plate and a compression spring;

the split charging box comprises a vertical plate, a split charging box and a split charging box, wherein the vertical plate is fixedly connected to the inner middle section of the split charging box, first slots are machined at the left end and the right end of the vertical plate and on the left side and the right side of the inner wall of the split charging box, a partition plate is inserted into the inner wall of each first slot, second slots are machined on the upper side and the lower side of each partition plate, a sleeve plate is inserted into the inner wall of each second slot, a sliding plate is in clearance fit with the inner wall of the sleeve plate, and the inner wall of the sleeve plate is fixedly connected with the sliding plate through a compression spring. The design can be separated the dress box inner space like this, and then is suitable for multiple medicine.

Preferably, the sliding plate and the sleeve plate form a sliding structure. The design can extend the length of the sleeve plate, and further has a better separation effect.

Preferably, the first slot and the second slot are both T-shaped. The design can promote baffle and lagging grafting back stability like this.

Compared with the prior art, the beneficial effects of the utility model are that: this intelligence medicine box of putting, through the box body, the round bar, the lid, torque spring, divide the dress box, the buckle closure, the identification area, collect the bag, the fixture block, bayonet lock and the cooperation of reminding the subassembly, make the device when using, accessible partial shipment box and identification area are direct to the morning, well, the required medicine partial shipment of time period such as evening, the scanning of demonstration cooperation camera through the display screen, can type into using the medicine, when omitting, the sound production of control siren, and can show new doctor's advice or stop doctor's advice etc. through the display screen, and then use medicine to medical personnel and play the warning effect.

Through the box body, the round bar, the lid, torque spring, divide the dress box, the buckle closure, the identification area, collect the bag, the fixture block, the bayonet lock and the cooperation of reminding the subassembly, make the device when using, the first slot of accessible, the setting of second slot, and the baffle, the clearance fit of lagging and slide, make the position of baffle and lagging and slide adjust the position wantonly according to the use needs, divide the dress box inner space and separate the use, and then be suitable for the medicine of multiple not unidimensional size, promote and use the suitability, and can improve space utilization, make things convenient for people to use.

Drawings

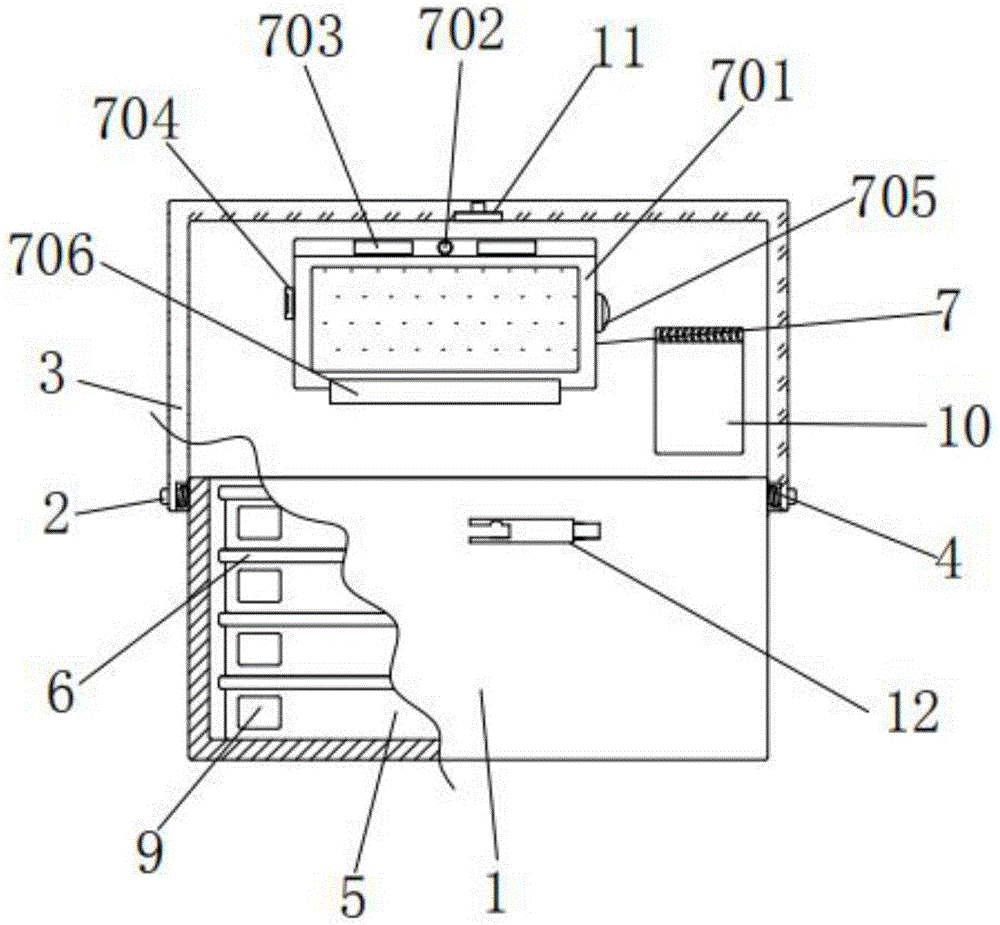

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic structural view of the packing box, the buckle cover and the identification area in FIG. 1;

FIG. 3 is a schematic top view of the packing box of FIG. 1;

fig. 4 is a schematic view of the structure of the slide plate, the sleeve and the partition plate of fig. 3.

In the figure: 1. the box body, 2, round bar, 3, the lid, 4, torsion spring, 5, partial shipment box, 6, buckle closure, 7, remind the subassembly, 701, the display screen, 702, the camera, 703, the light filling lamp, 704, the siren, 705, the wiFi module, 706, the cassette, 8, separate the subassembly, 801, the riser, 802, first slot, 803, baffle, 804, the second slot, 805, the lagging, 806, the slide, 807, compression spring, 9, sign district, 10, collect the bag, 11, the fixture block, 12, the bayonet lock.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-4, the present invention provides a technical solution: the utility model provides an intelligence pendulum medicine box, comprises a box bod 1, the outer end top of box body 1 is rotated through round bar 2 and is connected with lid 3, torsion spring 4 has been cup jointed to the outer wall of round bar 2, torsion spring 4's both ends respectively with

lid

3 and 1 fixed connection of box body, torsion spring 4 gives lid 3 open power, four partial shipment boxes 5 have been placed to the inside of box body 1, the top lock of partial shipment box 5 has buckle closure 6, partial shipment box 5's front left side is equipped with sign district 9, the inside of sign district 9 is pasted and is had early, well, late, morning time sign is pasted. Design like this can play the differentiation to packing carton 5 and play the effect, the front right side of lid 3 is equipped with collection bag 10, collection bag 10 can be collected baffle 803 and lagging 805 and slide 806 etc. the top rigid coupling of lid 3 has fixture block 11, the front rigid coupling of box body 1 has bayonet lock 12, fixture block 11 can link to each other with bayonet lock 12 joint when lid 3 and box body 1 buckle, the design can make lid 3 and box body 1 can tightly detain like this, the front of lid 3 is equipped with reminds subassembly 7.

The reminding component 7 comprises a display screen 701, a camera 702, a light supplement lamp 703, an alarm 704, a WiFi module 705 and a clamping seat 706, the clamping seat 706 is clamped at the bottom of the display screen 701, the rear end of the clamping seat 706 is fixedly connected with the lower portion of the front surface of the cover body 3, the display screen 701 is a touch display screen, the display screen 701 can be manually touched and controlled by the design, the camera 702 is installed above the front surface of the display screen 701 and can scan and record medicines, the light supplement lamp 703 is arranged on two sides of the camera 702 and is installed above the front surface of the display screen 701, the light supplement lamp 703 and the camera 702 are correspondingly arranged, the scanning precision of the camera 702 can be improved by the design, the alarm 704 is installed at the right end of the display screen 701 and can play a role of sounding alarm, the WiFi module 705 is installed at the left end of the display screen 701, and the display screen 701 can be connected with a hospital network through the WiFi module 705, the system is then loaded into the display 701 and the corresponding function is imported.

The separating component 8 is arranged in the split charging box 5, the separating component 8 comprises a vertical plate 801, a first slot 802, a partition plate 803, a second slot 804, a sleeve plate 805, a sliding plate 806 and a compression spring 807, the vertical plate 801 is fixedly connected to the middle section in the split charging box 5, the first slot 802 is respectively processed at the left end and the right end of the vertical plate 801 and the left side and the right side of the inner wall of the split charging box 5, the partition plate 803 is inserted into the inner wall of the first slot 802, the second slot 804 is respectively processed at the upper side and the lower side of the partition plate 803, the sleeve plate 805 is inserted into the inner wall of the second slot 804, the first slot 802 and the second slot 804 are both in T shape, the design can improve the stability of the partition plate 803 and the sleeve plate 805 after being plugged, the sliding plate 806 is in clearance fit with the inner wall of the sleeve plate 805, the sliding plate 806 and the sleeve plate 805 form a sliding structure, the design can extend the length of the sleeve plate 805, and thus provides a better separation, the inner wall of the sleeve plate 805 is fixedly connected to the sliding plate 806 by a compression spring 807.

In this embodiment, when the intelligent medicine placing box is used, the early, middle and late time period marks are adhered to the corresponding mark areas 9, so as to distinguish the packing boxes 5, the positions of the partition plate 803, the sleeve plate 805 and the sliding plate 806 can be adjusted through the arrangement of the first slot 802 and the second slot 804, so that the medicines can be loaded into different packing boxes 5, the buckle cover 6 is buckled and loaded into the box body 1, the cover body 3 can be automatically opened through the arrangement of the clamping pin 12 and the clamping block 11 and the resilience of the torsion spring 4, the name of the patient can be input into the display screen 701, the medicine required by the early, middle and late time periods can be displayed through the display screen 701, the corresponding packing box 5 is opened at the moment, the corresponding medicines are sequentially recorded through the corresponding cameras 702, when the patient switches, the medicine of the previous patient is omitted for use, the alarm 704 sounds for alarming, promote medical personnel's inspection and use medicine again, and then play the warning effect to medical personnel, make things convenient for people to use.

In the description of the present invention, it is to be understood that the terms "coaxial", "bottom", "one end", "top", "middle", "other end", "upper", "one side", "top", "inner", "front", "center", "both ends", and the like, indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.

In the present invention, unless otherwise expressly stated or limited, the terms "mounted," "disposed," "connected," "fixed," "screwed" and the like are to be construed broadly, e.g., as meaning fixedly connected, detachably connected, or integrally formed; can be mechanically or electrically connected; they may be directly connected or indirectly connected through an intermediate medium, and may be connected through the inside of two elements or in an interaction relationship between two elements, unless otherwise specifically defined, and the specific meaning of the above terms in the present invention will be understood by those skilled in the art according to specific situations.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. An intelligent pendulum medicine box, comprising a box body (1), characterized in that: the outer top of the box body (1) is rotatably connected with a cover body (3) through a round rod (2), and the round rod The outer wall of (2) is sleeved with a torsion spring (4), the two ends of the torsion spring (4) are fixedly connected to the cover body (3) and the box body (1) respectively, and the inside of the box body (1) is placed There are four sub-packaging boxes (5), the top of the sub-packaging box (5) is fastened with a buckle cover (6), and the front left side of the sub-packaging box (5) is provided with an identification area (9), so A collection bag (10) is arranged on the right side of the front of the cover body (3), a block (11) is fixed on the top of the cover body (3), and a bayonet pin is fixed on the front side of the box body (1). (12), a reminder assembly (7) is provided on the front of the cover body (3);

The reminder assembly (7) includes a display screen (701), a camera (702), a fill light (703), an alarm (704), a WiFi module (705) and a card holder (706);

The bottom of the display screen (701) is clamped with a card seat (706), and the rear end of the card seat (706) is fixedly connected to the lower part of the front of the cover (3), and the upper part of the front of the display screen (701) A camera (702) is installed, and fill lights (703) are provided on both sides of the camera (702), and the fill lights (703) are installed above the front of the display screen (701), and the display screen ( An alarm (704) is installed at the right end of 701), and a WiFi module (705) is installed at the left end of the display screen (701).

2 . The smart pendulum pill box according to claim 1 , wherein the fill light ( 703 ) is set corresponding to the position of the camera ( 702 ). 3 .

3. An intelligent pendulum medicine box according to claim 1, characterized in that: the display screen (701) is a touch-type display screen.

4. An intelligent pendulum medicine box according to claim 1, characterized in that: when the cover body (3) and the box body (1) are fastened together, the locking block (11) can be locked with the detent (12) connected.

5 . The intelligent pendulum medicine box according to claim 1 , wherein the marking area ( 9 ) is affixed with early, middle, late and early morning time markings. 6 .

6. An intelligent pendulum medicine box according to claim 1, characterized in that: a partition assembly (8) is provided inside the sub-packaging box (5);

The partition assembly (8) includes a vertical plate (801), a first slot (802), a partition plate (803), a second slot (804), a sleeve plate (805), a sliding plate (806) and a compression spring ( 807);

The vertical plate (801) is fixedly connected to the inner middle section of the sub-packaging box (5), and the left and right ends of the vertical plate (801) and the left and right sides of the inner wall of the sub-packaging box (5) are machined with first slots. (802), a partition plate (803) is inserted into the inner wall of the first slot (802), and a second slot (804) is processed on the upper and lower sides of the partition plate (803). A sleeve plate (805) is inserted into the inner wall of the two slots (804), the inner wall of the sleeve plate (805) is gap-fitted with a sliding plate (806), and the inner wall of the sleeve plate (805) is connected to the inner wall of the sleeve plate (805) through a compression spring (807). The sliding plate (806) is fixedly connected.

7 . The smart pendulum pill box according to claim 6 , wherein the sliding plate ( 806 ) and the sleeve plate ( 805 ) constitute a sliding structure. 8 .

8 . The smart pendulum pill box according to claim 6 , wherein the first slot ( 802 ) and the second slot ( 804 ) are both T-shaped. 9 .
