CN213798337U

CN213798337U - Automatic energy-saving glue adding device for box pasting machine

Info

Publication number: CN213798337U
Application number: CN202022203102.7U
Authority: CN
Inventors: 曹孝洋; 洪永强; 汪兴杰
Original assignee: Xiangyang Heshunfa Color Printing Co ltd
Current assignee: Xiangyang Heshunfa Color Printing Co ltd
Priority date: 2020-09-30
Filing date: 2020-09-30
Publication date: 2021-07-27
Anticipated expiration: 2030-09-30

Abstract

The utility model discloses an automatic energy-saving gluing device for a folder gluer, which relates to the glue gluing field of the folder gluer. The inner wall of the mouth is rotatably connected with a hollow rotating shaft through a bearing. The top and bottom of the hollow rotating shaft are both provided with strip openings. The two strip openings are jointly slidably connected with a moving rod, and the top and bottom of the moving rod are connected together. A rubber brushing roller is fixedly connected, a rubber brushing layer is fixedly installed on the surface of the rubber brushing roller, a threaded hole is opened on one side of the hollow rotating shaft, and a threaded rod is threadedly connected to the hollow rotating shaft through the threaded hole. The utility model can adjust the position of the rubber brushing roller, so that the rubber brushing roller can brush glue on different positions on the surface of the carton, and can also fix the threaded rod after rotating and moving, so as to prevent the threaded rod from moving when rotating and brushing the glue.

Description

Automatic energy-saving glue adding device for box pasting machine

Technical Field

The utility model relates to a paste box machine and add the gluey field, in particular to paste automatic energy-conservation of box machine and add mucilage binding and put.

Background

In the packaging and printing industry, the box pasting machine is the last process of packaging box processing, the printed and die-cut formed paperboards are folded and formed and pasted with pasted openings, the process steps of paper feeding, gluing, folding, pasting, pressing, counting and the like during packaging of the cartons can be mechanically realized, the manpower resources are saved, the working efficiency is improved, all the used boxes are glued by gluing wheels and then are glued, and in the gluing process, when the gluing wheels rotate, the glue can be driven to be thrown upwards due to inertia and the viscosity of the glue.

At present, a box pasting machine is an important device in the packaging and printing industry, and a gluing device of the box pasting machine in the prior art generally adopts a fixed rubber roller to glue a paper box, so that machines of other specifications are required to be replaced to glue different paper boxes, and the cost is greatly increased.

Therefore, it is necessary to provide an automatic energy-saving glue adding device for a box pasting machine to solve the above problems.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a paste box machine with automatic energy-conserving mucilage binding and put to solve the gluey device of pasting box machine rubberizing that proposes among the above-mentioned background art and generally adopt fixed rubber roll to brush a carton and glue, thereby need change the machine of other specifications when brushing to glue different cartons and brush and glue, make cost greatly increased's problem.

In order to achieve the above object, the utility model provides a following technical scheme: an automatic energy-saving glue adding device for a box pasting machine comprises a U-shaped mounting frame, round openings are formed in two sides of the U-shaped mounting frame, the inner wall of each round opening is rotatably connected with a hollow rotating shaft through a bearing, strip-shaped openings are formed in the top and the bottom of the hollow rotating shaft, a moving rod is connected with the two strip-shaped openings in a sliding mode, a glue brushing roller is fixedly connected with the top and the bottom of the moving rod together, a glue brushing layer is fixedly mounted on the surface of the glue brushing roller, a threaded hole is formed in one side of the hollow rotating shaft, the hollow rotating shaft is connected with a threaded rod through threaded holes in a threaded mode, one end of the threaded rod, which is located inside the hollow rotating shaft, is fixedly connected with the moving rod, a driven gear is fixedly connected with the surface of one side of the hollow rotating shaft, a power mechanism is arranged on one side, which is located on one side of the driven gear, and a conveying mechanism is arranged at the bottom of the inner side of the U-shaped mounting frame, and a glue adding mechanism is arranged at the top of the inner side of the U-shaped mounting frame.

Preferably, power unit includes L shape fixed plate, one side and the U-shaped mounting bracket fixed connection of L shape fixed plate, one side top fixed mounting of L shape fixed plate has the protective housing, the inside fixed mounting of protective housing has the motor, the round hole has been seted up to one side of protective housing, the output shaft of motor extends to the outside and fixedly connected with driving gear of protective housing through the round hole, the surface of driving gear is connected with driven gear's surface meshing.

Preferably, the conveying mechanism comprises a conveying table, and the conveying table is fixedly connected with the bottom of the inner side of the U-shaped mounting frame.

Preferably, it includes that the cavity adds the offset plate to add gluey mechanism, one side and the U-shaped mounting bracket fixed connection of cavity adding the offset plate, the top fixedly connected with that the cavity adds the offset plate adds the rubber tube, the bottom center department fixedly connected with of cavity adding the offset plate goes out the head of gluing.

Preferably, the one end fixedly connected with of carriage release lever is kept away from to the threaded rod is rotatory to be emitted, the surperficial threaded connection of threaded rod one side has the nut, the top and the equal fixed mounting in bottom of nut have the dwang.

Preferably, the bottom both sides of U-shaped mounting bracket are all fixed mounting have a fixed plate, two the bolt hole has all been seted up to the inside of fixed plate, two the fixed plate all has the bolt through bolt hole threaded connection.

The utility model discloses a technological effect and advantage:

1. the moving rod fixed at one end of the threaded rod is moved by driving the threaded rod to move through rotating the rotary cap, and the moving rod drives the brushing roller fixedly connected with the top and the bottom together to move on the surface of the hollow rotating shaft, so that the purpose of adjusting the position of the brushing roller is achieved, and the brushing roller can brush glue on different positions on the surface of the paper box;

2. the paper box needing to be brushed with the glue is conveyed to the lower part of the glue brushing roller to be brushed with the glue through the conveying table arranged above the U-shaped mounting frame, and the threaded rod is conveniently rotated through the rotary cap arranged, so that the rotating application force is reduced;

3. through mounting nut to fix the threaded rod after the rotary motion, prevent that the threaded rod from removing when rotating the brush and glue, through the installation hollow rubber tube that adds at the offset plate deuterogamy top and the play of bottom glue bucket, thereby brush the glue through the glue solution of needs to the brush roller and glue.

Drawings

Fig. 1 is a schematic front structural view of the present invention.

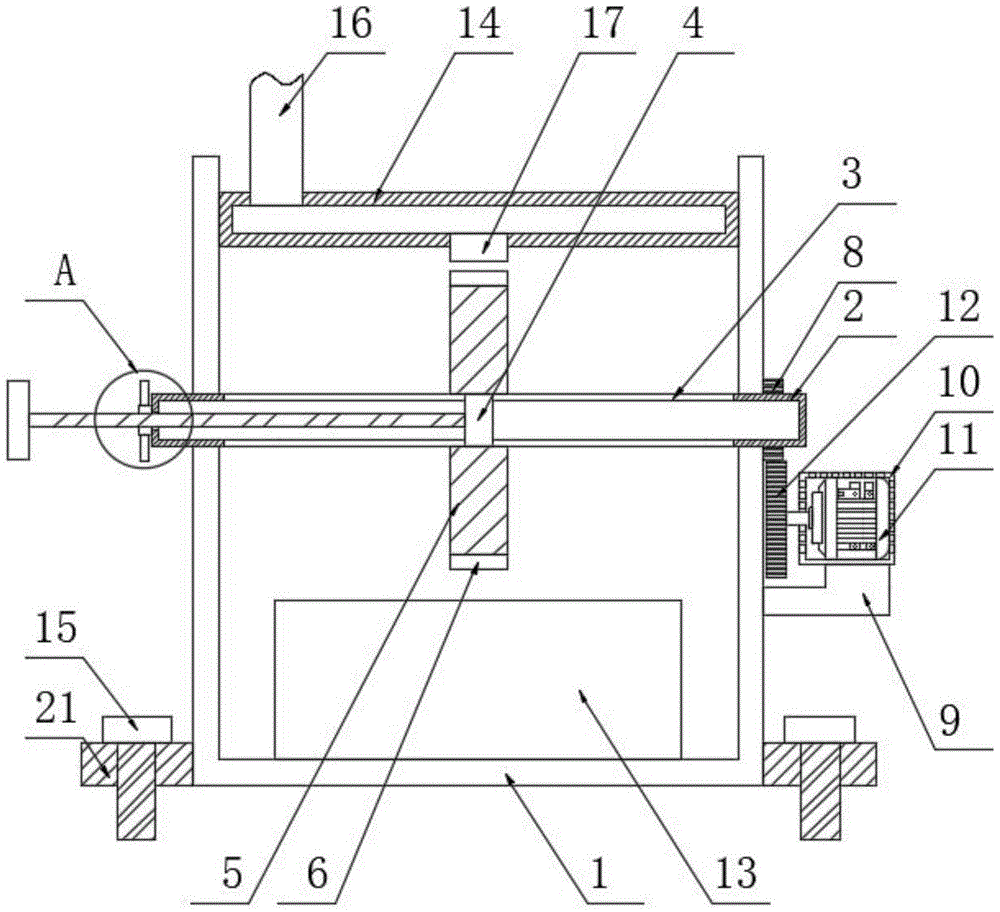

Fig. 2 is a schematic front sectional view of the present invention.

Fig. 3 is a schematic view of the structure of the hollow rotating shaft of the present invention.

Fig. 4 is an enlarged schematic structural diagram of a in fig. 2 according to the present invention.

In the figure: 1. a U-shaped mounting bracket; 2. a hollow rotating shaft; 3. a strip-shaped opening; 4. a travel bar; 5. brushing a rubber roller; 6. brushing an adhesive layer; 7. a threaded rod; 8. a driven gear; 9. an L-shaped fixing plate; 10. a protective shell; 11. a motor; 12. a driving gear; 13. a transfer table; 14. hollow rubber plate adding; 15. a bolt; 16. adding a rubber tube; 17. discharging the rubber head; 18. rotating the cap; 19. a nut; 20. rotating the rod; 21. and (7) fixing the plate.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

The utility model provides an automatic energy-saving glue adding device for a box pasting machine as shown in figures 1-4, which comprises a U-shaped mounting frame 1, round mouths are arranged on both sides of the U-shaped mounting frame 1, the inner wall of the round mouth is rotatably connected with a hollow rotating shaft 2 through a bearing, strip-shaped openings 3 are arranged on the top and the bottom of the hollow rotating shaft 2, two strip-shaped openings 3 are jointly and slidably connected with a moving rod 4, a glue brushing roller 5 is fixedly connected on the top and the bottom of the moving rod 4, a glue brushing layer 6 is fixedly arranged on the surface of the glue brushing roller 5, a threaded hole is arranged on one side of the hollow rotating shaft 2, the hollow rotating shaft 2 is connected with a threaded rod 7 through a threaded hole thread, one end of the threaded rod 7 positioned inside the hollow rotating shaft 2 is fixedly connected with the moving rod 4, a driven gear 8 is fixedly connected, the inboard bottom of U-shaped mounting bracket 1 is provided with transport mechanism, and the inboard top of U-shaped mounting bracket 1 is provided with and glues the mechanism, carries out the adjustment of different positions to brush rubber roll 5 that the brush was glued to carry out the brush to the different positions of carton and glue, practice thrift the purchasing cost of different positions.

As shown in fig. 1 and 2, power unit includes L shape fixed plate 9, one side and the U-shaped mounting bracket 1 fixed connection of L shape fixed plate 9, one side top fixed mounting of L shape fixed plate 9 has protective housing 10, the inside fixed mounting of protective housing 10 has motor 11, the round hole has been seted up to one side of protective housing 10, the output shaft of motor 11 extends to the outside of protective housing 10 and fixedly connected with driving gear 12 through the round hole, the surface of driving gear 12 is connected with driven gear 8's surface meshing, provide rotation power to hollow axis of rotation 2, thereby make hollow axis of rotation 2 drive the rotatory carton brush of brush rubber roller 5 glue.

As shown in fig. 1 and 2, the conveying mechanism includes a conveying table 13, and the conveying table 13 is fixedly connected to the bottom of the inner side of the U-shaped mounting frame 1 to drive the carton to move below the glue brushing roller 5 for brushing glue.

As shown in fig. 1 and 2, the glue adding mechanism comprises a hollow glue adding plate 14, one side of the hollow glue adding plate 14 is fixedly connected with the U-shaped mounting frame 1, the top of the hollow glue adding plate 14 is fixedly connected with a glue adding pipe 16, the center of the bottom of the hollow glue adding plate 14 is fixedly connected with a glue outlet head 17, and glue solution required for brushing glue is provided for the glue brushing roller 5.

As shown in fig. 1-4, a rotary cap 18 is fixedly connected to one end of the threaded rod 7 far from the moving rod 4, a nut 19 is connected to the surface of one side of the threaded rod 7 through a thread, and rotating rods 20 are fixedly mounted on the top and the bottom of the nut 19 to fix the adjusted threaded rod 7.

As shown in fig. 1 and 2, fixing plates 21 are fixedly mounted on both sides of the bottom of the U-shaped mounting frame 1, bolt holes are formed in the two fixing plates 21, and bolts 15 are connected to the two fixing plates 21 through bolt holes and threads to fix the device on a work place.

The utility model discloses the theory of operation: rotate rotatory cap 18 and drive threaded rod 7 and remove the carriage release lever 4 fixed with threaded rod 7 one end and remove, carriage release lever 4 drives the top and the common fixed connection's in bottom brush machine roller 5 moves on the surface of hollow axis of rotation 2, it is fixed with threaded rod 7 to drive nut 19 through dwang 20 and rotate, then open motor 11 and drive driving gear 12 and rotate, driving gear 12 drives driven gear 8 and rotates, driven gear 8 drives hollow axis of rotation 2 and rotates, hollow axis of rotation 2 drives carriage release lever 4 and brush and glues roller 5 and rotates, brush the glue to the carton on conveying platform 13 surface.

Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications and variations can be made in the embodiments or in part of the technical features of the embodiments without departing from the spirit and the scope of the invention.

Claims

1. The utility model provides a stick with paste automatic energy-conserving mucilage binding that adds of box machine is put which characterized in that: including U-shaped mounting bracket (1), the round mouth has all been seted up to the both sides of U-shaped mounting bracket (1), the round mouth inner wall rotates through the bearing and is connected with hollow axis of rotation (2), bar opening (3) have all been seted up to the top and the bottom of hollow axis of rotation (2), two bar opening (3) sliding connection has carriage release lever (4) jointly, the top and the common fixedly connected with brush rubber roll (5) in bottom of carriage release lever (4), the fixed surface of brush rubber roll (5) installs brush rubber layer (6), threaded hole has been seted up to one side of hollow axis of rotation (2), hollow axis of rotation (2) has threaded rod (7) through screw hole threaded connection, threaded rod (7) are located hollow axis of rotation (2) inside one end and carriage release lever (4) fixed connection, one side fixed surface of hollow axis of rotation (2) is connected with driven gear (8), the automatic feeding mechanism is characterized in that a power mechanism is arranged on one side, located on the driven gear (8), of the U-shaped mounting frame (1), a conveying mechanism is arranged at the bottom of the inner side of the U-shaped mounting frame (1), and a glue adding mechanism is arranged at the top of the inner side of the U-shaped mounting frame (1).

2. The automatic energy-saving glue adding device for the box pasting machine according to claim 1, wherein: power unit includes L shape fixed plate (9), one side and U-shaped mounting bracket (1) fixed connection of L shape fixed plate (9), one side top fixed mounting of L shape fixed plate (9) has protective housing (10), the inside fixed mounting of protective housing (10) has motor (11), the round hole has been seted up to one side of protective housing (10), the output shaft of motor (11) extends to protective housing (10) outside and fixedly connected with driving gear (12) through the round hole, the surface of driving gear (12) is connected with the surface toothing of driven gear (8).

3. The automatic energy-saving glue adding device for the box pasting machine according to claim 1, wherein: the conveying mechanism comprises a conveying table (13), and the conveying table (13) is fixedly connected with the bottom of the inner side of the U-shaped mounting frame (1).

4. The automatic energy-saving glue adding device for the box pasting machine according to claim 1, wherein: it includes that the cavity adds offset plate (14) to add gluey mechanism, one side and U-shaped mounting bracket (1) fixed connection of hollow offset plate (14) that adds, the top fixedly connected with that the cavity adds offset plate (14) adds rubber tube (16), the bottom center department fixedly connected with of cavity adding offset plate (14) goes out to glue head (17).

5. The automatic energy-saving glue adding device for the box pasting machine according to claim 1, wherein: the one end fixedly connected with of carriage release lever (4) is kept away from in threaded rod (7) is rotatory to be emitted (18), the surperficial threaded connection of threaded rod (7) one side has nut (19), the top and the equal fixed mounting in bottom of nut (19) have dwang (20).

6. The automatic energy-saving glue adding device for the box pasting machine according to claim 1, wherein: the bottom both sides of U-shaped mounting bracket (1) are equal fixed mounting have fixed plate (21), two the bolt hole has all been seted up to the inside of fixed plate (21), two fixed plate (21) all have bolt (15) through bolt hole threaded connection.
