CN213793403U

CN213793403U - A dust collector for wrapping machine

Info

Publication number: CN213793403U
Application number: CN202022716636.XU
Authority: CN
Inventors: 李丰; 黎雄明
Original assignee: Wuhan Moxin Intelligent Equipment Co ltd
Current assignee: Wuhan Moxin Intelligent Equipment Co ltd
Priority date: 2020-11-20
Filing date: 2020-11-20
Publication date: 2021-07-27
Anticipated expiration: 2030-11-20

Abstract

The present application discloses a dust collecting device for a wrapping machine, comprising a fixed base, a dust suction box and a cleaning mechanism, wherein the cleaning mechanism includes a driven gear, a dust suction cover, a sliver adsorption turntable, a rotating shaft, a fixed frame and A lead screw, a connecting frame is fixedly connected to the top of the fixed base, a vacuum box is fixedly connected to the upper end of the connecting frame, and a vacuum cleaner is fixedly connected to the bottom of the inner end of the vacuum box. A filter screen is fixedly connected to the top opening of the fixed base, a motor is installed inside the fixed base, a lead screw is fixedly connected to the output end of the motor, and a cleaning mechanism is connected to the lead screw. Through the structural design of the moving wheel, the motor, the dust suction cover, the cotton sliver adsorption turntable, the rotating shaft, the lead screw and the driving gear, the utility model can clean the dust and fine debris on the ground, reduce the work intensity of personnel cleaning, and It is convenient and fast to move, which greatly improves the vacuuming efficiency and increases the dust removal effect.

Description

Dust collecting device for wrapping machine

Technical Field

The application relates to a dust collecting device, in particular to a dust collecting device for a lapping machine.

Background

The wrapping machine comprises a single-layer wrapping machine, a double-layer wrapping machine and a three-layer wrapping machine, wherein wrapping tapes (mica tapes, cotton paper tapes, aluminum foils, polyester films and the like) are rotated through a turntable and wrapped on core wires. The method is mainly used for wrapping the insulated core wires of electric wires, force cables, control cables, optical cables and the like.

When the winding machine works, a large amount of dust and fine scraps are easily generated, the operating environment of the winding machine is easily influenced, a large amount of dust pollution can be generated, and when workers work, the body discomfort is caused due to the absorption of flying dust, lung diseases are easily caused, the personal safety of the workers is influenced, the flying dust is easily diffused on the site, the surrounding environment is easily damaged, and the requirements of the environment-friendly society are increasingly not met. Therefore, the dust collecting device for the lapping machine is provided for solving the problems.

Disclosure of Invention

A dust collecting device for a lapping machine comprises a fixed base, a dust collecting box and a cleaning mechanism, wherein the cleaning mechanism comprises a driven gear, a dust collecting cover, a cotton sliver adsorption rotary table, a rotating shaft, a fixed frame and a lead screw;

the top of the fixed base is fixedly connected with a connecting frame, the upper end of the connecting frame is fixedly connected with a dust suction box, the bottom position of the inner end of the dust suction box is fixedly connected with a dust suction machine, the top opening of the dust suction box is fixedly connected with a filter screen, the interior of the fixed base is provided with a motor, the output end of the motor is fixedly connected with a lead screw, the lead screw is connected with a cleaning mechanism, the lead screw is fixedly connected with a driving gear, the bottom surface of the driving gear is engaged with a driven gear, the middle part of the driven gear is sleeved with a rotating shaft, the outer bottom surface of the fixed base is fixedly connected with a fixed frame, the bottom of the fixed frame is fixedly connected with a dust suction cover, the bottom of the fixed base is symmetrically and fixedly connected with a dust baffle, the side walls at the two ends of the fixed base are fixedly connected with dust suction pipe orifices, and one end of each dust suction pipe orifice extending into the fixed base is fixedly connected with a fan, the other end fixedly connected with coupling hose of fan, coupling hose extends to unable adjustment base outer bottom.

Further, the cleaning mechanisms are provided with three groups in total.

Further, unable adjustment base's inside left side position fixedly connected with riser, the one end swing joint that the motor was kept away from to the lead screw is on the riser surface.

Furthermore, the bottom of the connecting frame is symmetrically and movably connected with moving wheels, and the moving wheels are arranged between the dust blocking plate and the fixed base.

Further, the position that coupling hose's tip corresponds is provided with the absorption case, threaded connection is passed through in the bottom of unable adjustment base to the absorption case, the surface of absorption case and unable adjustment base's bottom correspond the position and seted up external screw thread and the internal thread of mutually supporting, the absorption case is detachable construction.

Further, the axis of rotation downwards runs through unable adjustment base, mount in proper order to extend to the bottom of dust absorption lid, the bottom end fixedly connected with silver of axis of rotation adsorbs the carousel.

The beneficial effect of this application is: the application provides a dust arrester installation for wrapping machine.

Drawings

In order to more clearly illustrate the embodiments of the present application or the technical solutions in the prior art, the drawings needed to be used in the description of the embodiments or the prior art will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present application, and it is obvious for those skilled in the art that other drawings can be obtained according to the drawings without inventive exercise.

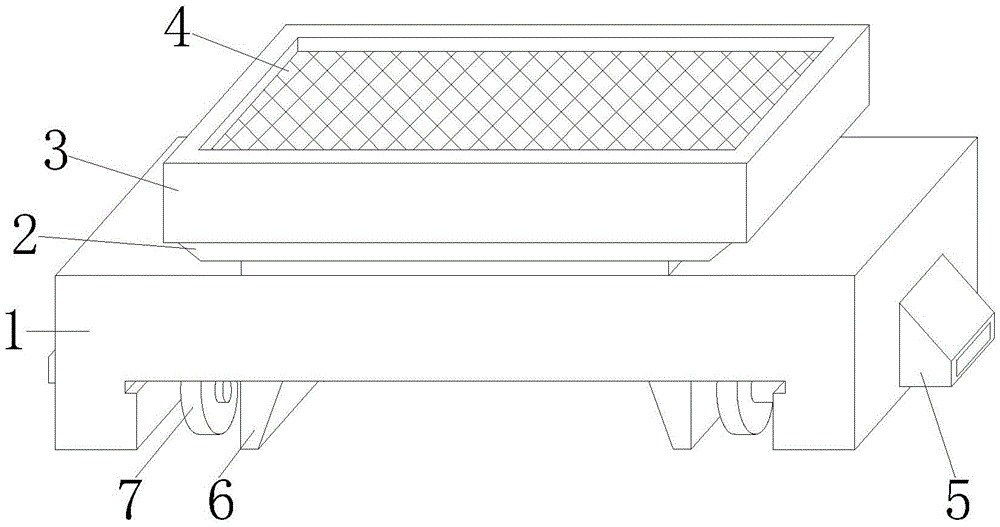

FIG. 1 is a schematic overall structure diagram of an embodiment of the present application;

FIG. 2 is a schematic cross-sectional view of an embodiment of the present application;

fig. 3 is an enlarged schematic structural diagram of a portion a of fig. 2 according to an embodiment of the present application.

In the figure: 1. the device comprises a fixed base, 2, a connecting frame, 3, a dust collection box, 4, a filter screen, 5, a dust collection pipe opening, 6, a dust baffle plate, 7, a movable wheel, 8, an absorption box, 9, a connecting hose, 10, a fan, 11, a driven gear, 12, a motor, 13, a dust collector, 14, a vertical plate, 15, a dust collection cover, 16, a cotton sliver adsorption rotary disc, 17, a rotating shaft, 18, a fixing frame, 19, a lead screw and a driving gear.

Detailed Description

In order to make the technical solutions better understood by those skilled in the art, the technical solutions in the embodiments of the present application will be clearly and completely described below with reference to the drawings in the embodiments of the present application, and it is obvious that the described embodiments are only partial embodiments of the present application, but not all embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present application.

It should be noted that the terms "first," "second," and the like in the description and claims of this application and in the drawings described above are used for distinguishing between similar elements and not necessarily for describing a particular sequential or chronological order. It should be understood that the data so used may be interchanged under appropriate circumstances such that embodiments of the application described herein may be used. Furthermore, the terms "comprises," "comprising," and "having," and any variations thereof, are intended to cover a non-exclusive inclusion, such that a process, method, system, article, or apparatus that comprises a list of steps or elements is not necessarily limited to those steps or elements expressly listed, but may include other steps or elements not expressly listed or inherent to such process, method, article, or apparatus.

In this application, the terms "upper", "lower", "left", "right", "front", "rear", "top", "bottom", "inner", "outer", "middle", "vertical", "horizontal", "lateral", "longitudinal", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings. These terms are used primarily to better describe the present application and its embodiments, and are not used to limit the indicated devices, elements or components to a particular orientation or to be constructed and operated in a particular orientation.

Moreover, some of the above terms may be used to indicate other meanings besides the orientation or positional relationship, for example, the term "on" may also be used to indicate some kind of attachment or connection relationship in some cases. The specific meaning of these terms in this application will be understood by those of ordinary skill in the art as appropriate.

Furthermore, the terms "mounted," "disposed," "provided," "connected," and "sleeved" are to be construed broadly. For example, it may be a fixed connection, a removable connection, or a unitary construction; can be a mechanical connection, or an electrical connection; may be directly connected, or indirectly connected through intervening media, or may be in internal communication between two devices, elements or components. The specific meaning of the above terms in the present application can be understood by those of ordinary skill in the art as appropriate.

It should be noted that the embodiments and features of the embodiments in the present application may be combined with each other without conflict. The present application will be described in detail below with reference to the embodiments with reference to the attached drawings.

Referring to fig. 1-3, a dust collecting device for a lapping machine comprises a fixed base 1, a dust collecting box 3 and a cleaning mechanism, wherein the cleaning mechanism comprises a driven gear 11, a dust collecting cover 15, a cotton sliver adsorbing turntable 16, a rotating shaft 17, a fixed frame 18 and a screw rod 19;

the top of the fixed base 1 is fixedly connected with a connecting frame 2, the upper end of the connecting frame 2 is fixedly connected with a dust suction box 3, the bottom of the inner end of the dust suction box 3 is fixedly connected with a dust suction machine 13, the top opening of the dust suction box 3 is fixedly connected with a filter screen 4, the fixed base 1 is internally provided with a motor 12, the output end of the motor 12 is fixedly connected with a lead screw 19, the lead screw 19 is connected with a cleaning mechanism, the lead screw 19 is fixedly connected with a driving gear 20, the bottom surface of the driving gear 20 is engaged with a driven gear 11, the middle part of the driven gear 11 is sleeved with a rotating shaft 17, the outer bottom surface of the fixed base 1 is fixedly connected with a fixed frame 18, the bottom of the fixed frame 18 is fixedly connected with a dust suction cover 15, the bottom of the fixed base 1 is symmetrically and fixedly connected with a dust baffle 6, and the side walls at the two ends of the fixed base 1 are both fixedly connected with a dust suction pipe orifice 5, dust absorption mouth of pipe 5 extends to the inside one end fixedly connected with fan 10 of unable adjustment base 1, the other end fixedly connected with coupling hose 9 of fan 10, coupling hose 9 extends to unable adjustment base 1 outer bottom.

The cleaning mechanisms are provided with three groups in total; a vertical plate 14 is fixedly connected to the left side position inside the fixed base 1, and one end, far away from the motor 12, of the screw rod 19 is movably connected to the surface of the vertical plate 14; the bottom of the connecting frame 2 is symmetrically and movably connected with moving wheels 7, and the moving wheels 7 are arranged between the dust baffle 6 and the fixed base 1; an absorption box 8 is arranged at a position corresponding to the end part of the connecting hose 9, the absorption box 8 is connected to the bottom of the fixed base 1 through threads, external threads and internal threads which are matched with each other are arranged at corresponding positions on the surface of the absorption box 8 and the bottom of the fixed base 1, and the absorption box 8 is of a detachable structure; the rotating shaft 17 penetrates through the fixed base 1 and the fixed frame 18 in sequence downwards and extends to the bottom of the dust collection cover 15, and the end part of the bottom end of the rotating shaft 17 is fixedly connected with the cotton strip adsorption rotary disc 16.

This application is when using, the electrical components that appear in this application all external intercommunication power and control switch when using, when using the device, remove dust arrester installation to the lower extreme around the chartered plane, then open fan 10, the switch of motor 12 and dust catcher 13, can carry out powerful absorption to dust impurity on winding chartered plane and the instrument through dust catcher 13, keep the normal work around the chartered plane, can filter large-grained impurity through filter screen 4, prevent to cause the jam to the device inside, fan 10 adsorbs the dust on the ground through dust absorption mouth of pipe 5, convey the inside of dust conveying to adsorption tank 8 through coupling hose 9 and collect, through dismantling adsorption tank 8 and clear up on next step, drive lead screw 19 through the output of motor 12, indirectly drive clearance mechanism and carry out the all-round clearance on ground, through driven gear 11, Rotation axis 17, lead screw 19, driving gear 20's cooperation is rotated, makes the silver adsorb carousel 16 and rotates the absorption, improves the absorptive intensity of ground dust, increases dust collection efficiency, easy operation, labour saving and time saving.

The application has the advantages that:

1. the utility model can collect and process the dust generated in the operation process of the bag winder through the structural design of the filter screen, the dust suction pipe orifice, the absorption box, the connecting hose, the fan and the dust collector, thereby reducing the dust suction amount of workers, reducing the possibility of suffering from lung diseases, avoiding harm to the environment of an operation workshop and meeting the requirement of environmental protection;

2. the utility model discloses a remove wheel, motor, dust absorption lid, silver and adsorb the structural design of carousel, axis of rotation, lead screw and driving gear, can clear up the dust and the fines on ground, reduced the working strength that personnel cleared up, and remove convenient and fast, promoted dust collection efficiency greatly, increased dust removal effect.

It is well within the skill of those in the art to implement, without undue experimentation, the present application is not directed to software and process improvements, as they relate to circuits and electronic components and modules.

The above description is only a preferred embodiment of the present application and is not intended to limit the present application, and various modifications and changes may be made by those skilled in the art. Any modification, equivalent replacement, improvement and the like made within the spirit and principle of the present application shall be included in the protection scope of the present application.

Claims

1. A dust collecting device for a wrapping machine, characterized in that it comprises a fixed base (1), a dust suction box (3) and a cleaning mechanism, wherein the cleaning mechanism comprises a driven gear (11), a dust suction cover ( 15), a sliver adsorption turntable (16), a rotating shaft (17), a fixing frame (18) and a lead screw (19);

A connection frame (2) is fixedly connected to the top of the fixed base (1), and a dust suction box (3) is fixedly connected to the upper end of the connection frame (2), and the bottom position of the inner end of the dust suction box (3) A vacuum cleaner (13) is fixedly connected, a filter screen (4) is fixedly connected to the top opening of the vacuum box (3), and a motor (12) is installed inside the fixed base (1), and the motor The output end of (12) is fixedly connected with a lead screw (19), the lead screw (19) is connected with a cleaning mechanism, the lead screw (19) is fixedly connected with a driving gear (20), and the driving gear (20) ) is meshed with a driven gear (11), the middle of the driven gear (11) is sleeved with a rotating shaft (17), and the outer bottom surface of the fixed base (1) is fixedly connected with a fixed frame (18). ), the bottom of the fixing frame (18) is fixedly connected with a dust cover (15), the bottom of the fixed base (1) is symmetrically and fixedly connected with a dust baffle (6), and the two sides of the fixed base (1) The end side walls are fixedly connected with a dust suction nozzle (5), and one end of the dust suction nozzle (5) extending to the inside of the fixed base (1) is fixedly connected with a fan (10), and the other side of the fan (10) is fixedly connected. One end is fixedly connected with a connecting hose (9), and the connecting hose (9) extends to the outer bottom of the fixed base (1).

2 . The dust collecting device for a bale wrapping machine according to claim 1 , wherein the cleaning mechanism is provided with three groups in total. 3 .

3. A dust collecting device for a wrapping machine according to claim 1, characterized in that: a vertical plate (14) is fixedly connected to the inner left position of the fixed base (1), and the lead screw ( 19) One end away from the motor (12) is movably connected to the surface of the riser (14).

4. A dust collecting device for a wrapping machine according to claim 1, characterized in that: the bottom of the connecting frame (2) is symmetrically and movably connected with a moving wheel (7), and the moving wheel (7) It is arranged between the dust baffle (6) and the fixed base (1).

5. A dust collecting device for a bale wrapping machine according to claim 1, characterized in that: an absorption box (8) is provided at a position corresponding to the end of the connecting hose (9), and the absorption box (8) Connected to the bottom of the fixed base (1) by means of threads, the surface of the absorption box (8) and the bottom of the fixed base (1) are provided with mutually matching external threads and internal threads at corresponding positions, and the absorption box ( 8) It is a detachable structure.

6. A dust collecting device for a wrapping machine according to claim 1, wherein the rotating shaft (17) penetrates the fixed base (1) and the fixed frame (18) downward in sequence, and extends to the At the bottom of the dust suction cover (15), the bottom end of the rotating shaft (17) is fixedly connected with a cotton sliver suction turntable (16).
