Abstract
The utility model discloses a radiator of high-efficient heat dissipation and high strength, including the heating panel, the equidistance array has the heat dissipation tooth on the heating panel, be provided with the water injection pipe in the through-hole, one side intercommunication of water injection pipe has the opposite side intercommunication in cold water groove and cold water groove to have a basin, the one end in cold water groove is provided with the inlet tube, the inlet tube has filter equipment through first screw thread section intercommunication, filter equipment's one end intercommunication has first water pipe, one side intercommunication in basin has the second outlet pipe, first sleeve has been cup jointed on the outlet pipe of the first time, be provided with the second screw thread section on the first sleeve, first sleeve threaded connection has the second sleeve, be provided with the second water pipe on the second sleeve. The utility model discloses can cool down high temperature equipment fast, simultaneously through filter equipment's setting, can the maximize reduce in the cold water incrustation scale that impurity enters the water injection pipe and forms, prolonged to a certain extent the utility model discloses a life.
Description
Technical Field
The utility model relates to a machining equipment technical field specifically is a radiator of high-efficient heat dissipation and high strength.
Background
The heat sink is a component for dissipating heat, and is a generic name of a series of devices for conducting and releasing heat, and the range of use of the heat sink is also very wide. At present, the radiators mainly comprise a heating radiator and a computer radiator, wherein the heating radiator can be divided into a plurality of types according to materials and working modes, and the computer radiator can be divided into a plurality of types according to purposes and installation methods. Development speed in recent years is very rapid, but some radiators can not carry out rapid cooling to the higher equipment of temperature in the use, can only cool down through its simple heat-conduction of itself, and this kind of mode cooling effect is poor for the equipment that is in the high temperature can not rapid cooling, thereby causes certain harm to equipment, influences the normal work of equipment even, therefore we need propose a high-efficient heat dissipation and high strength radiator.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a radiator of high-efficient heat dissipation and high strength, when with the warm apparatus high temperature, the heat dissipation tooth is cooled down to it earlier through the thermal characteristics of transmission itself, secondly set up the through-hole in the heat dissipation tooth, is provided with the water injection pipe in the through-hole, flows in through cold water in the water injection pipe, falls down the bulk temperature of equipment rapidly, the utility model discloses carry out the water-cooling to equipment for a long time, can make the intraductal incrustation scale that forms of water injection, influence the utility model discloses follow-up cooling effect, through filter equipment's setting, in can the maximize impurity that reduces in the cold water gets into the water injection pipe, prolonged to a certain extent the utility model discloses a life to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: a high-efficiency heat-dissipation and high-strength heat radiator comprises a heat radiation plate, wherein heat radiation teeth are arranged on the heat radiation plate in an equidistant mode, through holes are formed in the heat radiation teeth, water injection pipes are arranged in the through holes, one side of each water injection pipe is communicated with a cold water tank, the other side of each cold water tank is communicated with a water outlet tank, one end of each cold water tank is provided with a water inlet pipe, a first thread section is arranged on each water inlet pipe, each water inlet pipe is communicated with a filtering device through the first thread section, one end of each filtering device is communicated with a first water pipe, one side of each water outlet tank is communicated with a second water outlet pipe, a first sleeve is sleeved on each second water outlet pipe, a second thread section is arranged on each first sleeve, each first sleeve is connected with a second sleeve through the second thread section in a threaded mode, each second water pipe penetrates through the second sleeves and extends to the insides of the second sleeves, the second water pipe is arranged right above the water outlet pipe.
Preferably, communicating pipes are arranged at two ends of the water injection pipe, and the water injection pipe is communicated with the cold water tank and the water outlet tank through the communicating pipes respectively.
Preferably, the filtering device comprises a filtering net and a filtering shell, wherein the filtering net is arranged in the filtering shell, and three groups of filtering nets are arranged.
Preferably, one end of the second water pipe, which is positioned in the second sleeve, is provided with a water inlet head, and the first water pipe is provided with a corresponding joint.
Preferably, the second water pipe is further sleeved with a sealing gasket, and the sealing gasket is a rubber sealing gasket.
Preferably, the surface of the heat dissipation plate is provided with a heat dissipation coating, and the heat dissipation coating is provided with a graphene heat dissipation coating.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model discloses a equidistant array has the heat dissipation tooth on the heating panel, and when with the temperature equipment high temperature, the heat dissipation tooth is cooled down to it earlier through the characteristics of itself heat transfer, secondly the through-hole has been seted up in the heat dissipation tooth, is provided with the water injection pipe in the through-hole, through the inflow outflow of cold water in the water injection pipe, can drop the whole temperature of equipment rapidly, has good cooling effect;
2. through filter equipment's setting, the utility model discloses carry out the water-cooling to equipment for a long time, can make the water injection intraductal incrustation scale that forms, influence the utility model discloses in follow-up cooling effect, through filter equipment can the maximize reduce the impurity entering water injection pipe in the cold water, prolonged to a certain extent the utility model discloses a life.
Drawings

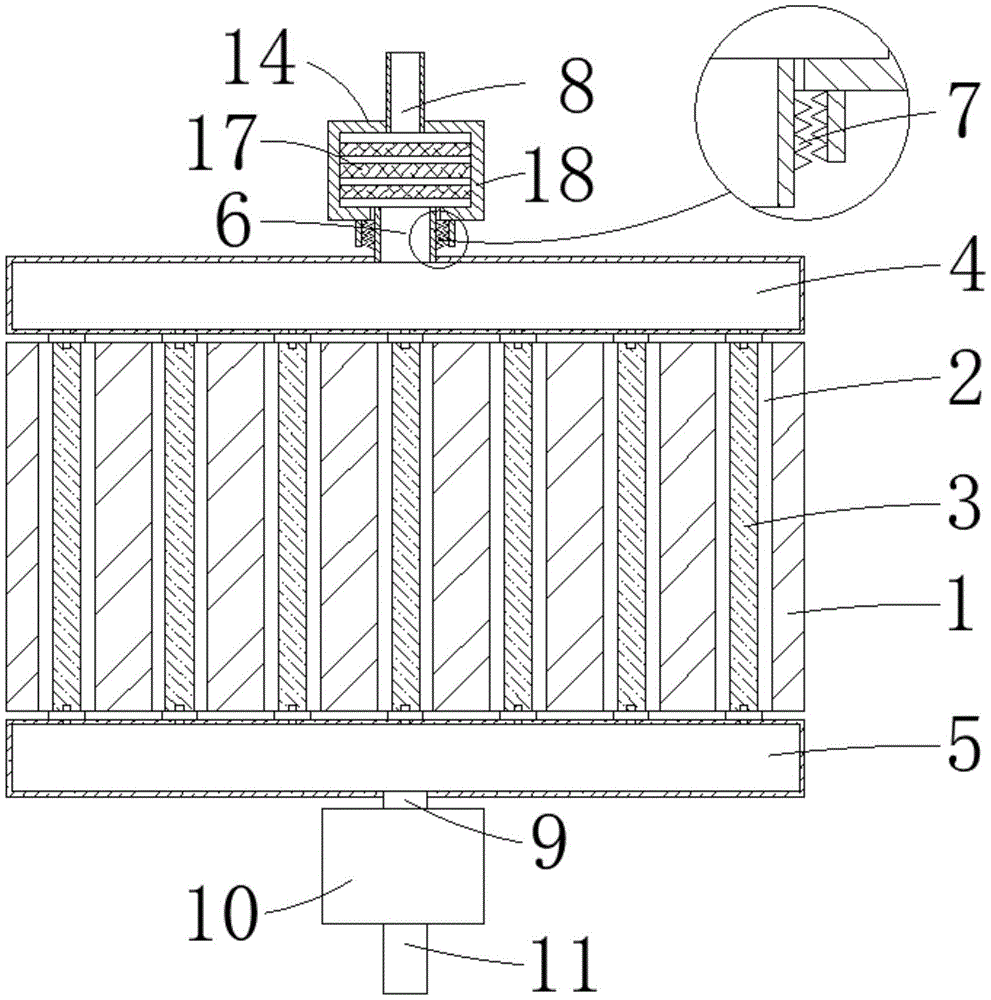

Fig. 1 is a schematic structural view of the present invention;
fig. 2 is a schematic structural view of the heat dissipation tooth of the present invention;
FIG. 3 is a schematic structural view of a second water pipe according to the present invention;
fig. 4 is a schematic structural diagram of the connecting pipe of the present invention.
In the figure: 1. a heat dissipation plate; 2. a through hole; 3. a water injection pipe; 4. a cold water tank; 5. a water outlet groove; 6. a water inlet pipe; 7. a first thread segment; 8. a first water pipe; 9. a water outlet pipe; 10. a second sleeve; 11. a second water pipe; 12. a heat dissipating tooth; 13. a first sleeve; 14. a filtration device; 15. a second thread segment; 16. a communicating pipe; 17. a filter screen; 18. a filter shell; 19. a water inlet head; 20. a joint; 21. a gasket is provided.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
The utility model provides a technical scheme: referring to fig. 1, 2 and 4, a high-efficiency heat-dissipating and high-strength heat sink comprises a heat-dissipating plate 1, wherein heat-dissipating teeth 12 are arranged on the heat-dissipating plate 1 at equal intervals, through holes 2 are arranged in the heat-dissipating teeth 12, water injection pipes 3 are arranged in the through holes 2, communicating pipes 16 are arranged at two ends of the water injection pipes 3, the water injection pipes 3 are respectively communicated with a cold water tank 4 and a water outlet tank 5 through the communicating pipes 16, one side of each water injection pipe 3 is communicated with the cold water tank 4, and the other side of the cold water tank is communicated with the water outlet tank 5, the heat-dissipating teeth 12 are arranged on the heat-dissipating plate 1 at equal intervals, when a temperature device is heated, the heat-dissipating teeth 12 firstly cool the temperature device by virtue of the heat transfer characteristic of the heat, secondly, the through holes 2 are arranged in the heat-dissipating teeth 12, the water injection pipes 3 are arranged in the through holes 2, the water-cooling device is connected to a water inlet pipe 6 of the utility model, and cold water flows into the water injection pipes 3 due to the temperature difference, the water in the water injection pipe 3 can absorb the heat of high-temperature equipment, a large amount of heat energy can be absorbed in the process that cold water flows out of the water injection pipe 3, and finally the cold water is discharged from the water outlet pipe 9, so that the overall temperature of the equipment can be rapidly reduced, and a good cooling effect is achieved;
as shown in fig. 1, one end of the cold water tank 4 is provided with a water inlet pipe 6, the water inlet pipe 6 is provided with a first thread section 7, the water inlet pipe 6 is communicated with a filtering device 14 through the first thread section 7, one end of the filtering device 14 is communicated with a first water pipe 8, the filtering device 14 comprises a filtering net 17 and a filtering shell 18, the filtering net 17 is arranged in the filtering shell 18, and the filtering net 17 is provided with three groups, the utility model can cool the equipment for a long time, so that scale can be formed in the water injection pipe 3, the subsequent cooling effect of the utility model is influenced, and through the arrangement of the filtering device 14, impurities in the cold water can be maximally reduced to enter the water injection pipe 3, thereby prolonging the service life of the utility model to a certain extent;
as shown in fig. 3, one side of the water outlet tank 5 is communicated with a second water outlet pipe 9, the second water outlet pipe 9 is sleeved with a first sleeve 13, the first sleeve 13 is provided with a second thread section 15, the first sleeve is in threaded connection with a second sleeve 10 through the second thread section 15, the second sleeve 10 is provided with a second water pipe 11, the second water pipe 11 passes through the second sleeve 10 and extends into the second sleeve 10, the second water pipe 11 is arranged right above the water outlet pipe 9, one end of the second water pipe 11, which is positioned in the second sleeve 10, is provided with a water inlet head 19, the first water pipe 8 is provided with a corresponding joint 20, the second water pipe 11 is further sleeved with a sealing washer 21, the sealing washer 21 is a rubber sealing washer, the water inlet head 19 and the joint can be tightly communicated through the threaded connection relationship between the first sleeve 13 and the second sleeve 10, the design can facilitate the connection with an external water conduit, simultaneously seal ring 21's design is its sealed effect of optimizing more, has guaranteed the utility model discloses the situation that water leakage sprinkled can not appear at the in-process of drainage.
Like figure 1 and income 2, heating panel 1 surface is provided with the thermal coating of fan, and the thermal coating of fan sets up to graphite alkene thermal coating of fan, further optimizes the utility model discloses a radiating effect has improved the utility model discloses a radiating efficiency.
The working principle is as follows: when the utility model is used for cooling high temperature equipment, firstly, the radiating teeth 12 are arranged on the radiating plate 1 through the equidistant array, when the temperature equipment is heated, the radiating teeth 12 are firstly cooled through the characteristic of transferring heat per se, secondly, the through hole 2 is arranged in the radiating teeth 12, the water injection pipe 3 is arranged in the through hole 2, the water cooling equipment is connected to the water inlet pipe 6 of the utility model, when cold water flows into the water injection pipe 3, the water in the water injection pipe 3 can absorb the heat of the high temperature equipment due to the temperature difference, the process that the cold water flows out from the water injection pipe 3 can absorb a large amount of heat energy, and finally, the water is discharged from the water outlet pipe 9, so that the whole temperature of the equipment can be rapidly reduced, the utility model has good cooling effect, the utility model carries out water cooling on the equipment for a long time, in order to prevent the water injection pipe 3 from condensing scale, the subsequent cooling effect of the utility model is influenced, and the setting of the filtering device 14, can maximize reduce in the impurity entering water injection pipe 3 in the cold water, prolong to a certain extent the utility model discloses a life.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a high-efficient heat dissipation and high strength's radiator, includes heating panel (1), its characterized in that: the radiating plate (1) is equidistantly arrayed with radiating teeth (12), through holes (2) are formed in the radiating teeth (12), water injection pipes (3) are arranged in the through holes (2), one sides of the water injection pipes (3) are communicated with cold water grooves (4), the other sides of the cold water grooves are communicated with water outlet grooves (5), one ends of the cold water grooves (4) are provided with water inlet pipes (6), first thread sections (7) are arranged on the water inlet pipes (6), the water inlet pipes (6) are communicated with filtering devices (14) through the first thread sections (7), one ends of the filtering devices (14) are communicated with first water pipes (8), one sides of the water outlet grooves (5) are communicated with water outlet pipes (9), the water outlet pipes (9) are sleeved with first sleeves (13), the first sleeves (13) are provided with second thread sections (15), the first sleeves are in threaded connection with second sleeves (10) through the second thread sections (15), the water pipe structure is characterized in that a second water pipe (11) is arranged on the second sleeve (10), the second water pipe (11) penetrates through the second sleeve (10) and extends into the second sleeve (10), and the second water pipe (11) is arranged right above the water outlet pipe (9).
2. The heat sink of claim 1, wherein the heat sink has a high heat dissipation efficiency and a high strength, and further comprises: the two ends of the water injection pipe (3) are provided with communicating pipes (16), and the water injection pipe (3) is respectively communicated with the cold water tank (4) and the water outlet tank (5) through the communicating pipes (16).
3. The heat sink of claim 1, wherein the heat sink has a high heat dissipation efficiency and a high strength, and further comprises: the filtering device (14) comprises a filtering net (17) and a filtering shell (18), wherein the filtering net (17) is arranged in the filtering shell (18), and three groups of filtering nets (17) are arranged.
4. The heat sink of claim 1, wherein the heat sink has a high heat dissipation efficiency and a high strength, and further comprises: one end of the second water pipe (11) which is positioned in the second sleeve (10) is provided with a water inlet head (19), and the first water pipe (8) is provided with a corresponding joint (20).
5. The heat sink of claim 1, wherein the heat sink has a high heat dissipation efficiency and a high strength, and further comprises: and the second water pipe (11) is also sleeved with a sealing washer (21), and the sealing washer (21) is a rubber sealing washer.
6. The heat sink of claim 1, wherein the heat sink has a high heat dissipation efficiency and a high strength, and further comprises: the surface of the heat dissipation plate (1) is provided with a heat dissipation coating, and the heat dissipation coating is set to be a graphene heat dissipation coating.
