CN213763433U - Adjustable rolling device for aluminum strip production - Google Patents
Adjustable rolling device for aluminum strip production Download PDFInfo
- Publication number
- CN213763433U CN213763433U CN202022761102.9U CN202022761102U CN213763433U CN 213763433 U CN213763433 U CN 213763433U CN 202022761102 U CN202022761102 U CN 202022761102U CN 213763433 U CN213763433 U CN 213763433U
- Authority
- CN
- China
- Prior art keywords
- motor
- sliders
- rolling device
- aluminum strip
- electric telescopic
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Transmission Devices (AREA)
Abstract
The utility model discloses an adjustable rolling device for aluminum strip production, which comprises a workbench, an upper roller and a lower roller, wherein the top surface of the workbench is provided with a first mounting rack, the lower roller is arranged at the bottom of the first mounting rack, the two ends of the lower roller are rotationally connected with the bottom of the first mounting rack, the two ends of the upper roller are respectively provided with a slider, the two sides of the first mounting rack are provided with a chute for mounting the sliders, the upper roller is rotationally connected with the sliders at the two ends, the bottoms of the sliders are respectively provided with a spring, the top surfaces of the sliders are respectively provided with a pressing block, the top of each pressing block is respectively provided with a pressing rod, the top end of each pressing rod penetrates through the top of the first mounting rack and is exposed out of the top surface of the first mounting rack, the top surface of the first mounting rack is also provided with a push plate, the top of the first mounting rack is also provided with a second mounting rack, and the second mounting rack is provided with a first motor, the output end of the first motor is connected with an electric telescopic rod, and the bottom end of the electric telescopic rod is connected with the top surface of the push plate.
Description
Technical Field
The utility model belongs to the technical field of the aluminium strip production technique and specifically relates to an adjustable is rolling device for aluminium strip production.
Background
The raw material of the aluminum strip is pure aluminum or aluminum alloy cast-rolled aluminum coil or hot-rolled aluminum coil, the aluminum strip is rolled into sheet aluminum coils with different thicknesses and widths by a cold rolling mill, then longitudinally cut into aluminum strips with different widths by a slitting machine according to the application, and then wound on a winding drum device for storage; the existing equipment for rolling the aluminum strip generally adopts a screw rod and a nut to adjust the distance between an upper roller and a lower roller so as to adjust the thickness of the rolled aluminum strip, but the adjustment mode has errors easily, the screw rods on the two sides of the rollers need to be adjusted independently, the time consumption is more, the heights of the two sides are difficult to keep consistent, the production quality of the aluminum strip is influenced, and therefore, the adjustable rolling device for producing the aluminum strip is provided.
SUMMERY OF THE UTILITY MODEL
The utility model discloses an it is not enough to overcome above-mentioned condition, aims at providing the technical scheme that can solve above-mentioned problem.
An adjustable rolling device for aluminum strip production comprises a workbench, an upper roller and a lower roller, wherein a first mounting frame is arranged on the top surface of the workbench, the lower roller is arranged at the bottom of the first mounting frame, two ends of the lower roller are rotatably connected with the bottom of the first mounting frame, sliders are arranged at two ends of the upper roller, sliding grooves for mounting the sliders are formed in two sides of the first mounting frame, the sliders are in sliding fit with the sliding grooves, the upper roller is rotatably connected with the sliders at two ends, springs are arranged at the bottoms of the sliders, the top ends of the springs are abutted against the bottom surfaces of the sliders, pressing blocks are arranged on the top surfaces of the sliders, pressing rods are arranged at the tops of the pressing blocks, the top ends of the pressing rods penetrate through the tops of the first mounting frame and are exposed out of the top surface of the first mounting frame, a push plate is further arranged on the top surface of the first mounting frame, the utility model discloses a push pedal, including first motor, second motor, electric telescopic handle, push pedal, first motor, electric telescopic handle's bottom and push pedal, the both ends of push pedal are connected with the top of single depression bar respectively, the top of first mounting bracket still is equipped with the second mounting bracket, be equipped with first motor on the second mounting bracket, the output of first motor is connected with electric telescopic handle, electric telescopic handle's bottom is connected with the top surface of push pedal, electric telescopic handle's input is connected with the output electricity of first motor.
Preferably, the front end face and the rear end face of the sliding block are both provided with guide blocks, the front end face and the rear end face of the sliding groove are provided with guide grooves, and the guide blocks are in sliding fit with the guide grooves.
Preferably, the cross section of the guide block can be T-shaped or V-shaped, and the cross section of the guide groove corresponds to the cross section of the guide block one to one.
Preferably, the top end of the pressure lever is fixedly connected with the top surface of the push plate through a first screw.
Preferably, the bottom of electric telescopic handle is equipped with the connecting plate, the connecting plate passes through the top surface fixed connection of second screw and push pedal.
Preferably, one side of the sliding block is provided with a first machine base, the first machine base is provided with a second motor, and a rotating shaft of the second motor is in transmission connection with one end of the upper roller.
Preferably, one side of the first mounting frame is provided with a second base, the second base is provided with a third motor, and a rotating shaft of the third motor is in transmission connection with one end of the lower roller.
Preferably, the bottom of the workbench is provided with two supporting feet.
The utility model has the advantages that: the utility model discloses novel structure through electric telescopic handle, push pedal, and the simultaneous control slider slides from top to bottom, and the slider drives the top roll motion, and the interval between adjustment top roll and the bottom roll, synchronous adjustment can guarantee that the slider sliding distance of both sides equals, guarantees that the lateral surface of top roll can contact completely with the surface of aluminium strip, also saves the time that is equipped with the adjustment simultaneously, improves work efficiency.
Additional aspects and advantages of the invention will be set forth in part in the description which follows and, in part, will be obvious from the description, or may be learned by practice of the invention.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings needed to be used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without inventive exercise.

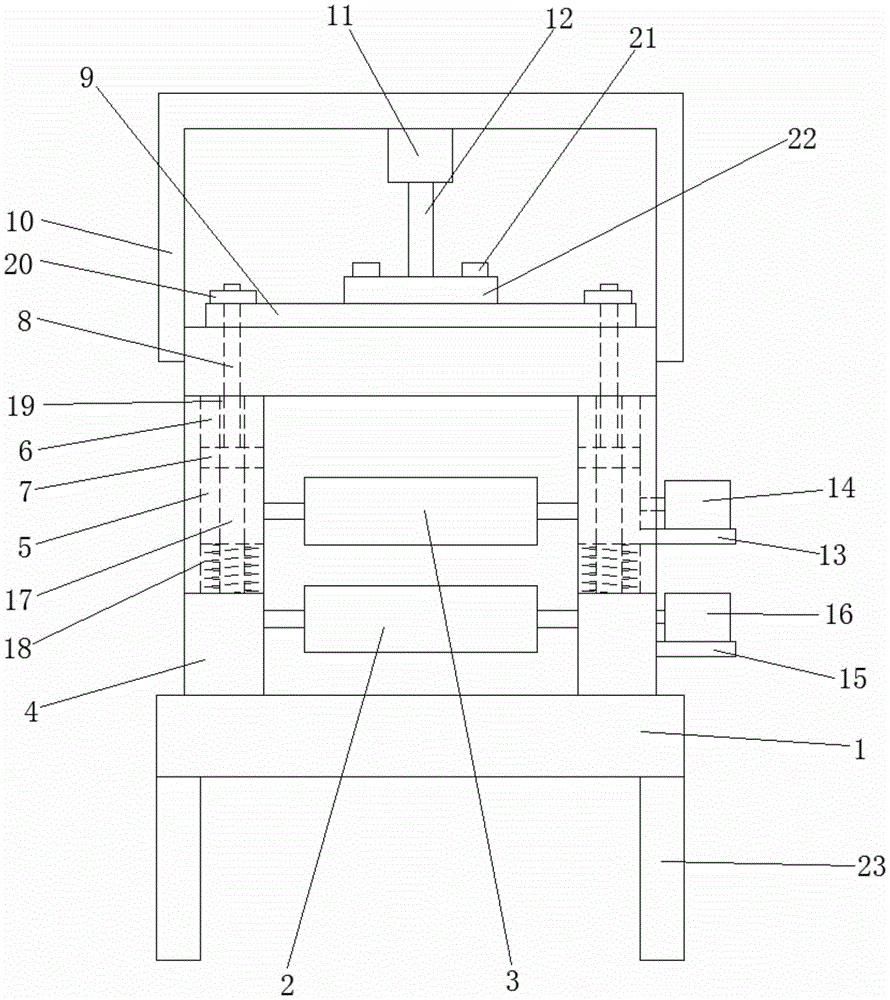

Fig. 1 is the utility model provides an adjustable aluminium strip production is with rolling device's schematic structure diagram.
Shown in the figure: 1. the automatic rolling device comprises a workbench, 2, a lower roller, 3, an upper roller, 4, a first mounting frame, 5, a sliding block, 6, a sliding groove, 7, a pressing block, 8, a pressing rod, 9, a pushing plate, 10, a second mounting frame, 11, a first motor, 12, an electric telescopic rod, 13, a first machine base, 14, a second motor, 15, a second machine base, 16, a third motor, 17, a guide block, 18, a spring, 19, a guide groove, 20, a first screw, 21, a second screw, 22, a connecting plate, 23 and supporting legs.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1, in an embodiment of the present invention, an adjustable rolling device for producing an aluminum strip includes a workbench 1, an upper roller 3, and a lower roller 2, wherein a first mounting frame 4 is disposed on a top surface of the workbench 1, the lower roller 2 is disposed at a bottom of the first mounting frame 4, two ends of the lower roller 2 are rotatably connected to a bottom of the first mounting frame 4, two ends of the upper roller 3 are both provided with sliders 5, two sides of the first mounting frame 4 are provided with sliding grooves 6 for mounting the sliders 5, the sliders 5 are slidably engaged with the sliding grooves 6, the upper roller 3 is rotatably connected to the sliders 5 at two ends, the bottom of the sliders 5 is both provided with springs 18, a top end of each spring 18 abuts against a bottom surface of the corresponding slider 5, a bottom end of each spring 18 abuts against a bottom surface of the corresponding sliding groove 6, a top surface of each slider 5 is provided with a pressing block 7, a top end of each pressing rod 7 is provided with a pressing rod 8, the top of first mounting bracket 4 is passed on depression bar 8's top and is exposed in the top surface of first mounting bracket 4, the top surface of first mounting bracket 4 still is equipped with push pedal 9, the both ends of push pedal 9 are connected with single depression bar 8's top respectively, the top of first mounting bracket 4 still is equipped with second mounting bracket 10, be equipped with first motor 11 on the second mounting bracket 10, first motor 11's output is connected with electric telescopic handle 12, electric telescopic handle 12's bottom is connected with the top surface of push pedal 9, electric telescopic handle 12's input is connected with first motor 11's output electricity.
Preferably, the front end face and the rear end face of the sliding block 5 are both provided with a guide block 17, the front end face and the rear end face of the sliding chute 6 are provided with a guide groove 19, and the guide block 17 is in sliding fit with the guide groove 19.
Preferably, the cross section of the guide block 17 can be T-shaped or V-shaped, and the cross section of the guide groove 19 corresponds to the cross section of the guide block 17 one by one; the sliding block 5 has stability when sliding up and down, the upper roller 3 is prevented from inclining, and errors are reduced.
Preferably, the top end of the pressure lever 8 is fixedly connected with the top surface of the push plate 9 through a first screw 20.
Preferably, a connecting plate 22 is arranged at the bottom end of the electric telescopic rod 12, and the connecting plate 22 is fixedly connected with the top surface of the push plate 9 through a second screw 21; the second motor 14 is used to drive the upper roll 3.
Preferably, a first machine base 13 is arranged on one side of the sliding block 5, a second motor 14 is arranged on the first machine base 13, and a rotating shaft of the second motor 14 is in transmission connection with one end of the upper roller 3.
Preferably, a second base 15 is arranged on one side of the first mounting frame 4, a third motor 16 is arranged on the second base 15, and a rotating shaft of the third motor 16 is in transmission connection with one end of the lower roller 2; the third motor 16 is used to drive the lower roll 2.
Preferably, two supporting feet 23 are arranged at the bottom of the workbench 1; for supporting the table 1.
Example (b):
through electric telescopic handle 12, push pedal 9, simultaneous control slider 5 slides from top to bottom, and slider 5 drives the motion of top roll 3, adjusts the interval between top roll 3 and the bottom roll 2, and synchronous adjustment can guarantee that the slider 5 sliding distance of both sides equals, guarantees that the lateral surface of top roll 3 can contact completely with the surface of aluminium strip, also saves the time that is equipped with the adjustment simultaneously, improves work efficiency.
It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Claims (8)
1. An adjustable rolling device for aluminum strip production comprises a workbench, an upper roller and a lower roller, and is characterized in that a first mounting frame is arranged on the top surface of the workbench, the lower roller is arranged at the bottom of the first mounting frame, two ends of the lower roller are rotatably connected with the bottom of the first mounting frame, sliders are arranged at two ends of the upper roller, sliding grooves for mounting the sliders are arranged at two sides of the first mounting frame, the sliders are in sliding fit with the sliding grooves, the upper roller is rotatably connected with the sliders at two ends, springs are arranged at the bottoms of the sliders, the top ends of the springs are abutted against the bottom surfaces of the sliders, pressing blocks are arranged on the top surfaces of the sliders, pressing rods are arranged at the tops of the pressing blocks, the top ends of the pressing rods penetrate through the tops of the first mounting frame and are exposed out of the top surface of the first mounting frame, a push plate is further arranged on the top surface of the first mounting frame, the utility model discloses a push pedal, including first motor, second motor, electric telescopic handle, push pedal, first motor, electric telescopic handle's bottom and push pedal, the both ends of push pedal are connected with the top of single depression bar respectively, the top of first mounting bracket still is equipped with the second mounting bracket, be equipped with first motor on the second mounting bracket, the output of first motor is connected with electric telescopic handle, electric telescopic handle's bottom is connected with the top surface of push pedal, electric telescopic handle's input is connected with the output electricity of first motor.
2. The adjustable rolling device for producing the aluminum strip as recited in claim 1, wherein the sliding block is provided with a guide block on the front end surface and a guide block on the rear end surface, the sliding groove is provided with a guide groove on the front end surface and the rear end surface, and the guide blocks are in sliding fit with the guide grooves.
3. The adjustable rolling device for producing the aluminum strip as recited in claim 2, wherein the cross section of the guide block can be T-shaped or V-shaped, and the cross section of the guide groove corresponds to the cross section of the guide block one by one.
4. The adjustable rolling device for producing the aluminum strip as recited in claim 1, wherein the top end of the pressure bar is fixedly connected with the top surface of the pushing plate through a first screw.
5. The adjustable rolling device for producing the aluminum strip as claimed in claim 1, wherein a connecting plate is arranged at the bottom end of the electric telescopic rod, and the connecting plate is fixedly connected with the top surface of the pushing plate through a second screw.
6. The adjustable rolling device for producing the aluminum strip as recited in claim 1, wherein a first base is disposed on one side of the sliding block, a second motor is disposed on the first base, and a rotating shaft of the second motor is in transmission connection with one end of the upper roller.
7. The adjustable rolling device for producing the aluminum strip as recited in claim 1, wherein a second stand is disposed on one side of the first mounting bracket, a third motor is disposed on the second stand, and a rotating shaft of the third motor is in transmission connection with one end of the lower roll.
8. The adjustable rolling device for producing the aluminum strip as recited in claim 1, wherein the bottom of the worktable is provided with two supporting legs.
