Abstract
The utility model discloses a workstation is used to multi-functional big internal medicine relates to medical workstation technical field, has solved current workstation, and the platen mostly is the fixed setting of level, is not convenient for wash the problem of the trickling of water and tissue liquid and pouring off the clearance above that. A multifunctional workbench for the department of general internal medicine comprises a bedplate frame and a water receiving box, wherein the bedplate frame is integrally of a rectangular structure, an operation bedplate is rotatably arranged in the bedplate frame, and two lug blocking plates are symmetrically and downwards supported and welded at the bottom of a back plate of the bedplate frame; the whole water receiving tank is of a rectangular structure, two supporting frames are symmetrically welded at the bottom of the water receiving tank, two wheels with brakes are symmetrically and tightly installed at the bottoms of the two supporting frames, and the whole water receiving tank is pushed to be attached to the bottom of the bedplate frame and is abutted to the limit position on the two stop lug plates. The utility model provides a pin can keep off and lean on spacing operation platen to avoid its interference to leave apron rotation range down, causes the interlock switch function inefficacy of apron.
Description
Technical Field
The utility model relates to a medical workstation technical field specifically is a workstation is used to multi-functional big internal medicine.
Background
The department of medicine is also called comprehensive internal medicine, comprehensive surgery, does not have subdivision specialty, generally does not set up branch departments in low-level hospitals such as primary hospital, all sets up big internal medicine or major surgery, generally sets up subdivision departments such as respiratory internal medicine, digestive internal medicine, department of neurology, urology surgery, thoracic surgery, neurosurgery and so on in high-level hospitals such as secondary and tertiary hospitals, but still sets up a comprehensive internal medicine, is used for some disease branch indefinite first-aid patients to diagnose, divides each professional department after definite diagnosis, in major internal medicine department, needs to carry out daily operation through the workstation.
For example, patent No. CN201821905576.2 discloses a multifunctional large-sized internal-department workbench, which comprises a workbench surface, the utility model discloses a large-sized internal-department workbench with a LED track spotlight, the LED track spotlight can slide in a track, so that the working position of the LED track spotlight can be adjusted, the LED track spotlight can effectively illuminate different positions on the workbench surface, and the limitation of the use of the device is reduced, thereby facilitating the work of medical staff; when the utility model is used, the disinfectant can be injected into the water tank through the movable door, the disinfectant in the water tank is atomized and sprayed out through the atomizing spray head through the work of the water pump, and the atomized disinfectant falls on the working table surface, thereby effectively disinfecting the working table surface conveniently and quickly, reducing the probability of breeding bacteria inhibition of the working table surface and being beneficial to the work of medical staff; and the disinfection of the working table top does not need the manual operation of medical staff, thereby reducing the burden of the medical staff.
The existing workbench is generally provided with a horizontal fixed bedplate, which is inconvenient for washing water and flowing, dumping and cleaning of tissue fluid on the bedplate, and garbage flushed on the bedplate can not be well separated from the washing water flow, so that the garbage is directly discharged into a sewage containing box, and the problem of inconvenient cleaning is caused.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a workstation is used to multi-functional big internal medicine to the platen that proposes among the above-mentioned background art of solution all is the fixed setting of level, is not convenient for wash the problem of the trickling of water and tissue liquid and pouring off the clearance above that.
In order to achieve the above object, the utility model provides a following technical scheme: a multifunctional workbench for the department of orthopaedics comprises a bedplate frame and a water receiving box, wherein the bedplate frame comprises an operation bedplate and a baffle lug plate, the whole bedplate frame is of a rectangular structure, the inside of the bedplate frame is rotatably provided with an operation bedplate, and the bottom of a back plate of the bedplate frame is symmetrically supported and welded downwards with two baffle lug plates; two supporting leg frames are symmetrically welded on the left side and the right side of the bedplate frame; the whole water receiving tank is of a rectangular structure, two support frames are symmetrically welded at the bottom of the water receiving tank, two wheels with brakes are symmetrically and tightly mounted at the bottoms of the two support frames, and the whole water receiving tank is pushed to be attached to the bottom of the bedplate frame and to be abutted to and limited on two stop lug plates; a cover plate is rotatably arranged in the right space inside the bedplate frame.
Preferably, the bedplate frame further comprises a worm and a stop lever, the worm is rotatably mounted at the rear side of the right end of the bedplate frame in a penetrating mode, the stop lever is welded on the right half section of the bottom opening of the bedplate frame in a cross bracing mode, and the operation bedplate can rotate to lean against the stop lever in a downward tilting mode.
Preferably, the water receiving tank comprises a limiting strip and a garbage basket, two limiting strips are symmetrically and vertically supported and welded on the right end section of the front inner wall and the rear inner wall of the water receiving tank, and the garbage basket slides downwards and is inserted between the two limiting strips and the right inner wall of the water receiving tank; the whole garbage basket is of a rectangular structure, and a filter screen is covered and blocked on an opening at the bottom of the garbage basket.
Preferably, the cover plate comprises a worm wheel, the tail end of the cover plate rotating shaft is sleeved with the worm wheel, and the worm wheel is correspondingly in meshing contact with the worm.
Preferably, the head ends of the cover plate and the operation bedplate are of reverse inclined sectioning structures, and when the cover plate and the operation bedplate rotate and are horizontally butted, the beveled sections at the head ends of the cover plate and the operation bedplate are just clamped and matched.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model has the advantages that the cover plate rotates and tilts to open the back platform frame, the back platform frame can tilt downwards to facilitate the cleaning of the cleaning water flow and the tissue juice on the back platform frame, and the stop lever can stop the spacing operation bedplate to avoid the interference downward rotation of the stop lever from leaving the rotating range of the cover plate, which causes the function failure of the linkage switch of the cover plate;
2. the cover plate can be linked to drive the operation bedplate to be inclined and lifted when the cover plate is opened, closed and rotated, so that the step of manually lifting the operation bedplate is omitted, the use flow of the workbench is simplified, and the operation is convenient and quick;
3. the garbage basket can intercept and separate garbage and water flow, the garbage can be conveniently dumped by lifting and taking out the garbage basket, and the inconvenience in cleaning caused by the fact that the garbage is directly drained to the water receiving tank is avoided.
Drawings
FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic view of the back structure of the present invention;
FIG. 3 is a schematic view of the internal structure of the water receiving tank of the present invention;
FIG. 4 is a schematic view of the bottom structure of the bedplate frame of the present invention;

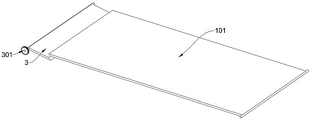

FIG. 5 is a schematic view of the cover plate structure of the present invention;
FIG. 6 is an enlarged schematic view of a portion A of FIG. 2 according to the present invention;
in the figure: 1. a platen frame; 101. an operation platen; 102. a lug baffle plate; 103. a worm; 104. a stop lever; 2. a water receiving tank; 201. a limiting strip; 202. a trash basket; 3. a cover plate; 301. a worm gear.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1 to 6, the present invention provides an embodiment: a multifunctional workbench for the department of orthopaedics comprises a bedplate frame 1 and a water receiving tank 2, wherein the bedplate frame 1 comprises an operation bedplate 101 and a lug baffle plate 102, the whole bedplate frame 1 is of a rectangular structure, the operation bedplate 101 is rotatably arranged in the bedplate frame 1, and the two lug baffle plates 102 are symmetrically and downwards supported and welded at the bottom of a back plate of the bedplate frame 1; two supporting leg frames are symmetrically welded on the left side and the right side of the bedplate frame 1; the whole water receiving tank 2 is of a rectangular structure, two support frames are symmetrically welded at the bottom of the water receiving tank, two wheels with brakes are symmetrically and tightly mounted at the bottoms of the two support frames, and the whole water receiving tank 2 is pushed to be attached to the bottom of the bedplate frame 1 and is abutted to and limited on the two stop and rest ear plates 102; a cover plate 3 is rotatably arranged in the right space inside the bedplate frame 1.
Further, the platen frame 1 further comprises a worm 103 and a stop lever 104, the worm 103 is rotatably arranged at the rear side of the right end of the platen frame 1 in a penetrating mode, the stop lever 104 is welded on the right half section of the bottom opening of the platen frame 1 in a cross bracing mode, the operation platen 101 can rotate and lean against the stop lever 104 in a downward tilting mode, the cover plate 3 rotates and tilts to open the rear platen frame 1 to enable the rear platen frame 1 to tilt downward, water flow cleaning and tissue juice pouring cleaning can be facilitated, the stop lever 104 can be stopped and leaned against the limiting operation platen 101 to avoid the interference of the operation platen 101 to avoid the rotation range of the cover plate 3 downward moving, and the function of the linkage switch of the cover plate 3 is disabled.
Further, the water receiving tank 2 comprises a limiting strip 201 and a garbage basket 202, two limiting strips 201 are symmetrically and vertically supported and welded on the right end section of the front inner wall and the rear inner wall of the water receiving tank 2, and the garbage basket 202 slides downwards and is inserted between the two limiting strips 201 and the right inner wall of the water receiving tank 2; the whole garbage basket 202 is of a rectangular structure, a filter screen is covered and sealed on an opening at the bottom of the garbage basket 202, the garbage basket 202 can intercept and separate garbage from water flow, dumping of the garbage can be conveniently completed only by lifting and taking out the garbage basket 202, and the problem that the garbage is directly drained to the water receiving tank 2 to cause inconvenience in cleaning is avoided.
Further, the cover plate 3 comprises a worm wheel 301, the tail end of the rotating shaft of the cover plate 3 is sleeved with the worm wheel 301, the worm wheel 301 is correspondingly in meshing contact with the worm 103, and the cover plate 3 can be turned over and controlled to be opened and closed through a worm and gear mechanism.
Further, the head ends of the cover plate 3 and the operation bedplate 101 are of a reverse inclined sectioning structure, when the cover plate 3 and the operation bedplate 101 rotate to be horizontally butted, the beveling section at the head end is just clamped and matched, due to the eccentric gravity of the operation bedplate 101, after the cover plate 3 rotates downwards and is opened, the operation bedplate 101 can automatically deflect and tilt downwards, the cover plate 3 can be abutted and contacted with the head end of the tilted operation bedplate 101 when rotating and closing and drives the operation bedplate 101 to be jacked and transposed in a horizontal butting state, and then the cover plate 3 can be interlocked to drive the operation bedplate 101 to tilt and lift after opening and closing and rotating, so that the step of additionally performing manual lifting on the operation bedplate 101 is omitted, the use flow of the workbench is simplified, and the operation is convenient and fast.
The working principle is as follows: the bedplate frame 1 can incline downwards to facilitate the pouring cleaning of water flow and tissue juice on the bedplate frame, the garbage basket 202 can intercept and separate garbage from the water flow, the garbage can be conveniently poured only by lifting and taking out the garbage basket 202, the problem that the garbage is directly poured and placed in the water receiving tank 2 to cause inconvenient cleaning is avoided, due to the eccentric gravity of the operation bedplate 101, after the cover plate 3 rotates downwards and is opened, the operation bedplate 101 can automatically deflect and incline downwards, and the cover plate 3 can be contacted with the head end of the operating bedplate 101 which inclines downwards when rotating and closing and can drive the operation bedplate 101 to be pushed and arranged in a horizontal butt joint state.
It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Claims (5)
1. The utility model provides a workstation is used to multi-functional major surgery which characterized in that: the water receiving and collecting device comprises a bedplate frame (1) and a water receiving tank (2), wherein the bedplate frame (1) comprises an operation bedplate (101) and a baffle lug plate (102), the whole bedplate frame (1) is of a rectangular structure, one operation bedplate (101) is rotatably arranged in the bedplate frame, and the bottom of a backboard of the bedplate frame (1) is symmetrically and downwards supported and welded with two baffle lug plates (102); two supporting leg frames are symmetrically welded on the left side and the right side of the bedplate frame (1); the whole water receiving tank (2) is of a rectangular structure, two supporting frames are symmetrically welded at the bottom of the water receiving tank, two wheels with brakes are symmetrically and tightly installed at the bottoms of the two supporting frames, and the whole water receiving tank (2) is pushed to be attached to the bottom of the bedplate frame (1) and is abutted to and limited on the two stop and abutment ear plates (102); a cover plate (3) is rotatably arranged in the right space inside the bedplate frame (1).
2. A multifunctional workbench for general surgery as defined in claim 1, wherein: the bedplate frame (1) further comprises a worm (103) and a stop lever (104), the worm (103) is rotatably arranged at the rear side of the right end of the bedplate frame (1) in a penetrating mode, the stop lever (104) is welded on the right half section of the bottom opening of the bedplate frame (1) in a cross bracing mode, and the operation bedplate (101) can rotate and downwards incline to abut against the stop lever (104).
3. A multifunctional workbench for general surgery as defined in claim 1, wherein: the water receiving tank (2) comprises limiting strips (201) and a garbage basket (202), two limiting strips (201) are symmetrically and vertically supported and welded on the right end sections of the front inner wall and the rear inner wall of the water receiving tank (2), and the garbage basket (202) slides downwards and is inserted between the two limiting strips (201) and the right inner wall of the water receiving tank (2); the garbage basket (202) is integrally rectangular, and a filter screen is covered and sealed on an opening at the bottom of the garbage basket.
4. A multifunctional workbench for general surgery as defined in claim 1, wherein: the cover plate (3) comprises a worm wheel (301), the tail end of the rotating shaft of the cover plate (3) is sleeved with the worm wheel (301), and the worm wheel (301) is correspondingly in meshing contact with the worm (103).
5. A multifunctional workbench for general surgery as defined in claim 1, wherein: the head ends of the cover plate (3) and the operation bedplate (101) are of reverse inclined sectioning structures, and when the cover plate (3) and the operation bedplate (101) are in rotating horizontal butt joint, the beveled sections at the head ends are just clamped and matched.
