Fracture operation wound retractor

Technical Field

The utility model relates to the technical field of auxiliary instruments for orthopedic operations, in particular to a wound retractor for fracture operations.

Background

The fracture means that the integrality or the continuity of bone are interrupted, often carry out the operation to the bone in the subcutaneous inside in the fracture operation, in order to make the operation implement smoothly, often adopt some wound retractors among the operation process, for retracting the tissue, reveal and need the operation scope, be convenient for explore and operate, provide good operation field of vision for the doctor, current wound retractor is not convenient for adjust the size of retracting the wound, all rely on the manpower to retract, the wound can not be retracted if the power is less, it is easy to cause the wound to tear to exert oneself violently, it also relies on the manpower to keep to retract the wound back always, and present wound retractor is generally to lack to fix after retracting the back patient's wound and causes the retractor slope easily, make and take place danger.

SUMMERY OF THE UTILITY MODEL

To the above situation, in order to overcome the defects of the prior art, the utility model aims to provide a fracture operation wound retractor, which effectively solves the problems that the size of the wound is not convenient to adjust and the fixation is lacked in the existing fracture operation wound retractor.

The technical scheme of its solution is, the utility model discloses a supporting seat, the supporting seat upper end is equipped with U-shaped and opening towards left spring leaf, the looks remote site of both sides wall articulates respectively has the push rod of direction about, two push rod right-hand members articulate has about one axial and opening towards right push cylinder, the axial sleeve is controlled to the spring leaf right-hand member is equipped with, coaxial threaded connection has the screw rod in the sleeve, the screw rod left end runs through the spring leaf and rotates with push cylinder to be connected, both sides wall left end downside is equipped with a plurality of arcs of controlling the direction evenly distributed along respectively around the spring leaf, the arc opening of both sides back and forth back mutually, the supporting seat lower extreme is equipped with the fixed band, the connection can be dismantled to two free ends of fixed band.

Compared with the prior art, the beneficial effects of the utility model are that: through the screw rod, the setting of push cylinder and push rod, can adjust and lead out the size, need not the manpower and lead out always, make the complete show in patient's operation position, the effectual current fracture operation wound retractor of having solved is not convenient for adjust the problem of leading out the size of wound, through the fixed band, turn over the board, the setting of spacing post and spacing hole, fixed after having realized leading out patient's wound, be difficult to cause the retractor slope, the effectual present wound retractor of having solved lacks fixed problem behind the patient's wound of leading out, this simple structure, high durability and convenient operation, the design is novel, therefore, the clothes hanger is strong in practicability.

Drawings

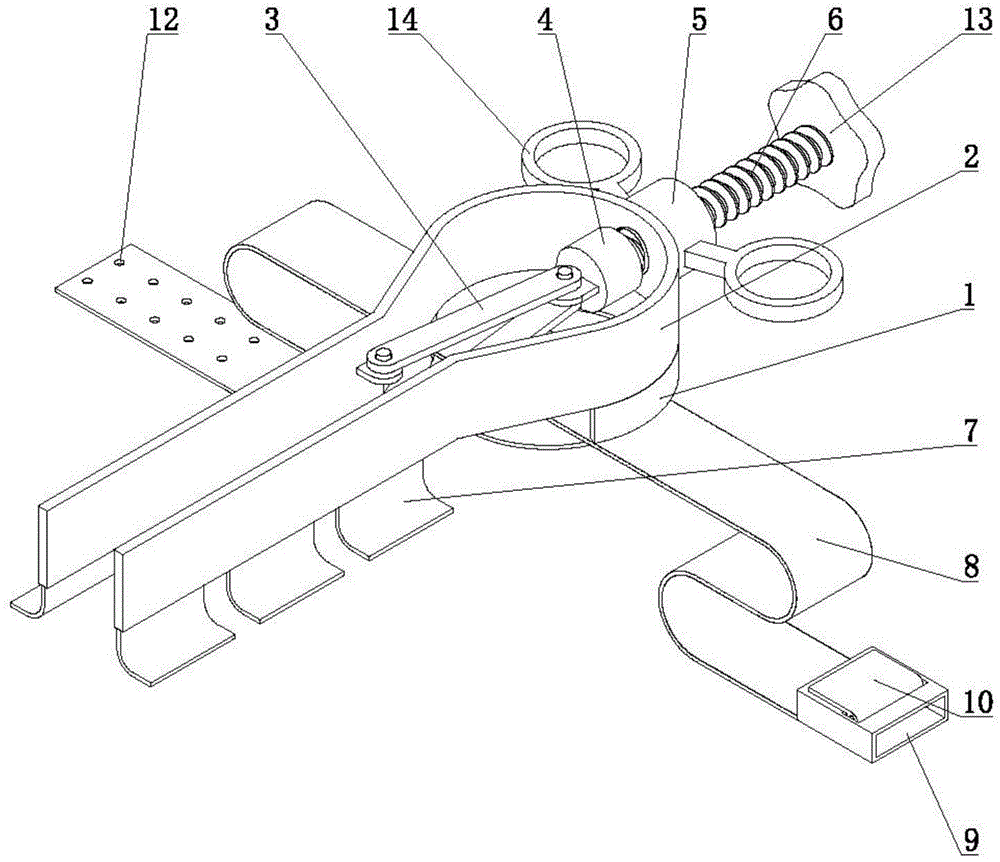

Fig. 1 is an isometric view of the present invention.

Figure 2 is the utility model discloses a cut main visual axis mapping.

Fig. 3 is the utility model discloses a dissect left side and look the axonometric drawing.

Fig. 4 is an enlarged view of a in fig. 3 according to the present invention.

Detailed Description

The following describes the embodiments of the present invention in further detail with reference to the accompanying drawings.

By figure 1 to 4, including supporting

seat

1, 1 upper end of supporting seat is equipped with U-shaped and opening towards left spring leaf 2, the looks remote site of 2 front and back both sides walls of spring leaf articulates respectively has the push rod 3 of left right direction, 3 right-hand members of two push rods articulate has one and controls axial and opening pushing cylinder 4 that faces right, 2 right-hand members of spring leaf are equipped with left and right axial sleeve 5, coaxial threaded connection has screw rod 6 in the

sleeve

5, 6 left ends of screw rod run through spring leaf 2 and with push cylinder 4 rotate and be connected, 2 front and back both sides wall left end downside are equipped with a plurality of arc pieces 7 along left and right directions evenly distributed respectively around the spring leaf, 7 openings of arc pieces of front and back both sides are carried on the back mutually, 1 lower extreme of supporting seat is equipped with fixed band 8, the connection can be dismantled to two free ends of fixed band 8.

Can dismantle the connection in order to realize two free ends of fixed band 8, fixed band 8 front end be equipped with the rectangle box 9 that link up around, the rotation of rectangle box 9 upper end is connected with turns over board 10, turns over the board 10 front end left and right sides and is equipped with the spacing post 11 that is located rectangle box 9 respectively, the fixed band 8 rear end left and right sides is equipped with a plurality ofly respectively along fore-and-aft direction evenly distributed and can with spacing hole 12 of spacing post 11 complex.

In order to rotate the screw rod 6 conveniently, a hand wheel 13 is arranged at the right end of the screw rod 6.

In order to take the device conveniently, the front side and the rear side of the sleeve 5 are respectively provided with a finger ring 14.

In order to prevent the blood from flowing to other parts of the wound, the lower end of the fixing band 8 is provided with a cotton pad 15.

In order to prevent the push rod 3 from swinging too much, the length of the screw rod 6 is equal to that of the push rod 3.

When the utility model is used, the right end surface of the push cylinder 4 is contacted with the spring piece 2 in the initial state, and the two free ends of the fixing belt 8 are separated;

firstly, a wound is cut on the operation part of the body of a patient by using a scalpel, the number of the arc pieces 7 for retracting the wound is selected according to the length of the wound, fingers are inserted into the finger ring 14 to take the device, and the arc pieces 7 at two sides are placed in the wound, so that the arc pieces 7 are large in force application area and cannot easily cause secondary damage to the wound like a hook;

the hand wheel 13 is rotated clockwise, the hand wheel 13 drives the screw rod 6 to rotate clockwise, the screw rod 6 moves leftwards while rotating due to the threaded connection of the screw rod 6 and the sleeve 5, the screw rod 6 drives the push cylinder 4 to move leftwards, the push cylinder 4 drives the two push rods 3 to swing outwards, the push rods 3 drive the front side wall and the rear side wall of the spring piece 2 to move outwards, the front side wall and the rear side wall of the spring piece 2 drive the arc-shaped piece 7 to retract a wound, the spring piece 2 is kept at the current position due to the self-locking property of the threaded connection of the screw rod 6 and the sleeve 5, the wound retraction state does not need to be kept by manpower all the time, the workload of medical staff is reduced, the speed is uniform, the wound stress is uniformly distributed in the wound retraction process, and the secondary injury caused by overexertion is avoided;

when the wound is completely retracted and the part needing operation is completely displayed, the fixing band 8 is attached to the body of a patient, the turning plate 10 is rotated upwards, the turning plate 10 drives the limiting column 11 to rotate upwards, the left end of the fixing band 8 is inserted into the rectangular box 9, when the fixing band is adjusted to a proper length, the turning plate 10 is pressed downwards, the turning plate 10 drives the limiting column 11 to rotate downwards, the limiting column 11 is clamped in the limiting hole 12 at the moment, the free end of the fixing band 8 cannot move, the fixing of the device is realized, the phenomenon that the inclination of the retractor is easily caused by the lack of fixing after the wound of the patient is retracted is avoided, so that danger occurs, the cotton pad 15 is positioned below the wound at the moment, and the blood of the patient is prevented from flowing to other parts of the body;

fixing of the device is completed at the moment, the wound is kept in a retracting state, a doctor performs an operation, after the operation is completed, the hand wheel 13 is rotated anticlockwise, the hand wheel 13 drives the screw rod 6 to rotate anticlockwise, the screw rod 6 is in threaded connection with the sleeve 5 and moves rightwards while rotating, the screw rod 6 drives the push barrel 4 to move rightwards, the push barrel 4 drives the two push rods 3 to swing inwards, the push rods 3 drive the front side wall and the rear side wall of the spring piece 2 to move inwards, the front side wall and the rear side wall of the spring piece 2 drive the arc-shaped piece 7 to return to an initial state, the arc-shaped piece 7 is taken out of the wound, the turning plate 10 is rotated upwards, the turning plate 10 drives the limiting column 11 to rotate upwards, the left end of the fixing band 8 is taken out of the rectangular box 9, the turning plate 10 is pressed downwards, the turning plate 10 drives the limiting column 11 to rotate downwards, the device is taken out, the wound is sewn, and the device is sterilized and used.

Claims

1. The utility model provides a fracture operation wound retractor, including supporting seat (1), a serial communication port, supporting seat (1) upper end is equipped with U-shaped and opening spring leaf (2) towards the left side, the looks remote site of spring leaf (2) front and back both sides wall articulates respectively has push rod (3) of left right direction, two push rod (3) right-hand members articulate has one and controls axial and opening push away a section of thick bamboo (4) that makes right, axial sleeve (5) about spring leaf (2) right-hand member is equipped with, coaxial thread connection has screw rod (6) in sleeve (5), screw rod (6) left end runs through spring leaf (2) and rotates with push away a section of thick bamboo (4) and is connected, both sides wall left end downside is equipped with a plurality of arc pieces (7) along left and right direction evenly distributed respectively around spring leaf (2), arc piece (7) opening of front and back both sides back is carried on the back mutually, supporting seat (1) lower extreme is equipped with fixed band (8), two free ends of fixed band (8) can be dismantled and connect.

2. A retractor for a fracture surgical wound according to claim 1, wherein the front end of the fixing strap (8) is provided with a rectangular box (9) which is through from front to back, the upper end of the rectangular box (9) is rotatably connected with a turning plate (10), the left and right sides of the front end of the turning plate (10) are respectively provided with a plurality of limiting posts (11) which are located in the rectangular box (9), and the left and right sides of the rear end of the fixing strap (8) are respectively provided with a plurality of limiting holes (12) which are evenly distributed along the front and back direction and can be matched with the limiting posts (11).

3. A retractor for a fracture surgical wound according to claim 1, characterised in that the right end of the screw (6) is provided with a handwheel (13).

4. A retractor for a fractured surgical wound according to claim 1 wherein the sleeve (5) is provided with finger rings (14) on each of the front and rear sides.

5. A retractor for a fracture surgical wound according to claim 1, characterised in that the lower end of the fixing strap (8) is provided with a cotton pad (15).

6. A retractor for a surgical wound to a fracture as claimed in claim 1, wherein the length of the screw (6) is equal to the length of the push rod (3).
