Abstract

The utility model discloses a stand for a rotating dining table in the technical field of a stand for a rotating dining table, which comprises a table board, a support frame is arranged on the lower end surface of the table board, a base is fixedly installed on the lower end surface of the support frame, and an interior of the support frame is provided with a support frame. There is a through slot, a support rod and a sleeve run through the inside of the through slot, and the sleeve is located on one side of the support rod, the inner thread of the sleeve is inserted with a rotating rod, and both the sleeve and the support rod are rotatably installed on the upper end face of the base There is a movable slot inside the base, the bottom end of the movable slot is slidably installed with a bottom plate, an electric push rod is fixedly installed on the side of the bottom plate, a motor is fixedly installed on the upper end surface of the bottom plate, and a rotating tooth is fixedly installed on the upper end surface of the motor. The lower end surfaces of the support rod and the sleeve are fixedly installed with driven teeth, and the lower end surface of the table plate is provided with an annular groove, which can facilitate the user to store the rotating dining table through the bracket, reduce the floor space and improve the use of the device. performance.

Description

Rotary dining table is with putting up

Technical Field

The utility model relates to a revolving table puts up technical field, specifically is a revolving table is with putting up.

Background

With the increasing improvement of living standard of people, the dining table is a typical furniture from the original simple furniture to the modern furniture with rich types and changeable styles, and with the continuous improvement of the living quality of people, the dishes on the dining table are more and more. Meanwhile, people have higher and higher requirements on diet, and are not limited to the taste of dishes. People hope that various dishes can be more beautiful on the basis of beauty, the placing positions are very important besides the shapes of the dishes, the dinning table is gradually popular due to Chinese eating habits, a plurality of families with more people choose to purchase the dinning table, and the shelving is generally a support frame for supporting the table board.

The table plate of the existing rotary dining table is heavier, the corresponding building frame is generally fixedly connected with the table plate, the table plate is not convenient for a user to store, certain burden is brought to the user, and the using performance of the device is reduced.

Based on this, the utility model designs a rotatory dining table is with putting up in order to solve above-mentioned problem.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a rotatory dining table is with putting up to solve the problem that proposes among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: a built-up frame for a rotary dining table comprises a table plate, wherein a support frame is arranged on the lower end face of the table plate, a base is fixedly mounted on the lower end face of the support frame, a through groove is formed in the support frame, a support rod and a sleeve penetrate through the inside of the through groove, the sleeve is located on one side of the support rod, a rotating rod is inserted into the inner thread of the sleeve in a inserting mode, and the sleeve and the support rod are both rotatably mounted on the upper end face of the base;

the movable groove has been seted up to the inside of base, and the position slidable mounting of the inside bottom in movable groove has the bottom plate, and the side fixed mounting of bottom plate has electric putter, and the up end fixed mounting of bottom plate has the motor, and the up end fixed mounting of motor has the commentaries on classics tooth, and the bracing piece has driven tooth with the equal fixed mounting of telescopic lower terminal surface.

Preferably, the lower terminal surface of table has seted up the ring channel, and the medial surface of ring channel has seted up a plurality of spacing groove, and a plurality of spacing groove is annular equidistance and distributes.

Preferably, the upper end face of the rotating rod is hinged with a limiting block, and the limiting block is matched with the annular groove and the limiting groove.

Preferably, the support rod is rotatably connected with the table plate, and the total length of the rotating rod and the sleeve is matched with the length of the support rod.

Preferably, the controller is fixedly installed on the side face of the table plate, the supporting frame is in a circular truncated cone shape, and the inclination angle of the table plate is matched with the edge of the supporting frame.

Preferably, two driven teeth are positioned on the same horizontal line, and the driven teeth are in meshed connection with the rotating teeth.

Compared with the prior art, the beneficial effects of the utility model are that: start electric putter through the controller, electric putter drives the inside removal of bottom plate at the activity groove, starter motor drives the driven tooth meshing connection of commentaries on classics tooth and bracing piece lower extreme, thereby it is rotatory to drive the table on the bracing piece, the stopper slides in the inside of ring channel this moment, then adjust the position of bottom plate through electric putter, make the driven tooth meshing connection on commentaries on classics tooth and the sleeve, under the effect of screw thread, the sleeve rotates and makes the bull stick rebound, make the bull stick drive the stopper and move along the spacing groove, and through the change of the total length of sleeve with the bull stick, upwards jack-up the one end of table, thereby upwards promote the table and be certain inclination, convenient to use person accomodates the revolving dining table through this scaffold, reduce and take up an area of the space, improve the device's performance.

Of course, it is not necessary for any particular product to achieve all of the above-described advantages at the same time.

Drawings

In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings used in the description of the embodiments will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art that other drawings can be obtained according to these drawings without creative efforts.

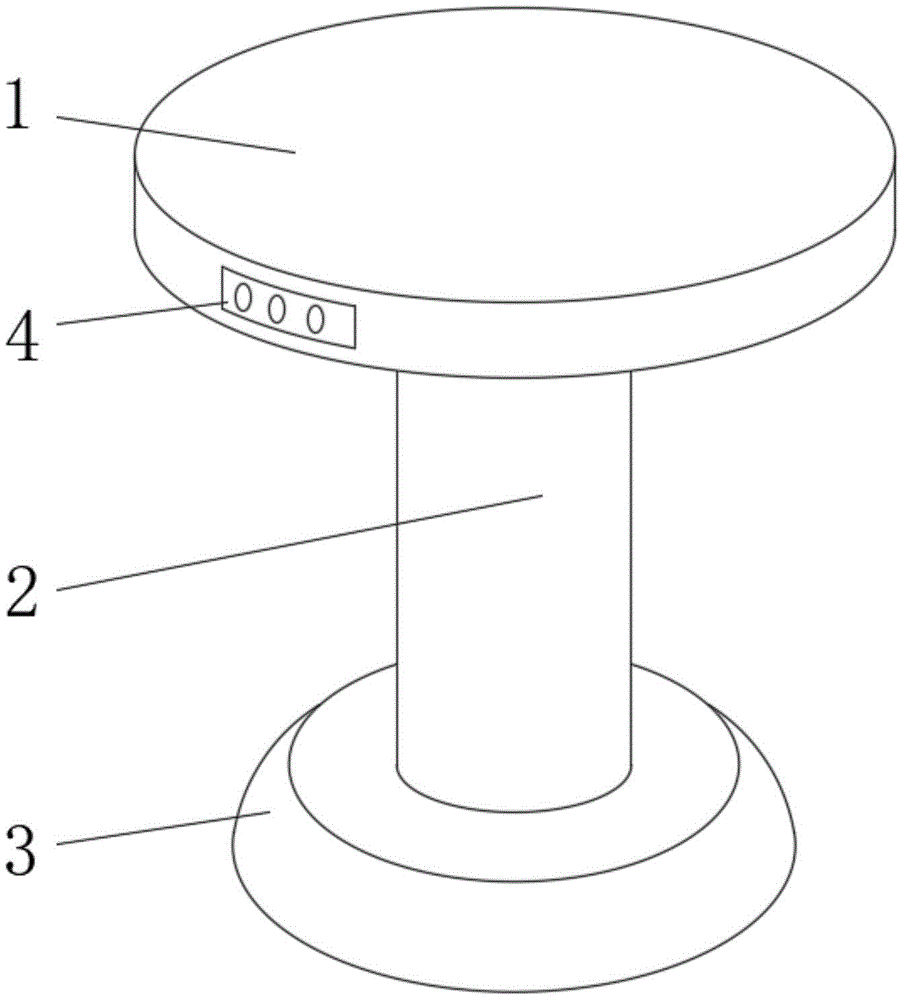

Fig. 1 is a schematic view of the overall structure of the present invention;

FIG. 2 is a view of the support rod and the sleeve according to the present invention;

FIG. 3 is a combined view of the table and the supporting frame of the present invention;

fig. 4 is a combined view of the annular groove and the limiting groove of the present invention.

In the drawings, the components represented by the respective reference numerals are listed below:

1. a table plate; 2. a support frame; 3. a base; 4. a controller; 5. a through groove; 6. a support bar; 7. a sleeve; 8. a rotating rod; 9. a limiting block; 10. an annular groove; 11. a limiting groove; 12. a movable groove; 13. a base plate; 14. an electric push rod; 15. a motor; 16. rotating the teeth; 17. and a driven tooth.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments of the present invention, all other embodiments obtained by a person of ordinary skill in the art without creative efforts belong to the protection scope of the present invention.

Referring to fig. 1 to 4, the present invention provides a technical solution for a revolving dining table: a built frame for a rotary dining table comprises a table plate 1, wherein a support frame 2 is arranged on the lower end face of the table plate 1, a base 3 is fixedly installed on the lower end face of the support frame 2, a through groove 5 is formed in the support frame 2, a support rod 6 and a sleeve 7 penetrate through the through groove 5, the sleeve 7 is located on one side of the support rod 6, a rotating rod 8 is inserted into the inner thread of the sleeve 7 in an inserting mode, and the sleeve 7 and the support rod 6 are both rotatably installed on the upper end face of the base 3;

the movable groove 12 has been seted up to base 3's inside, and the position slidable mounting of the inside bottom of movable groove 12 has bottom plate 13, and the side fixed mounting of bottom plate 13 has electric putter 14, and the up end fixed mounting of bottom plate 13 has motor 15, and the up end fixed mounting of motor 15 has commentaries on classics tooth 16, and the equal fixed mounting of the lower terminal surface of bracing piece 6 and sleeve 7 has driven tooth 17.

The lower terminal surface of table 1 has seted up ring channel 10, and a plurality of spacing groove 11 has been seted up to the medial surface of ring channel 10, and a plurality of spacing groove 11 is annular equidistance and distributes.

The upper end face of the rotating rod 8 is hinged with a limiting block 9, and the limiting block 9 is matched with the annular groove 10 and the limiting groove 11.

The support rod 6 is rotatably connected with the table board 1, and the total length of the rotating rod 8 and the sleeve 7 is matched with the length of the support rod 6.

The controller 4 is fixedly installed on the side face of the table plate 1, the supporting frame 2 is in a circular truncated cone shape, and the inclination angle of the table plate 1 is matched with the edge of the supporting frame 2.

Two driven teeth 17 are positioned on the same horizontal line, and the driven teeth 17 are in meshed connection with the rotating teeth 16.

One specific application of this embodiment is: firstly, the electric push rod 14 is started through the controller 4, the electric push rod 14 drives the bottom plate 13 to move in the movable groove 12, the starting motor 15 drives the rotating tooth 16 to be meshed with the driven tooth 17 at the lower end of the supporting rod 6, so as to drive the table plate 1 on the supporting rod 6 to rotate and ensure the normal use of the rotary dining table, at the moment, the limiting block 9 slides in the annular groove 10, then the position of the bottom plate 13 is adjusted through the electric push rod 14, the rotating tooth 16 is meshed with the driven tooth 17 on the sleeve 7, under the action of the thread, the sleeve 7 rotates to drive the rotating rod 8 to move upwards, so that the rotating rod 8 drives the limiting block 9 to move along the limiting groove 11, and through the change of the total length of the sleeve 7 and the rotating rod 8, one end of the table plate 1 is jacked upwards, so as to push the table plate 1 upwards to form a certain inclination angle, and a user can conveniently store the rotary dining table through the lapping frame, reduce the occupation of land space, improve the performance of the device.

The electrical components appearing in this paper all are connected with external 220V commercial power electricity through the transformer, and all are provided with the controller of looks adaptation, and electrical components and controller are that technical personnel are familiar in this field, consequently, can be clear to those skilled in the art through the utility model provides a technical scheme obtains corresponding result of use.

In the description herein, references to the description of "one embodiment," "an example," "a specific example," etc., mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the invention. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.

The preferred embodiments of the present invention disclosed above are intended only to help illustrate the present invention. The preferred embodiments are not intended to be exhaustive or to limit the invention to the precise embodiments disclosed. Obviously, many modifications and variations are possible in light of the above teaching. The embodiments were chosen and described in order to best explain the principles of the invention and its practical applications, to thereby enable others skilled in the art to best understand the invention for and utilize the invention. The present invention is limited only by the claims and their full scope and equivalents.

Claims

1. A stand for a rotating dining table, comprising a table board (1), characterized in that: the lower end surface of the table board (1) is provided with a support frame (2), and the lower end surface of the support frame (2) is fixed A base (3) is installed, a through groove (5) is opened inside the support frame (2), and a support rod (6) and a sleeve (7) penetrate through the inside of the through groove (5), and the sleeve (7) is located on one side of the support rod (6), a rotating rod (8) is inserted into the inner thread of the sleeve (7), and both the sleeve (7) and the support rod (6) are rotatably installed on the base (3) the upper end face;

A movable groove (12) is opened inside the base (3), a bottom plate (13) is slidably installed at the position of the inner bottom end of the movable groove (12), and an electric push rod is fixedly installed on the side of the base plate (13). (14), a motor (15) is fixedly installed on the upper end surface of the bottom plate (13), a rotating tooth (16) is fixedly installed on the upper end surface of the motor (15), and the support rod (6) and the sleeve ( 7) The lower end surface of the device is fixedly installed with driven teeth (17).

2. A stand for a rotating dining table according to claim 1, characterized in that: an annular groove (10) is provided on the lower end surface of the table board (1), and an inner side of the annular groove (10) is provided with an annular groove (10). There are several limit slots (11), and the several limit slots (11) are distributed in a ring shape at equal distances.

3. A stand for a rotating dining table according to claim 2, characterized in that: a limit block (9) is hinged on the upper end surface of the rotating rod (8), and the limit block (9) is connected to the annular groove. (10) is matched with the limit slot (11).

4. A stand for a rotating dining table according to claim 1, characterized in that: the support rod (6) and the table board (1) are rotatably connected, and the rotating rod (8) is connected to the sleeve ( The overall length of 7) matches the length of the support rod (6).

5. A kind of stand for a rotating dining table according to claim 1, characterized in that: a controller (4) is fixedly installed on the side of the table board (1), and the support frame (2) is in the shape of a truncated cone, The inclination angle of the table board (1) matches the edge of the support frame (2).

6. A stand for a rotating dining table according to claim 1, characterized in that: the two driven teeth (17) are located on the same horizontal line, and the driven teeth (17) and the rotating teeth (16) are located on the same horizontal line. meshing connection between.
