Abstract
本实用新型公开了一种具有散热结构的电池托盘，属于托盘领域，包括外壳，外壳设有凹槽，凹槽的内部放置有内壳，内壳均匀的设有电池槽，电池槽的内部放置有电池，外壳的后端均匀的设有通槽，内壳均匀的设有散热槽，散热槽的内部均匀的固定连接有加强筋，外壳的前侧通过螺栓固定连接有盖板，盖板固定连接有堵块，盖板与堵块分别均匀的设有通风槽，通过通槽、散热槽与通风槽的设置，加大了电池与外界接触的面积，同时加大了散热速度，对电池起到加强保护作用，通过斜板的设置，加大了耳板与外壳连接的稳固性，而且通过螺纹孔的设置，方便通过螺栓把外壳固定安装，避免外壳出现安装不稳固的现象出现。
The utility model discloses a battery tray with a heat dissipation structure, belonging to the field of trays. There are batteries, the rear end of the outer casing is evenly provided with through grooves, the inner casing is uniformly provided with heat dissipation grooves, the interior of the heat dissipation grooves is evenly fixed with reinforcing ribs, the front side of the outer casing is fixedly connected with a cover plate by bolts, and the cover plate is fixed A blocking block is connected, and the cover plate and the blocking block are evenly provided with ventilation grooves. Through the setting of the through grooves, the heat dissipation grooves and the ventilation grooves, the contact area between the battery and the outside world is increased, and the heat dissipation speed is increased, which is effective for the battery. In order to strengthen the protection effect, the setting of the inclined plate increases the stability of the connection between the lug plate and the shell, and the setting of the threaded hole facilitates the fixing and installation of the shell through bolts, so as to avoid the phenomenon of unstable installation of the shell.
Description
Technical Field
The utility model relates to a tray field, more specifically say, relate to a battery tray with heat radiation structure.
Background
A battery refers to a device that converts chemical energy into electrical energy in a portion of the space of a cup, tank, or other container or composite container that holds an electrolyte solution and metal electrodes to produce an electrical current. Has a positive electrode and a negative electrode. With the advancement of technology, batteries generally refer to small devices that can generate electrical energy.
At present, most of the existing battery trays do not have a heat dissipation structure, a large amount of heat dissipated by a battery cannot be timely led out, the heat accumulation easily causes safety accidents such as fire and explosion, and meanwhile, the installation of a battery shell is complex and is not firm, so that the installation of the battery is not firm.
Disclosure of Invention
To the problem that exists among the prior art, the utility model aims to provide a battery tray with heat radiation structure, through leading to the groove, the area of radiating groove and ventilation groove has increaseed battery and external contact, has increaseed the radiating rate simultaneously, plays to strengthen the guard action to the battery, through the setting of swash plate, has increaseed the steadiness that otic placode and shell are connected, and through the setting of screw hole, conveniently pass through the bolt to shell fixed mounting, avoid the unstable phenomenon of installation to appear appearing in the shell.
In order to solve the above problems, the utility model adopts the following technical proposal.
A battery tray with a heat dissipation structure comprises an outer shell, wherein the outer shell is provided with a groove, an inner shell is placed in the groove, battery grooves are uniformly formed in the inner shell, batteries are placed in the battery grooves, through grooves are uniformly formed in the rear end of the outer shell, heat dissipation grooves are uniformly formed in the inner shell, reinforcing ribs are uniformly and fixedly connected in the heat dissipation grooves, an cover plate is fixedly connected to the front side of the outer shell through bolts, a blocking block is fixedly connected to the cover plate, ventilation grooves are uniformly formed in the cover plate and the blocking block respectively, a dust screen is fixedly connected to the inside of the ventilation grooves, lug plates are uniformly and fixedly connected to the left side and the right side of the outer shell respectively, an inclined plate is fixedly connected to one side of each lug plate, the contact area of the batteries with the outside is increased through the through grooves, the heat dissipation grooves and the ventilation grooves, and the heat dissipation speed is increased simultaneously, play the enhancement guard action to the battery, through the setting of swash plate, increaseed the steadiness that otic placode and shell are connected, through the setting of screw hole, conveniently pass through the bolt to shell fixed mounting moreover, avoid the shell to appear the phenomenon of installing unstability.
Furthermore, the length of the through groove is the same as that of the radiating groove, the rear end of the battery is in contact with the inner side of the reinforcing rib, and the inner shell is communicated with the outside through the through groove and the radiating groove, so that the battery can be conveniently and quickly cooled.
Further, the sprue is arranged on the front side of the inner portion of the groove, the rear end of the sprue is in contact with the front side of the inner shell, and the sprue enables the battery to be more stably mounted in the battery jar.
Furthermore, the rear side of dust screen and the front side contact of battery, the one end fixed connection of swash plate in the left and right sides of shell, the dust screen plays dirt-proof effect, the convenient heat dissipation simultaneously.
Further, the otic placode is equipped with the screw hole, the swash plate is three horn shapes, through the setting of swash plate, has increaseed the steadiness of being connected between shell and the otic placode.
Compared with the prior art, the utility model has the advantages of:
(1) this scheme has increaseed the area of battery with external contact through leading to groove, radiating groove and ventilation groove's setting, has increaseed the radiating rate simultaneously, plays the enhancement guard action to the battery, through the setting of swash plate, has increaseed the steadiness that otic placode and shell are connected, and through the setting of screw hole, the casing fixed mounting is conveniently passed through the bolt to the convenience, avoids the unstable phenomenon of installation to appear appearing in the shell.
(2) The through groove is as long as the radiating groove, the rear end of the battery is in contact with the inner side of the reinforcing rib, and the inner shell is communicated with the outside through the through groove and the radiating groove, so that the battery can be conveniently and quickly cooled.
(3) The sprue sets up in the inside front side of recess, and the rear end of sprue contacts with the front side of inner shell, and the sprue makes the battery more firm at the internally mounted of battery jar.
(4) The rear side of dust screen and the front side contact of battery, the one end fixed connection of swash plate in the left and right sides of shell, the dust screen plays dirt-proof effect, the convenient heat dissipation of while.
(5) The otic placode is equipped with the screw hole, and the swash plate is three horn shapes, through the setting of swash plate, has increaseed the steadiness of being connected between shell and the otic placode.
Drawings

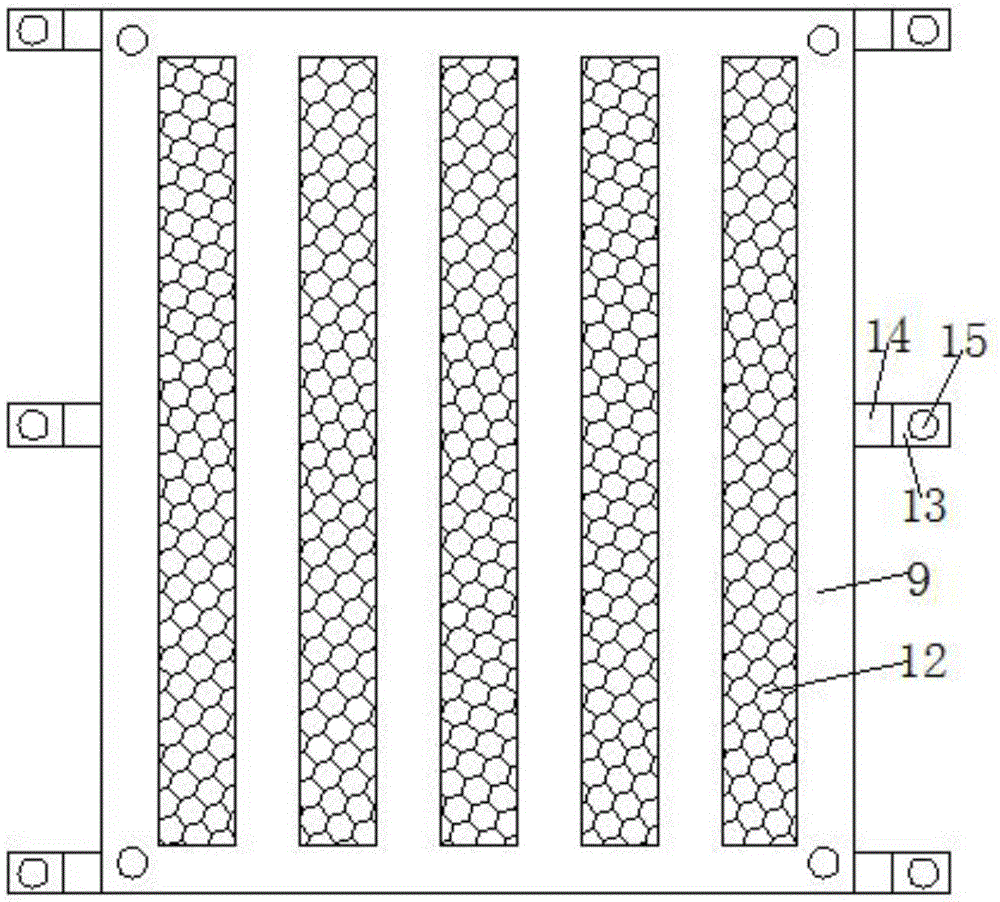

Fig. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic view of the junction between the outer shell and the inner shell of the present invention;
fig. 3 is a top cross-sectional view of the junction between the outer shell and the inner shell of the present invention.
The reference numbers in the figures illustrate:
the novel solar battery comprises an outer shell 1, a groove 2, an inner shell 3, a battery groove 4, a battery 5, a through groove 6, a heat dissipation groove 7, a reinforcing rib 8, a cover plate 9, a plug 10, a ventilation groove 11, a dust screen 12, an ear plate 13, an inclined plate 14 and a threaded hole 15.
Detailed Description
The technical solution in the embodiment of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiment of the present invention; obviously, the described embodiments are only a part of the embodiments of the present invention, and not all embodiments, and all other embodiments obtained by those skilled in the art without any inventive work are within the scope of the present invention based on the embodiments of the present invention.
Referring to fig. 1-3, a battery tray with a heat dissipation structure comprises an outer shell 1, referring to fig. 1-2, the outer shell 1 is provided with a groove 2, an inner shell 3 is placed inside the groove 2, a battery jar 4 is uniformly arranged inside the inner shell 3, a battery 5 is placed inside the battery jar 4, a through groove 6 is uniformly arranged at the rear end of the outer shell 1, a heat dissipation groove 7 is uniformly arranged inside the inner shell 3, a reinforcing rib 8 is uniformly and fixedly connected inside the heat dissipation groove 7, a cover plate 9 is fixedly connected to the front side of the outer shell 1 through a bolt, a blocking block 10 is fixedly connected to the cover plate 9, a ventilation groove 11 is uniformly arranged on the cover plate 9 and the blocking block 10 respectively, a dust screen 12 is fixedly connected inside the ventilation groove 11, lug plates 13 are fixedly connected to the left side and the right side of the outer shell 1 respectively, a sloping plate 14 is fixedly connected to one side of the lug plates 13, and the heat dissipation groove 7 and the ventilation groove 11 are arranged through the through groove 6, increased the area of battery 5 with external contact, increaseed the radiating rate simultaneously, played the enhancement guard action to battery 5, through the setting of swash plate 14, increased the steadiness that otic placode 13 and shell 1 are connected, through the setting of screw hole 15, conveniently pass through the bolt to shell 1 fixed mounting moreover, avoid shell 1 to appear the unstable phenomenon of installation and appear.
Referring to fig. 2-3, the through groove 6 and the heat dissipation groove 7 have the same length, the rear end of the battery 5 is in contact with the inner side of the reinforcing rib 8, the inner shell 3 is communicated with the outside through the through groove 6 and the heat dissipation groove 7, the battery 5 is convenient to dissipate heat quickly, the blocking block 10 is arranged on the front side of the inner portion of the groove 2, the rear end of the blocking block 10 is in contact with the front side of the inner shell 3, and the blocking block 10 enables the battery 5 to be mounted in the battery groove 4 more stably.
Referring to fig. 1, the rear side of the dust screen 12 contacts the front side of the battery 5, one end of the inclined plate 14 is fixedly connected to the left and right sides of the housing 1, the dust screen 12 plays a role of dust prevention and facilitates heat dissipation, the lug plate 13 is provided with a threaded hole 15, the inclined plate 14 is triangular, and the stability of connection between the housing 1 and the lug plate 13 is improved by the arrangement of the inclined plate 14.
At first put inner shell 3 into the inside of recess 2, make logical groove 6 and radiating groove 7 switch-on, then put battery 5 into the inside of battery jar 4, then pass through the bolt fastening to apron 9 in the front side of shell 1, make simultaneously sprue 10 remove the inside front side of recess 2, then fix otic placode 13 on the object that needs the installation through the bolt can, through logical groove 6, radiating groove 7 and ventilation duct 11's setting, the area of battery 5 with external contact has been increaseed, the radiating rate has been increaseed simultaneously, play the enhancement guard action to battery 5, setting through swash plate 14, the steadiness that otic placode 13 is connected with shell 1 has been increaseed, and through the setting of screw hole 15, conveniently through bolt to shell 1 fixed mounting, avoid shell 1 to appear the phenomenon of installing unstability.
The above description is only the preferred embodiment of the present invention; the scope of the present invention is not limited thereto. Any person skilled in the art should also be able to cover the technical scope of the present invention by replacing or changing the technical solution and the improvement concept of the present invention with equivalents and modifications within the technical scope of the present invention.
Claims (5)
