The utility model discloses a surveying and mapping device used in indoor environment design, comprising an adjustment frame, a vertical collimator, an adjustment seat and an adjustment component. A folding frame, a top seat is installed on the top of the folding frame through a slide rail groove, an adjustment component is installed on one side of the head seat through a threaded structure, a vertical collimator is installed on the top of the adjustment seat through bolts, and the vertical A moving frame is installed on the top of the collimator through bolts, and an adjusting frame is installed through the top of the moving frame. In the utility model, a threaded frame is installed at one end of the adjusting frame, the adjusting frame can be driven to incline the angle by rotating the threaded frame, and the vertical collimator can be driven to adjust the angle through the angle adjustment of the adjusting frame, so that the level of the vertical collimator can be adjusted conveniently. position, which effectively solves the problem of errors in surveying and mapping data caused by the leveling problem of the vertical collimator, thereby improving the accuracy of the surveying and mapping of the device.

Description

Surveying and mapping device for indoor environment design

Technical Field

The utility model relates to a survey and drawing technical field specifically is a mapping device that indoor environment design used.

Background

The indoor environment design is a new subject with strong comprehensiveness, which is closely related to architecture, sociology, folk-custom, psychology, ergonomics, structural engineering, building physics and building materials, and simultaneously relates to the artistic fields of furniture furnishing, texture and performance of decorative materials, art, greening, garden building and the like, therefore, the indoor environment design not only considers the problem of six surfaces of a building space, but also needs to apply the knowledge of each subject to comprehensively and comprehensively carry out multi-level space environment construction, indoor measurement is needed during indoor environment design construction, auxiliary design surveying and mapping are needed, and a surveying and mapping device used for indoor environment design is needed at this time.

The existing mapping device used in the indoor environment design has the defects that:

1. the surveying and mapping device used in the existing indoor environment design is inconvenient for workers to adjust the horizontal position, and the horizontal state of the device cannot be ensured, so that data is easy to have errors during field surveying and mapping, and the accuracy of surveying and mapping of the device is reduced;

2. the surveying and mapping device used by the existing indoor environment design is not convenient for the vertical height of the adjusting device, can not survey and map at different heights, has certain limitation, reduces the practicability of the device, and provides a road and bridge vertical detection device to solve the existing problems.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a mapping device that indoor environment design used to solve the problem that proposes in the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: a surveying and mapping device used in indoor environment design comprises an adjusting frame, a plumb aligner, an adjusting seat and an adjusting component, wherein a base is installed in the adjusting seat, two groups of folding frames are installed at the top of the base through sliding chutes and connected through shaft rods, a top seat is installed at the top of each folding frame through a sliding rail groove, the adjusting component is installed at one side of the top seat through a threaded structure, a threaded rod is installed in the adjusting component, a shaft sleeve is installed at one end of the threaded rod through threaded connection, a sleeve is welded at one side of the shaft sleeve and connected with the shaft rods inside the folding frames, the plumb aligner is installed at the top of the adjusting seat through bolts, a moving frame is installed at the top of the plumb aligner through bolts, the adjusting frame is installed at the top of the moving frame in a penetrating manner, a lead screw is installed inside the adjusting frame through a rotating shaft, and a suction cup seat is installed at one end of the adjusting frame through a shaft bolt and matched with the shaft seat, the top welding of axle bed has the screw thread seat, the top of screw thread seat is installed the screw thread frame that runs through helicitic texture, and the bottom of screw thread frame is connected through the one end of pivot with the alignment jig.

Preferably, an adjusting knob is installed at one end of the screw rod, and a horizontal bubble is installed at the top of the adjusting frame.

Preferably, a rotating seat is installed in the moving frame, a moving sleeve is welded at the top of the rotating seat, and a screw sleeve is installed inside the moving sleeve through a bolt.

Preferably, a handle is installed on one side of the plummet through a shaft bolt, and a display screen is installed on the front face of the plummet.

Preferably, the inside of base is equipped with the spout, and the bottom welding of base has the curb plate.

Preferably, the threaded rod is far away from the one end of axle sleeve and is installed rotatory knob, and the outside of rotatory knob is equipped with anti-skidding line.

Compared with the prior art, the beneficial effects of the utility model are that:

1. the utility model discloses an install the screw thread frame in the one end of alignment jig, can drive the alignment jig through rotatory screw thread frame and carry out the angle slope, the angle modulation through the alignment jig can drive the accurate appearance that hangs down and carry out the angle modulation to can be convenient for adjust the horizontal position of the accurate appearance that hangs down, make it hang down the accurate appearance and keep the horizontality, effectively solved the problem that the horizontal problem of the accurate appearance that hangs down leads to the survey and drawing data error to the accuracy of device survey and drawing has been improved.

2. The utility model discloses an install adjusting part in one side of adjusting the seat, can be convenient for drive the threaded rod through rotatory knob and carry out rotary motion, the rotary motion through the threaded rod can drive the folding leg and remove the extension to can drive the footstock and carry out the vertical migration and carry out the regulation of height, make it can realize the regulation of device vertical height, the device of being convenient for carries out not co-altitude survey and drawing, has enlarged the application range of device, has increased the controllability of device, has improved the practicality of device.

3. The utility model discloses an install the lead screw through the pivot in the inside of alignment jig, can drive the lead screw through revolving wrong adjust knob and rotate, can drive the accurate appearance that hangs down of roating seat bottom through pivoted lead screw and silk braid cooperation and remove to can make things convenient for the horizontal position that the staff adjusted the accurate appearance that hangs down, make its staff not need dismounting device when adjusting the level survey position, thereby can improve the efficiency that the device detected.

Drawings

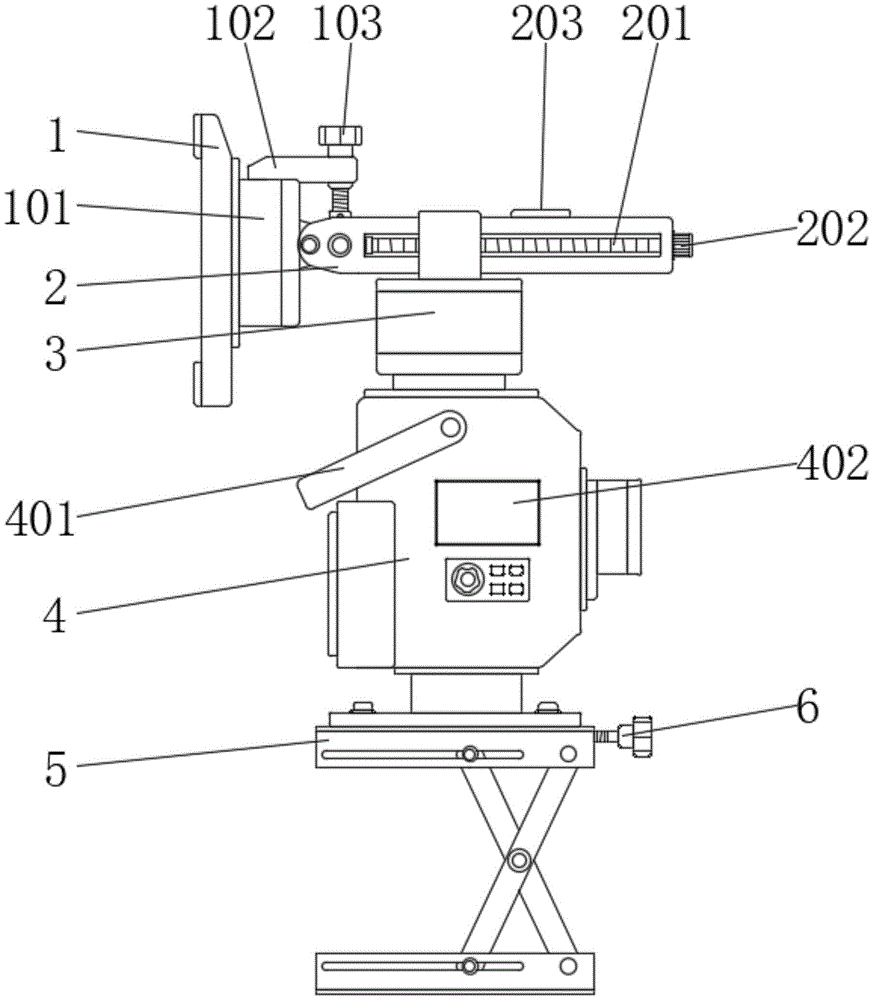

Fig. 1 is a schematic view of the overall structure of the present invention;

FIG. 2 is a schematic view of a partial structure of the movable frame of the present invention;

FIG. 3 is a schematic view of a partial structure of the adjusting seat of the present invention;

fig. 4 is a schematic view of a local structure of the adjusting assembly of the present invention.

In the figure: 1. a sucker seat; 101. a shaft seat; 102. a threaded seat; 103. a threaded rack; 2. an adjusting bracket; 201. A screw rod; 202. adjusting a knob; 203. horizontal bubble; 3. a movable frame; 301. a rotating base; 302. moving the sleeve; 303. sleeving the silk; 4. a plumbing gauge; 401. a handle bar; 402. a display screen; 5. an adjusting seat; 501. a base; 502. a chute; 503. a folding frame; 504. a top seat; 6. an adjustment assembly; 601. a threaded rod; 602. A shaft sleeve; 603. a sleeve; 604. the knob is rotated.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

In the description of the present invention, it should be noted that the terms "upper", "lower", "inner", "outer", "front end", "rear end", "both ends", "one end", "the other end" and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element to which the reference is made must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.

In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "disposed," "connected," and the like are to be construed broadly, and for example, "connected" may be either fixedly connected or detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.

Referring to fig. 1-4, the present invention provides an embodiment: a surveying and mapping device for indoor environment design comprises an adjusting frame 2, a plumb aligner 4, an adjusting seat 5 and an adjusting component 6, wherein a base 501 is installed in the adjusting seat 5, two groups of folding frames 503 are installed at the top of the base 501 through a chute 502, the folding frames 503 can be conveniently lifted and folded through the chute 502 in the base 501, so that the height of a top seat 504 can be adjusted, the whole height of the device is adjusted, the folding frames 503 are connected through a shaft rod, the shaft rod penetrates through the chute 502 to movably install the folding frames 503 in the base 501, the shaft rod also provides an installation position for a sleeve 603, the top seat 504 is installed at the top of the folding frame 503 through a slide rail groove, the top seat 504 can provide an installation position for the plumb aligner 4, the adjusting component 6 is installed at one side of the top seat 504 through a threaded structure, the extension height of the adjusting seat 5 can be conveniently adjusted through the adjusting component 6, and the device is convenient for workers to use, a threaded rod 601 is arranged in the adjusting component 6, one end of the threaded rod 601 is provided with a shaft sleeve 602 through threaded connection, the shaft sleeve 602 can facilitate the rotation of the threaded rod 601 and ensure the rotation flexibility of the threaded rod 601, one side of the shaft sleeve 602 is welded with a sleeve 603, the sleeve 603 is connected with a shaft rod inside a folding frame 503, the shaft rod can penetrate through the sleeve 603 and facilitate the threaded rod 601 to drive the folding frame 503 to move, the threaded rod 601 can conveniently drive the threaded rod 601 to rotate and move through a rotating knob 604, the folding frame 503 can be driven to move and extend through the rotating movement of the threaded rod 601, so that the top seat 504 can be driven to vertically move to adjust the height, the vertical height of the device can be adjusted, the device can conveniently carry out different-height surveying and mapping, the use range of the device is enlarged, the adjustability of the device is increased, the practicability of the device is improved, the top of the adjusting seat 5 is provided with a plumb aligner 4 through a bolt, the plumb aligner 4 can adopt a laser plumb aligner DZJ2, indoor surveying and mapping can be realized through the plumb aligner 4, indoor construction is convenient, a moving frame 3 is installed at the top of the plumb aligner 4 through bolts, the plumb aligner 4 can be conveniently driven to horizontally move through the cooperation of the moving frame 3 and a lead screw 201, an adjusting frame 2 is installed at the top of the moving frame 3 in a penetrating way, the lead screw 201 is installed in the adjusting frame 2 through a rotating shaft, the lead screw 201 can be driven to rotate through screwing an adjusting knob 202, the plumb aligner 4 at the bottom of a rotating seat 301 can be driven to move through the cooperation of the rotating lead screw 201 and a screw sleeve 303, so that a worker can conveniently adjust the horizontal position of the plumb aligner 4 without dismounting a device when adjusting the horizontal measuring position, the detection efficiency of the device can be improved, a suction cup seat 1 is installed at one end of the adjusting frame 2 through the cooperation of a shaft bolt and the shaft seat 101, a thread seat 102 is welded at the top of the suction cup 101, threaded rack 103 that runs through is installed through helicitic texture at the top of screw thread seat 102, and threaded rack 103's bottom is connected through pivot and alignment jig 2's one end, can drive alignment jig 2 through rotatory threaded rack 103 and carry out the angle slope, angle modulation through alignment jig 2 can drive the accurate appearance 4 that hangs down and carry out angle modulation, thereby can be convenient for adjust the horizontal position of the accurate appearance 4 that hangs down, make its accurate appearance 4 that hangs down keep the horizontality, the problem that the 4 horizontal problems of accurate appearance that hangs down lead to the survey data error has effectively been solved, thereby the accuracy of device survey and drawing has been improved.

Further, adjust knob 202 is installed to the one end of lead screw 201, can drive lead screw 201 through adjust knob 202 and rotate, and the staff of being convenient for adjusts, and the top of alignment jig 2 is installed with horizontal bubble 203, can be convenient for observe the horizontality of plumb aligner 4 through horizontal bubble 203, and the staff of being convenient for adjusts.

Further, install roating seat 301 in the removal frame 3, can be convenient for through roating seat 301 plumb accurate appearance 4 and carry out rotation regulation, the welding of the top of roating seat 301 has removal cover 302, and removes the inside of cover 302 and install the silk braid 303 through the bolt, removes the cooperation that cover 302 passes through silk braid 303 and lead screw 201 and can be convenient for drive roating seat 301 and remove to the roating seat 301 that can be convenient for carries out horizontal position's regulation.

Further, stick 401 is installed through the pintle in one side of the accurate appearance 4 that hangs down, but through the portable device of stick 401, has improved the portability of device, and the display screen 402 is installed in the front of the accurate appearance 4 that hangs down, through display screen 402 display device survey and drawing data of can being convenient for, the staff of being convenient for carries out the record.

Further, the inside of base 501 is equipped with spout 502, and the folding leg 503 of can being convenient for of spout 502 removes foldingly, and the bottom welding of base 501 has the curb plate, and the contact surface on the multiplicable base of curb plate 501 and ground has improved the stability of the installation of device.

Further, the threaded rod 601 is kept away from the one end of axle sleeve 602 and is installed rotatory knob 604, and the outside of rotatory knob 604 is equipped with anti-skidding line, and anti-skidding line multiplicable rotatory knob 604's antiskid nature can be convenient for drive threaded rod 601 through rotatory knob 604 and carry out the swivelling movement.

The working principle is as follows: the rotating knob 604 can be rotated to drive the threaded rod 601 to rotate, the rotating movement of the threaded rod 601 can drive the folding frame 503 to move and extend, so as to drive the collimator 4 at the top of the top seat 504 to adjust the vertical height, so as to facilitate the collimator 4 to survey at different heights, the rotating threaded frame 103 can drive the adjusting frame 2 to incline the angle, the collimator 4 can be driven to adjust the angle by adjusting the angle of the adjusting frame 2, thereby being convenient to adjust the horizontal position of the collimator 4, so as to keep the collimator 4 in the horizontal state, effectively solving the problem that the horizontal problem of the collimator 4 causes errors of the surveying and mapping data, thereby improving the accuracy of surveying and mapping of the device, the rotating knob 202 can be rotated to drive the screw rod 201, the rotating screw rod 201 can be matched with the screw sleeve 303 to drive the collimator 4 at the bottom of the rotating seat 301 to move, therefore, the horizontal position of the plummet 4 can be conveniently adjusted by the staff, so that the staff does not need to disassemble the device when adjusting the horizontal measurement position, and the detection efficiency of the device can be improved.

The details of the present invention are well known to those skilled in the art.

Finally, it is to be noted that: the above embodiments are only used for illustrating the technical solutions of the present invention and not for limiting, and although the present invention has been described in detail with reference to the examples, it should be understood by those skilled in the art that the technical solutions of the present invention can be modified and replaced with equivalents without departing from the spirit and scope of the technical solutions of the present invention, which should be covered by the scope of the claims of the present invention.

Claims

1. A surveying and mapping device used in indoor environment design, comprising an adjustment frame (2), a vertical collimator (4), an adjustment seat (5) and an adjustment assembly (6), characterized in that: in the adjustment seat (5) A base (501) is installed, and two sets of folding frames (503) are installed on the top of the base (501) through a chute (502), and the folding frames (503) are connected by shafts, and the folding frames (503) ) is installed with a top seat (504) through the slide rail groove, one side of the top seat (504) is installed with an adjustment assembly (6) through a threaded structure, and a threaded rod (601) is installed in the adjustment assembly (6) ), one end of the threaded rod (601) is installed with a shaft sleeve (602) by screwing, a sleeve (603) is welded on one side of the shaft sleeve (602), and the sleeve (603) is connected to the folding frame ( 503) internal shaft connection, the top of the adjustment seat (5) is installed with a vertical collimator (4) through bolts, and the top of the vertical collimator (4) is installed with a moving frame (3) through bolts, the An adjusting frame (2) is installed through the top of the moving frame (3), a screw rod (201) is installed inside the adjusting frame (2) through a rotating shaft, and one end of the adjusting frame (2) is connected with a shaft seat through a shaft bolt (101) A suction cup seat (1) is installed in cooperation, a threaded seat (102) is welded on the top of the shaft seat (101), and a threaded frame (103) passing through is installed on the top of the threaded seat (102) through a threaded structure. , and the bottom end of the threaded frame (103) is connected with one end of the adjustment frame (2) through a rotating shaft.

2. The surveying and mapping device used in indoor environment design according to claim 1, characterized in that: an adjusting knob (202) is installed at one end of the screw rod (201), and a top of the adjusting frame (2) is installed with an adjusting knob (202). Horizontal bubble (203).

3. A surveying and mapping device for indoor environment design according to claim 1, characterized in that: a rotating seat (301) is installed in the moving frame (3), and a moving sleeve is welded on the top of the rotating seat (301). (302), and a wire sleeve (303) is installed inside the moving sleeve (302) through bolts.

4. The surveying and mapping device used in indoor environment design according to claim 1, characterized in that: one side of the vertical collimator (4) is installed with a handle (401) through a shaft bolt, and the vertical collimator (4) is installed with a handle (401) on one side. 4) A display screen (402) is installed on the front side.

5 . The surveying and mapping device for indoor environment design according to claim 1 , wherein a chute ( 502 ) is provided inside the base ( 501 ), and a side plate is welded to the bottom of the base ( 501 ). 6 . .

6. The surveying and mapping device used in indoor environment design according to claim 1, characterized in that: one end of the threaded rod (601) away from the shaft sleeve (602) is provided with a rotary knob (604), and the rotary knob ( 604) is provided with a non-slip pattern on the outside.
