CN213741803U - Energy-saving waterproof curtain wall

Info

Publication number: CN213741803U
Application number: CN202022544086.8U
Authority: CN
Inventors: 蔡子涛
Original assignee: Shenzhen Xiangtai Construction Engineering Co ltd
Current assignee: Shenzhen Xiangtai Construction Engineering Co ltd
Priority date: 2020-11-05
Filing date: 2020-11-05
Publication date: 2021-07-20
Anticipated expiration: 2030-11-05

Abstract

The utility model belongs to the technical field of the waterproof technique of building and specifically relates to an energy-saving waterproof curtain wall is related to, its include the wall body, set up frame on the wall body and rotate set up in glass in the frame, be provided with on the frame and be used for the drive glass pivoted runner assembly, it is provided with the closing plate that is used for sealing up the gap between frame and the glass to rotate on the frame, be provided with on the frame and be used for the drive closing plate pivoted driving piece. This application has and makes the rainwater be difficult to enter into indoor effect from the curtain.

Description

Energy-saving waterproof curtain wall

Technical Field

The application relates to the technical field of building waterproofing, in particular to an energy-saving waterproof curtain wall.

Background

The curtain wall is the outer wall enclosure of the building, does not bear the weight, hangs like a curtain, so is also called as a curtain wall, and is a light wall with decorative effect commonly used by modern large-scale and high-rise buildings. The building outer protective structure or decorative structure consists of a panel and a support structure system, can have certain displacement capacity or certain deformation capacity relative to the main structure, and does not bear the function of the main structure.

Present glass curtain wall is generally the frame of direct glass-mounting on the wall body, but sometimes for the convenience of people's ventilation, has some local glass to be set up to open, when glass is closed, can cause to have the gap between glass and the frame, and when rainy day, the rainwater enters into indoorly through the gap easily, causes the influence to indoor environment, so needs the improvement.

SUMMERY OF THE UTILITY MODEL

In order to make the rainwater be difficult to enter into indoorly from the curtain, this application provides an energy-saving waterproof curtain.

The application provides a pair of energy-saving waterproof curtain adopts following technical scheme:

the utility model provides an energy-saving waterproof curtain wall, includes the wall body, set up frame on the wall body and rotate set up in glass in the frame, be provided with on the frame and be used for the drive glass pivoted runner assembly, it is provided with the closing plate that is used for sealing up the gap between frame and the glass to rotate on the frame, be provided with on the frame and be used for the drive closing plate pivoted driving piece.

Through adopting above-mentioned technical scheme, when rainy day, rotating assembly drive glass rotates to cover and fits on the frame, then driving piece drive closing plate rotates to cover and fits the gap between frame and the glass to it is indoor to make the rainwater be difficult to enter into.

Preferably, the runner assembly including slide set up in slider on the frame, rotate set up in screw rod on the frame and rotate set up in the slider with dwang between the glass, screw rod threaded connection in the slider, be provided with on the frame and be used for the drive screw rod pivoted driving motor, the slider removes and passes through the dwang drive glass rotates.

By adopting the technical scheme, the driving motor works to drive the screw rod to rotate, the screw rod drives the sliding block to move, and the sliding block drives the rotating rod to move towards the direction close to the glass, so that the glass is driven to rotate and cover the frame.

Preferably, the worm is sleeved on the screw, an output shaft of the driving motor is connected with a worm, and the worm is meshed with the worm.

By adopting the technical scheme, the worm is driven to rotate by the working of the driving motor, the worm drives the worm wheel to rotate so as to enable the screw to rotate, and when the driving motor does not work, the rotation of the screw can be limited by utilizing the self-locking characteristic of the worm wheel and the worm.

Preferably, the driving part comprises a driving cylinder arranged on the frame, a driving rod is rotatably arranged on a piston rod of the driving cylinder, and one end of the driving rod, which is far away from the driving cylinder, is rotatably connected to the side wall of the sealing plate.

Through adopting above-mentioned technical scheme, the piston rod extension that drives actuating cylinder drives the actuating lever and moves towards the direction that is close to the closing plate, and the gap between glass and the frame is covered in the actuating lever drive closing plate rotation.

Preferably, the cylinder is a waterproof cylinder, and the driving motor is covered with a waterproof cover.

Through adopting above-mentioned technical scheme, the buckler enables driving motor difficult quilt drenches bad when rainy day.

Preferably, the frame is provided with a convex edge, and the glass abuts against the convex edge.

Through adopting above-mentioned technical scheme, glass butt is on protruding edge, can restrict glass's excessive rotation, further strengthens the leakproofness between glass and the frame simultaneously.

Preferably, the sealing plate side is provided with a bevel.

Through adopting above-mentioned technical scheme, the inclined plane enables ponding on the closing plate can discharge on the closing plate more fast.

Preferably, the surface of the sealing plate is provided with an elastic rubber pad.

Through adopting above-mentioned technical scheme, the leakproofness between sealing plate and the glass can be strengthened to the elasticity cushion, plays the cushioning effect simultaneously between sealing plate and glass.

In summary, the present application includes at least one of the following beneficial technical effects:

1. in rainy days, the rotating assembly drives the glass to rotate and cover the frame, and then the driving piece drives the sealing plate to rotate and cover a gap between the frame and the glass, so that rainwater is not easy to enter the room.

2. The piston rod of the driving cylinder extends to drive the driving rod to move towards the direction close to the sealing plate, and the driving rod drives the sealing plate to rotate to cover the gap between the glass and the frame.

3. The driving motor works to drive the worm to rotate, the worm drives the worm wheel to rotate so as to enable the screw to rotate, the screw drives the sliding block to move, and the sliding block drives the rotating rod to move towards the direction close to the glass, so that the glass is driven to rotate to cover the frame.

Drawings

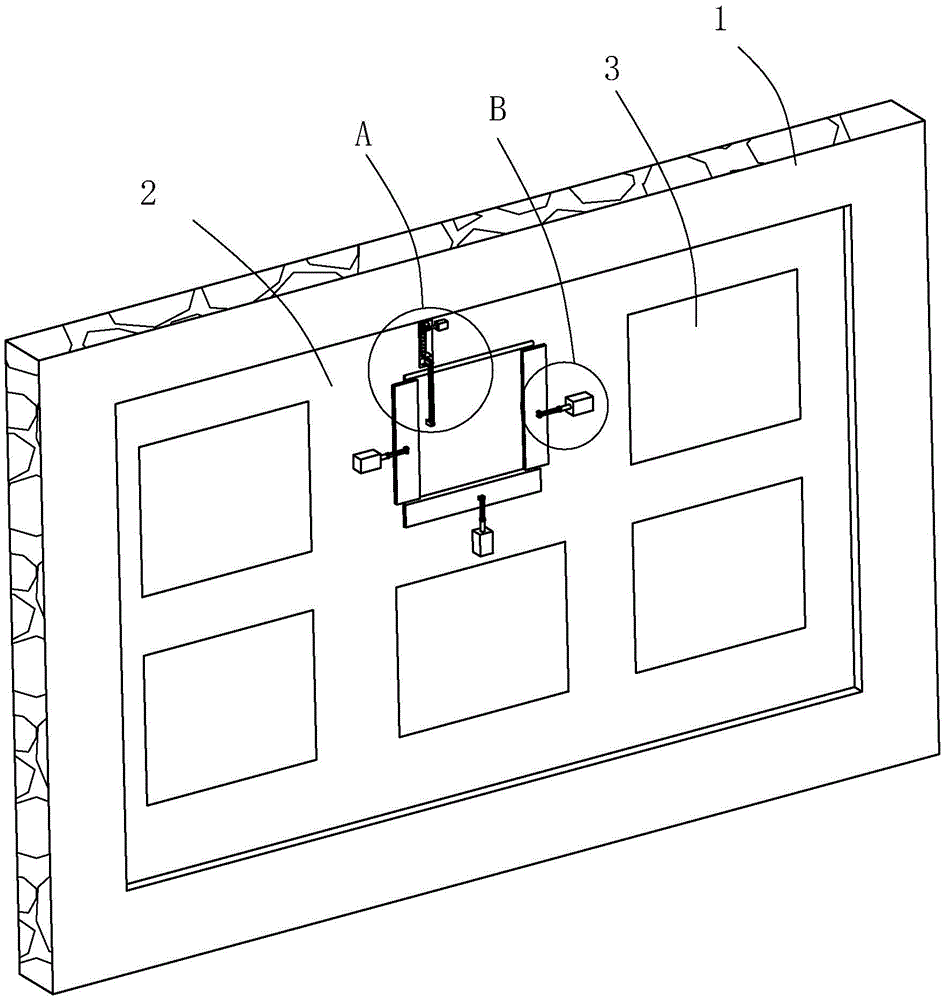

Fig. 1 is a schematic structural diagram of an embodiment of the present application.

FIG. 2 is a schematic view of the assembly relationship between the ledge and the frame in the embodiment of the present application.

Fig. 3 is an enlarged schematic view of a portion a in fig. 1.

Fig. 4 is an enlarged schematic view of a portion B in fig. 1.

In the figure: 1. a wall body; 2. a frame; 21. a sealing plate; 22. a chute; 221. a slider; 222. a screw; 223. a turbine; 23. rotating the rod; 24. a waterproof cover; 241. a worm; 25. a driving cylinder; 251. a drive rod; 26. a convex edge; 3. and (3) glass.

Detailed Description

The present application is described in further detail below with reference to figures 1-3.

The embodiment of the application discloses energy-saving waterproof curtain wall. Referring to fig. 1 and 2, including wall body 1, frame 2 and the polylith glass 3 of installing in frame 2 of fixed mounting in wall body 1, the indoor outer opening that link up is seted up to the lateral wall of wall body 1, and frame 2 fixed mounting has seted up a plurality of through-holes in the opening on the frame 2, and the circumferential welding has protruding edge 26 in the through-hole, and glass 3 installs in the through-hole, and glass 3 butt is on protruding edge 26.

Referring to fig. 1 and 3, the top side of one of them glass 3 articulates on the lateral wall of frame 2, be provided with on the frame 2 and be used for driving glass 3 pivoted runner assembly, concretely, runner assembly includes and opens spout 22 on frame 2 along vertical direction, slide block 221 in spout 22 is connected in sliding, set up the screw rod 222 in spout 22 along the length direction of spout 22, and set up dwang 23 between slider 221 and glass 3, spout 22 is located glass 3 directly over, the both ends of screw rod 222 rotate and bear in the both ends terminal surface of spout 22, the screw rod 222 screw thread runs through in slider 221, the one end of dwang 23 articulates on the lateral wall of slider 221, the other end of dwang 23 articulates on the lateral surface of glass 3. A driving motor is fixedly installed on the frame 2 along the horizontal direction, a worm 241 is coaxially and fixedly connected to an output shaft of the driving motor, a worm wheel 223 is coaxially and fixedly sleeved on the screw 222, and the worm 241 is meshed with the worm wheel 223; meanwhile, in order to prevent the driving motor from being easily damaged by rain, the driving motor is covered with a waterproof cover 24, the side edge of the waterproof cover 24 is welded on the side wall of the frame 2, and the output shaft of the driving motor movably penetrates through the waterproof cover 24.

Referring to fig. 1 and 3, the sealing plate 21 is disposed on the other three side edges of the glass 3, one side of the sealing plate 21 is hinged to the side wall of the frame 2, the sealing plate 21 covers the gap between the frame 2 and the glass 3 in a rotating manner, the frame 2 is provided with a driving member for driving the sealing plate 21 to rotate, specifically, the driving member includes a driving cylinder 25 fixedly mounted on the frame 2, a piston rod of the driving cylinder 25 is provided with a driving rod 251, the driving rod 251 is obliquely arranged relative to the surface of the frame 2, one end of the driving rod 251, which is far away from the frame 2, is hinged on the piston rod, one end of the driving rod 251, which is close to the frame 2, is hinged on the side wall of the sealing plate 21, which is far away from the glass 3, the driving cylinder 25 is a waterproof cylinder, meanwhile, in order to discharge accumulated water on the sealing plate 21 in a directional manner, the side edge of the top side of the lowermost sealing plate 21 is provided with an inclined surface, and an elastic rubber pad is adhered and fixed on the surface of the inclined sealing plate 21 facing the glass 3.

The implementation principle of the embodiment of the application is as follows: in rainy days, the worm 241 is driven to rotate by the work of the driving motor, the worm 241 drives the worm wheel 223 to rotate so as to rotate the screw 222, the screw 222 drives the sliding block 221 to move, the sliding block 221 drives the rotating rod 23 to move towards the direction close to the glass 3, so that the glass 3 is driven to cover the frame 2 in a rotating manner, then the piston rod of the driving cylinder 25 extends, the driving rod 251 moves towards the direction close to the sealing plate 21, the driving rod 251 drives the sealing plate 21 to cover the gap between the glass 3 and the frame 2 in a rotating manner, and therefore rainwater is not easy to enter the indoor space.

The above embodiments are preferred embodiments of the present application, and the protection scope of the present application is not limited by the above embodiments, so: all equivalent changes made according to the structure, shape and principle of the present application shall be covered by the protection scope of the present application.

Claims

1. The utility model provides an energy-saving waterproof curtain wall, includes wall body (1), set up frame (2) on wall body (1) and rotate set up in glass (3) in the frame (2), its characterized in that: the glass sealing device is characterized in that a rotating assembly used for driving the glass (3) to rotate is arranged on the frame (2), a sealing plate (21) used for sealing a gap between the frame (2) and the glass (3) is arranged on the frame (2) in a rotating mode, and a driving piece used for driving the sealing plate (21) to rotate is arranged on the frame (2).

2. The energy-saving waterproof curtain wall of claim 1, wherein: the runner assembly including slide set up in slider (221), rotation on the frame (2) set up in screw rod (222) on the frame (2) and rotate set up in slider (221) with dwang (23) between glass (3), screw rod (222) threaded connection in slider (221), be provided with on frame (2) and be used for the drive screw rod (222) pivoted driving motor, slider (221) remove through dwang (23) drive glass (3) rotate.

3. The energy-saving waterproof curtain wall of claim 2, wherein: the worm wheel (223) is sleeved on the screw rod (222), the output shaft of the driving motor is connected with a worm (241), and the worm (241) is meshed with the worm wheel (223).

4. The energy-saving waterproof curtain wall of claim 2, wherein: the driving part comprises a driving cylinder (25) arranged on the frame (2), a piston rod of the driving cylinder (25) is rotatably provided with a driving rod (251), and one end, far away from the driving cylinder (25), of the driving rod (251) is rotatably connected to the side wall of the sealing plate (21).

5. The energy-saving waterproof curtain wall of claim 4, wherein: the driving cylinder (25) is a waterproof cylinder, and a waterproof cover (24) is arranged on the upper cover of the driving motor.

6. The energy-saving waterproof curtain wall of claim 1, wherein: the frame (2) is provided with a convex edge (26), and the glass (3) is abutted to the convex edge (26).

7. The energy-saving waterproof curtain wall of claim 1, wherein: the side edge of the sealing plate (21) is provided with an inclined surface.

8. The energy-saving waterproof curtain wall of claim 1, wherein: the surface of the sealing plate (21) is provided with an elastic rubber pad.
