CN213728231U - Ultrasonic cleaning machine shell - Google Patents
Ultrasonic cleaning machine shell Download PDFInfo
- Publication number
- CN213728231U CN213728231U CN202022097480.1U CN202022097480U CN213728231U CN 213728231 U CN213728231 U CN 213728231U CN 202022097480 U CN202022097480 U CN 202022097480U CN 213728231 U CN213728231 U CN 213728231U
- Authority
- CN
- China
- Prior art keywords
- shell
- ultrasonic
- machine body
- organism
- supporting
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 238000004506 ultrasonic cleaning Methods 0.000 title description 9
- 230000007246 mechanism Effects 0.000 claims abstract description 45
- 230000035939 shock Effects 0.000 claims abstract description 21
- 238000010521 absorption reaction Methods 0.000 claims description 35
- 230000003139 buffering effect Effects 0.000 claims description 19
- 238000009413 insulation Methods 0.000 claims description 16
- 239000000463 material Substances 0.000 claims 2
- 229920000742 Cotton Polymers 0.000 claims 1
- 230000000694 effects Effects 0.000 description 5
- 238000004140 cleaning Methods 0.000 description 4
- 230000009467 reduction Effects 0.000 description 4
- 239000007788 liquid Substances 0.000 description 3
- 238000013016 damping Methods 0.000 description 2
- 239000006260 foam Substances 0.000 description 2
- 230000009286 beneficial effect Effects 0.000 description 1
- 238000010586 diagram Methods 0.000 description 1
- 230000004048 modification Effects 0.000 description 1
- 238000012986 modification Methods 0.000 description 1
- 238000002604 ultrasonography Methods 0.000 description 1
Images
Landscapes
- Cleaning By Liquid Or Steam (AREA)
Abstract
The utility model discloses an ultrasonic cleaner casing, concretely relates to ultrasonic cleaner field, including the organism inner shell, the outside both sides of organism inner shell all are provided with inhales the sound mechanism, organism inner shell bottom is provided with supersound emergence mechanism, two it all is provided with the supporting mechanism to inhale the relative one side of sound mechanism, it sets up the organism shell to inhale the sound mechanism outside, the organism shell top is provided with the organism apron, the organism apron is articulated with the organism shell, it includes inhales the sound sponge to inhale the sound mechanism, it is connected with the organism shell inner wall to inhale sound sponge one side, it is provided with first acoustic celotex board to inhale sound sponge opposite side, first acoustic celotex board one side is provided with first shock pad, first shock pad one side is connected with the organism inner shell. The utility model discloses a sound mechanism is inhaled in the setting, uses the noise that can greatly reduced produce vibrations by the supersound, makes the work of going on that the ultrasonic cleaner is quieter.
Description
Technical Field
The utility model belongs to the technical field of the ultrasonic cleaner, especially, relate to an ultrasonic cleaner casing.
Background
Ultrasonic waves propagate through the liquid, causing the liquid and the cleaning tank to vibrate together at an ultrasonic frequency, and the liquid and the cleaning tank have their own natural frequency when vibrating, and this vibration frequency is a sound wave frequency, so that people hear a buzzing sound. With the continuous development of the cleaning industry, more and more industries and enterprises use the ultrasonic cleaning machine.
When the ultrasonic cleaning machine works, vibration and noise are generated, which can affect the use experience.
SUMMERY OF THE UTILITY MODEL
The utility model provides an ultrasonic cleaner casing inhales the sound mechanism through the setting, uses the noise that can greatly reduced produce vibrations by the supersound and bring, makes the work of going on that the ultrasonic cleaner is quieter, aims at solving the above-mentioned problem that has ultrasonic cleaner during operation can produce vibrations and noise.
The utility model discloses a realize like this, the utility model provides a following technical scheme: an ultrasonic cleaner shell comprises an inner machine body shell, wherein sound absorption mechanisms are arranged on two sides of the outer portion of the inner machine body shell, an ultrasonic generation mechanism is arranged at the bottom of the inner machine body shell, a supporting mechanism is arranged on one side, opposite to the two sound absorption mechanisms, of each sound absorption mechanism, an outer machine body shell is arranged on the outer side of each sound absorption mechanism, an inner machine body cover plate is arranged at the top of the inner machine body shell, and the inner machine body cover plate is hinged to the inner machine body shell;
the sound absorption mechanism comprises sound absorption sponge, one side of the sound absorption sponge is connected with the inner wall of the machine body outer shell, a first sound insulation plate is arranged on the other side of the sound absorption sponge, a first shock pad is arranged on one side of the first sound insulation plate, and one side of the first shock pad is connected with the machine body inner shell;
the supporting mechanism comprises a top plate, the top of the top plate is fixedly connected with the inner shell of the machine body, a supporting column is arranged at the bottom of the top plate, a buffering shell is arranged on one side of the supporting column, one end of the supporting column penetrates through the top of the buffering shell and extends to the inside of the buffering shell, a buffering spring is arranged at one end of the supporting column, a supporting plate is arranged at one end of the buffering spring, the buffering shell is fixedly connected with the supporting plate, the buffering spring is fixedly connected with the supporting plate, a groove is formed in the bottom of the supporting plate, a limiting column is arranged inside the groove, and the bottom.
In a preferred embodiment, the ultrasonic generating mechanism comprises an ultrasonic generating source, an ultrasonic transducer is arranged on one side of the ultrasonic generating source, an ultrasonic connecting rod is arranged on one side of the ultrasonic transducer, an ultrasonic radiator is arranged on one side of the ultrasonic connecting rod, and the ultrasonic radiator is fixedly connected with the outside of the inner shell of the machine body.
In a preferred embodiment, the body cover plate comprises a cover plate shell, a second sound insulation plate is arranged at the bottom of the cover plate shell, and a second shock absorption pad is arranged at the bottom of the second sound insulation plate.
In a preferred embodiment, the cross section of the supporting column is in a T shape, and the supporting column is movably sleeved with the buffer shell.
In a preferred embodiment, the first and second shock absorbing pads are made of rubber, and the first and second sound insulating plates are made of foam.
In a preferred embodiment, the number of the supporting mechanisms is set to be plural, and the number of the limiting columns is set to be plural.
In a preferred embodiment, the ultrasonic radiator is shaped like a horn.
Compared with the prior art, the beneficial effects of the utility model are that:
1. through the arrangement of the sound absorption mechanism, vibration can be absorbed through the first shock absorption pad and the second shock absorption pad, noise generated by vibration can be subjected to sound insulation and noise reduction through the first sound insulation plate and the second sound insulation plate, sound absorption and vibration absorption can be further performed through the sound absorption sponge, and the noise caused by vibration generated by ultrasound can be greatly reduced through the use of the sound absorption mechanism, so that the ultrasonic cleaning machine can work quietly;
2. through setting up supporting mechanism, constitute through roof, support column, backup pad, buffering shell, buffer spring and spacing post and support organism shell and organism inner shell mechanism, make organism shell and organism inner shell stable connection, further shock attenuation carries out to reduce the vibrations influence that the supersound acted on the organism inner shell, improved the stability and the quiet performance of device greatly.
Drawings
Fig. 1 is a schematic view of the overall structure of the present invention.
Fig. 2 is an enlarged schematic structural diagram of a in fig. 1 according to the present invention.

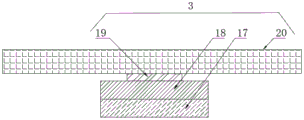

Fig. 3 is a schematic structural view of the ultrasonic generating mechanism of the present invention.

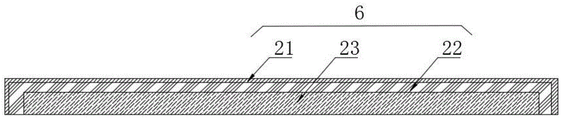

Fig. 4 is a schematic view of the structure of the body cover plate of the present invention.
In the figure: 1. an inner shell of the machine body; 2. a sound absorbing mechanism; 3. an ultrasonic generating mechanism; 4. a support mechanism; 5. a body housing; 6. a body cover plate; 7. sound-absorbing sponge; 8. a first baffle plate; 9. a first cushion pad; 10. a top plate; 11. a support pillar; 12. a buffer housing; 13. a buffer spring; 14. a support plate; 15. a groove; 16. a limiting column; 17. an ultrasonic generating source; 18. an ultrasonic transducer; 19. an ultrasonic connecting rod; 20. an ultrasonic radiator; 21. a cover plate housing; 22. a second baffle; 23. a second cushion.
Detailed Description
In order to make the objects, technical solutions and advantages of the present invention more clearly understood, the present invention is further described in detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are merely illustrative of the invention and are not intended to limit the invention.
In the description of the present invention, it is to be understood that the terms "length", "width", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on those shown in the drawings, and are merely for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention. In addition, in the description of the present invention, "a plurality" means two or more unless specifically limited otherwise.
The ultrasonic cleaning machine shell shown in the attached figures 1-4 comprises a machine body inner shell 1, wherein sound absorption mechanisms 2 are arranged on two sides of the outer part of the machine body inner shell 1, an ultrasonic generation mechanism 3 is arranged at the bottom of the machine body inner shell 1, supporting mechanisms 4 are arranged on two opposite sides of the two sound absorption mechanisms 2, a machine body outer shell 5 is arranged on the outer side of the sound absorption mechanisms 2, a machine body cover plate 6 is arranged on the top of the machine body outer shell 5, and the machine body cover plate 6 is hinged with the machine body outer shell 5;
the sound absorption mechanism 2 comprises a sound absorption sponge 7, one side of the sound absorption sponge 7 is connected with the inner wall of the machine body outer shell 5, the other side of the sound absorption sponge 7 is provided with a first sound insulation plate 8, one side of the first sound insulation plate 8 is provided with a first shock absorption pad 9, and one side of the first shock absorption pad 9 is connected with the machine body inner shell 1;
supporting mechanism 4 includes roof 10, 1 fixed connection in roof 10 top and organism inner shell, roof 10 bottom is provided with support column 11, support column 11 one side is provided with buffering shell 12, support column 11 one end runs through inside buffering shell 12 top and extending to buffering shell 12, support column 11 one end is provided with buffer spring 13, buffer spring 13 one end is provided with backup pad 14, buffering shell 12 and backup pad 14 fixed connection, buffer spring 13 and backup pad 14 fixed connection, recess 15 has been seted up to backup pad 14 bottom, the inside spacing post 16 that is provided with of recess 15, spacing post 16 bottom and 5 inner wall bottom fixed connection of organism outer shell.
As shown in fig. 3, the ultrasonic generating mechanism 3 includes an ultrasonic generating source 17, an ultrasonic transducer 18 is disposed on one side of the ultrasonic generating source 17, an ultrasonic connecting rod 19 is disposed on one side of the ultrasonic transducer 18, an ultrasonic radiator 20 is disposed on one side of the ultrasonic connecting rod 19, and the ultrasonic radiator 20 is fixedly connected with the outside of the housing 1 so as to provide an ultrasonic emitting source for the device and achieve an ultrasonic cleaning effect.
As shown in fig. 4, the body cover plate 6 includes a cover plate housing 21, a second sound insulation plate 22 is disposed at the bottom of the cover plate housing 21, and a second shock absorption pad 23 is disposed at the bottom of the second sound insulation plate 22, so as to facilitate noise reduction and shock absorption effects during the operation of the ultrasonic cleaning machine.
As shown in fig. 2, the cross-sectional shape of the supporting column 11 is a T shape, and the supporting column 11 is movably sleeved with the buffer housing 12 to prevent the supporting column 11 and the buffer housing 12 from falling off.
As shown in fig. 1, the first and second shock absorbing pads 9 and 23 are made of rubber, and the first and second acoustic panels 8 and 22 are made of foam, in order to achieve the sound-absorbing, noise-reducing and shock-absorbing effects.
As shown in fig. 2, the number of the supporting mechanisms 4 is set to be plural, and the number of the limiting columns 16 is set to be plural, so as to increase the stability of the machine body inner shell 1 and play a supporting role.
The utility model discloses the theory of operation: when the ultrasonic cleaning machine works, the ultrasonic generating source 17 emits ultrasonic frequency, after the ultrasonic frequency is converted by the ultrasonic converter 18, the ultrasonic frequency acts on the ultrasonic radiator 20 through the ultrasonic connecting rod, the ultrasonic radiator 20 acts on the inner shell 1 of the machine body to achieve the purpose of cleaning objects inside the inner shell 1 of the machine body, the ultrasonic radiator 20 acts on the ultrasonic frequency on the inner shell 1 of the machine body to generate vibration, so that noise is generated, the vibration can be damped through the first damping pad 9, the noise can be soundproof through the first sound insulation plate 8, after the vibration is damped through the first damping pad 9 and the first sound insulation plate 8 is soundproof, the surplus of the vibration and the noise can be further absorbed through the sound absorption sponge 7, the vibration at the bottom of the inner shell 1 of the machine body acts on the supporting column 11 through the top plate 10, the vibration on the supporting column 11 acts on the buffer spring 13 to weaken the vibration effect, the supporting plate 14, the buffer outer shell 12, Support column 11, roof 10 and spacing post 16 constitute and support organism inner shell 1 mechanism, it is more stable to make organism inner shell 1 be connected with organism outer shell 5, realize noise reduction effect, the vibrations that produce at organism inner shell 1 top advance second shock pad 23, carry out the shock attenuation, advance second acoustic celotex board 22 and give sound insulation, realize that noise reduction limit is purchased, apron shell 21 makes the ultrasonic cleaner during operation provide encapsulated situation, thereby make the noise further reduce, guarantee the stability and the silence of ultrasonic cleaner during operation.
The above description is only exemplary of the present invention and should not be construed as limiting the present invention, and any modifications, equivalents and improvements made within the spirit and principles of the present invention are intended to be included within the scope of the present invention.
Claims (7)
1. The utility model provides an ultrasonic cleaner casing, includes the organism inner shell, its characterized in that: the ultrasonic generator is characterized in that sound absorption mechanisms are arranged on two sides of the outer portion of the machine body inner shell, ultrasonic generation mechanisms are arranged at the bottom of the machine body inner shell, supporting mechanisms are arranged on two opposite sides of the sound absorption mechanisms, a machine body outer shell is arranged on the outer side of the sound absorption mechanisms, a machine body cover plate is arranged at the top of the machine body outer shell, and the machine body cover plate is hinged with the machine body outer shell;
the sound absorption mechanism comprises sound absorption sponge, one side of the sound absorption sponge is connected with the inner wall of the machine body outer shell, a first sound insulation plate is arranged on the other side of the sound absorption sponge, a first shock pad is arranged on one side of the first sound insulation plate, and one side of the first shock pad is connected with the machine body inner shell;
the supporting mechanism comprises a top plate, the top of the top plate is fixedly connected with the inner shell of the machine body, a supporting column is arranged at the bottom of the top plate, a buffering shell is arranged on one side of the supporting column, one end of the supporting column penetrates through the top of the buffering shell and extends to the inside of the buffering shell, a buffering spring is arranged at one end of the supporting column, a supporting plate is arranged at one end of the buffering spring, the buffering shell is fixedly connected with the supporting plate, the buffering spring is fixedly connected with the supporting plate, a groove is formed in the bottom of the supporting plate, a limiting column is arranged inside the groove, and the bottom of the limiting column is fixedly connected with the bottom of the inner wall of the machine body shell.
2. An ultrasonic cleaner housing according to claim 1, wherein: the ultrasonic generating mechanism comprises an ultrasonic generating source, an ultrasonic converter is arranged on one side of the ultrasonic generating source, an ultrasonic connecting rod is arranged on one side of the ultrasonic converter, an ultrasonic radiator is arranged on one side of the ultrasonic connecting rod, and the ultrasonic radiator is fixedly connected with the outer portion of the inner shell of the machine body.
3. An ultrasonic cleaner housing according to claim 1, wherein: organism apron is including lapping the shell, apron shell bottom is provided with the second acoustic celotex board, second acoustic celotex board bottom is provided with the second shock pad.
4. An ultrasonic cleaner housing according to claim 1, wherein: the cross section of the support column is T-shaped, and the support column is movably sleeved with the buffer shell.
5. An ultrasonic cleaner housing according to claim 1, wherein: first shock pad, second shock pad are made by the rubber material, first acoustic celotex board, second acoustic celotex board are made by the cotton material of bubble.
6. An ultrasonic cleaner housing according to claim 1, wherein: the supporting mechanism quantity sets up to a plurality ofly, spacing post quantity sets up to a plurality ofly.
7. An ultrasonic cleaner housing according to claim 2, wherein: the ultrasonic radiator is shaped like a horn.
