CN213707220U - Dustproof material guide device of processing is cut to membrane - Google Patents
Dustproof material guide device of processing is cut to membrane Download PDFInfo
- Publication number
- CN213707220U CN213707220U CN202022690935.0U CN202022690935U CN213707220U CN 213707220 U CN213707220 U CN 213707220U CN 202022690935 U CN202022690935 U CN 202022690935U CN 213707220 U CN213707220 U CN 213707220U
- Authority
- CN
- China
- Prior art keywords
- dust
- support
- film cutting
- sliding
- cavity
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Cleaning In General (AREA)
Abstract
本实用新型公开了一种膜切加工的防尘导料装置，包括支架，所述支架上径向转动设置有多组导料滚轴，所述支架前后两侧对称嵌入设置有滑槽，所述滑槽内转动连接设置有导送螺杆，所述导送螺杆外围配合连接设置有滑块，所述支架两侧对应的滑块上连接设置有与导料滚轴相对设置的移动吸附机构，所述支架下端通过集尘罩连通设置有除尘腔。本实用新型通过导送螺杆的转动可以带动滑块移动，从而平稳带动移动吸附机构配合导料滚轴进行物料导送，吸附导料可以提高导料稳定性，同时还可以适用于薄膜累材料，使用更加灵活方便；导送物料的过程中可以通过除尘腔产生气流吸尘，带有灰尘的气流经过除尘腔过滤，从而最终清洁排放，有效提高物料导送时的清洁性。
The utility model discloses a dust-proof material-guiding device for film cutting, which comprises a bracket, a plurality of groups of material-guiding rollers are radially rotatably arranged on the bracket, and sliding grooves are embedded symmetrically on the front and rear sides of the bracket. A lead screw is rotatably connected in the chute, a sliding block is arranged on the periphery of the lead screw in a matched connection, and a moving adsorption mechanism opposite to the guide roller is connected to the sliding block on both sides of the bracket. The lower end of the bracket is communicated with a dust-removing chamber through a dust-collecting cover. The utility model can drive the sliding block to move through the rotation of the lead screw, so as to smoothly drive the mobile adsorption mechanism to cooperate with the material guide roller to guide the material. It is more flexible and convenient to use; in the process of conveying materials, air flow can be generated through the dust removal chamber to collect dust, and the air with dust is filtered through the dust removal chamber, so as to be finally cleaned and discharged, which effectively improves the cleanliness of material conveying.
Description
Technical Field
The utility model relates to a dustproof technical field specifically is a dustproof guide device of processing is cut to membrane.
Background
In the early stage, because the value of the product is higher, in order to improve the protection effect, the coating and sticking film is carried out outside the products in the industries of electronics, communication, semiconductors and the like. Nowadays, as industrialization progresses, the outer surface of many products is subjected to film coating treatment. In practical application, film pasting is completed on a production line, and each product film layer needs to be cut in a continuous film pasting interval.
In the process, not only the film layer but also the material is guided. And the guide device among the prior art carries out the material through roller bearing or conveyer belt only, but the transportation process stationarity is not enough, and the clean nature of outside air environment also can influence the quality of product after carrying.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a dustproof guide device of processing is cut to membrane to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme:
the utility model provides a dustproof guide device of processing is cut to membrane, includes the support, radial rotation is provided with the multiunit guide roller bearing on the support, bilateral symmetry embedding is provided with the spout around the support, the spout internal rotation is connected and is provided with the lead screw rod, lead the peripheral cooperation of screw rod and connect and be provided with the slider, connect on the slider that the support both sides correspond and be provided with the removal adsorption equipment who sets up relatively with the guide roller bearing, the support lower extreme is provided with the dust collecting cavity through the dust cage intercommunication.
Furthermore, the support lower extreme bilateral symmetry fixed connection is provided with the landing leg, the support is "returning" font structure, support one side-mounting is provided with servo motor, servo motor's output activity runs through the support, and with the transmission is connected to the one end of leading the screw rod.
Furthermore, the sliding blocks are arranged in the sliding grooves on the same side in a sliding fit mode, threaded holes are formed in the sliding blocks in a penetrating mode, and the guide screw penetrates through the threaded holes and is movably connected with the threaded holes in a threaded fit mode.
Furthermore, the upper side and the lower side of the sliding block are symmetrically embedded with a plurality of groups of balls, and the surfaces of the balls and the upper side wall and the lower side wall of the sliding groove are movably abutted.
Further, remove adsorption apparatus and construct including fixed connection at the branch of slider side and the roof of fixed connection in the branch upper end, the roof with guide roller bearing upper surface parallel arrangement, the middle part runs through the screw-thread fit activity on the roof and is provided with adjusting screw, adjusting screw rotates through the bearing to connect through the end and is provided with the lifter plate, the lifter plate both ends are connected with two sets of branch sliding fit of homonymy respectively.
Further, the lifter plate is of a cavity structure, the lower surface of the lifter plate is communicated with suckers uniformly distributed in multiple groups, an air pump is arranged at the upper end of the lifter plate through a telescopic hose, the air inlet end of the air pump is communicated with the telescopic hose, and the air pump is fixedly mounted at the upper end of the top plate.
Furthermore, the dust hood is of a hood structure, an opening of the dust hood is fixedly connected to the edge of the lower end of the support, the dust hood is communicated with a dust removal cavity, and activated carbon particles are filled in the dust removal cavity.
Furthermore, the dust removal chamber comprises a chamber shell, a fan is embedded at the upper end of the chamber shell and the communicating position of the dust collecting cover, the output direction of the fan is from the outside of the chamber shell to the inside of the chamber shell, an air outlet is arranged at the lower end of the chamber shell in a penetrating manner, and a metal mesh for coating filter cloth is embedded in the air outlet.
Compared with the prior art, the beneficial effects of the utility model are that: the slide block can be driven to move by the rotation of the guide screw rod, so that the movable adsorption mechanism is stably driven to be matched with the guide roller shaft to guide and convey materials, the adsorption guide can improve the guide stability, and meanwhile, the adsorption guide can also be suitable for film accumulated materials and is more flexible and convenient to use; the material guiding and conveying process can generate air flow for dust collection through the dust removing cavity, and the air flow with dust can be filtered through the dust removing cavity, so that the material is finally cleaned and discharged, and the cleanness of the material during guiding and conveying is effectively improved.
Drawings

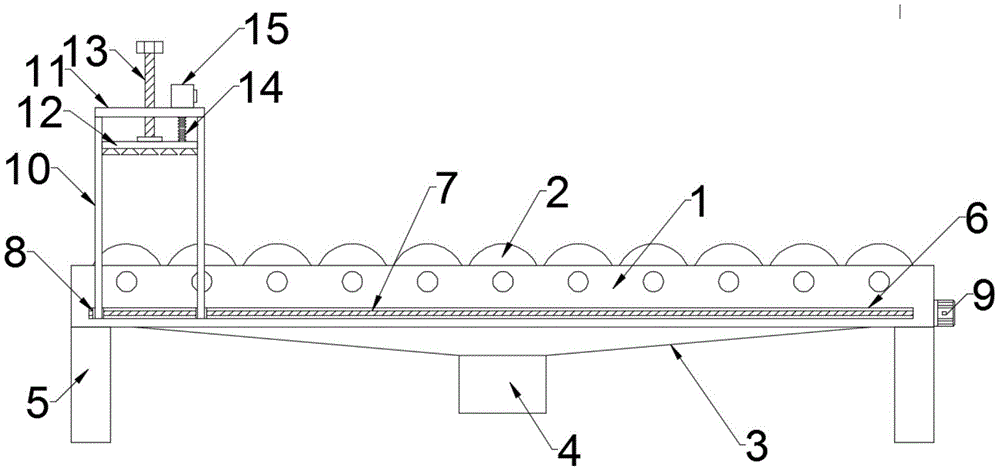

Fig. 1 is a schematic structural view of a dustproof material guide device for film cutting.
Fig. 2 is a schematic perspective view of a slide block in a dustproof material guiding device for film cutting.
Fig. 3 is a schematic structural view of a dust-removing chamber in the dust-proof material guiding device for film cutting.
In the figure: 1-support, 2-guide roller, 3-dust-collecting hood, 4-dust-removing cavity, 41-cavity shell, 42-fan, 43-air outlet, 5-supporting leg, 6-chute, 7-guide screw, 8-sliding block, 81-threaded hole, 82-ball, 9-servo motor, 10-support rod, 11-top plate, 12-lifting plate, 13-adjusting screw, 14-telescopic hose and 15-air pump.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Example 1
Please refer to fig. 1-2, in the embodiment of the present invention, a dustproof material guiding device for film cutting processing, includes a support 1, the support 1 is provided with a plurality of sets of material guiding rollers 2 in a radial rotation manner, the bilateral symmetry embedding is provided with a chute 6 around the support 1, a guiding screw 7 is provided in the chute 6 in a rotation connection manner, a slider 8 is provided in the guiding screw 7 in a matching connection manner, a movable adsorption mechanism is provided on the slider 8 corresponding to the two sides of the support 1 and is arranged opposite to the material guiding rollers 2, and a dust removing cavity 4 is provided at the lower end of the support 1 through the dust hood 3.
The support is characterized in that supporting legs 5 are symmetrically and fixedly connected to the two sides of the lower end of the support 1, the support 1 is of a structure shaped like a Chinese character 'hui', a servo motor 9 is arranged on one side of the support 1, and the output end of the servo motor 9 penetrates through the support 1 in a movable mode and is connected with one end of a guide screw 7 in a transmission mode. After the servo motor 9 is started, the guide screw 7 can be driven to rotate according to forward and reverse rotation control, so that the slide block 8 is driven to move in the slide groove 6 in a control mode, and then the guide can be assisted by moving the adsorption mechanism.
The sliding blocks 8 are arranged in the sliding grooves 6 on the same side in a sliding fit mode, threaded holes 81 are horizontally formed in the sliding blocks 8 in a penetrating mode, and the guide screw 7 penetrates through the threaded holes 81 and is movably connected with the threaded holes 81 in a threaded fit mode.
The upper side and the lower side of the sliding block 8 are symmetrically embedded with a plurality of groups of balls 82, and the surfaces of the balls 82 and the upper side wall and the lower side wall of the sliding chute 6 are movably abutted. When the servo motor 9 drives the lead screw 7 to rotate, the sliding block 8 can be controlled to move in the sliding groove 6, and the arrangement of the ball 82 can improve the flexibility in moving.
Remove adsorption apparatus and construct including branch 10 and the roof 11 of fixed connection in the branch 10 upper end of fixed connection in the 8 sides of slider, roof 11 with 2 upper surface parallel arrangement of guide roller bearing, the middle part runs through the screw-thread fit activity on the roof 11 and is provided with adjusting screw 13, adjusting screw 13 end is rotated through the bearing and is connected and be provided with lifter plate 12, lifter plate 12 both ends are connected with two sets of branch 10 sliding fit of homonymy respectively. The lifting plate 12 can be driven to lift below the top plate 11 through the rotation of the adjusting screw rod 13, so that the movable adjustment can be carried out according to the thickness of the material guide, and the control and the use are more flexible and convenient.
The lifter plate 12 is the cavity structure, the lower surface intercommunication of lifter plate 12 is provided with the sucking disc of multiunit equipartition, the upper end of lifter plate 12 is provided with air pump 15 through flexible hose 14 intercommunication, the inlet end and the flexible hose 14 of air pump 15 are linked together, air pump 15 fixed mounting be in roof 11 upper end. After the air pump 15 is started, air can be pumped through the telescopic hose 14 and the lifting plate 12, so that the sucker is used for adsorption, the supporting rod 10 and the top plate 11 are matched to move through the movement of the sliding block 8, and the moving guide can be realized.
Example 2
Referring to fig. 3, in an embodiment of the present invention, in the embodiment of the present invention, the dust-proof material guiding device for film cutting processing, on the basis of embodiment 1, the dust hood 3 is a hood structure, an opening of the dust hood 3 is fixedly connected to a lower end edge of the support 1, the dust hood 3 is provided with a dust-removing cavity 4 in communication, and the dust-removing cavity 4 is filled with activated carbon particles.
The dust removing cavity 4 comprises a cavity shell 41, a fan 42 is embedded at the communication position of the upper end of the cavity shell 41 and the dust collection cover 3, the output direction of the fan 42 is from the outside of the cavity shell 41 to the inside of the cavity shell 41, an air outlet 43 is arranged at the lower end of the cavity shell 41 in a penetrating mode, and a metal mesh for wrapping filter cloth is embedded in the air outlet 43. When the fan 42 is started, the air flow blows into the cavity shell 41, the dust can pass through the activated carbon together with the air flow to complete the adsorption, and the air flow is discharged through the air outlet 43 after being cleaned.
The utility model discloses the standard part that uses all can purchase from the market, and dysmorphism piece all can be customized according to the description with the record of drawing of description, and the concrete connection mode of each part all adopts conventional means such as ripe bolt, rivet, welding among the prior art, and machinery, part and equipment all adopt prior art, and conventional model, including circuit connection adopts conventional connection mode among the prior art, does not detailed here again.
It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.
Claims (8)
1. The utility model provides a dustproof guide device of processing is cut to membrane, includes support (1), radial rotation is provided with multiunit guide roller bearing (2) on support (1), its characterized in that, both sides symmetry embedding is provided with spout (6) around support (1), spout (6) internal rotation is connected and is provided with and leads screw rod (7), it is provided with slider (8) to lead screw rod (7) peripheral cooperation connection, connect on slider (8) that support (1) both sides correspond and be provided with the removal adsorption equipment who sets up relatively with guide roller bearing (2), support (1) lower extreme is provided with dust collecting chamber (4) through dust cage (3) intercommunication.
2. The dust-proof material guiding device for film cutting processing according to claim 1, wherein the support (1) is provided with support legs (5) at two sides of the lower end thereof, the support (1) is of a structure shaped like a Chinese character 'hui', a servo motor (9) is arranged at one side of the support (1), and the output end of the servo motor (9) movably penetrates through the support (1) and is connected with one end of the guide screw (7) for transmission.
3. The dust-proof material guiding device for film cutting processing according to claim 1, wherein two sets of the sliding blocks (8) are arranged in the sliding grooves (6) on the same side in a sliding fit manner, threaded holes (81) are horizontally arranged in the sliding blocks (8) in a penetrating manner, and the feeding screw (7) penetrates through the threaded holes (81) and is movably connected with the threaded holes (81) in a threaded fit manner.
4. The dust-proof material guiding device for film cutting according to claim 1 or 3, wherein a plurality of groups of balls (82) are symmetrically embedded in the upper side and the lower side of the sliding block (8), and the surfaces of the balls (82) are movably abutted with the upper side wall and the lower side wall of the sliding chute (6).
5. The dustproof material guide device for film cutting according to claim 1 or 3, wherein the movable adsorption mechanism comprises a support rod (10) fixedly connected to the side surface of the sliding block (8) and a top plate (11) fixedly connected to the upper end of the support rod (10), the top plate (11) and the upper surface of the material guide roller (2) are arranged in parallel, an adjusting screw rod (13) is movably arranged in the upper middle of the top plate (11) in a penetrating mode through thread matching, the tail end of the adjusting screw rod (13) is rotatably connected with a lifting plate (12) through a bearing, and two ends of the lifting plate (12) are respectively connected with two groups of support rods (10) on the same side in a sliding fit mode.
6. The dustproof material guide device for film cutting according to claim 5, wherein the lifting plate (12) is of a cavity structure, a plurality of groups of uniformly distributed suckers are arranged on the lower surface of the lifting plate (12) in a communicating manner, an air pump (15) is arranged at the upper end of the lifting plate (12) in a communicating manner through a flexible hose (14), the air inlet end of the air pump (15) is communicated with the flexible hose (14), and the air pump (15) is fixedly installed at the upper end of the top plate (11).
7. The dust-proof material guiding device for film cutting processing according to claim 1, wherein the dust collecting cover (3) is of a cover bucket structure, the opening of the dust collecting cover (3) is fixedly connected to the edge of the lower end of the support (1), the dust collecting cover (3) is communicated with a dust removing cavity (4), and the dust removing cavity (4) is filled with activated carbon particles.
8. The dust-proof material guiding device for film cutting processing according to claim 1 or 7, wherein the dust removing cavity (4) comprises a cavity shell (41), a fan (42) is embedded at the communication position of the upper end of the cavity shell (41) and the dust collection cover (3), the output direction of the fan (42) is from the outside of the cavity shell (41) to the inside of the cavity shell (41), an air outlet (43) is arranged at the lower end of the cavity shell (41) in a penetrating manner, and a metal mesh for coating filter cloth is embedded in the air outlet (43).
