Abstract
本实用新型公开了一种密封性好的女性洗液包装瓶，包括瓶体，瓶体顶部的外壁上焊接有瓶嘴，且瓶嘴的外部螺纹连接有固定帽，固定帽底部的外壁上开设有密封槽，且密封槽相邻一侧的内壁上和瓶嘴外侧壁和内侧壁上均设置有螺纹密封圈，固定帽顶部的外壁上一侧通过铰链活动连接有瓶盖，固定帽顶部的外壁上开设有环形槽，且瓶盖底部的外壁上设置有卡接在环形槽内部的密封环。本实用新型螺纹密封圈能够使瓶嘴与固定帽之间的更加密封，环形槽和密封环能够保证固定帽与瓶盖之间的密封性，使其密封性更强，转动转扭能够使调节盘转动，能够对调节盘和挡板上的倒出槽的重合度进行调节，进而能够调节倒出量，能够避免倒出过多造成浪费。
The utility model discloses a female lotion packaging bottle with good airtightness, which comprises a bottle body, a bottle mouth is welded on the outer wall of the top of the bottle body, and a fixing cap is threadedly connected to the outer wall of the bottle mouth, and an outer wall at the bottom of the fixing cap is provided with a bottle mouth. There is a sealing groove, and the inner wall of the adjacent side of the sealing groove and the outer side wall and inner side wall of the bottle mouth are provided with threaded sealing rings. The outer wall is provided with an annular groove, and the outer wall of the bottom of the bottle cap is provided with a sealing ring which is clamped in the annular groove. The screw sealing ring of the utility model can make the sealing between the bottle mouth and the fixing cap more tightly, the annular groove and the sealing ring can ensure the sealing between the fixing cap and the bottle cap, so that the sealing performance is stronger, and the turning and twisting can make the adjustment The rotation of the disc can adjust the coincidence of the pouring grooves on the adjusting disc and the baffle plate, thereby adjusting the pouring amount and avoiding waste caused by excessive pouring.
Description
Technical Field
The utility model relates to a lotion packing technical field especially relates to a women's lotion packing bottle that leakproofness is good.
Background
The packaging bottle is a type of packaging container in the packaging industry, generally refers to a container with a mouth part narrower than the abdomen and a neck longer than the abdomen, the capacity of the packaging bottle is generally varied from 100 milliliters to several liters, and most of the packaging bottles are made of materials which are not easy to leak, such as ceramics, glass, plastics or metals.
Present packing bottle, the leakproofness is too poor, leads to the lotion to flow easily, is not convenient for place, and inconvenient control single use volume simultaneously pours when leading to pouring out too much and causes the waste, consequently, the women's lotion packing bottle that a leakproofness is good of urgent need design solves above-mentioned problem.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the leakproofness that exists among the prior art too poor, leading to the lotion to flow easily, be not convenient for place, the volume of inconvenient control single use simultaneously, the too much extravagant shortcoming that causes of pouring out when leading to pouring out, and the women's lotion packing bottle that a leakproofness is good that proposes.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a women's lotion packing bottle that leakproofness is good, includes the bottle, the welding has the bottle neck on the outer wall at bottle top, and the outside threaded connection of bottle neck has the locking cap, set up the seal groove on the outer wall of locking cap bottom, and all be provided with the thread sealing circle on the inner wall of the adjacent one side of seal groove and on bottle neck lateral wall and the inside wall, there is the bottle lid one side through hinge swing joint on the outer wall at locking cap top, set up the ring channel on the outer wall at locking cap top, and be provided with the sealing ring of joint inside the ring channel on the outer wall of bottle lid bottom.
Furthermore, the welding has the baffle on the inside wall of locking cap, the spout has been seted up on the inside wall of locking cap, and the inside sliding connection of spout has the adjustment disk.
Furthermore, a rotating knob is rotatably connected to the outer wall of the top of the baffle through a ball, and the bottom end of the rotating knob is welded to the outer wall of the top of the adjusting plate.
Furthermore, the inner side wall of the sliding groove is provided with adjusting grooves distributed in an annular structure at equal intervals, and the outer walls of two sides of the adjusting disc are provided with mounting grooves.
Further, the inside sliding connection of mounting groove has the joint at the inside regulating block of adjustment tank, and the welding has the regulating spring who is connected with the regulating block on the inner wall of mounting groove one side, the groove of pouring has all been seted up to outer wall one side at adjustment disk and baffle top.
Furthermore, a slot is formed in one side of the outer wall of the top of the fixed cap, an inserting block inserted into the slot is welded to one side of the outer wall of the bottom of the bottle cap, and a clamping groove is formed in the outer wall of one side of the inserting block.
Furthermore, a spring groove is formed in the inner wall of one side of the slot, a movable plate is connected to the inner portion of the spring groove in a sliding mode, a fixing spring connected with the movable plate is welded to the inner wall of one side of the spring groove, and a clamping block clamped inside the clamping groove and a pressing block extending to the outside of the fixing cap are welded to the outer wall of one side of the movable plate respectively.
The utility model has the advantages that:
1. through the fixed cap, bottle lid, bottle neck, seal groove, thread seal circle, ring channel and the sealing ring that sets up, thread seal circle can make between bottle neck and the fixed cap more sealed, and the leakproofness between fixed cap and the bottle lid can be guaranteed to ring channel and sealing ring, makes its leakproofness stronger.
2. Through baffle, adjustment disk, spout, the turn round that sets up, the groove of pouring out, mounting groove, adjustment tank, regulating block and adjusting spring, the turn round of rotation can make the adjustment disk rotate, can adjust the degree of overlap in the groove of pouring out on adjustment disk and the baffle, and then can adjust the volume of pouring out, can avoid pouring out too much and cause the waste.
3. Through the slot, the inserted block, the draw-in groove, the spring groove, the fixture block that set up and press the briquetting, when pressing according to the briquetting, can make the fixture block keep away from the inside at the draw-in groove, and then can conveniently open the bottle lid, the practicality is stronger.
Drawings

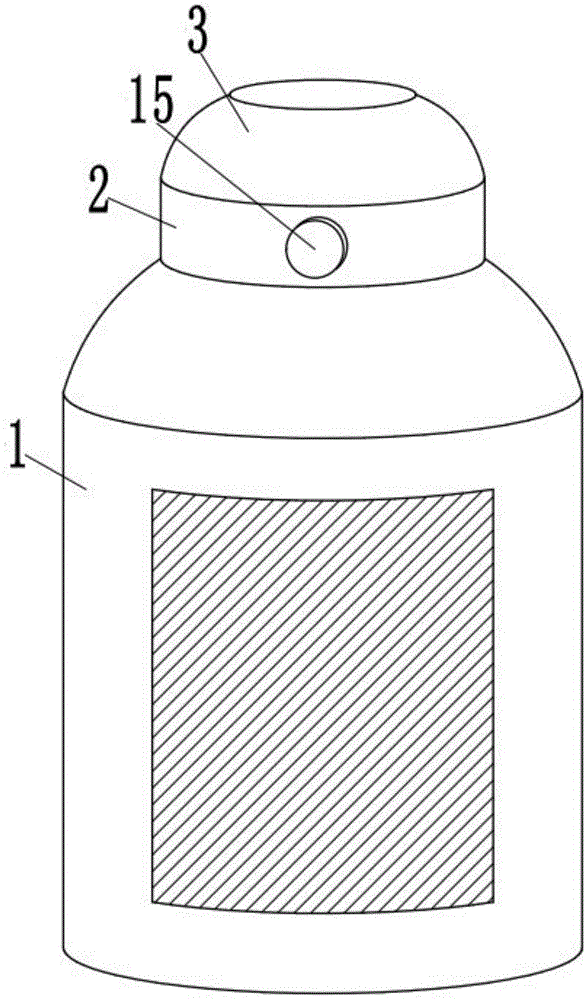

Fig. 1 is a schematic view of a three-dimensional structure of a female lotion packaging bottle with good sealing performance;
fig. 2 is a schematic view of the internal structure of the female lotion packaging bottle with good sealing performance;
fig. 3 is a schematic view of a sealing structure of a female lotion packaging bottle with good sealing performance;
fig. 4 is a schematic view of a bottle cap clamping structure of a female lotion packaging bottle with good sealing performance;
fig. 5 is a schematic view of a stopper structure of a female lotion packaging bottle with good sealing performance.
In the figure: the bottle comprises a bottle body 1, a fixing cap 2, a bottle cap 3, a bottle mouth 4, a sealing groove 5, a thread sealing ring 6, an annular groove 7, a sealing ring 8, a slot 9, an insertion block 10, a clamping groove 11, a spring groove 12, a movable plate 13, a clamping block 14, a pressing block 15, a fixed spring 16, a baffle 17, an adjusting disc 18, a sliding groove 19, a rotating knob 20, an pouring groove 21, an installing groove 22, an adjusting groove 23, an adjusting block 24 and an adjusting spring 25.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
It will be understood that when an element is referred to as being "secured to" another element, it can be directly on the other element or intervening elements may also be present. When a component is referred to as being "connected" to another component, it can be directly connected to the other component or intervening components may also be present. When a component is referred to as being "disposed on" another component, it can be directly on the other component or intervening components may also be present. The terms "vertical," "horizontal," "left," "right," and the like as used herein are for illustrative purposes only.
Unless defined otherwise, all technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the art to which this invention belongs. The terminology used in the description of the invention herein is for the purpose of describing particular embodiments only and is not intended to be limiting of the invention. As used herein, the term "and/or" includes any and all combinations of one or more of the associated listed items.
Please refer to fig. 1 to 5 simultaneously, a women's lotion packing bottle that leakproofness is good, comprising a bottle body 1, the welding has bottle neck 4 on the outer wall at bottle body 1 top, and the outside threaded connection of bottle neck 4 has locking cap 2, seal groove 5 has been seted up on the outer wall of locking cap 2 bottom, and all be provided with threaded seal 6 on the inner wall of the adjacent one side of seal groove 5 and on the bottle neck 4 lateral wall and the inside wall, one side has bottle lid 3 through hinge swing joint on the outer wall at locking cap 2 top, ring channel 7 has been seted up on the outer wall at locking cap 2 top, and be provided with the joint at the inside sealing ring 8 of ring channel 7 on the outer wall of bottle lid 3 bottom, threaded seal 6 can guarantee the leakproofness between locking cap 2 and the bottle neck 4, can prevent liquid outflow.
Further, the welding has baffle 17 on the inside wall of locking cap 2, has seted up spout 19 on the inside wall of locking cap 2, and the inside sliding connection of spout 19 has adjusting disk 18, rotates adjusting disk 18 and can adjust the degree of coincidence of the pouring groove 21 on pouring groove 21 of adjusting disk 18 and the baffle 17.
Furthermore, the outer wall of the top of the baffle 17 is rotatably connected with a knob 20 through a ball, the bottom end of the knob 20 is welded on the outer wall of the top of the adjusting plate 18, and the adjusting plate 18 can be driven to rotate through the knob 20.
Further, offer on the inside wall of spout 19 the equidistance and be the adjustment tank 23 that the loop configuration distributes, and all seted up mounting groove 22 on the outer wall of adjustment disk 18 both sides, mounting groove 22 can be fixed regulating spring 25.
Further, the inside sliding connection of mounting groove 22 has the joint at the inside regulating block 24 of adjustment tank 23, and the welding has the regulating spring 25 that is connected with regulating block 24 on the inner wall of mounting groove 22 one side, and pouring groove 21 has all been seted up to outer wall one side at adjusting disk 18 and baffle 17 top, and regulating spring 25's stretching power can make the inside of regulating block 24 joint at adjustment tank 23, can prevent that adjusting disk 18 from rotating by oneself.
Furthermore, a slot 9 is formed in one side of the outer wall of the top of the fixing cap 2, an inserting block 10 inserted into the slot 9 is welded on one side of the outer wall of the bottom of the bottle cap 3, a clamping groove 11 is formed in the outer wall of one side of the inserting block 10, and the bottle cap 3 can be fixed on the fixing cap 2 when the clamping block 14 is clamped in the clamping groove 11.
Furthermore, a spring groove 12 is formed in the inner wall of one side of the slot 9, a movable plate 13 is slidably connected to the inner portion of the spring groove 12, a fixing spring 16 connected with the movable plate 13 is welded to the inner wall of one side of the spring groove 12, a clamping block 14 clamped inside the clamping groove 11 and a pressing block 15 extending to the outside of the fixing cap 2 are respectively welded to the outer wall of one side of the movable plate 13, and when the pressing block 15 is pressed, the clamping block 14 can be far away from the inside of the clamping groove 11, so that the bottle cap 3 can be conveniently opened.
The working principle is as follows: when the female lotion packaging bottle with good sealing performance is used, the threaded sealing rings 6 inside the sealing groove 5 and outside the bottle mouth 4 can enable the joint between the fixing cap 2 and the bottle mouth 4 to be more sealed, meanwhile, the fixing cap 2 can be conveniently screwed off from the bottle mouth 4, the pressing block 15 is pressed towards the inside of the fixing cap 2, the fixing spring 16 is compressed to drive the clamping block 14 to be far away from the inside of the clamping groove 11, the bottle cap 3 can be conveniently opened, when the bottle cap 3 needs to be covered, only the bottle cap 3 needs to be pressed downwards until the clamping block 14 is clamped into the inside of the clamping groove 11 by the telescopic force of the fixing spring 16, the bottle cap 3 can be fixed on the fixing cap 2, the use is more convenient, then the rotating knob 20 is rotated, the adjusting disc 18 is rotated in the sliding groove 19 at the moment, the pouring amount can be adjusted according to the required overlap ratio of the pouring groove 21 on the adjusting disc 18 and the pouring groove 21 on the baffle plate 17, and, can avoid pouring too much and cause the waste, no longer rotate the turn-button 20 time, regulating block 24 receives adjusting spring 25's flexible power joint in the inside of adjustment tank 23, can prevent that adjustment disk 18 from rotating, can adjust the size of pouring out groove 21, and it is more convenient to use.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (7)
1. The utility model provides a women's lotion packing bottle that leakproofness is good, includes bottle (1), its characterized in that, the welding has bottleneck (4) on the outer wall at bottle (1) top, and the outside threaded connection of bottleneck (4) has locking cap (2), seal groove (5) have been seted up on the outer wall of locking cap (2) bottom, and all be provided with thread sealing circle (6) on the inner wall of the adjacent one side of seal groove (5) and on bottleneck (4) lateral wall and inside wall, there is bottle lid (3) one side on the outer wall at locking cap (2) top through hinge swing joint, ring channel (7) have been seted up on the outer wall at locking cap (2) top, and be provided with joint sealing ring (8) inside ring channel (7) on the outer wall of bottle lid (3) bottom.
2. The feminine lotion packaging bottle with good sealing performance as claimed in claim 1, wherein a baffle (17) is welded on the inner side wall of the fixing cap (2), a sliding groove (19) is formed in the inner side wall of the fixing cap (2), and an adjusting plate (18) is slidably connected inside the sliding groove (19).
3. The feminine lotion bottle of claim 2, wherein the outer wall of the top of the baffle (17) is rotatably connected with a knob (20) through a ball, and the bottom end of the knob (20) is welded on the outer wall of the top of the adjusting plate (18).
4. The women lotion packaging bottle with good sealing performance according to claim 2, wherein the inner side wall of the sliding groove (19) is provided with adjusting grooves (23) which are distributed in an annular structure at equal intervals, and the outer walls of the two sides of the adjusting disc (18) are provided with mounting grooves (22).
5. The women lotion packaging bottle with good sealing performance according to claim 4, wherein an adjusting block (24) clamped inside the adjusting groove (23) is connected inside the mounting groove (22) in a sliding mode, an adjusting spring (25) connected with the adjusting block (24) is welded on the inner wall of one side of the mounting groove (22), and pouring grooves (21) are formed in the outer wall of the top of the adjusting disc (18) and the outer wall of the top of the baffle plate (17).
6. The feminine lotion packaging bottle with good sealing performance as claimed in claim 1, wherein a slot (9) is formed in one side of the outer wall of the top of the fixing cap (2), an insert (10) inserted into the slot (9) is welded to one side of the outer wall of the bottom of the bottle cap (3), and a clamping groove (11) is formed in the outer wall of one side of the insert (10).
7. The feminine lotion packaging bottle with good sealing performance as claimed in claim 6, wherein a spring groove (12) is formed in an inner wall of one side of the slot (9), a movable plate (13) is slidably connected to the inside of the spring groove (12), a fixed spring (16) connected with the movable plate (13) is welded to the inner wall of one side of the spring groove (12), and a clamping block (14) clamped inside the clamping groove (11) and a pressing block (15) extending to the outside of the fixing cap (2) are welded to an outer wall of one side of the movable plate (13) respectively.
