Abstract
The application relates to the technical field of adhesive tape sticking equipment, in particular to an adhesive tape sticking mechanism additionally arranged on a box pasting machine, which comprises a fixed frame, a placing roller, a winding assembly and a cutting assembly, wherein the placing roller is rotatably arranged on the fixed frame; the winding assembly comprises a winding frame, a first winding roller and a second winding roller, the winding frame is rotatably mounted on the fixing frame, the first winding roller and the second winding roller are rotatably mounted on the winding frame, the first winding roller is arranged close to the top of the winding frame, and the second winding roller is arranged close to the bottom of the winding frame; the cutting-off assembly comprises an air cylinder, a knife rest and a cutting-off knife, one end of an air cylinder body is hinged to the fixing frame, one end of an air cylinder piston rod is hinged to the winding frame, the knife rest is fixedly installed on the fixing frame, the cutting-off knife is fixedly installed on the knife rest, and the cutting edge of the cutting-off knife is close to the second winding roller and is located below the second winding roller. This application has the effect that the staff of being convenient for cuts off the sticky tape after pasting.
Description
Technical Field
The application relates to the field of rubberizing equipment, especially, relate to a stick with paste box machine and install non-setting adhesive mechanism additional.
Background
At present, the procedure of sticking the non-setting adhesive on the cut and formed paper board is needed in the production process of the paper box so as to adhere the formed paper board and finally form the required paper box product.
In view of the above-mentioned related technologies, the inventor believes that there is a defect that it is difficult for a worker to cut the self-adhesive tape after being pasted.
SUMMERY OF THE UTILITY MODEL
In order to facilitate the staff to cut off the sticky tape after pasting, this application provides a stick with paste box machine and install non-setting adhesive mechanism additional.
The application provides a stick with paste box machine and install non-setting adhesive mechanism additional adopts following technical scheme:
a self-adhesive sticker attaching mechanism of a box pasting machine comprises a fixing frame, a placing roller, a winding assembly and a cutting assembly, wherein the placing roller is rotatably arranged on the fixing frame;
the winding assembly comprises a winding frame, a first winding roller and a second winding roller, the winding frame is rotatably mounted on the fixing frame, the first winding roller and the second winding roller are rotatably mounted on the winding frame, the first winding roller is arranged close to the top of the winding frame, and the second winding roller is arranged close to the bottom of the winding frame;
the cutting-off assembly comprises an air cylinder, a knife rest and a cutting-off knife, one end of an air cylinder body is hinged to the fixing frame, one end of an air cylinder piston rod is hinged to the winding frame, the knife rest is fixedly installed on the fixing frame, the cutting-off knife is fixedly installed on the knife rest, and the cutting edge of the cutting-off knife is close to the second winding roller.
Through adopting above-mentioned technical scheme, when carrying out the rubberizing to the cardboard, at first place the cylinder of non-setting adhesive in and place the roller, drag the non-setting adhesive afterwards and make the non-setting adhesive around locating first wind-up roll and second wind-up roll, the second wind-up roll carries out the rubberizing to the cardboard and handles, the non-setting adhesive is pasted behind the cardboard, the motion through its piston rod of cylinder drive makes the non-setting adhesive after the rubberizing cut off the sword via cutting off, and then accomplish the rubberizing to the cardboard, at this in-process, it can cut off the non-setting adhesive tape after the rubberizing to carry out the motion through its piston rod of cylinder drive, thereby make staff's easy and.
Preferably, two limit rings which are arranged oppositely are arranged on the peripheral surface of the first winding roller.
Through adopting above-mentioned technical scheme, the spacing ring plays the direction limiting displacement when rolling the non-setting adhesive tape subsides for its horizontal direction's position is difficult for squinting when the non-setting adhesive tape rolls.
Preferably, the winding frame is fixedly provided with a horizontally arranged guide roller, and the guide roller is positioned between the first winding roller and the second winding roller.
Through adopting above-mentioned technical scheme, the setting up of guide roll makes the non-setting adhesive tape that is located between first wind-up roll and the second wind-up roll difficult for rocking when pasting the rolling.
Preferably, the rolling frame is installed and is supported the pressure frame, support the pressure frame and rotate the compression roller that supports that is installed the level setting, support the compression roller and be close to the setting of second rolling roller, when second rolling roller is to the rolling of non-setting adhesive tape, support the compression roller and support and press in the non-setting adhesive tape.
Through adopting above-mentioned technical scheme, support the compression roller and play the effect of pacifying supporting of the non-setting adhesive tape of rolling through second wind-up roll, and then be favorable to keeping the planarization when the non-setting adhesive tape is pasted.
Preferably, the fixing frame is rotatably provided with an adjusting rod, the adjusting rod is tightly abutted and fixed with the fixing frame through a bolt, and the adjusting rod is rotatably provided with an adjusting roller which is horizontally arranged.
Through adopting above-mentioned technical scheme, the non-setting adhesive tape is around locating first wind-up roll and second wind-up roll, at first around locating the dancer rools, and the dancer rools plays the tensioning effect to the non-setting adhesive tape, can adjust the tensioning degree of non-setting adhesive tape through the regulation to the regulating stem angle, and simultaneously, the bolt supports the fixed mode that tightly fixes and makes the fixed mode of adjusting the pole simple, and the practicality is strong.
Preferably, the outer peripheral surface of the adjusting roller is provided with two clamping rings which are arranged oppositely.
Through adopting above-mentioned technical scheme, the screens ring plays the direction limiting displacement when locating first wind-up roll and second wind-up roll around the self-adhesive tape for the difficult emergence skew around the position of the self-adhesive tape horizontal direction of locating the dancer rools outer peripheral face.
Preferably, the fixing frame is rotatably provided with a horizontally arranged limiting roller, and the limiting roller is positioned between the adjusting roller and the winding frame.
Through adopting above-mentioned technical scheme, spacing roller plays the limiting displacement when rolling to the non-setting adhesive tape for the non-setting adhesive tape that is located between dancer roll and the rolling frame is difficult for rocking when the rolling.
Preferably, the fixing frame is rotatably provided with a horizontally arranged pressing wheel, the pressing wheel is arranged close to one side of the paper feeding direction of the fixing frame, and when the adhesive paper board to be pasted is pasted with the non-setting adhesive, the pressing wheel tightly presses the paper board to be pasted.
Through adopting above-mentioned technical scheme, support when the wheel plays the cardboard rubberizing to press and smooth the effect, and then be favorable to promoting the planarization when the cardboard pastes the non-setting adhesive.
Preferably, the fixing frame is rotatably provided with a horizontally arranged pressing roller, the pressing roller is arranged at one side close to the paper outlet direction of the fixing frame, and the pressing roller is pressed against the glued paper board when the glued paper board is output.
Through adopting above-mentioned technical scheme, support the pressure roller and play the effect of pacifying of supporting after the cardboard rubberizing, and then be favorable to promoting the planarization of the state behind the cardboard rubberizing adhesive.
In summary, the present application includes at least one of the following beneficial technical effects:
in the process of pasting the adhesive on the paperboard, the piston rod of the cylinder is driven to move by the cylinder, so that the self-adhesive tape after pasting can be cut off, and the operation of workers is simple and convenient;
the limiting ring plays a role in guiding and limiting the adhesive tape when being pasted and rolled, so that the horizontal position of the adhesive tape is not easy to deviate when being rolled;
can adjust the tensioning degree of non-setting adhesive tape through the regulation to the regulating stem angle, simultaneously, the bolt supports the fixed mode of tight regulation pole and makes the fixed mode of adjusting the pole simple, and the practicality is strong.
Drawings

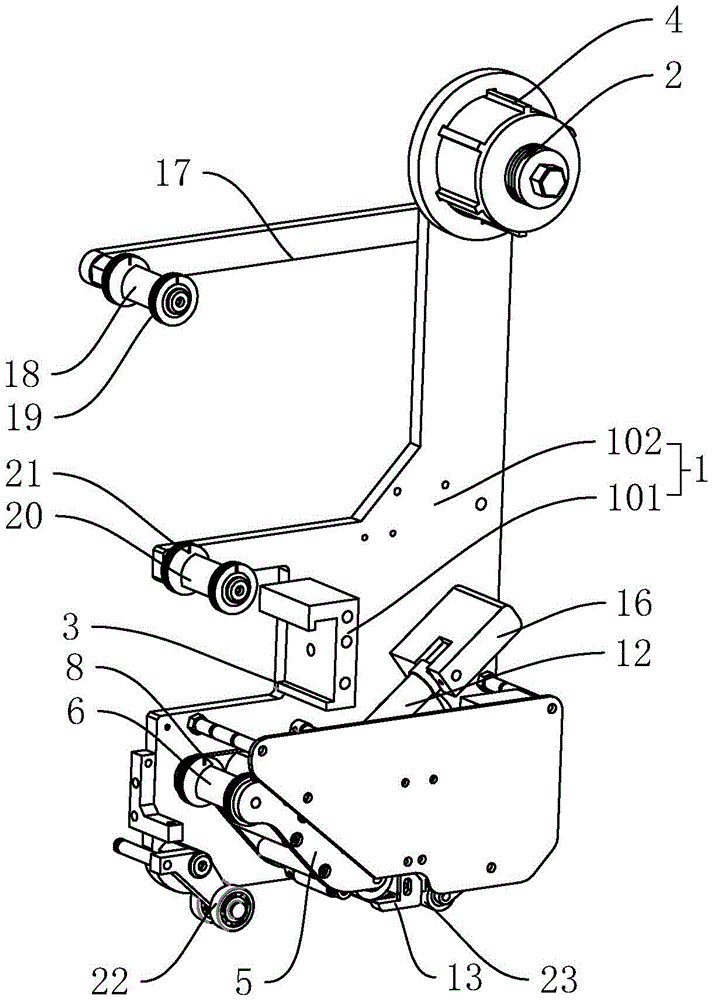

FIG. 1 is a schematic diagram of the overall structure of an embodiment of the present application;
FIG. 2 is a schematic partial sectional structural view of a winding frame in an embodiment of the application;
FIG. 3 is a schematic view showing the connection between the cutting blade and the blade holder in the embodiment of the present application;
fig. 4 is a partially enlarged schematic view of a portion a in fig. 3.
Description of reference numerals: 1. a fixed mount; 101. a sliding fixing part; 102. mounting a fixed part; 2. placing a roller; 3. a sliding groove; 4. anti-slip ribs; 5. a winding frame; 6. a first wind-up roll; 7. a second wind-up roll; 8. a limiting ring; 9. a guide roller; 10. a pressing frame; 11. pressing the roller; 12. a cylinder; 13. a tool holder; 14. a cutting knife; 15. a fixed shaft; 16. a hinged block; 17. adjusting a rod; 18. a regulating roller; 19. a position clamping ring; 20. a limiting roller; 21. a slip ring; 22. pressing the wheel; 23. and abutting against the roller.
Detailed Description
The present application is described in further detail below with reference to figures 1-4.
The embodiment of the application discloses stick with paste box machine and install sticker mechanism additional. Referring to fig. 1, stick with paste box machine and install non-setting adhesive mechanism additional and include mount 1, place roller 2, rolling subassembly and cut off the subassembly, and wherein, mount 1 is including the fixed part 101 that slides and installation fixed part 102, and the fixed part 101 that slides is seted up and is run through the sliding groove 3 of the fixed part 101 that slides along the horizontal direction, through the cooperation of sliding groove 3 and other parts for this mechanism can carry out the process of pasting the non-setting adhesive to the cardboard in different positions.
Continuing to refer to fig. 1, the installation fixing portion 102 is fixedly connected to the sliding fixing portion 101, the placing roller 2 is rotatably installed on the installation fixing portion 102 and is arranged near the top of the installation fixing portion 102, the placing roller 2 is used for placing the rolled adhesive sticker, and the outer peripheral surface of the placing roller 2 is provided with a plurality of anti-slip protruding ribs 4 which are uniformly distributed in the circumferential direction around the axis of the placing roller to enhance the stability of the rolled adhesive sticker when being placed.
Referring to fig. 1 and 2, the winding assembly comprises a winding frame 5, a first winding roller 6 and a second winding roller 7, the winding frame 5 is rotatably mounted on a mounting fixing portion 102, a rotating point of the winding frame 5 is close to the top of the winding frame 5, the winding frame 5 is arranged close to the bottom of the mounting fixing portion 102, the first winding roller 6 and the second winding roller 7 are both horizontally arranged and rotatably mounted on the winding frame 5, the first winding roller 6 is arranged close to the top of the winding frame 5, the second winding roller 7 is arranged close to the bottom of the winding frame 5, two limiting rings 8 which are oppositely arranged are matched with the outer peripheral surface of the first winding roller 6 in a sliding manner, the guiding and limiting function is achieved when the self-adhesive tape is rolled, the position of the self-adhesive tape in the horizontal direction is not prone to shifting when the self-adhesive tape is rolled, the material of the limiting ring 8 is selected to be rubber, and the position of the limiting ring 8 is stable after the first rolling roller 6 slides.
Continuing to refer to fig. 1 and 2, winding frame 5 fixed mounting has two guide rolls 9 that the level set up, two guide rolls 9 are located between first rolling and second winding roll 7, the setting of two guide rolls 9 makes the non-setting adhesive tape that is located between first winding roll 6 and second winding roll 7 be difficult for rocking when the rolling, winding frame 5 rotates and installs and supports pressure frame 10, support pressure frame 10 rotates and installs the pressure roller 11 that supports that sets up horizontally, support pressure roller 11 and be close to second winding roll 7 and set up, when second winding roll 7 carries out the rolling to the non-setting adhesive tape, support pressure roller 11 and support and press in the non-setting adhesive tape, so that the rolling process of second winding roll 7 to the non-setting adhesive tape is stable.
Referring to fig. 3 and 4, the cutting assembly includes an air cylinder 12, a knife rest 13 and a cutting knife 14, a horizontally disposed fixing shaft 15 is fixedly mounted on the winding frame 5, a hinge block 16 is fixedly connected to the mounting fixing portion 102, one end of a piston rod of the air cylinder 12 is rotatably mounted on the fixing shaft 15, one end of a cylinder body of the air cylinder 12 is rotatably mounted on the hinge block 16, the knife rest 13 is horizontally mounted on the mounting fixing portion 102, the cutting knife 14 is fixedly mounted on the knife rest 13, and a cutting edge of the cutting knife 14 is disposed close to the second winding roller 7, so that when the air cylinder 12 drives the piston rod to move, the winding frame 5 drives the second winding roller 7 to rotate together towards a cutting edge of the cutting knife 14, and further cuts the self-adhesive tape after being pasted, and the cutting edge of the cutting knife 14 is disposed obliquely downward, so.
Referring to fig. 3, an adjusting rod 17 is rotatably mounted on a mounting and fixing part 102, the adjusting rod 17 is tightly fixed with the mounting and fixing part 102 through bolts, the adjusting rod 17 is arranged close to a placing roller 2, a horizontally arranged adjusting roller 18 is rotatably mounted at one end of the adjusting rod 17 close to the principle mounting and fixing part 102, two clamping rings 19 are slidably fitted on the outer circumferential surface of the adjusting roller 18, the clamping rings 19 are made of rubber, so that the tension degree of the self-adhesive tape wound on a winding component can be adjusted along with the rotation of the adjusting rod 17, meanwhile, the clamping rings 19 play a role in limiting and guiding the self-adhesive tape in the horizontal direction, a limiting roller 20 is rotatably mounted on the mounting and fixing part 102, the limiting roller 20 is positioned between the adjusting roller 18 and the winding frame 5, the limiting roller 20 plays a role in limiting the self-adhesive tape winding, and the self-adhesive tape positioned between the adjusting roller 18 and the winding frame 5 is not, the peripheral surface of the adjusting roller 18 is matched with two sliding rings 21 in a sliding manner, and the sliding rings 21 are made of rubber so as to play a role in further limiting and guiding the adhesive tape in the horizontal direction.
Referring to fig. 3 and 4, for the smoothness when further guaranteeing the cardboard subsides the non-setting adhesive, installation fixed part 102 rotates the pressure wheel 22 that supports that the installation has the level to set up, support and press one side setting that wheel 22 is close to support body feed direction, when treating the rubberized cardboard and carry via the conveyer belt, support and press wheel 22 and support tightly and treat the rubberized cardboard, for the stability of further guaranteeing the cardboard post-gluing adhesive state, installation fixed part 102 rotates the butt roller 23 that the installation has the level to set up, one side setting that butt roller 23 is close to support body ejection of compact direction, when the cardboard after the rubberizing carries via the conveyer belt, the cardboard after the butt roller 23 supports tightly the rubberizing.
The implementation principle that stick with paste box machine and install sticker mechanism additional is: when the paperboard is pasted with adhesive, firstly, a glue cylinder of the adhesive is placed on the placing roller 2, then the adhesive is pulled to enable the adhesive to be wound on the first winding roller 6 and the second winding roller 7, the second winding roller 7 carries out pasting processing on the paperboard, after the adhesive is pasted on the paperboard, the motion of the piston rod of the air cylinder 12 is driven to enable the adhesive after pasting to be cut off through the cutting knife 14, then the pasting on the paperboard is completed, in the process, the piston rod of the air cylinder 12 is driven to move to cut off the adhesive tape after pasting, and therefore the operation of workers is simple and convenient.
The above embodiments are preferred embodiments of the present application, and the protection scope of the present application is not limited by the above embodiments, so: all equivalent changes made according to the structure, shape and principle of the present application shall be covered by the protection scope of the present application.
Claims (9)
1. The utility model provides a stick with paste box machine and install additional and paste non-setting adhesive mechanism which characterized in that: the winding device comprises a fixed frame (1), a placing roller (2), a winding assembly and a cutting assembly, wherein the placing roller (2) is rotatably arranged on the fixed frame (1);
the winding assembly comprises a winding frame (5), a first winding roller (6) and a second winding roller (7), the winding frame (5) is rotatably mounted on the fixing frame (1), the first winding roller (6) and the second winding roller (7) are rotatably mounted on the winding frame (5), the first winding roller (6) is arranged close to the top of the winding frame (5), and the second winding roller (7) is arranged close to the bottom of the winding frame (5);
the cutting-off assembly comprises a cylinder (12), a knife rest (13) and a cutting-off knife (14), one end of the cylinder body (12) is hinged to a fixing frame (1), one end of a piston rod of the cylinder (12) is hinged to a winding frame (5), the knife rest (13) is fixedly installed on the fixing frame (1), the cutting-off knife (14) is fixedly installed on the knife rest (13), and a cutting edge of the cutting-off knife (14) is close to a second winding roller (7).
2. The box pasting machine of claim 1 is additionally provided with a non-setting adhesive mechanism, and is characterized in that: two limit rings (8) which are arranged just opposite to each other are arranged on the peripheral surface of the first winding roller (6).
3. The box pasting machine of claim 2 is additionally provided with a non-setting adhesive mechanism, and is characterized in that: and the winding frame (5) is fixedly provided with a guide roller (9) which is horizontally arranged, and the guide roller (9) is positioned between the first winding roller (6) and the second winding roller (7).
4. The box pasting machine of claim 1 is additionally provided with a non-setting adhesive mechanism, and is characterized in that: rolling frame (5) are installed and are supported and press frame (10), support and press frame (10) to rotate and install that the level sets up support compression roller (11), support compression roller (11) and be close to second wind-up roll (7) and set up, when second wind-up roll (7) were to the rolling of non-setting adhesive tape, support compression roller (11) and support and press in the non-setting adhesive tape.
5. The box pasting machine of claim 1 is additionally provided with a non-setting adhesive mechanism, and is characterized in that: the fixing frame (1) is rotatably provided with an adjusting rod (17), the adjusting rod (17) is fixedly abutted to the fixing frame (1) through a bolt, and the adjusting rod (17) is rotatably provided with an adjusting roller (18) which is horizontally arranged.
6. The box pasting machine of claim 5 is additionally provided with a non-setting adhesive mechanism, and is characterized in that: two clamping rings (19) which are arranged oppositely are arranged on the peripheral surface of the adjusting roller (18).
7. The box pasting machine of claim 6 is additionally provided with a non-setting adhesive mechanism, and is characterized in that: the fixed frame (1) is rotatably provided with a horizontally arranged limiting roller (20), and the limiting roller (20) is positioned between the adjusting roller (18) and the winding frame (5).
8. The box pasting machine of claim 1 is additionally provided with a non-setting adhesive mechanism, and is characterized in that: the utility model discloses a sticky paper board, including mount (1), support pinch roller (22) and support the sticky paper board of waiting to tightly waiting to paste when waiting to paste sticky paper board subsides non-setting adhesive, the mount (1) rotates and is installed the horizontal setting to push pinch roller (22), it sets up to push up pinch roller (22) near one side of mount (1) paper feed direction, when waiting to paste.
9. The box pasting machine of claim 8 is additionally provided with a non-setting adhesive mechanism, and is characterized in that: mount (1) rotates to be installed the horizontal setting to compression roller (11), support compression roller (11) and be close to one side setting of mount (1) play paper direction, during cardboard output after the rubberizing, support compression roller (11) and support the cardboard after the tight rubberizing.
