Abstract
本实用新型公开了一种用于台式计算机主体的散热保护装置，其包括壳体，壳体的后壁设有安装框，安装框的内壁设有空气滤网，壳体的上下内壁固定连接有支撑杆，支撑杆的内部固定连接有风扇机壳，风扇机壳的后壁固定连接有风扇电机，风扇电机的输出端固定连接有转轴。通过四组散热风扇，使散热效果更好，散热更均匀，散热速度更快，同时利用水冷对空气进行散热，使空气可降低温度，在温度较高时，散热效率更高，便于快速散热，利用双层滤网，可有效避免灰尘等杂质进入计算机主体内部，有利于保护计算机主体，有利于延长计算机主体的使用寿命，利用散热板和导热板，可有效的快递热量，使热量快速排出。
The utility model discloses a heat dissipation protection device for a desktop computer main body, which comprises a casing, a rear wall of the casing is provided with a mounting frame, an inner wall of the mounting frame is provided with an air filter, and the upper and lower inner walls of the casing are fixedly connected with a mounting frame. The support rod is fixedly connected with a fan casing inside the support rod, the rear wall of the fan casing is fixedly connected with a fan motor, and the output end of the fan motor is fixedly connected with a rotating shaft. Through four sets of cooling fans, the heat dissipation effect is better, the heat dissipation is more uniform, and the heat dissipation speed is faster. At the same time, water cooling is used to dissipate the air, so that the air can reduce the temperature. When the temperature is high, the heat dissipation efficiency is higher, which is convenient for rapid heat dissipation. The use of double-layer filters can effectively prevent dust and other impurities from entering the computer body, which is beneficial to protect the computer body and prolong the service life of the computer body. The use of heat dissipation plates and heat conduction plates can effectively express heat and discharge heat quickly.
Description
Technical Field
The utility model belongs to the technical field of the computer heat dissipation, especially, relate to a heat dissipation protection device for desktop computer main part.
Background
The computer is commonly called as computer, is a modern electronic computing machine for high-speed computation, can perform numerical computation and logic computation, and also has the function of storage and memory. A computer is composed of a hardware system and a software system, and a computer without any software installed is called a bare computer. The computer can be divided into a super computer, an industrial control computer, a network computer, a personal computer and an embedded computer, and more advanced computers comprise a biological computer, a photon computer, a quantum computer and the like.
In the existing computer, only a simple fan is arranged for heat dissipation, the heat dissipation effect is not obvious, the heat dissipation speed is low, dust and the like easily enter the computer, and the internal components of the computer are easily damaged.
SUMMERY OF THE UTILITY MODEL
In view of the above, the present invention provides a heat dissipation protection device for a desktop computer main body, which can effectively solve the above problems existing in the prior art.
In order to achieve the above object, the present invention provides the following technical solutions: a heat dissipation protection device for a desktop computer main body comprises a shell, wherein a mounting frame is arranged on the rear wall of the shell, an air filter screen is arranged on the inner wall of the mounting frame, supporting rods are fixedly connected to the upper inner wall and the lower inner wall of the shell, a fan shell is fixedly connected to the inner part of each supporting rod, a fan motor is fixedly connected to the rear wall of the fan shell, a rotating shaft is fixedly connected to the output end of the fan motor, fan blades are arranged on the outer side surface of the rotating shaft, a heat-conducting plate is fixedly connected to the inner side wall of the shell and positioned on the front side of the fan shell, a filter screen and a heat-radiating plate are fixedly connected to the inner side wall of the shell and positioned on the rear side of the heat-conducting plate, a circulating fan is fixedly connected to the middle of the outer side wall of the shell, a cooling, the upper surface of cold water storage cistern is fixedly connected with small-size water pump, the upper surface fixedly connected with circulating pipe of small-size water pump, the inside of heat-conducting plate and heating panel is equipped with the head of admitting air.
Furthermore, the outer side wall four corners of the shell are provided with installation pieces, and installation holes are formed in the installation pieces.
Furthermore, the rear wall of the shell is provided with a threaded hole, and a bolt is arranged between the shell and the mounting frame and is detachably connected with the mounting frame.
Furthermore, the left side surface and the circulating fan fixed connection of cooling pipe, the one end and the inlet head fixed connection of circulating fan are kept away from to the cooling pipe, circulating fan's inside is equipped with the dust screen.
Further, the outside surface and the cold water storage cistern fixed connection of cooling pipe, the inside cold water groove that is equipped with of cold water storage cistern, the material of cooling pipe is the tubular metal resonator.
Furthermore, one end of the circulating water pipe, which is far away from the small-sized water pump, is fixedly connected with the condenser.
Compared with the prior art, the beneficial effects of the utility model are that:
(1) through four radiator fan groups, make the radiating effect better, the heat dissipation is more even, the radiating rate is faster, utilize the water-cooling to dispel the heat to the air simultaneously, make the air can reduce the temperature, when the temperature is higher, the radiating efficiency is higher, be convenient for dispel the heat fast, utilize double-deck filter screen, can effectively avoid impurity such as dust to get into inside the computer main part, be favorable to protecting the computer main part, be favorable to prolonging the life of computer main part, utilize heating panel and heat-conducting plate, can effectual express delivery heat, make the heat discharge fast.
(2) Through being equipped with the cooling tube, the inside of making the computer main part is convenient for let in the lower air of temperature, makes the computer main part rapid cooling, is equipped with the dust screen, is difficult for making the dust in the external gas get into the computer main part, also can prevent simultaneously that the cooling tube from blockking up, makes the device can use for a long time.
(3) Through being equipped with the cold water storage cistern, can be more even to the gaseous effect in the cooling tube, cooling range is wider, rapid cooling, and utilize the tubular metal resonator, be favorable to improving and lead the temperature performance, avoid energy loss, the using electricity wisely improves the work efficiency of device.
Drawings

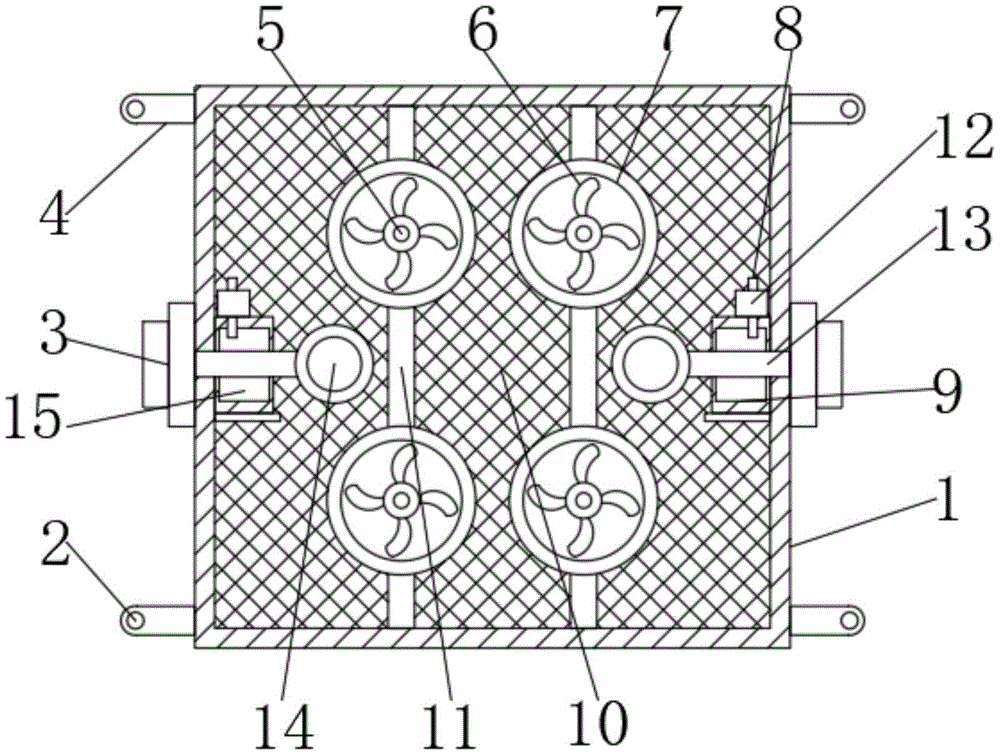

Fig. 1 is a schematic structural diagram of a heat dissipation protection device for a desktop computer main body according to the present invention;
fig. 2 is a side sectional view of a heat dissipation protection device for a desktop computer main body according to the present invention;
fig. 3 is a side view of a heat dissipation protection device for a desktop computer main body according to the present invention;
description of reference numerals:
1. a housing; 2. mounting holes; 3. a circulation fan; 4. mounting a sheet; 5. a rotating shaft; 6. a fan blade; 7. a fan housing; 8. a circulating water pipe; 9. a cold water tank; 10. an air screen; 11. a support bar; 12. a small-sized water pump; 13. a cooling pipe; 14. an air inlet head; 15. a cold water tank; 16. a fan motor; 17. a condenser; 18. a heat conducting plate; 19. a heat dissipation plate; 20. a filter screen; 21. and (5) installing the frame.
Detailed Description
It should be noted that, in the present invention, the embodiments and features of the embodiments may be combined with each other without conflict.
In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "up", "down", "front", "back", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", and the like, indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are used merely for convenience of description and for simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention. Furthermore, the terms "first", "second", etc. are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first," "second," etc. may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless otherwise specified.
In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood by those of ordinary skill in the art through specific situations.
As shown in fig. 1-3, a heat dissipation protection device for a desktop computer main body comprises a housing 1, a mounting frame 21 is disposed on a rear wall of the housing 1, an air filter screen 10 is disposed on an inner wall of the mounting frame 21, support rods 11 are fixedly connected to upper and lower inner walls of the housing 1, a fan housing 7 is fixedly connected to the inside of the support rods 11, a fan motor 16 is fixedly connected to a rear wall of the fan housing 7, a rotating shaft 5 is fixedly connected to an output end of the fan motor 16, fan blades 6 are disposed on an outer side surface of the rotating shaft 5, a heat conduction plate 18 is fixedly connected to an inner side wall of the housing 1 and located at a front side of the fan housing 7, a filter screen 20 and a heat dissipation plate 19 are fixedly connected to an inner side wall of the housing 1 and located at a rear side of the heat conduction plate 18, a circulation fan 3 is fixedly connected to a middle portion of, the inside wall fixedly connected with cold water tank 9 of casing 1, the rear side surface fixedly connected with condenser 17 of cold water tank 9, the last fixed surface of cold water tank 9 is connected with small-size water pump 12, the last fixed surface of small-size water pump 12 is connected with circulating pipe 8, the inside of heat-conducting plate 18 and heating panel 19 is equipped with air inlet 14.
In the technical scheme, through four radiator fan groups, make the radiating effect better, the heat dissipation is more even, the radiating rate is faster, utilize the water-cooling to dispel the heat to the air simultaneously, make the air can reduce the temperature, when the temperature is higher, the radiating efficiency is higher, be convenient for dispel the heat fast, utilize double-deck filter screen, can effectively avoid impurity such as dust to get into inside the computer main part, be favorable to protecting the computer main part, be favorable to prolonging the life of computer main part, utilize heating panel 19 and heat-conducting plate 18, can effectual express delivery heat, make the heat discharge fast.
Preferably, the outer wall of the housing 1 has four corners provided with mounting pieces 4, and the mounting pieces 4 have mounting holes 2 therein. The installation pieces 4 are arranged, so that the device is convenient to install, and four groups of the installation pieces are arranged, so that the installation is more stable and the looseness is not easy to occur.
Preferably, as the technical solution, a threaded hole is formed in the rear wall of the housing 1, and a bolt is detachably connected between the housing 1 and the mounting frame 21. The bolt connection is arranged, so that the mounting frame 21 is convenient to mount and dismount, and the air filter screen 10 can be replaced quickly.
Preferably, the left side surface of the cooling pipe 13 is fixedly connected with the circulating fan 3, one end of the cooling pipe 13, which is far away from the circulating fan 3, is fixedly connected with the air inlet 14, and a dust screen is arranged inside the circulating fan 3.
In above-mentioned technical scheme, be equipped with cooling tube 13, the lower air of temperature is convenient for let in to the inside that makes the computer main part, makes the computer main part rapid cooling, is equipped with the dust screen, is difficult for making the dust in the external gas get into the computer main part, also can prevent that cooling tube 13 from blockking up simultaneously, makes the device can use for a long time.
Preferably, the outer surface of the cooling pipe 13 is fixedly connected with the cold water tank 9, the cold water tank 9 is internally provided with a cold water tank 15, and the cooling pipe 13 is made of a metal pipe.
In above-mentioned technical scheme, be equipped with cold water storage cistern 9, can be more even to the gaseous effect in cooling tube 13, the cooling scope is wider, rapid cooling, and utilizes the tubular metal resonator, is favorable to improving and leads the temperature performance, avoids energy loss, and the using electricity wisely improves the work efficiency of device.
Preferably, one end of the circulating water pipe 8, which is far away from the small water pump 12, is fixedly connected with the condenser 17. The condensed water can be circularly treated, the water is saved, and the water in the cold water tank 15 can be kept at a certain temperature.
The above description is only a preferred embodiment of the present invention, and should not be taken as limiting the invention, and any modifications, equivalent replacements, improvements, etc. made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (6)
