Abstract
本实用新型公开了晾衣架，包括长条状的支撑杆、若干晾衣撑，晾衣撑包括用于撑开衣物的左翼和右翼，晾衣架还包括沿支撑杆的长度方向相互间隔设置的若干转动座，各转动座均铰接在支撑杆上，以使转动座能够相对于支撑杆沿高度方向摆动。属于同一晾衣撑上的左翼和右翼通过铰接方式与同一个转动座进行连接，以使左翼和右翼均能够相对于转动座沿水平方向摆动。当晾衣撑处于展开状态时，左翼和右翼能够撑开衣物。当晾衣撑处于收纳状态时，左翼和右翼均分别贴靠在支撑杆的两侧。其收纳后结构紧凑，便于携带，展开时能够具有较大的晾晒空间。本实用新型还公开了落地晾晒架。
The utility model discloses a clothes drying rack, which comprises a long support rod and a plurality of clothes drying racks. The clothes drying rack includes left and right wings for spreading clothes. The clothes drying rack further comprises a plurality of clothes drying racks which are arranged at intervals along the length direction of the support rod. Each of the rotating seats is hinged on the support rod, so that the rotating seat can swing relative to the support rod in the height direction. The left wing and the right wing belonging to the same clothes drying rack are connected with the same rotating seat by means of hinges, so that both the left wing and the right wing can swing in the horizontal direction relative to the rotating seat. When the laundry rack is in the unfolded state, the left and right wings can spread the laundry. When the laundry support is in the storage state, the left wing and the right wing are respectively abutted on both sides of the support rod. It has a compact structure after storage, is easy to carry, and can have a large drying space when unfolded. The utility model also discloses a floor drying rack.
Description
Technical Field
The utility model relates to a clothes and luggage utensil technical field that dries in the air especially relates to clothes hanger and fall to the ground sunning frame.
Background
The existing clothes hangers have various styles, and have more styles no matter from the aspects of airing space, unfolding and folding difficulty. However, as people are increasingly keen on traveling, the clothes hanger also becomes a necessary tool for traveling so as to solve the problems of insufficient clothes hangers in hotels or personal requirements of users. However, the conventional clothes hanger for traveling still has a problem that the airing space is very limited, and the clothes hanger for traveling is inconvenient to carry because a large space is required for storage.
SUMMERY OF THE UTILITY MODEL
In order to overcome the defects of the prior art, one of the purposes of the utility model is to provide a clothes hanger which has compact structure after being stored and is convenient to carry and can have larger airing space when being unfolded.
The second purpose of the utility model is to provide a floor drying rack.
The utility model discloses an one of the purpose adopts following technical scheme to realize:
the clothes hanger comprises a strip-shaped supporting rod, a plurality of clothes hangers, a plurality of rotating seats and a lifting mechanism, wherein the clothes hangers comprise a left wing and a right wing which are used for supporting clothes, the rotating seats are arranged at intervals along the length direction of the supporting rod, and each rotating seat is hinged on the supporting rod so that the rotating seat can swing along the height direction relative to the supporting rod; the left wing and the right wing which belong to the same clothes hanging support are connected with the same rotating seat in a hinged mode, so that the left wing and the right wing can swing in the horizontal direction relative to the rotating seat;
when the clothes hanger is in an unfolded state, the left wing and the right wing can unfold clothes;
when the clothes hanger is in a storage state, the left wing and the right wing are respectively attached to two sides of the supporting rod.
Furthermore, the support rod is provided with a plurality of abdicating grooves along the length direction, each abdicating groove corresponds to one rotating seat, and when the clothes airing support is in a storage state, the rotating seats are accommodated in the abdicating grooves.
Furthermore, the support rod is provided with a first clamping part in each yielding groove, the rotating seat is provided with a second clamping part, and the first clamping part is matched with the second clamping part.
Furthermore, the first positioning portion is a protrusion, and the second positioning portion is a slot.
Furthermore, a first supporting head is arranged at the joint of the left wing and the rotating seat, a second supporting head is arranged at the joint of the right wing and the rotating seat, and the first supporting head and the second supporting head are suitable for being abutted to each other so that the clothes airing support is kept in an unfolded state.
Furthermore, a third clamping part is arranged on the first supporting head of the left wing, and a fourth clamping part is arranged on the rotating seat; the second supporting head of the right wing is provided with a fifth clamping part, and the rotating seat is provided with a sixth clamping part; when the clothes hanger is in a storage state, the third clamping portion is clamped with the fourth clamping portion to prevent the left wing from swinging relative to the rotating seat, and the fifth clamping portion is clamped with the sixth clamping portion to prevent the right wing from swinging relative to the rotating seat.
Further, when the clothes hanger is in a storage state, the left wing and the right wing are respectively arranged in an inclined mode with the supporting rod, so that the length direction of the left wing and the length direction of the supporting rod form a certain included angle, and the length direction of the right wing and the length direction of the supporting rod form a certain included angle.
Furthermore, each rotating seat is pivotally connected to the supporting rod; the left wing and the right wing of the same clothes hanger are pivotally connected with the same rotating seat; the left wing and the right wing are formed by sequentially connecting a plurality of sections of rod pieces, and the two mutually connected rod pieces are movably sleeved with each other.
Furthermore, one end of the supporting rod is hinged with a sucker, a notch is formed in one end, close to the sucker, of the supporting rod, and the notch is used for containing the sucker.
The second purpose of the utility model is realized by adopting the following technical scheme:
the floor type drying rack comprises a telescopic center rod, a plurality of supporting legs hinged to the bottom of the center rod and a plurality of drying racks hinged to the top of the center rod.
Compared with the prior art, the beneficial effects of the utility model reside in that:
1. through set up a plurality of clothes of drying in the air and propping on rectangular form bracing piece, can be so that the bracing piece directly the sunning clothing, and a plurality of clothes of drying in the air prop and can improve clothes and dry in the air efficiency effectively.
2. All the rotating seats are hinged on the supporting rod, so that the rotating seats can swing in the height direction relative to the supporting rod; and the left wing and the right wing which belong to the same clothes hanger are respectively connected with the same rotating seat in a hinged mode, so that the left wing and the right wing can swing along the horizontal direction relative to the rotating seat, the clothes hanger can be unfolded and stored, and the unfolded state and the stored state of the clothes hanger are relatively stable.
3. When the clothes hanger is in the storage state, the whole clothes hanger is in a strip structure, so that the clothes hanger is very convenient to carry, occupies a small space and is very suitable for travel.
Drawings

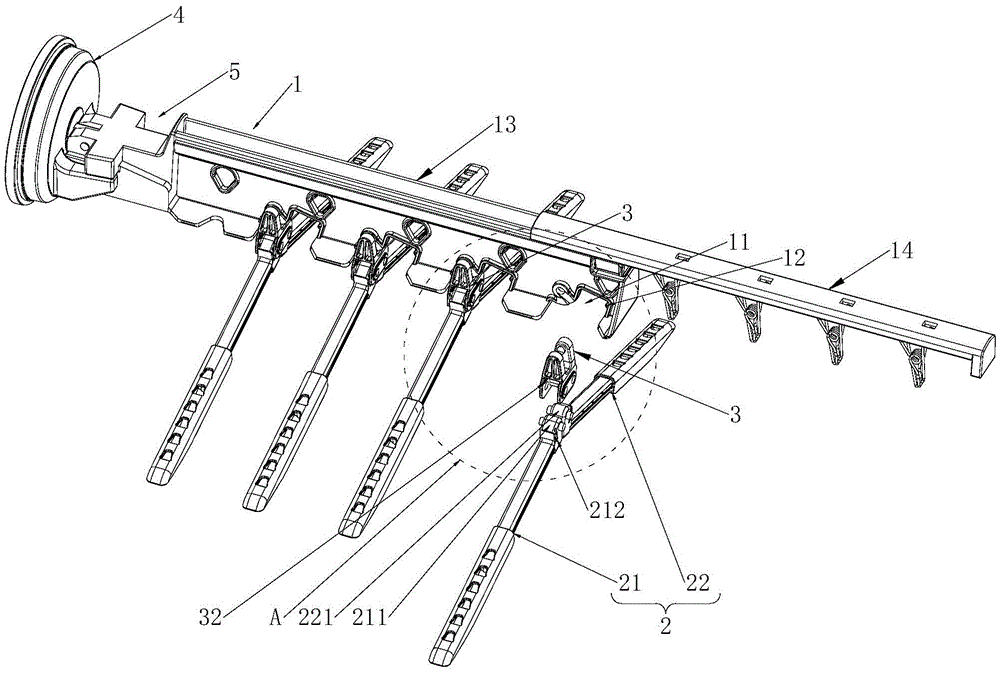

Fig. 1 is a schematic structural view of the clothes hanger of the present invention (the clothes hangers are in an expanded state), wherein, for easy understanding, one of the clothes hangers is in a disassembled state;
FIG. 2 is an enlarged view of a portion of FIG. 1 at A;
FIG. 3 is a schematic view of the left wing shown in FIG. 1;
FIG. 4 is a schematic structural view of the rotary base shown in FIG. 1;
fig. 5 is a schematic structural view of the clothes hanger shown in fig. 1 (clothes hangers in a storage state), wherein one of the clothes hangers is in a disassembled state for easy understanding;
fig. 6 is a partial enlarged view of fig. 5 at B;
fig. 7 is a schematic structural view of the floor drying rack of the present invention.
In the figure: 1. a support bar; 11. a yielding groove; 12. a first clamping part; 13. a body rod; 14. an extension pole; 15. a clip; 2. airing the clothes support; 21. a left wing; 211. a first support head; 212. a third clamping part; 22. a right wing; 221. a second support head; 3. a rotating seat; 31. a second clamping part; 32. a fourth clamping part; 4. a suction cup; 5. a notch; 6. a center pole; 7. support the feet.
Detailed Description
The present invention will be further described with reference to the accompanying drawings and the detailed description, and it should be noted that the embodiments or technical features described below can be arbitrarily combined to form a new embodiment without conflict.
It will be understood that when an element is referred to as being "secured to" another element, it can be directly on the other element or intervening elements may also be present. When an element is referred to as being "connected" to another element, it can be directly connected to the other element or intervening elements may be present. As used herein, "vertical," "horizontal," "left," "right," and similar expressions are for purposes of illustration only and do not represent the only embodiments.
Unless defined otherwise, all technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the art to which this invention belongs. The terminology used herein in the description of the invention is for the purpose of describing particular embodiments only and is not intended to be limiting of the invention. As used herein, the term "and/or" includes any and all combinations of one or more of the associated listed items.
Fig. 1 to 6 show a clothes hanger according to a preferred embodiment of the present invention, which includes a strip-shaped support rod 1 and a plurality of clothes hangers 2. The clothes hanger 2 comprises a left wing 21 and a right wing 22 which are used for opening clothes, the clothes hanger further comprises a plurality of rotating seats 3 which are arranged at intervals along the length direction of the supporting rod 1, and each rotating seat 3 is hinged on the supporting rod 1 so that the rotating seat 3 can swing along the height direction relative to the supporting rod 1. The left wing 21 and the right wing 22 belonging to the same clothes hanger 2 are respectively connected with the same rotating seat 3 in a hinged manner, so that the left wing 21 and the right wing 22 can swing in the horizontal direction relative to the rotating seat 3.
When the clothes hanger 2 is in the unfolded state, the left wing 21 and the right wing 22 can open the clothes, see fig. 1.
When the clothes horse 2 is switched from the unfolded state to the stored state, the rotary seat 3 swings in the height direction with respect to the support rod 1, and then the left wing 21 and the right wing 22 swing in the horizontal direction with respect to the rotary seat 3.
When the clothes horse 2 is in the storage state, referring to fig. 5, the left wing 21 and the right wing 22 are respectively attached to two sides of the support bar 1.
Specifically, the one end of bracing piece 1 articulates there is sucking disc 4, and bracing piece 1 is close to the one end of sucking disc 4 and offers jaggedly 5, and jaggy 5 is used for holding sucking disc 4. The clothes hanger is convenient to fix on a wall surface or a cabinet surface by arranging the sucker 4, and the sucker 4 is accommodated through the notch 5, so that the compactness of the clothes hanger can be improved. Or, as an alternative, the end of the support rod 1 may be provided with a hook, and the hook may lean against an external fixture.
Obviously, through set up a plurality of clothes hangers 2 that dry in the air on rectangular shape bracing piece 1, can be so that bracing piece 1 directly sunning clothing, and a plurality of clothes hangers 2 that dry in the air can improve clothes-drying efficiency effectively. Each rotating seat 3 is hinged on the support rod 1, so that the rotating seat 3 can swing in the height direction relative to the support rod 1; and the left wing 21 and the right wing 22 which belong to the same clothes hanger 2 are respectively connected with the same rotating seat 3 in a hinged mode, so that the left wing 21 and the right wing 22 can swing along the horizontal direction relative to the rotating seat 3, the clothes hanger 2 can be unfolded and stored, and the unfolded state and the stored state of the clothes hanger 2 are relatively stable. It should be noted that, when the clothes hanger 2 is in the storage state, the whole clothes hanger is in a strip structure, so that the clothes hanger is very convenient to carry, occupies a small space, and is very suitable for traveling.
As a further preferred embodiment: the supporting rod 1 is provided with a plurality of abdicating grooves 11 along the length direction, each abdicating groove 11 corresponds to one rotating seat 3, and when the clothes hanger 2 is in a storage state, the rotating seats 3 are accommodated in the abdicating grooves 11, so that the structure of the clothes hanger is more compact. Preferably, in order to stabilize the storage state of the clothes hanger 2, the support rod 1 is provided with a first positioning portion 12 in each of the yielding grooves 11, the rotating seat 3 is provided with a second positioning portion 31, the first positioning portion 12 is adapted to the second positioning portion 31, that is, the first positioning portion 12 and the second positioning portion 31 are connected by a snap-fit manner, specifically, preferably, the first positioning portion 12 is a protrusion, and the second positioning portion 31 is a slot.
As a further preferred embodiment: the joint of the left wing 21 and the rotating seat 3 is provided with a first supporting head 211, the joint of the right wing 22 and the rotating seat 3 is provided with a second supporting head 221, the first supporting head 211 and the second supporting head 221 are suitable for being mutually abutted, so that the clothes hanger 2 keeps an unfolded state, and the arrangement mode is not only beneficial to the manufacture of products, but also reliable in stress mode. It is understood that, as an alternative, both the first 211 and the second 221 support heads may be supported by the rotary seat 3.
As a further preferred embodiment: the first supporting head 211 of the left wing 21 is provided with a third positioning portion 212, and the rotating base 3 is provided with a fourth positioning portion 32; the second support head 221 of the right wing 22 is provided with a fifth engaging portion, and the rotary base 3 is provided with a sixth engaging portion. When the clothes hanger 2 is in the storage state, the third positioning portion 212 is engaged with the fourth positioning portion 32 to prevent the left wing 21 from swinging relative to the rotating base 3, and the fifth positioning portion is engaged with the sixth positioning portion to prevent the right wing 22 from swinging relative to the rotating base 3. It can be understood that, the clamping mode is the mode of connecting through the buckle, and one is equipped with the trench, and the other is equipped with the lug can. Obviously, the third positioning portion 212 is provided on the first supporting head 211 to engage with the fourth positioning portion 32 of the rotating base 3 through the third positioning portion 212, so that the fixing manner of the left wing 21 is convenient and reliable. Similarly, the fifth position-retaining portion and the sixth position-retaining portion are not described again.
As a further preferred embodiment: when the clothes hanger 2 is in the storage state, the left wing 21 and the right wing 22 are respectively arranged obliquely with the support rod 1, so that the length direction of the left wing 21 and the length direction of the support rod 1 form a certain included angle, and the length direction of the right wing 22 and the length direction of the support rod 1 form a certain included angle. Thus, a plurality of clothes hangers 2 can be compactly stored, and more clothes hangers 2 can be arranged on the support rod 1 with the same length.
As a further preferred embodiment: each rotating seat 3 is pivotally connected to the supporting rod 1; the left wing 21 and the right wing 22 of the same clothes hanger 2 are pivotally connected with the same rotary seat 3.
As a further preferred embodiment: the left wing 21 and the right wing 22 are formed by sequentially connecting a plurality of rod pieces, and the two connected rod pieces are movably sleeved with each other. In the movable sleeving manner, when the clothes hanger 2 is in an unfolded state, the two mutually connected rod pieces can keep an extension posture by using gravity. As an alternative to the telescopic structure, the left wing 21 or the right wing 22 in an unfolded state may be folded by a pivot connection so as to be folded into a shorter structure for storage and carrying.
As a further preferred embodiment: bracing piece 1 includes body pole 13 and extension rod 14, and extension rod 14 and body pole 13 telescopic connection and lie in the top of body pole 13, and the storage tank has been seted up at the top of body pole 13, and extension rod 14 is connected with a plurality of clips 15, and the storage tank is used for holding clip 15. Therefore, the airing space of the clothes hanger is enlarged, and the size of the space occupied by the clothes hanger is not influenced after the extension rod 14 is stored.
Referring to fig. 7, the floor type drying rack comprises a telescopic central rod 6, a plurality of supporting legs 7 hinged to the bottom of the central rod 6, and a plurality of drying racks hinged to the top of the central rod 6.
The above embodiments are only preferred embodiments of the present invention, and the protection scope of the present invention cannot be limited thereby, and any insubstantial changes and substitutions made by those skilled in the art based on the present invention are all within the protection scope of the present invention.
Claims (10)
