CN213681379U

CN213681379U - Drying racks and floor drying racks

Info

Publication number: CN213681379U
Application number: CN202022484261.9U
Authority: CN
Inventors: 史普芹
Original assignee: Individual
Current assignee: Individual
Priority date: 2020-10-31
Filing date: 2020-10-31
Publication date: 2021-07-13
Anticipated expiration: 2030-10-31

Abstract

The utility model discloses a clothes drying rack, which comprises a long support rod, a plurality of clothes hangers arranged at intervals along the length direction of the support rod and connected to the support rod. The left and right wings of the laundry are opened, and each of the laundry supports can be moved in the height direction relative to the support rod; when the laundry support is in a low position, the laundry support is in an unfolded state to make the laundry support Clothes can be opened; when the clothes hanger is in a high position, both the left and right wings can swing relative to the support rod, so that both the left and right wings are close to the support rod until the clothes hanger in storage. It has a compact structure after storage, can have a large drying space when unfolded, and is easy to carry. The utility model also discloses a floor drying rack, which comprises a retractable center rod, a plurality of supporting feet hinged on the bottom of the center rod, and a plurality of clothes drying racks hinged on the top of the center rod.

Description

Clothes hanger and floor type drying rack

Technical Field

The utility model relates to a clothes and luggage utensil technical field that dries in the air especially relates to clothes hanger and fall to the ground sunning frame.

Background

The existing clothes hangers have various styles, and have more styles no matter from the aspects of airing space, unfolding and folding difficulty. However, as people are increasingly keen on traveling, the clothes hanger also becomes a necessary tool for traveling so as to solve the problems of insufficient clothes hangers in hotels or personal requirements of users. However, the conventional clothes hanger for traveling still has a problem that the airing space is very limited, and the clothes hanger for traveling is inconvenient to carry because a large space is required for storage.

SUMMERY OF THE UTILITY MODEL

In order to overcome the defects of the prior art, one of the purposes of the utility model is to provide a clothes hanger which has a compact structure after being stored, can have a larger airing space when being unfolded and is convenient to carry.

The second purpose of the utility model is to provide a floor drying rack.

The utility model discloses an one of the purpose adopts following technical scheme to realize:

the clothes hanger comprises a long-strip-shaped supporting rod and a plurality of clothes hanging supports which are arranged at intervals along the length direction of the supporting rod and connected to the supporting rod, wherein each clothes hanging support comprises a left wing and a right wing which are used for supporting clothes, and each clothes hanging support can move along the height direction relative to the supporting rod; when the clothes hanger is in a low position, the clothes hanger is in an unfolded state so that the clothes hanger can unfold clothes; when the clothes hanger is in a high position, the left wing and the right wing can swing relative to the supporting rod, so that the left wing and the right wing are close to the supporting rod until the clothes hanger is in a storage state.

Furthermore, the support rod is provided with a plurality of guide rails extending in the height direction, each clothes hanger corresponds to at least one guide rail, each clothes hanger is provided with a connecting part matched with the guide rail, and the left wing and the right wing ascend or descend along with the connecting parts.

Furthermore, the top of the guide rail is provided with a hinged part, and after the connecting part is matched with the hinged part, the left wing and the right wing can swing relative to the supporting rod.

Furthermore, a plurality of guide rails are respectively arranged on two opposite sides of the supporting rod, and the left wing and the right wing are mutually independent and respectively correspond to one of the guide rails.

Further, the guide rail is a guide groove, the hinged portion is an insertion column, the connecting portion is provided with an insertion hole, and when the clothes airing support is in a high position, the insertion column is matched with the insertion hole.

Furthermore, the top of each guide groove extends along the length direction of the support rod to form an accommodating groove, and when the left wing and the right wing are in an accommodating state, the left wing and the right wing are respectively accommodated in the corresponding accommodating grooves.

Furthermore, the bottom of the guide rail is provided with an orientation block, the connecting part is matched with the orientation block, and the orientation block is used for preventing the clothes airing support from swinging.

Further, when the clothes hanger is in a storage state, all the left wings are arranged in a stacked mode and all the right wings are arranged in a stacked mode.

Furthermore, the end part of the supporting rod is connected with a sucker.

The second purpose of the utility model is realized by adopting the following technical scheme:

the floor type drying rack comprises a telescopic center rod, a plurality of supporting legs hinged to the bottom of the center rod and a plurality of drying racks hinged to the top of the center rod.

Compared with the prior art, the beneficial effects of the utility model reside in that:

1. through set up a plurality of clothes of drying in the air and propping on rectangular form bracing piece, can be so that the bracing piece directly the sunning clothing, and a plurality of clothes of drying in the air prop and can improve clothes and dry in the air efficiency effectively.

2. The clothes hanger can move up or down along the height direction, so that when the clothes hanger is in an unfolded state, space interference between the aired clothes and the support rod can be avoided; and when the clothes hanger is in a storage state, the space occupied by the clothes hanger in the height direction is reduced, so that the clothes hanger is convenient to carry.

Drawings

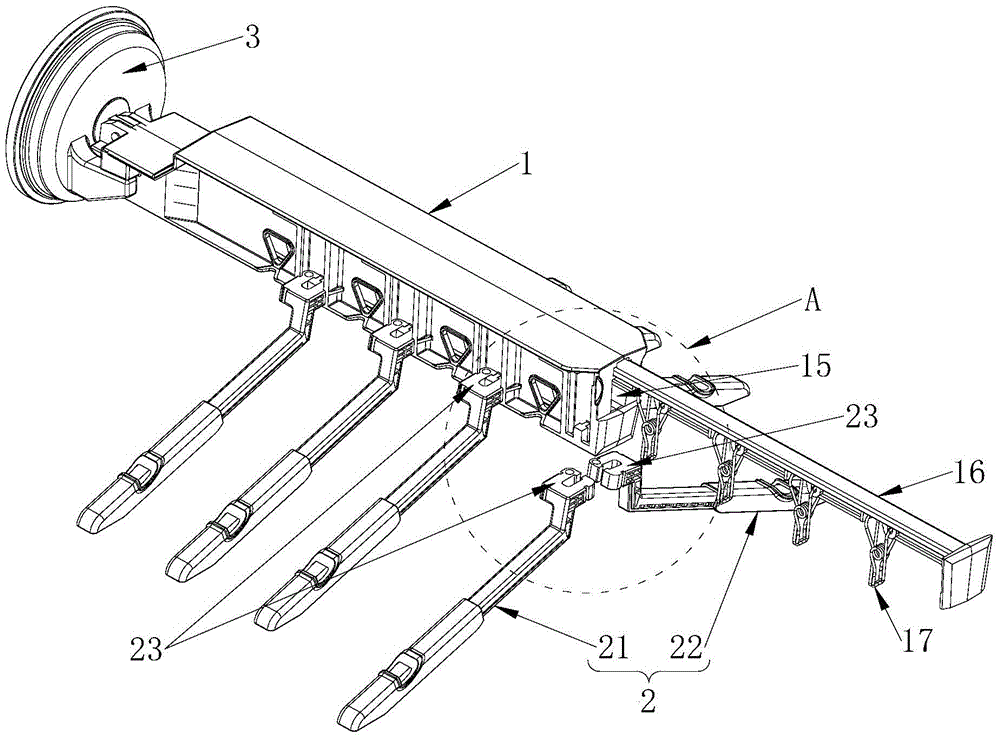

Fig. 1 is a schematic structural view of a laundry rack according to a first embodiment of the present invention (one of the laundry racks is in a disassembled state), wherein the laundry racks are in an unfolded state;

FIG. 2 is an enlarged view of a portion of FIG. 1 at A;

FIG. 3 is a schematic structural view of the support rod of FIG. 1;

fig. 4 is a partial enlarged view of fig. 3 at B;

FIG. 5 is a schematic structural view of the laundry rack shown in FIG. 1, wherein the laundry rack is in a storage state;

FIG. 6 is a partial enlarged view at C of FIG. 5;

FIG. 7 is a schematic structural view of a clothes hanger according to a second embodiment of the present invention;

fig. 8 is a partial enlarged view of fig. 7 at D;

fig. 9 is a schematic structural view of a clothes hanger according to a third embodiment of the present invention;

fig. 10 is a partial enlarged view at E of fig. 9;

FIG. 11 is an exploded view of the laundry stand shown in FIG. 9;

fig. 12 is a partial enlarged view at F of fig. 11;

fig. 13 is a schematic structural view of the floor drying rack of the present invention.

In the figure: 1. a support bar; 11. a guide groove; 12. inserting the column; 13. a containing groove; 14. an orientation block; 15. a strip-shaped cavity; 16. pulling out the insertion rod; 17. a clip; 2. airing the clothes support; 21. a left wing; 22. a right wing; 23. a connecting portion; 231. inserting holes; 3. a suction cup; 4. a center pole; 5. supporting legs; 6. a guide bar; 7. the accommodating through hole.

Detailed Description

The present invention will be further described with reference to the accompanying drawings and the detailed description, and it should be noted that the embodiments or technical features described below can be arbitrarily combined to form a new embodiment without conflict.

It will be understood that when an element is referred to as being "secured to" another element, it can be directly on the other element or intervening elements may also be present. When an element is referred to as being "connected" to another element, it can be directly connected to the other element or intervening elements may be present. As used herein, "vertical," "horizontal," "left," "right," and similar expressions are for purposes of illustration only and do not represent the only embodiments.

Unless defined otherwise, all technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the art to which this invention belongs. The terminology used herein in the description of the invention is for the purpose of describing particular embodiments only and is not intended to be limiting of the invention. As used herein, the term "and/or" includes any and all combinations of one or more of the associated listed items.

The first embodiment:

fig. 1 to 6 show a clothes hanger according to a first embodiment of the present invention, which includes a strip-shaped support rod 1, and a plurality of clothes hangers 2 disposed at intervals along the length direction of the support rod 1 and connected to the support rod 1. The clothes hanger 2 includes a left wing 21 and a right wing 22 for spreading clothes, and each clothes hanger 2 is movable in the height direction with respect to the support rod 1. Referring to fig. 1 and 2, when the clothes hanger 2 is at a low position (i.e. a relatively low height), the clothes hanger 2 is in an unfolded state so that the clothes hanger 2 can support clothes; referring to fig. 5 and 6, when the clothes hanger 2 is at a high position (i.e. a relatively high height), both the left wing 21 and the right wing 22 can swing relative to the support rod 1, so that both the left wing 21 and the right wing 22 approach the support rod 1 until the clothes hanger 2 is in a storage state.

Specifically, the end of the support rod 1 is connected with a suction cup 3 so as to fix the clothes hanger on a wall surface or a cabinet surface. Or, as an alternative, the end of the support rod 1 may be provided with a hook, and the hook may lean against an external fixture.

It should be noted that, when the clothes hanger 2 is in the storage state, the whole clothes hanger is in a strip structure, so that the clothes hanger is very convenient to carry, occupies a small space, and is very suitable for traveling. When the clothes drying support 2 is switched from the storage state to the unfolding state, the left wing 21 and the right wing 22 of the clothes drying support 2 swing relative to the support rod 1 and then move downwards relative to the support rod 1, and at the moment, the clothes drying support 2 can support clothes; in particular, since the clothes hanger 2 needs to be moved in the height direction when being switched between the storage state and the expansion state, when the clothes hanger 2 is in the low position (i.e., when the clothes hanger 2 is in the expansion state), the top of the clothes or the trousers does not abut against the support rod 1 or interfere spatially after the clothes or the trousers are spread by the clothes hanger 2. However, when the clothes hanger 2 is in the high position, the left wing 21 and the right wing 22 approach the support bar 1 to make the clothes hanger 2 in the storage state, and at this time, the size of the whole clothes hanger in the height direction is reduced, so that the space occupied by the clothes hanger can be reduced, and the clothes hanger is very convenient to carry.

That is to say, through set up a plurality of clothes hangers 2 that dry in the air on rectangular shape bracing piece 1, can be so that bracing piece 1 directly sunning clothing, and a plurality of clothes hangers 2 that dry in the air can improve clothes drying efficiency effectively. The clothes hanger 2 can move up or down along the height direction, so that when the clothes hanger 2 is in an unfolded state, the aired clothes do not interfere with the support rod 1 in space; and when the clothes hanger 2 is in the storage state, the space occupied by the clothes hanger in the height direction is reduced, thereby being convenient for carrying.

As a further preferred embodiment: the support rod 1 is provided with a plurality of guide rails extending in the height direction, each clothes hanger 2 corresponds to at least one guide rail, each clothes hanger 2 is provided with a connecting part 23 matched with the guide rails, and the left wing 21 and the right wing 22 ascend or descend along with the connecting parts 23. Obviously, the stability of the movement of the clothes hanger 2 is improved by the engagement of the connecting portion 23 with the guide rail. The left wing 21 and the right wing 22 may be connected to the same connecting portion 23, or may be connected to one connecting portion 23. Obviously, when the left wing 21 and the right wing 22 are connected to a connecting portion 23 in common, the left wing 21 is preferably hinged to the connecting portion 23 so that the left wing 21 can swing with respect to the connecting portion 23; the right wing 22 is preferably hinged to the connecting portion 23 so that the right wing 22 can swing with respect to the connecting portion 23. It will be appreciated that the guide track may alternatively be provided on the clothes hanger 2.

As a further preferred embodiment: the top of the guide rail is provided with a hinged part, and after the connecting part 23 is matched with the hinged part, the left wing 21 and the right wing 22 can swing relative to the support rod 1. By the hinge portion cooperating with the connecting portion 23, it is possible to make the swinging of the left wing 21 and the right wing 22 more accurate and smooth. It will be appreciated that alternatively the top of the rail may simply be a cavity large enough to allow the left and

right wings

21, 22 to swing.

As a further preferred embodiment: referring to fig. 1, the guide rails are respectively disposed at two opposite sides of the support rod 1, and the left wing 21 and the right wing 22 are independent from each other and respectively correspond to one of the guide rails.

As a further preferred embodiment: referring to fig. 1 to 4, the guide rail is a guide groove 11, the hinge portion is a plug-in post 12, the connecting portion 23 is provided with a plug-in hole 231, and when the clothes hanger 2 is in the high position, the plug-in post 12 is matched with the plug-in hole 231. Obviously, the guide slot 11 can guide and limit the clothes hanger 2, so as to prevent the clothes hanger 2 from moving accurately and stably in the height direction, and the left wing 21 and the right wing 22 can be ensured to swing accurately and stably due to the pivot connection relationship after the insertion hole 231 is matched with the insertion column 12.

As a further preferred embodiment: referring to fig. 3 and 4, the top of each guide groove 11 extends along the length direction of the support rod 1 to form an accommodating groove 13, and when the left wing 21 and the right wing 22 are in the accommodated state, the left wing 21 and the right wing 22 are respectively accommodated in the corresponding accommodating grooves 13. Set up like this, can be so that the clothes hanger 2 that dries in the air accomodate the back, the clothes hanger structure of drying in the air is comparatively compact, and shared space is littleer. Meanwhile, the clothes hanger 2 can be prevented from being unfolded accidentally. Further, the receiving groove is in snap fit with the connecting portion 23, thereby further preventing the clothes hanger 2 from being unfolded artificially.

As a further preferred embodiment: referring to fig. 3 and 4, the bottom of the guide rail is provided with an orientation block 14, the connection part 23 is adapted to the orientation block 14, and the orientation block 14 is used for preventing the clothes hanger 2 from swinging, so that clothes aired on the clothes hanger 2 cannot swing greatly to avoid dropping of the clothes hanger.

As a further preferred embodiment: referring to fig. 5 and 6, when the clothes hanger 2 is in the storage state, all the left wings 21 are stacked and all the right wings 22 are stacked. Due to the arrangement, the length of the supporting rod 1 is short so as to be convenient to store and carry, more clothes hangers 2 are arranged in the limited length of the supporting rod 1 as far as possible, and after the clothes hangers 2 are in a storage state, the clothes hanger is compact in structure and small in occupied space.

As a further preferred embodiment: referring to fig. 1, in order to further expand the airing space, a strip-shaped cavity 15 is formed in one end of the clothes hanger 2, which is far away from the suction cup 3, and the strip-shaped cavity 15 is connected with an inserting and pulling rod 16 which can move relative to the strip-shaped cavity 15. The plugging rod 16 is provided with a plurality of clamps 17 arranged at intervals along the length direction.

Second embodiment:

referring to fig. 7 and 8, the clothes hanger comprises a strip-shaped support rod 1 and a plurality of clothes hangers 2 arranged at intervals along the length direction of the support rod 1. The clothes hanger 2 comprises a left wing 21 and a right wing 22 for opening clothes, the support rod 1 is provided with a plurality of guide rods 6 (namely guide rails are preferably the guide rods 6) extending in the height direction, the guide rods 6 are respectively arranged on two opposite sides of the support rod 1, and each guide rod 6 is respectively matched with one of the left wing 21 or the right wing 22. In this way, the clothes hangers 2 can be raised or lowered in the height direction by the guidance of the guide bar 6, and the clothes hangers 2 can be switched between the storage state and the expansion state.

The third embodiment:

referring to fig. 9-12, the clothes hanger comprises a strip-shaped support rod 1 and a plurality of clothes hangers 2 arranged at intervals along the length direction of the support rod 1. The clothes hanger 2 comprises a left wing 21 and a right wing 22 which are used for opening clothes, the supporting rod 1 is provided with a plurality of containing through holes 7 which are arranged at intervals along the length direction, each containing through hole 7 contains a guide rod 6 which extends along the height direction, and each clothes hanger 2 is connected with one of the guide rods 6 respectively. Thus, the left wing 21 and the right wing 22 of the same clothes hanger 2 are connected with the same guide rod 6 together, and the number of the guide rods 6 is reduced. When the clothes hanging support 2 is in a low position, the clothes hanging support 2 is in an unfolded state so that the clothes hanging support 2 can support clothes; when the clothes hanger 2 is in a high position, the left wing 21 and the right wing 22 can swing relative to the support rod 1, so that the left wing 21 and the right wing 22 are both close to the support rod 1 until the clothes hanger 2 is in a storage state. In this way, the clothes hangers 2 can be raised or lowered in the height direction by the guidance of the guide bar 6, and the clothes hangers 2 can be switched between the storage state and the expansion state.

In addition, the laundry stands of the first, second, and third embodiments may be applied to floor drying racks. Specifically, fig. 13 shows the utility model discloses a drying rack falls to ground, the drying rack falls to ground include telescopic well core rod 4, articulate a plurality of supporting legss 5 in well core rod 4 bottom and articulate 4 tops of well core rod a plurality of clothes hanger that dries in the air. Wherein, it should be noted that, when the clothes hanger is installed on the floor-type drying rack, the suction cup 3 can be omitted, or the suction cup 3 is arranged at one end of the support rod 1 far away from the floor-type drying rack. In addition, it should be expanded that the clothes horses of the first, second and third embodiments may be applied to electric clothes horses.

The above embodiments are only preferred embodiments of the present invention, and the protection scope of the present invention cannot be limited thereby, and any insubstantial changes and substitutions made by those skilled in the art based on the present invention are all within the protection scope of the present invention.

Claims

1. Clothes hanger dries in air, including rectangular form bracing piece, follow the length direction of bracing piece sets up and connects each other at interval a plurality of clothes that dry in the air on the bracing piece prop, the clothes that dry in the air props including the left wing and the right wing that are used for propping open the clothing, its characterized in that: each clothes drying support can move along the height direction relative to the support rod; when the clothes hanger is in a low position, the clothes hanger is in an unfolded state so that the clothes hanger can unfold clothes; when the clothes hanger is in a high position, the left wing and the right wing can swing relative to the supporting rod, so that the left wing and the right wing are close to the supporting rod until the clothes hanger is in a storage state.

2. A laundry rack according to claim 1 in which: the support rod is provided with a plurality of guide rails extending along the height direction, each clothes hanger corresponds to at least one guide rail, each clothes hanger is provided with a connecting part matched with the guide rails, and the left wing and the right wing ascend or descend along with the connecting parts.

3. A laundry rack according to claim 2 in which: the top of the guide rail is provided with a hinged part, and after the connecting part is matched with the hinged part, the left wing and the right wing can swing relative to the supporting rod.

4. A laundry rack according to claim 3 in which: the guide rails are respectively arranged on two opposite sides of the supporting rod, and the left wing and the right wing are mutually independent and respectively correspond to one of the guide rails.

5. A laundry rack according to claim 4 in which: the guide rail is a guide groove, the hinged portion is an insertion column, the connecting portion is provided with an insertion hole, and when the clothes airing support is in a high position, the insertion column is matched with the insertion hole.

6. A laundry rack according to claim 5 in which: the top of each guide groove extends along the length direction of the supporting rod to form an accommodating groove, and when the left wing and the right wing are in an accommodating state, the left wing and the right wing are respectively accommodated in the corresponding accommodating grooves.

7. A laundry rack according to claim 2 in which: the bottom of guide rail is equipped with directional piece, connecting portion with directional piece adaptation, directional piece is used for preventing the clothing that dries in the air props the swing.

8. A laundry rack according to claim 1 in which: when the clothes airing support is in a storage state, all the left wings are arranged in a stacked mode and all the right wings are arranged in a stacked mode.

9. A laundry rack according to claim 1 in which: the end of the supporting rod is connected with a sucker.

10. Floor drying rack, its characterized in that: comprises a telescopic central rod, a plurality of supporting feet hinged at the bottom of the central rod and a plurality of clothes horses hinged at the top of the central rod, wherein the clothes horses are as claimed in any one of claims 1 to 8.
