CN213670505U - A screening and classification device for the production and processing of cerium oxide polishing powder - Google Patents
A screening and classification device for the production and processing of cerium oxide polishing powder Download PDFInfo
- Publication number
- CN213670505U CN213670505U CN202022558116.0U CN202022558116U CN213670505U CN 213670505 U CN213670505 U CN 213670505U CN 202022558116 U CN202022558116 U CN 202022558116U CN 213670505 U CN213670505 U CN 213670505U
- Authority
- CN
- China
- Prior art keywords
- fixedly connected
- cerium oxide
- screening
- oxide polishing
- polishing powder
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Crushing And Grinding (AREA)
Abstract
本实用新型公开了一种氧化铈抛光粉生产加工用筛选分级装置，包括真空吸粉机，所述真空吸粉机的底部固定连通有加料管，所述加料管的底部固定连通有箱体，所述箱体左侧的顶部固定连接有第一壳体，所述第一壳体内腔底部的左侧固定连接有第一电机，所述第一电机的输出端固定连接有转盘，所述转盘右侧的底部固定连接有滑杆，所述滑杆的表面活动套设有套管。本实用新型具备多级筛选的优点，解决了现有的氧化铈抛光粉生产加工用筛选分级装置在使用过程中只能对氧化铈抛光粉进行单级的筛选，导致氧化铈抛光粉在筛选过程中筛选的效果不好，造成部分杂质和直径较大的氧化铈抛光粉筛选不出，对后期加工造成影响的问题。
The utility model discloses a screening and classification device for the production and processing of cerium oxide polishing powder, which comprises a vacuum powder suction machine, a feeding pipe is fixedly connected to the bottom of the vacuum powder suction machine, and a box body is fixedly connected to the bottom of the feeding pipe. A first casing is fixedly connected to the top of the left side of the box body, a first motor is fixedly connected to the left side of the bottom of the inner cavity of the first casing, and a turntable is fixedly connected to the output end of the first motor. The bottom of the right side is fixedly connected with a sliding rod, and the surface of the sliding rod is movably sleeved with a sleeve. The utility model has the advantages of multi-stage screening, and solves the problem that the existing screening and grading device for the production and processing of cerium oxide polishing powder can only perform single-stage screening for the cerium oxide polishing powder during the use process, resulting in the cerium oxide polishing powder in the screening process. The effect of medium screening is not good, resulting in the problem that some impurities and cerium oxide polishing powder with larger diameter cannot be screened, which will affect the later processing.
Description
The technical field is as follows:
the utility model relates to a cerium oxide polishing powder technical field, concretely relates to screening grading plant is used in cerium oxide polishing powder production and processing.
Background art:
the cerium oxide polishing powder is widely used for polishing glass, and has the advantages of strong cutting force, short polishing time, long service life and high polishing precision, the production and processing of the cerium oxide polishing powder need to go through the steps of loading, roasting, primary screening, crushing, sorting, mixing and the like, the screening and grading device for the production and processing of the cerium oxide polishing powder needs to be used in the primary screening of the cerium oxide polishing powder, but the screening and grading device for the production and processing of the existing cerium oxide polishing powder can only carry out single-stage screening on the cerium oxide polishing powder in the using process, so that the screening effect of the cerium oxide polishing powder in the screening process is not good, partial impurities and the cerium oxide polishing powder with larger diameter cannot be screened, and the influence is caused on the processing in the later stage.
The utility model has the following contents:
an object of the utility model is to provide a screening grading plant is used in cerium oxide polishing powder production and processing.
The utility model discloses by following technical scheme implement:
a screening and grading device for production and processing of cerium oxide polishing powder comprises a vacuum powder absorbing machine, wherein a feeding pipe is fixedly communicated with the bottom of the vacuum powder absorbing machine, a box body is fixedly communicated with the bottom of the feeding pipe, a first shell is fixedly connected to the left top of the box body, a first motor is fixedly connected to the left side of the bottom of an inner cavity of the first shell, a rotary disc is fixedly connected to the output end of the first motor, a slide rod is fixedly connected to the bottom of the right side of the rotary disc, a sleeve is movably sleeved on the surface of the slide rod, a connecting rod is fixedly connected to the top of the sleeve, a first screen is movably connected to the top of the connecting rod through a rotating shaft, the right side of the first screen sequentially penetrates through the first shell and the box body and extends to the right side of the box body, a vibrating motor is fixedly connected to the right side of the, the top of the fixed plate is fixedly connected with a fixed rod, the surface of the fixed rod is movably sleeved with a spring, the top of the surface of the fixed rod is movably sleeved with a movable plate, the top of the spring is fixedly connected with the bottom of the movable plate, two sides of the top of the movable plate are fixedly connected with supporting plates, the top of the supporting plates is movably connected with the bottom of the first screen through a rotating shaft, the bottom of the inner cavity of the box body is fixedly connected with a second motor, the output end of the second motor is fixedly connected with a rotating rod, the bottom of the inner wall of the box body is fixedly connected with a frame body, the top of the rotating rod penetrates through the inner cavity of the frame body, two sides of the rotating rod, which are positioned at one end of the inner cavity of the frame body, are both fixedly connected with a second shell, the bottom of the left side of the frame body, the equal fixedly connected with electric telescopic handle in both sides at second casing inner chamber top, electric telescopic handle's bottom fixedly connected with quarter butt, the equal fixedly connected with baffle in both sides of second casing inner chamber, the bottom of baffle is run through the bottom and the fixedly connected with brush cleaner that the quarter butt extends to the quarter butt, the right side fixedly connected with second screen cloth of framework inner chamber bottom, the right side fixedly connected with of framework bottom connects the workbin, the fixed intercommunication in bottom that connects the workbin right side has the connecting pipe, the connecting pipe is kept away from the one end that connects the workbin and is run through to the right side and the fixed intercommunication of box and connect the workbin.
Preferably, square holes are formed in the top of one side, opposite to the first shell, of the box body, and discharge holes are formed in the top of the right side of the box body.
Preferably, the top of the movable plate is provided with a first round hole matched with the fixed rod, and the diameter of the first round hole is larger than that of the fixed rod.
Preferably, a bearing is arranged between the rotating rod and the frame body, and the bearing is sleeved on the surface of the rotating rod.
Preferably, the second round hole with quarter butt looks adaptation is all seted up to the both sides at baffle top, and the diameter of second round hole is greater than the diameter of quarter butt.
The utility model has the advantages that: possess the advantage of multistage screening, it can only carry out single-stage screening to cerium oxide polishing powder in the use to have solved current cerium oxide polishing powder production and processing, it is not good to lead to the effect of cerium oxide polishing powder screening in the screening process, cause the great cerium oxide polishing powder screening of partial impurity and diameter, the problem of influence is caused to later stage processing, and through setting up the square hole, be convenient for first screen cloth reciprocates, through setting up first round hole, the fly leaf of being convenient for reciprocates on the surface of dead lever, through setting up the bearing, the counter-rotating lever is fixed, prevent that the framework from producing the influence to the rotation of bull stick, through setting up the second round hole, be convenient for electric telescopic handle drives the quarter butt and reciprocates.
Description of the drawings:
in order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without creative efforts.

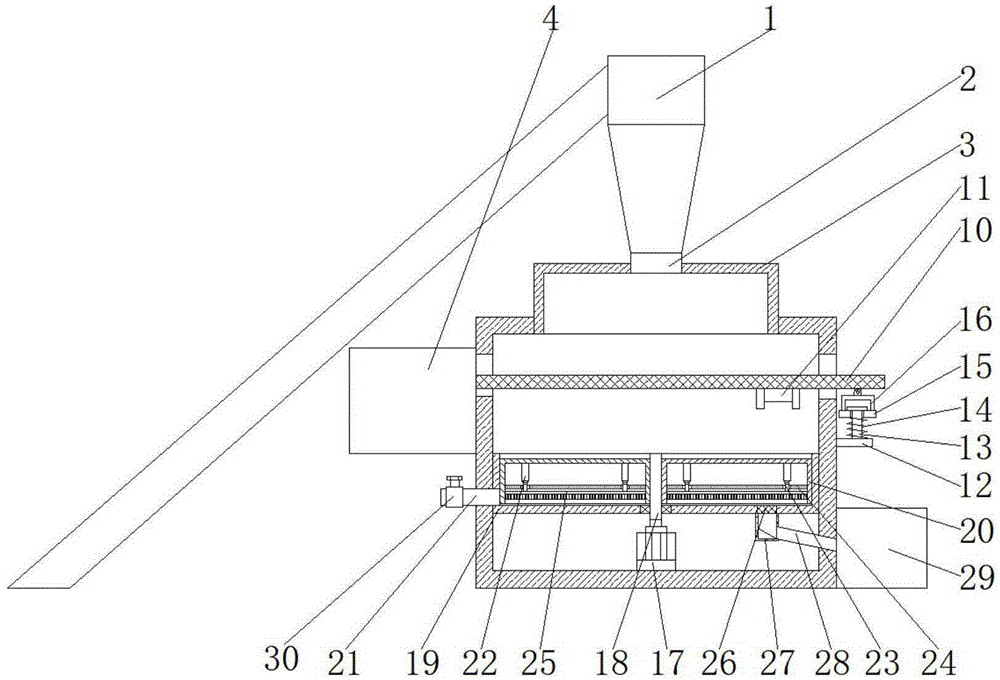

Fig. 1 is a schematic structural diagram of the present invention;
fig. 2 is a schematic top view of the frame structure of the present invention;
fig. 3 is a schematic cross-sectional view of the first housing structure of the present invention.
In the figure: the device comprises a vacuum powder suction machine 1, a feeding pipe 2, a box body 3, a first shell 4, a first motor 5, a rotary table 6, a sliding rod 7, a sleeve 8, a connecting rod 9, a first screen 10, a vibration motor 11, a fixing plate 12, a fixing rod 13, a spring 14, a movable plate 15, a supporting plate 16, a second motor 17, a rotating rod 18, a frame body 19, a second shell 20, a discharging pipe 21, an electric telescopic rod 22, a short rod 23, a baffle plate 24, a cleaning brush 25, a second screen 26, a material receiving box 27, a connecting pipe 28, a material receiving box 29 and a valve 30.
The specific implementation mode is as follows:
the technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts belong to the protection scope of the present invention.
As shown in fig. 1, fig. 2 and fig. 3, the utility model provides the following technical solutions: a screening and grading device for production and processing of cerium oxide polishing powder comprises a vacuum powder absorbing machine 1, wherein a feeding pipe 2 is fixedly communicated with the bottom of the vacuum powder absorbing machine 1, a box body 3 is fixedly communicated with the bottom of the feeding pipe 2, a first shell 4 is fixedly connected with the left top of the box body 3, a first motor 5 is fixedly connected with the left side of the bottom of an inner cavity of the first shell 4, a turntable 6 is fixedly connected with the output end of the first motor 5, a slide bar 7 is fixedly connected with the bottom of the right side of the turntable 6, a sleeve 8 is movably sleeved on the surface of the slide bar 7, a connecting rod 9 is fixedly connected with the top of the sleeve 8, a first screen 10 is movably connected with the top of the connecting rod 9 through a rotating shaft, the right side of the first screen 10 sequentially penetrates through the first shell 4 and the box body 3 and extends to the right side of the box body 3, the first screen 10 is fixedly connected with, the right side of the box body 3 is fixedly connected with a fixed plate 12, the top of the fixed plate 12 is fixedly connected with a fixed rod 13, the surface of the fixed rod 13 is movably sleeved with a spring 14, the top of the surface of the fixed rod 13 is movably sleeved with a movable plate 15, the top of the spring 14 is fixedly connected with the bottom of the movable plate 15, two sides of the top of the movable plate 15 are fixedly connected with supporting plates 16, the top of the supporting plate 16 is movably connected with the bottom of the first screen 10 through a rotating shaft, the bottom of the inner cavity of the box body 3 is fixedly connected with a second motor 17, the output end of the second motor 17 is fixedly connected with a rotating rod 18, the bottom of the inner wall of the box body 3 is fixedly connected with a frame body 19, the top of the rotating rod 18 penetrates through the inner cavity of the frame body 19, two sides of one end of the rotating rod 18, which, the left end of discharging pipe 21 runs through box 3 and extends to the left side of box 3, the surface that discharging pipe 21 is located box 3 left side one end is provided with valve 30, the equal fixedly connected with electric telescopic handle 22 in both sides at 20 inner chambers of second casing top, electric telescopic handle 22's bottom fixedly connected with quarter butt 23, the equal fixedly connected with baffle 24 in both sides of 20 inner chambers of second casing, the bottom of baffle 24 runs through the bottom and the fixedly connected with brush cleaner 25 that the quarter butt 23 extends to quarter butt 23, the right side fixedly connected with second screen cloth 26 of 19 inner chambers of framework, the right side fixedly connected with of 19 bottoms of framework connects workbin 27, the fixed intercommunication in bottom on connecing workbin 27 right side has connecting pipe 28, connecting pipe 28 keeps away from the one end that connects workbin 27 and runs through to the right side and the fixed intercommunication of box 3 and connect workbin 29.
The square hole has all been seted up at the top of box 3 and the relative one side of first casing 4, the discharge opening has been seted up at the top on box 3 right side.
The top of the movable plate 15 is provided with a first round hole matched with the fixed rod 13, and the diameter of the first round hole is larger than that of the fixed rod 13.
A bearing is arranged between the rotating rod 18 and the frame 19, and the bearing is sleeved on the surface of the rotating rod 18.
And second round holes matched with the short rods 23 are formed in the two sides of the top of the baffle plate 24, and the diameter of each second round hole is larger than that of each short rod 23.
The utility model discloses a theory of operation and use flow:
through an external power supply and a controller, when a user needs to screen cerium oxide polishing powder, the cerium oxide polishing powder firstly enters a box body 3 through a charging pipe 2 by a vacuum powder suction machine 1, then the user controls the output end of a first motor 5 to rotate through the controller, the output end of the first motor 5 rotates to drive a first screen 10 to move up and down through a rotary disc 6, a sliding rod 7, a sleeve 8 and a connecting rod 9, then the user controls a vibration motor 11 to vibrate through the controller, the first screen 10 moves up and down and the vibration of the vibration motor 11 screens out impurities with the diameter smaller than the aperture of the first screen 10 and cerium oxide polishing powder with the same diameter, then the user controls the output end of a second motor 17 to rotate through the controller, the output end of the second motor 17 rotates to drive a second shell 20 to rotate through a rotary rod 18, the second shell 20 rotates to drive the cerium oxide polishing powder to rotate in a frame body 19, then through the screening of second screen cloth 26 with the diameter be less than the impurity in second screen cloth 26 aperture and the cerium oxide polishing powder of same diameter, then the user control electric telescopic handle 22 through the controller extension, electric telescopic handle 22 extension drives the brush cleaner 25 through quarter butt 23 and descends, brush cleaner 25 descends and cleans the cerium oxide polishing powder of framework 19 inner chamber bottom, clean the cerium oxide polishing powder of framework 19 inner chamber bottom to the top of second screen cloth 26 and screen, then the user opens valve 30, discharge the cerium oxide polishing powder that the diameter is greater than second screen cloth 26 aperture through discharging pipe 21, thereby reach the purpose of screening cerium oxide polishing powder.
In summary, the following steps: the screening and grading device for producing and processing the cerium oxide polishing powder solves the problems that the existing screening and grading device for producing and processing the cerium oxide polishing powder can only screen the cerium oxide polishing powder in a single stage in the using process, so that the screening effect of the cerium oxide polishing powder in the screening process is poor, partial impurities and the cerium oxide polishing powder with larger diameter cannot be screened out, and the screening of partial impurities and the cerium oxide polishing powder with larger diameter cannot be realized, the influence on the later processing is caused.
The above description is only a preferred embodiment of the present invention, and should not be taken as limiting the invention, and any modifications, equivalent replacements, improvements, etc. made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (5)
1. The utility model provides a screening grading plant is used in production and processing of cerium oxide polishing powder, includes the vacuum powder absorption machine, its characterized in that: the bottom of the vacuum powder absorbing machine is fixedly communicated with a feeding pipe, the bottom of the feeding pipe is fixedly communicated with a box body, the top of the left side of the box body is fixedly connected with a first shell, the left side of the bottom of an inner cavity of the first shell is fixedly connected with a first motor, the output end of the first motor is fixedly connected with a rotary disc, the bottom of the right side of the rotary disc is fixedly connected with a slide bar, the surface of the slide bar is movably sleeved with a sleeve, the top of the sleeve is fixedly connected with a connecting rod, the top of the connecting rod is movably connected with a first screen through a rotary shaft, the right side of the first screen sequentially penetrates through the first shell and the box body and extends to the right side of the box body, the right side of the bottom of one side of the inner cavity of the box body is fixedly connected with, the surface of the fixed rod is movably sleeved with a spring, the top of the surface of the fixed rod is movably sleeved with a movable plate, the top of the spring is fixedly connected with the bottom of the movable plate, two sides of the top of the movable plate are fixedly connected with supporting plates, the top of the supporting plates is movably connected with the bottom of the first screen through a rotating shaft, the bottom of the inner cavity of the box body is fixedly connected with a second motor, the output end of the second motor is fixedly connected with a rotating rod, the bottom of the inner wall of the box body is fixedly connected with a frame body, the top of the rotating rod penetrates through the inner cavity of the frame body, two sides of the rotating rod, which are positioned at one end of the inner cavity of the frame body, are both fixedly connected with a second shell, the bottom of the left side of the frame body is fixedly communicated with a discharging pipe, the left end of the discharging pipe penetrates through the box body, the bottom fixedly connected with quarter butt of electric telescopic handle, the equal fixedly connected with baffle in both sides of second casing inner chamber, the bottom of baffle is run through the bottom and the fixedly connected with brush cleaner that the quarter butt extends to the quarter butt, the right side fixedly connected with second screen cloth of framework inner chamber bottom, the right side fixedly connected with of framework bottom connects the workbin, the bottom fixed intercommunication that connects the workbin right side has the connecting pipe, the connecting pipe is kept away from the one end that connects the workbin and is run through to the right side and the fixed intercommunication of box and connect the workbin.
2. The screening and grading device for producing and processing cerium oxide polishing powder according to claim 1, wherein: the square hole has all been seted up at the top of box and the relative one side of first casing, the discharge opening has been seted up at the top on box right side.
3. The screening and grading device for producing and processing cerium oxide polishing powder according to claim 1, wherein: the top of fly leaf is seted up the first round hole with dead lever looks adaptation, and the diameter of first round hole is greater than the diameter of fixed lever.
4. The screening and grading device for producing and processing cerium oxide polishing powder according to claim 1, wherein: a bearing is arranged between the rotating rod and the frame body, and the bearing is sleeved on the surface of the rotating rod.
5. The screening and grading device for producing and processing cerium oxide polishing powder according to claim 1, wherein: the second round hole with quarter butt looks adaptation is all seted up to the both sides at baffle top, and the diameter of second round hole is greater than the diameter of quarter butt.
