CN213666924U

CN213666924U - A household portable disinfection box

Info

Publication number: CN213666924U
Application number: CN202022272410.5U
Authority: CN
Inventors: 李世军
Original assignee: Guangzhou Zhenghekang Biotechnology Development Co ltd
Current assignee: Guangzhou Zhenghekang Biotechnology Development Co ltd
Priority date: 2020-10-13
Filing date: 2020-10-13
Publication date: 2021-07-13
Anticipated expiration: 2030-10-13

Abstract

The utility model discloses a household portable disinfection box, comprising a fixing cylinder and a bottom plate, a fixing groove is arranged on the side wall of the fixing cylinder, an ultraviolet lamp is installed inside the fixing groove, and a transparent cover is installed at the open end of the fixing groove ; The bottom surface of the fixed cylinder is provided with a plug slot, and the inner top surface of the plug groove is installed with an electric plug block; A battery, a through hole is provided through the surface of the top plate. The beneficial effects are: in daily use, the surface of commonly used products such as masks and mobile phones that are widely used in contact with the outside world can be cleaned and disinfected, and the harm to the human body caused by viruses and bacteria attached to the surface of daily necessities can be reduced. It can be used anywhere, conveniently, efficiently and quickly; because the bottom plate can be disassembled, the cleaning of the fixed cylinder is more thorough, which greatly improves the health of the device.

Description

Domestic portable disinfection box

Technical Field

The utility model relates to a disinfection box field, concretely relates to domestic portable disinfection box.

Background

In daily life, along with the contact and the use of article such as gauze mask cell-phone commonly used, the article surface can be adhered with virus bacterium to cause the harm to the human body, along with the continuous improvement of people's standard of living, people also pay more attention to the security of article use.

Present disinfection box is used the time spent outside, and difficult dismantlement to the bottom plate, there is clean blind spot in the device inside to lead to the inside cleanness of device not thorough, and current disinfection box is difficult to carry out the electric quantity through the mode of wireless charging and replenishes, uses inconveniently.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide a household portable disinfection box for solving the problems, the preferred technical scheme in the technical schemes provided by the utility model can clean and kill the surfaces of common-use products such as masks and mobile phones which are widely contacted with the outside, reduce the harm of virus and bacteria attached to the surfaces of daily necessities to human bodies, and simultaneously can be conveniently, efficiently and quickly used anytime and anywhere; because the bottom plate can be dismantled, clean more thoroughly to the solid fixed cylinder, improved the technological effect of the health nature of device use greatly, see the explanation below for details.

In order to achieve the above purpose, the utility model provides a following technical scheme:

the utility model provides a household portable disinfection box, which comprises a fixed cylinder and a bottom plate, wherein the upper part and the lower part of the fixed cylinder are of an opening structure, the upper surface of the fixed cylinder is movably provided with a cover plate, the side wall of the fixed cylinder is provided with a fixed groove, an ultraviolet lamp is arranged inside the fixed groove, and the opening end of the fixed groove is provided with a transparent cover for protecting the ultraviolet lamp;

the bottom surface of the fixed cylinder is provided with an insertion groove, the inner top surface of the insertion groove is provided with an electric insertion block, and the upper end of the electric insertion block is electrically connected with the ultraviolet lamp;

the bottom plate with the cooperation is pegged graft to the inserting groove, the bottom plate surface is provided with electricity inserted block grafting complex electricity socket, the bottom plate upper surface is open structure, the roof is installed to the bottom plate open end, bottom plate internally mounted has wireless charging coil, hot plate and battery, the hot plate wireless charging coil electricity socket all with the battery electricity is connected, the surface of roof run through be provided with the corresponding through-hole of hot plate.

When the household portable disinfection box is used, the cover plate is opened, articles to be disinfected are placed in the fixed cylinder, and the articles are disinfected through the ultraviolet lamp; when aromatherapy disinfection is needed, aromatherapy is dripped into the through hole, and aromatherapy disinfection operation is realized by heating the heating plate; the wireless charging coil is arranged in the bottom plate, the device is placed in the wireless charging seat, the wireless charging operation of the device can be realized, the electric quantity is stored in the battery, and after the bottom plate is connected with the fixed cylinder, the electric plug block can be inserted into the inside of the charging seat, the line connection of the ultraviolet lamp is realized, and the electric quantity is provided for the ultraviolet lamp; the device can be in daily use, to the common use formula such as gauze mask, cell-phone and with the external extensive contact class life with the cleanness on product surface with killing, alleviates the harm of the adnexed virus bacterium in daily necessities surface to the human body, can accomplish simultaneously anytime and anywhere, convenient and efficient swift use, when cleaning the product inside, can with the bottom plate is followed the inserting groove is inside to be taken out, makes the solid fixed cylinder exposes completely, realizes right the solid fixed cylinder inside and the surface of bottom plate carries out clean completely, and is clean more thorough, has improved the health nature of device use greatly.

Preferably, the bottom surface of the bottom plate is provided with two catching grooves, and the two catching grooves are respectively close to two sides of the bottom plate in the length direction.

Preferably, the cross section of the buckle groove is in a dovetail shape.

Preferably, the fixed cylinder is detachably provided with a suspension frame inside.

Preferably, the suspended frame comprises a supporting net, two supporting rods are rotatably arranged on the bottom surface of the supporting net through a rotating shaft, and torsion springs used for enabling the two supporting rods to be away from each other are arranged on the outer side of the rotating shaft.

Preferably, the number of the rotating shafts is two, and the rotating shafts are respectively close to two sides of the supporting net in the length direction.

Preferably, the number of the fixing grooves is not less than one, and the fixing grooves are uniformly distributed on the inner wall of the fixing cylinder.

Has the advantages that: the cleaning and disinfecting device can clean and kill the surfaces of common household products such as masks and mobile phones which are widely contacted with the outside in daily use, reduces the harm of virus and bacteria attached to the surfaces of daily necessities to human bodies, and can be conveniently, efficiently and quickly used anytime and anywhere; because the bottom plate can be dismantled, clean more thoroughly to the solid fixed cylinder, improved the health nature that the device used greatly.

Drawings

In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without creative efforts.

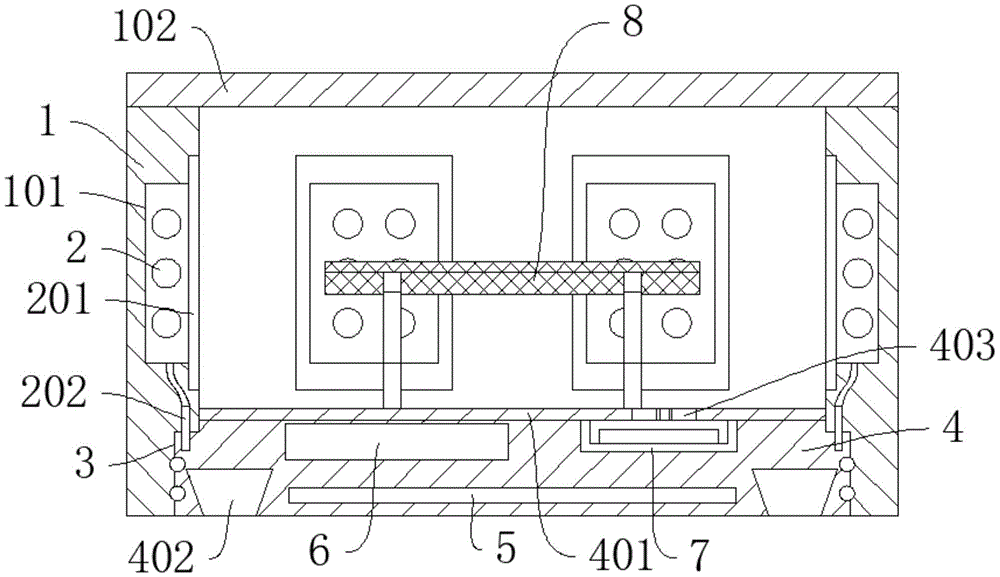

Fig. 1 is a schematic view of the internal structure of the present invention;

fig. 2 is a left-side view of the internal structure of the present invention;

fig. 3 is a top view of the bottom plate of the present invention.

The reference numerals are explained below:

1. a fixed cylinder; 101. fixing grooves; 102. a cover plate; 2. an ultraviolet lamp; 201. a transparent cover; 202. An electrical plug-in block; 3. inserting grooves; 4. a base plate; 401. a top plate; 402. buckling grooves; 403. a through hole; 404. A socket; 5. a wireless charging coil; 6. a battery; 7. heating plates; 8. suspending the overhead frame; 801. a support bar; 802. a rotating shaft; 803. a torsion spring; 804. and supporting the net.

Detailed Description

In order to make the objects, technical solutions and advantages of the present invention clearer, the technical solutions of the present invention will be described in detail below. It is to be understood that the embodiments described are only some embodiments of the invention, and not all embodiments. Based on the embodiments of the present invention, all other embodiments obtained by a person skilled in the art without creative efforts belong to the protection scope of the present invention.

Referring to fig. 1-3, the utility model provides a household portable disinfection box, which comprises a fixed cylinder 1 and a bottom plate 4, wherein the upper part and the lower part of the fixed cylinder 1 are of an open structure, a cover plate 102 is movably arranged on the upper surface of the fixed cylinder 1, a fixing groove 101 is arranged on the side wall of the fixed cylinder 1, an ultraviolet lamp 2 is arranged inside the fixing groove 101, and a transparent cover 201 for protecting the ultraviolet lamp 2 is arranged at the open end of the fixing groove 101;

the bottom surface of the fixed cylinder 1 is provided with an insertion groove 3, the inner top surface of the insertion groove 3 is provided with an electric insertion block 202, and the upper end of the electric insertion block 202 is electrically connected with the ultraviolet lamp 2;

bottom plate 4 and inserting groove 3 are pegged graft and are cooperated, and bottom plate 4 surface is provided with electric plug 202 and pegs graft complex and insert electric seat 404, and bottom plate 4 upper surface is open structure, and roof 401 is installed to bottom plate 4 open end, and bottom plate 4 internally mounted has wireless charging coil 5, hot plate 7 and battery 6, and hot plate 7, wireless charging coil 5, insert electric seat 404 and all be connected with battery 6 electricity, and the surface of roof 401 runs through and is provided with the through-hole 403 corresponding with hot plate 7.

As an alternative embodiment, the bottom surface of the bottom plate 4 is provided with two catching grooves 402, and the number of the catching grooves 402 is two and is respectively close to two sides of the bottom plate 4 in the length direction, so that the bottom plate 4 can be conveniently taken out from the inside of the inserting groove 3 through the catching grooves 402.

The cross section of the fastening groove 402 is dovetail-shaped, so that the fastening groove 402 with dovetail-shape is convenient for a user to extend fingers into the fastening groove 402, and the bottom plate 4 is taken out from the inside of the insertion groove 3 through the fastening groove 402.

The inside demountable installation of fixed section of thick bamboo 1 has the suspension 8, sets up like this, supports the article of sterilizing through suspension 8.

The suspension frame 8 comprises a supporting net 804, two supporting rods 801 are rotatably installed on the bottom surface of the supporting net 804 through a rotating shaft 802, a torsion spring 803 used for enabling the two supporting rods 801 to be away from each other is installed on the outer side of the rotating shaft 802, the torsion spring is arranged in a mode that the two supporting rods 801 are capable of utilizing elasticity of the torsion spring 803, the supporting rods 801 are pushed to be away from each other, the supporting rods 801 are corresponding to the width direction of the fixed cylinder 1, the movable ends of the two supporting rods 801 are used for fixing, articles are supported, and the articles are sterilized more.

The number of the rotating shafts 802 is two, and the rotating shafts are respectively close to two sides of the supporting net 804 in the length direction, so that the supporting net 804 can be stably supported.

The quantity of fixed slot 101 is not less than one, and at the inner wall evenly distributed of fixed section of thick bamboo 1, sets up like this, can disinfect article through a plurality of ultraviolet lamp 2, and it is effectual to disinfect.

By adopting the structure, when the device is used, the cover plate 102 is opened, articles to be disinfected are placed in the fixed cylinder 1, and the articles are disinfected by the ultraviolet lamp 2; when aromatherapy disinfection is needed, aromatherapy is dripped into the through hole 403, and aromatherapy disinfection operation is realized by heating the heating plate 7; because the wireless charging coil 5 is arranged in the bottom plate 4, the device is placed in a wireless charging seat, the wireless charging operation of the device can be realized, the electric quantity is stored in the battery 6, and after the bottom plate 4 is connected with the fixed cylinder 1, the electric plug block 202 can be inserted into the electric plug seat 404, the line connection of the ultraviolet lamp 2 is realized, and the electric quantity is provided for the ultraviolet lamp 2; the device can be in daily use, to gauze mask, common use formula such as cell-phone and with the external world wide contact class product surface for life clean with disappearing and kill, alleviate the harm of daily necessities surface adhesion's virus bacterium to the human body, possible anytime and anywhere simultaneously, convenient and efficient swift use, when cleaning the product inside, can take out bottom plate 4 from 3 insides of inserting groove, make solid fixed cylinder 1 expose completely, the realization is to solid fixed cylinder 1 inside and bottom plate 4's surface clean completely, it is clean more thorough, the health of device use has been improved greatly.

The above description is only for the specific embodiments of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art can easily think of the changes or substitutions within the technical scope of the present invention, and all should be covered within the protection scope of the present invention. Therefore, the protection scope of the present invention shall be subject to the protection scope of the claims.

Claims

1. A household portable sterilizing box is characterized in that: comprising a fixed cylinder (1) and a base plate (4), the fixed cylinder (1) is an open structure up and down, and the upper surface of the fixed cylinder (1) is movably installed with A cover plate (102), a fixing groove (101) is provided on the side wall of the fixing cylinder (1), an ultraviolet lamp (2) is installed inside the fixing groove (101), and an open end of the fixing groove (101) is installed There is a transparent cover (201) for protecting the ultraviolet lamp (2);

The bottom surface of the fixing cylinder (1) is provided with an insertion slot (3), an electric plug (202) is installed on the inner top surface of the insertion slot (3), and the upper end of the electric plug (202) is connected to the the ultraviolet lamp (2) is electrically connected;

The bottom plate (4) is inserted and matched with the insertion slot (3), the surface of the bottom plate (4) is provided with a socket (404) to which the electric plug (202) is inserted and matched, and the bottom plate (4) (4) The upper surface is an open structure, a top plate (401) is installed at the open end of the bottom plate (4), and a wireless charging coil (5), a heating plate (7) and a battery (6) are installed inside the bottom plate (4) , the heating plate (7), the wireless charging coil (5), and the socket (404) are all electrically connected to the battery (6), and the surface of the top plate (401) is provided with a connection to the battery (401). through holes (403) corresponding to the heating plate (7).

2. A household portable disinfection box according to claim 1, characterized in that: the bottom surface of the bottom plate (4) is provided with a buckle groove (402), and the number of the buckle groove (402) is two, and They are respectively close to both sides of the bottom plate (4) in the length direction.

3. A household portable disinfection box according to claim 2, characterized in that: the cross section of the buckle groove (402) is dovetail-shaped.

4. A household portable sterilization box according to claim 1, characterized in that: a suspension frame (8) is detachably installed inside the fixing cylinder (1).

5. A household portable sterilization box according to claim 4, characterized in that: the suspension frame (8) comprises a support net (804), and the bottom surface of the support net (804) is rotated by a rotating shaft (802) Two support rods (801) are installed, and a torsion spring (803) for keeping the two support rods (801) away from each other is installed on the outer side of the rotating shaft (802).

6 . The portable disinfection box for household use according to claim 5 , wherein the number of the rotating shafts ( 802 ) is two, and they are respectively close to both sides of the support net ( 804 ) in the length direction. 7 .

7. A household portable disinfection box according to claim 1, characterized in that: the number of the fixing grooves (101) is not less than one, and is evenly distributed on the inner wall of the fixing cylinder (1).
