本实用新型公开了一种妇产科用诊疗装置，包括诊疗床，诊疗床的下方设有滑动板，滑动板的底部设有滑轮，伸缩缸的外侧设有围挡，诊疗床上设有床垫，床垫包括固定垫和转动垫，转动垫与诊疗床之间设有调节机构，固定垫上贯穿设有U型槽，诊疗床的一端设有连接座，连接座内转动设有支撑板，支撑板上转动设有支撑柱，支撑柱的顶端设有支撑座，诊疗床的一侧设有扶手。本实用新型与现有技术相比的优点在于：伸缩缸控制诊疗床上下升降，既方便孕妇上下，提高安全性，又利于医生根据需要调整高度；转动垫与调节机构配合，实现相对固定垫的转动，使得孕妇的腰部能有支撑，不会因为平躺造成舒适度不够，一侧的扶手方便孕妇进行抓握，也能起到阻挡作用。
The utility model discloses a diagnosis and treatment device for obstetrics and gynecology, which comprises a diagnosis and treatment bed, a sliding plate is arranged under the diagnosis and treatment bed, a pulley is arranged at the bottom of the sliding plate, an enclosure is arranged on the outer side of a telescopic cylinder, and a mattress is arranged on the diagnosis and treatment bed. The mattress includes a fixed pad and a rotating pad. An adjustment mechanism is arranged between the rotating pad and the diagnosis and treatment bed. A U-shaped groove runs through the fixed pad. One end of the diagnosis and treatment bed is provided with a connecting seat. The connecting seat is rotated with a support plate to support A support column is arranged on the board to rotate, a support seat is arranged at the top of the support column, and an armrest is arranged on one side of the diagnosis and treatment bed. Compared with the prior art, the utility model has the advantages that: the telescopic cylinder controls the up and down of the diagnosis and treatment bed, which is convenient for pregnant women to get up and down, improves safety, and helps doctors to adjust the height according to their needs; Rotation enables the pregnant woman's waist to have support, and will not cause insufficient comfort due to lying flat. The armrest on one side is convenient for pregnant women to grasp, and can also play a blocking role.
Description
Technical Field
The utility model relates to the technical field of medical equipment, specifically indicate a gynaecology and obstetrics is with diagnosing device.
Background
The gynaecology and obstetrics is one of four main subjects of clinical medicine, and mainly researches the etiology, pathology, diagnosis and prevention of female reproductive organ diseases, physiological and pathological changes of pregnancy and childbirth, prevention and diagnosis and treatment of high-risk pregnancy and dystocia, female reproductive internal secretion, family planning, female health care and the like. The advanced research of the medical basic theories of modern molecular biology, oncology, genetics, reproductive endocrinology, immunology and the like and the progress of the clinical medical diagnosis and treatment detection technology widen and deepen the development of the gynecologic and obstetric science, and play an important role in ensuring the health and reproductive health of women and preventing and treating various gynecological diseases.
The existing diagnosis and treatment bed is high in position and inconvenient for pregnant women to use for the convenience of checking visual angles, and the existing diagnosis and treatment bed is generally climbed by arranging small stairs, is unsafe and is easy to cause accidents.
SUMMERY OF THE UTILITY MODEL
The to-be-solved technical problem of the utility model is to overcome the defect of above-mentioned technique, provide a gynaecology and obstetrics is with diagnosing device.
In order to solve the technical problem, the utility model provides a technical scheme does: a diagnosis and treatment device for obstetrics and gynecology department comprises a diagnosis and treatment bed capable of ascending and descending up and down, wherein a sliding plate is arranged below the diagnosis and treatment bed, pulleys are arranged at the bottom of the sliding plate, a braking mechanism is arranged on the pulleys, the diagnosis and treatment bed and the sliding plate can ascend and descend up and down through the control of a telescopic cylinder, a foldable enclosure is arranged on the outer side of the telescopic cylinder, a mattress is arranged on the diagnosis and treatment bed, the mattress is of a two-section structure and comprises a fixed pad and a rotating pad, the fixed pad is rotatably connected with the rotating pad, an adjusting mechanism is arranged between the rotating pad and the diagnosis and treatment bed, a U-shaped groove is formed in the fixed pad in a penetrating manner, a connecting seat is arranged at one end, close to the fixed pad, of the diagnosis and treatment bed, a supporting plate is rotatably arranged, the supporting seat is rotatably connected with the supporting column, one side of the diagnosis and treatment bed is provided with a handrail, and the handrail is of an arc-shaped structure.
As an improvement, the power source of the telescopic cylinder is pneumatic, a foot switch is arranged on one side of the diagnosis and treatment bed, and the foot switch is electrically connected with the telescopic cylinder.
As an improvement, the adjusting mechanism comprises a sliding groove arranged on the diagnosis and treatment bed, the sliding groove is arranged below the rotating pad, a moving block is arranged in the sliding groove in a sliding mode, a lead screw is arranged on the sliding groove in a rotating mode in the length direction, a rotating handle is arranged at one end of the lead screw, the moving block is connected with the lead screw in a rotating mode, the top end of the moving block is hinged to a connecting rod, and the other end of the connecting rod is hinged to the rotating pad.
As an improvement, a neck pillow is arranged on the rotating cushion and is made of memory sponge.
As an improvement, the support column comprises a fixed cylinder and a rotating rod, the fixed cylinder is fixedly connected with the support plate, a T-shaped groove is formed in the fixed cylinder, a T-shaped block matched with the T-shaped groove is arranged at the bottom end of the rotating rod, and a compression spring is arranged between the rotating rod and the T-shaped groove.
Compared with the prior art, the utility model the advantage lie in: the structure is simple, and the use is convenient; the telescopic cylinder is used for controlling the diagnosis and treatment bed to ascend and descend, so that the pregnant woman can conveniently ascend and descend, the safety is improved, and a doctor can conveniently adjust the height according to needs; the rotating pad is matched with the adjusting mechanism to realize the rotation relative to the fixed pad, so that the waist of the pregnant woman can be supported, the insufficient comfort level caused by lying is avoided, the handrail on one side is convenient for the pregnant woman to grasp, and the blocking effect can also be realized; the shank of pregnant woman supports through the supporting seat on the support column, and the bottom of support column rotates through the relative connecting seat of backup pad, and pregnant woman's leg pressure back on the supporting seat, and compression spring pressurized for the overlap portion of dwang relatively fixed section of thick bamboo increases, and the supporting seat passes through the dwang relatively fixed section of thick bamboo and realizes rotating, and the multistage is adjusted.
Drawings

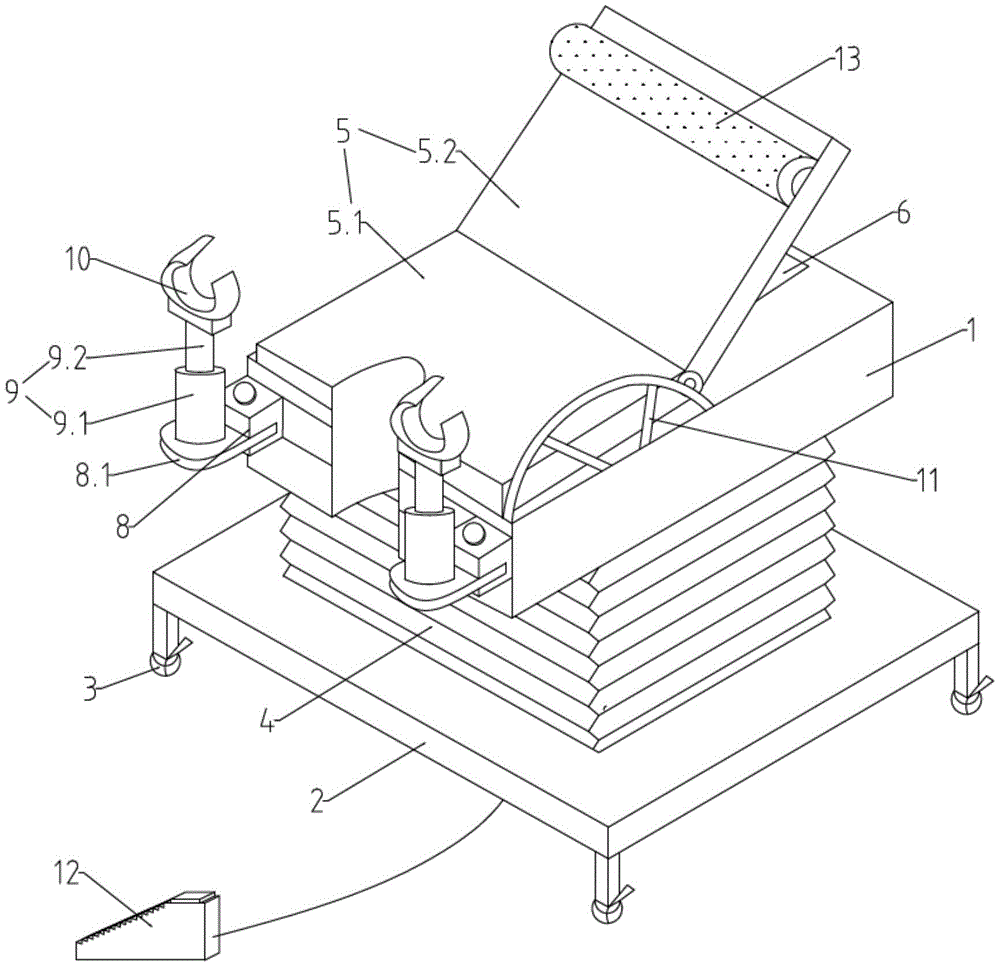

Fig. 1 is a schematic structural view of the diagnosis and treatment device for obstetrics and gynecology department of the utility model.
Fig. 2 is a side view of the utility model discloses a gynaecology and obstetrics is with diagnosing device.
Fig. 3 is a schematic structural view of the supporting pillar of the diagnosis and treatment device for obstetrics and gynecology department of the utility model.
As shown in the figure: 1. the diagnosis and treatment bed comprises a diagnosis and treatment bed body, 2 parts of a sliding plate, 3 parts of a pulley, 4 parts of a fence, 5 parts of a mattress, 5.1 parts of a fixing pad, 5.2 parts of a rotating pad, 6 parts of an adjusting mechanism, 6.1 parts of a sliding groove, 6.2 parts of a moving block, 6.3 parts of a lead screw, 6.4 parts of a handle, 6.5 parts of a connecting rod, 7 parts of a U-shaped groove, 8 parts of a connecting seat, 8.1 parts of a supporting plate, 9 parts of a supporting column, 9.1 parts of a fixing cylinder, 9.2 parts of a rotating rod, 9.3 parts of a compression spring, 10 parts of a supporting seat, 11 parts of an armrest.
Detailed Description
The present invention will be described in detail with reference to the accompanying drawings.
With the attached drawings, the diagnosis and treatment device for the obstetrics and gynecology department comprises a diagnosis and treatment bed 1 capable of ascending and descending up and down, a sliding plate 2 is arranged below the diagnosis and treatment bed 1, a pulley 3 is arranged at the bottom of the sliding plate 2, a brake mechanism is arranged on the pulley 3, the diagnosis and treatment bed 1 and the sliding plate 2 can ascend and descend up and down through the control of a telescopic cylinder, a foldable enclosure 4 is arranged on the outer side of the telescopic cylinder, the power source of the telescopic cylinder is pneumatic, a foot switch 12 is arranged on one side of the diagnosis and treatment bed 1, the foot switch 12 is electrically connected with the telescopic cylinder, a mattress 5 is arranged on the diagnosis and treatment bed 1, the mattress 5 is of a two-section structure, the mattress 5 comprises a fixed cushion 5.1 and a rotating cushion 5.2, a neck pillow 13 is arranged on the rotating cushion 5.2, the neck pillow 13 is made of memory sponge, the fixed cushion 5.1 is rotatably connected with the rotating cushion 5.2, a regulating mechanism 6 is arranged between the rotating cushion 5.2, the sliding groove 6.1 is arranged below the rotating pad 5.2, the sliding groove 6.1 is internally provided with a moving block 6.2 in a sliding manner, the sliding groove 6.1 is rotatably provided with a lead screw 6.3 in the length direction, one end of the lead screw 6.3 is provided with a rotating handle 6.4, the moving block 6.2 is rotatably connected with the lead screw 6.3, the top end of the moving block 6.2 is hinged with a connecting rod 6.5, the other end of the connecting rod 6.5 is hinged with the rotating pad 5.2, one end of the diagnosis and treatment bed 1 close to the fixed pad 5.1 is provided with a connecting seat 8, the connecting seat 8 is rotatably provided with a supporting plate 8.1, the supporting plate 8.1 is rotatably provided with a supporting column 9, the top end of the supporting column 9 is provided with a supporting seat 10, the supporting seat 10 is of a U-shaped structure fitting legs, the supporting seat 10 is rotatably connected with the supporting column 9, the supporting column 9 comprises a fixed cylinder 9.1 and a rotating rod 9.2, the fixed cylinder 9.1 is fixedly connected with the rotating rod 8.1, the fixed cylinder 9., one side of the diagnosis and treatment bed 1 is provided with a handrail 11, and the handrail 11 is of an arc-shaped structure.
When the utility model is implemented specifically, before the utility model is used, the pulley at the bottom of the sliding plate is braked by the braking mechanism, so that the stability of the whole structure of the diagnosis and treatment bed is kept, the initial state of the telescopic cylinder is contracted, a pregnant woman can easily go onto the mattress from one side of the diagnosis and treatment bed, the rotating pad is matched with the adjusting mechanism, and the rotation of the relative fixing pad is realized, so that the waist of the pregnant woman can be supported, and the comfort level is not insufficient due to the flat lying; the leg of the pregnant woman is supported by the supporting seat on the supporting column, the shank is attached to the U-shaped structure of the supporting seat, the rotating rod at the bottom of the supporting seat is pressed, the compression spring is contracted, the rotating rod rotates relative to the fixing cylinder, the bottom of the supporting column rotates relative to the connecting seat through the supporting plate, the angle is adjusted in multiple sections, the comfort of the pregnant woman is improved, the structure of the U-shaped groove is more in line with the ergonomics, the memorability observation is facilitated, flushing liquid and the like are collected conveniently, the up-and-down lifting of the diagnosis and treatment bed is controlled through the telescopic cylinder, the up-and-down movement of; the handrail on one side is convenient for the pregnant woman to grasp and can also play a role in blocking.
The present invention and the embodiments thereof have been described above, but the description is not limited thereto, and the embodiment shown in the drawings is only one of the embodiments of the present invention, and the actual structure is not limited thereto. In summary, those skilled in the art should understand that they should not be limited to the embodiments described above, and that they can design the similar structure and embodiments without departing from the spirit of the invention.
