Abstract
本实用新型提供了一种多功能新生儿医用洗澡盆，其包括具有沐浴池的洗澡盆主体，洗澡盆主体四角均设置有第一约束带，沐浴池内设置有防滑层，洗澡盆主体顶面设置有充气耳罩，且充气耳罩上设置有体温传感器，沐浴池内设置有水温监测器，沐浴池一侧的洗澡盆主体上设置有恒温加热器；洗澡盆主体一侧设置有喷淋装置，且喷淋装置通过管道与沐浴池连通，洗澡盆主体的一侧和一端分别设置有置物平板和操作平台，置物平板转动连接有显示器和控制装置，操作平台顶端上设置有体重测量装置。解决了现有技术中新生儿洗浴设备功能单一的问题。
The utility model provides a multifunctional medical bath tub for newborns, which comprises a bath tub main body with a bath tub, four corners of the tub main body are provided with first restraint belts, a non-slip layer is arranged in the bath tub, and the top surface of the bath tub main body is provided with There are inflatable earmuffs, and a body temperature sensor is arranged on the inflatable earmuffs, a water temperature monitor is arranged in the bathing pool, a thermostatic heater is arranged on the main body of the bath tub on one side of the bathing pool; a spray device is arranged on the side of the main body of the bath tub, and The spray device is communicated with the bathing pool through pipes. One side and one end of the main body of the bathing basin are respectively provided with a storage plate and an operation platform. The storage plate is rotatably connected with a display and a control device. The problem of single function of the newborn bathing equipment in the prior art is solved.
Description
Technical Field
The utility model relates to a bathing device, in particular to a multifunctional medical bathtub for newborn babies.
Background
The skin cuticle of the newborn is thin, subcutaneous blood vessels are rich, sweat glands secrete vigorously, the skin is easily affected by harmful metabolites, the skin is protected by bathing frequently, and skin mucosa injury is easily caused, particularly to skin wrinkles of the neck, behind the ears, under the armpits, groin, buttocks and the like. Bathing is the best skin care method for preventing iatrogenic skin damage, and not only can observe the whole body condition and evaluate the activity and growth condition of the newborn, but also can promote the development of the nervous system and prevent infection.
Present clinical neonate's shower adopts the basin bath mostly, needs nursing staff to turn on water by oneself, adjusts the temperature, needs one hand to properly fix the infant during the shower, and the operation of bathing is implemented to another hand, and whole journey does not have the management to the infant body temperature, and the operation of bathing is implemented to great and the infant that has the needle pipeline of keeping somewhere to the weight especially has huge challenge, falls/weighs down the bed, scald, puncture position infection scheduling problem appear very easily. At present, the function of the bathtub for the neonate in the market is single, and no medical bathtub for the neonate in hospital is available.
SUMMERY OF THE UTILITY MODEL
To the above-mentioned problem among the prior art, the utility model provides a medical bathtub of multi-functional neonate has solved the problem of neonate's bathing equipment function singleness among the prior art.
In order to achieve the purpose of the invention, the technical scheme adopted by the utility model is as follows:
the multifunctional medical bathtub for the newborn is provided, and comprises a bathtub main body with a bathtub, wherein four corners of the bathtub main body are respectively provided with a first restraint belt, an anti-skid layer is arranged in the bathtub, the top surface of the bathtub main body is provided with an inflatable ear cover, a body temperature sensor is arranged on the inflatable ear cover, a water temperature monitor is arranged in the bathtub, and a constant temperature heater is arranged on the bathtub main body on one side of the bathtub;
the bathtub body is provided with a water inlet and a water outlet which are communicated with the bathing pool, the water outlet and the water inlet are both communicated with a water supply pipeline, one side of the bathtub body is provided with a spraying device, and the spraying device is communicated with the bathing pool through a pipeline;
one side and one end of the bathtub body are respectively provided with a storage flat plate and an operating platform, and the storage flat plate is provided with a control device and is rotationally connected with a display;
be provided with weight measuring device on the operation platform top, and the weight measuring device top is provided with places the board, and the operation platform both sides all are provided with the about band of second, and display, weight measuring device, constant temperature heater, spray set, water supply line, temperature monitor and body temperature sensor all are connected with controlling means.
Furthermore, the bathtub main body is made of silica gel and is of a bionic space capsule structure.
Furthermore, the bathtub main body, the object placing flat plate and the operation platform are integrally formed.
Furthermore, the anti-skidding layer is latex pad, and the top of anti-skidding layer cross-section is the wave.
Further, multi-functional medical bathtub of neonate still includes the strutting arrangement who is used for supporting the bathtub main part and is the rectangular frame structure, strutting arrangement includes the connecting rod of being connected with bathtub main part both ends bottom surface and the bracing piece of being connected with the connecting rod both ends, and the connecting rod is perpendicular with the bracing piece, the bracing piece middle part is provided with the connecting plate parallel with the connecting rod, be provided with on the connecting plate with aerify the air supply system of ear muff intercommunication, and air supply system links to each other with controlling means, the bracing piece is telescopic rod structure.
Furthermore, the inside wall of the bathtub main body is provided with a heating groove for installing a constant temperature heater, and the opening end of the heating groove is provided with a protective net.
Further, the weight measuring device includes a weight sensor mounted on the top surface of the operation platform.
Further, spray set is including setting up the miniature pump in the bathing basin and the shower nozzle that communicates with the miniature pump, and the shower nozzle setting is on the shower nozzle support of being connected with the bathtub main part rotation, and spray set and put the thing flat board and be located the same one side of bathtub main part.
Further, aerify ear muff and operation platform and be located the both ends of bathtub main part respectively, two aerify the ear muff and be located the both sides of bathtub main part respectively, open on bathtub main part top has the through-hole that is used for connecting the pipeline of aerifing the ear muff and passes, and the through-hole side is provided with the elasticity and presss from both sides.
Furthermore, the first restraint strap and the second restraint strap are inflatable restraint straps connected with an air source system, a latex protective layer is arranged on one side, in contact with the neonate, of the first restraint strap and the second restraint strap, and elastic clamps used for fixing the first restraint strap and the second restraint strap are arranged on the outer walls of the two sides of the bathtub main body.
The utility model has the advantages that:
through aerifing the body temperature sensor in ear muff and the ear muff, can carry out body temperature monitoring and the ear canal is waterproof, can effectively solve the neonate auricle softer, the individualized pressure size of aerifing ear muff, first restraint band and second restraint band of adjusting. Fix the infant body through placing board and the about band of second, carry out the washing of head and face, fixed not enough tumble when solving effectively and weigh down bed, the heavier neonate of weight difficult to fix scheduling problem that leads to.
Through the cooperation of controlling means, temperature monitor and constant temperature heater, keep warm to the water in the shower bath, avoid the temperature to hang down excessively. The water in the bath basin is driven to flow by the spraying device, so that the temperature of the water in each position in the bath basin is uniform. To having special pipeline, skin damage or dysphoria infant accessible first restraint strap to fix and protect, convenient effective washing.
The information such as the temperature, the water temperature of the infant patient can be displayed in real time through the display. The anti-slip layer prevents the sick children from sliding downwards along the bottom surface of the bath pool, thereby causing injury to the sick children and influencing bath operation.
Drawings

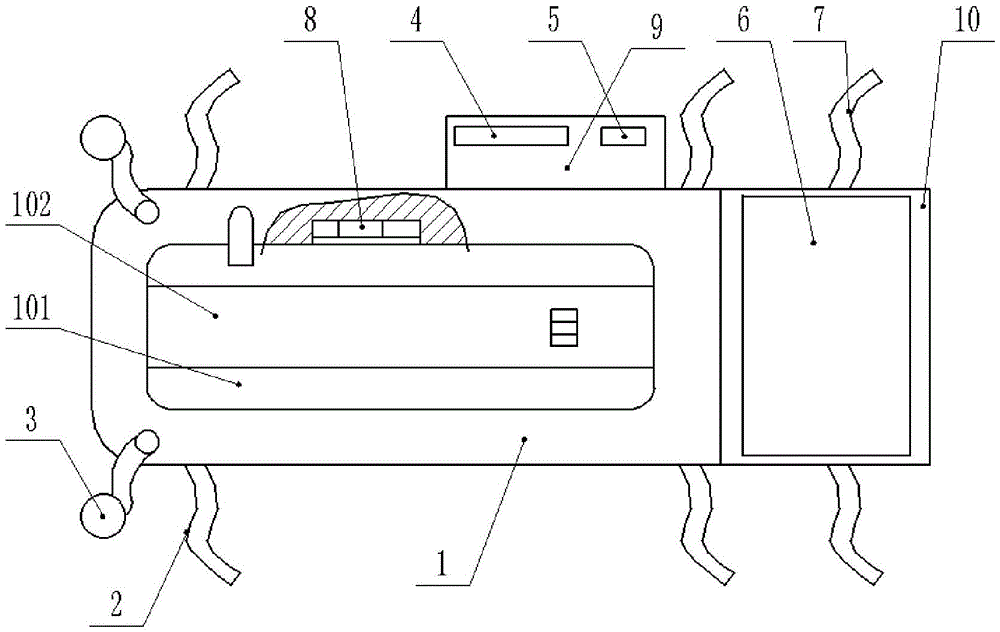

Fig. 1 is a top view of a multi-functional neonatal medical bathtub.
Fig. 2 is a sectional view of a multifunctional neonatal medical bathtub.
Fig. 3 is a front view of a multi-functional neonatal medical bathtub.
Fig. 4 is an enlarged view of a weight measuring device of the multifunctional neonatal medical bathtub.
Wherein, 1, the bathtub body; 101. a bathing pool; 102. an anti-slip layer; 2. a first restraint band; 3. an inflatable ear shield; 4. a display; 5. a control device; 6. placing the plate; 7. a second restraint band; 8. a constant temperature heater; 9. placing a flat plate; 10. an operating platform; 1101. a connecting rod; 1102. a support bar; 1103. a connecting plate; 12. and (4) a spraying device.
Detailed Description
The following description of the embodiments of the present invention is provided to facilitate the understanding of the present invention by those skilled in the art, but it should be understood that the present invention is not limited to the scope of the embodiments, and various changes will be apparent to those skilled in the art as long as they are within the spirit and scope of the present invention as defined and defined by the appended claims, and all inventions contemplated by the present invention are protected.
As shown in fig. 1 to 4, the scheme provides a multifunctional medical bathtub for neonates, which comprises a bathtub body 1 with a bath basin 101, wherein the bathtub body 1 is made of silica gel, and the bathtub body 1 is of a bionic space capsule structure, so that a comfortable bathing environment is provided for the sick children. All be provided with first about band 2 in the 1 four corners of bathtub main part, be provided with skid resistant course 102 in the bathing pool 101, skid resistant course 102 latex pad, and the top of skid resistant course 102 cross-section is the wave, and the passive position when the skid resistant course 102 can effectively solve the infant and bathe changes, prevents that the infant from chocking water.
The top surface of the bathtub main body 1 is provided with an inflatable ear shield 3, the inflatable ear shields 3 are provided with body temperature sensors, the inflatable ear shields 3 and the operating platform 10 are respectively arranged at two ends of the bathtub main body 1, the inflatable ear shields 3 are connected with an air source system, the inflatable ear shields 3 are respectively arranged at two sides of the bathtub main body 1, the top end of the bathtub main body 1 is provided with a through hole for connecting a pipeline of the inflatable ear shield 3 to pass through, and an elastic clamp is arranged beside the through hole.
Be provided with the temperature monitor in the bathing pool 101, be provided with constant temperature heater 8 on the bathtub main part 1 of bathing pool 101 one side, the inside wall of bathtub main part 1 is opened has the heating bath that is used for installing constant temperature heater 8, and the heating bath open end is provided with the protection network, and constant temperature heater 8 and infant direct contact are avoided to the protection network, and the protection network adopts high temperature resistant material.
The bathtub main part 1 is opened has water inlet and the delivery port with the bathing pool 101 intercommunication, and delivery port and water inlet all communicate with the water supply pipeline, bathtub main part 1 one side is provided with spray set 12, and spray set 12 passes through the pipeline and communicates with bathing pool 101, spray set 12 including set up the micro-water pump in bathing pool 101 and with the shower nozzle of micro-water pump intercommunication, the shower nozzle setting is on the shower nozzle support of being connected with bathtub main part 1 rotation, the shower nozzle support is L shape, and the shower nozzle support is located bathing pool 101 middle part, spray set 12 with put that thing flat board 9 is located the same one side of bathtub main part 1.
One side and one end of the bathtub body 1 are respectively provided with a storage flat plate 9 and an operation platform 10, the storage flat plate 9 and the operation platform 10 are both flat plate structures, the bathtub body 1, the storage flat plate 9 and the operation platform 10 are integrally formed, the manufacturing is convenient, the manufacturing cost is reduced, and the connection strength between the storage flat plate 9 and the operation platform 10 and the bathtub body 1 is improved. The placing flat plate 9 is provided with a control device 5 and is rotatably connected with a display 4.
As shown in fig. 2 and 4, a weight measuring device is provided on the top end of the operation platform 10, and the weight measuring device includes a weight sensor mounted on the top surface of the operation platform 10, and the weight sensor is connected to the control device 5. The top end of the weight measuring device is provided with a placing plate 6, two sides of an operating platform 10 are provided with second restraint belts 7, and a display 4, the weight measuring device, a constant temperature heater 8, a spraying device 12, a water supply pipeline, a water temperature monitor and a body temperature sensor are connected with a control device 5. The control device 5 comprises a computing terminal, the computing terminal can record the weight measurement data, and after all the children patients are cleaned, the weight measurement data of all the children patients are picked at one time.
Specifically, as shown in fig. 3, the first restraint strap 2 and the second restraint strap 7 are both inflatable restraint straps connected to the air source system, a latex protective layer is disposed on one side of the first restraint strap 2 and the second restraint strap 7 contacting with the neonate, and elastic clips for fixing the first restraint strap 2 and the second restraint strap 7 are disposed on the outer walls of the two sides of the bathtub body 1, and the elastic clips firmly fix the first restraint strap 2 and the second restraint strap 7 on the bathtub body 1. As shown in fig. 3, the elastic clamp securing the inflatable earmuff 3 is the same as the elastic clamp securing the first restraining band 2.
As shown in fig. 2 and 3, the multifunctional neonatal medical bathtub further comprises a supporting device which is used for supporting the bathtub body 1 and has a rectangular frame structure, the supporting device comprises a connecting rod 1101 connected with the bottom surfaces of the two ends of the bathtub body 1 and supporting rods 1102 connected with the two ends of the connecting rod 1101, the connecting rod 1101 is perpendicular to the supporting rods 1102, a connecting plate 1103 which is parallel to the connecting rod 1101 is arranged in the middle of the supporting rods 1102, an air source system which is communicated with the inflatable ear muffs 3 is arranged on the connecting plate 1103, the air source system is connected with the control device 5, and the supporting rods 1102 are of telescopic rod structures. The supporting rod 1102 enables the height of the bathtub body 1 relative to the ground to be adjustable, one-key control is achieved through the control device 5, and the bathtub is suitable for medical workers with different heights.
Furthermore, in the scheme, a pressure limiting element is arranged between the inflatable earmuff 3, the first restraint band 2, the second restraint band 7 and the air source system, so that the pressure in the inflatable earmuff 3, the first restraint band 2 and the second restraint band 7 is prevented from exceeding the set pressure. The water outlet and the water inlet are used for discharging water in the bath pool 101, meanwhile, the water inlet can be communicated with the clean water pipeline and the disinfection pipeline, the disinfection pipeline contains disinfection water containing chlorine disinfection liquid, the disinfection water is firstly used for cleaning the bath pool 101 once, then the bath pool 101 is cleaned once by the clean water, and the switching of the disinfection pipeline and the clean water pipeline is controlled by the control device 5. When in use, the basin cover is placed in the bath basin 101 to prevent cross infection.
Claims (10)
1. A multifunctional medical bathtub for newborn comprises a bathtub body (1) with a bathtub (101), and is characterized in that four corners of the bathtub body (1) are provided with first restraint belts (2), an anti-slip layer (102) is arranged in the bathtub (101), an inflatable ear cover (3) is arranged on the top surface of the bathtub body (1), a body temperature sensor is arranged on the inflatable ear cover (3), a water temperature monitor is arranged in the bathtub (101), and a constant temperature heater (8) is arranged on the bathtub body (1) on one side of the bathtub (101);
the bathtub body (1) is provided with a water inlet and a water outlet which are communicated with a bath pool (101), the water outlet and the water inlet are both communicated with a water supply pipeline, one side of the bathtub body (1) is provided with a spraying device, and the spraying device is communicated with the bath pool (101) through a pipeline;
a storage flat plate (9) and an operation platform (10) are respectively arranged at one side and one end of the bathtub body (1), and a control device (5) and a display (4) are rotatably connected to the storage flat plate (9);
be provided with weight measuring device on operation platform (10) top, just weight measuring device top is provided with places board (6), operation platform (10) both sides all are provided with about band of second (7), display (4), weight measuring device, constant temperature heater (8), spray set, water supply pipe, water temperature monitor and body temperature sensor all are connected with controlling means.
2. The multifunctional neonatal medical bathtub according to claim 1, wherein the material of the bathtub body (1) is silica gel, and the bathtub body (1) has a bionic space capsule structure.
3. The multifunctional neonatal medical bathtub according to claim 2, wherein the bathtub body (1), the placement plate (9) and the operation platform (10) are integrally formed.
4. The multifunctional neonatal medical bathtub according to claim 1, wherein the anti-slip layer (102) is a latex pad, and a top end of a cross section of the anti-slip layer (102) is in a wave shape.
5. The multifunctional neonatal medical bathtub of claim 1, further comprising a supporting device which is used for supporting the bathtub body (1) and has a rectangular frame structure, wherein the supporting device comprises a connecting rod (1101) connected to the bottom surfaces of the two ends of the bathtub body (1) and supporting rods (1102) connected to the two ends of the connecting rod (1101), the connecting rod (1101) is perpendicular to the supporting rods (1102), a connecting plate (1103) which is parallel to the connecting rod (1101) is arranged in the middle of the supporting rods (1102), an air source system which is communicated with the inflatable ear cups (3) is arranged on the connecting plate (1103), the air source system is connected with a control device, and the supporting rods (1102) are of telescopic rod structures.
6. The multifunctional neonatal medical bathtub according to claim 1, wherein a heating groove for installing a constant temperature heater (8) is formed in an inner side wall of the bathtub body (1), and a protective net is arranged at an opening end of the heating groove.
7. The multi-functional neonatal medical bathtub according to claim 1, wherein said weight measuring means comprises a weight sensor mounted on the top surface of the operation platform (10).
8. The multifunctional neonatal medical bathtub according to claim 1, wherein the shower means comprises a micro-water pump disposed in the bathtub (101) and a shower head communicating with the micro-water pump, the shower head being disposed on a shower head holder rotatably connected to the bathtub body (1), the shower means being located on the same side of the bathtub body (1) as the placement plate (9).
9. The multifunctional neonatal medical bathtub according to claim 5, wherein the inflatable ear shields (3) and the operation platform (10) are respectively located at two ends of the bathtub body (1), the two inflatable ear shields (3) are respectively located at two sides of the bathtub body (1), a through hole for connecting a pipeline of the inflatable ear shields (3) to pass through is formed at the top end of the bathtub body (1), and an elastic clip is arranged beside the through hole.
10. The multifunctional neonatal medical bathtub according to claim 5, wherein the first restraint strap (2) and the second restraint strap (7) are both inflatable restraint straps connected with an air source system, one surfaces of the first restraint strap (2) and the second restraint strap (7) contacting with the neonate are provided with latex protective layers, and the outer walls of two sides of the bathtub body (1) are both provided with elastic clamps for fixing the first restraint strap (2) and the second restraint strap (7).
