CN213664968U - A component type installation structure of a bathroom cabinet for kitchen and bathroom

Info

Publication number: CN213664968U
Application number: CN202022254025.8U
Authority: CN
Inventors: 王举光; 施再元; 孟春海; 戚叶
Original assignee: Gold Mantis Fine Decoration Technology Suzhou Co Ltd
Current assignee: Gold Mantis Fine Decoration Technology Suzhou Co Ltd
Priority date: 2020-10-12
Filing date: 2020-10-12
Publication date: 2021-07-13
Anticipated expiration: 2030-10-12

Abstract

The utility model discloses a component type installation structure of a bathroom cabinet for kitchen and bathroom, comprising a non-slip foot pad, a support column, a bottom plate, a T-shaped slot, a T-shaped slider, an A threaded hole, an A bolt, an A card slot and an A card block , one end of the T-shaped slider is fixedly connected with a first side plate, one side of the clamping block is fixedly connected with a second side plate, and the upper surface of the second side plate is fixedly connected with a B clamping block, the The second side plate is movably connected with the top plate through the B clip, and the surface of the first side plate is provided with a battery slot. The main advantage of the utility model is to provide an assembly-type installation structure for a bathroom cabinet for kitchen and bathroom. First, insert the A card block into the A card slot, slide the T-shaped slider into the T-shaped slot, and use the A bolt to connect the bottom plate to the first plate. The side panels are assembled and connected, and finally the user can put some articles for bathing in the drawer, the placing rail and the placing slot, which improves the adaptability of the device and improves the use efficiency of the device.

Description

Bath cabinet component type mounting structure for kitchen and bathroom

Technical Field

The utility model relates to a kitchen guarding is with bath cabinet equipment technical field specifically is a kitchen guarding is with bath cabinet modular mounting structure.

Background

The surface material of the bath cabinet can be divided into natural stone, jade, artificial stone, fire-proof plate, baking varnish glass, metal, solid wood and other base materials which are the main body of the bath cabinet and are covered by the surface material, the base materials are the determining factors of the quality and the price of the bath cabinet, the main types of the counter basin are natural big desk, five artificial marble, ceramic and the like, most of high-grade bath cabinets adopt natural marble or jade and are matched with ceramic basin, and the middle-grade and low-grade are directly matched with ceramic basin; the modern feeling of the metal cabinet is strong enough, but the expressive force to the styles of the new classical and rural fields is obviously insufficient, and the wood cabinet has poor performances of water resistance, moisture resistance, bacteria resistance, insect prevention and the like in terms of functions, and is easy to crack and deform after being used for a long time; the existing metal cabinet, such as a stainless steel cabinet, has good waterproof, dampproof, mildew-proof, antibacterial and insect-proof properties, but gives people a cold feeling, the existing bath cabinet for kitchens and bathrooms has a simple assembly type installation structure and poor assembly property, is inconvenient for users to assemble and disassemble the bath cabinet, and meanwhile, the existing bath cabinet has poor functionality, so that the use feeling of the users is reduced.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

The utility model provides a kitchen and bathroom cabinet subassembly formula mounting structure, the problem of proposing among the above-mentioned background art has been solved to the not enough of prior art.

(II) technical scheme

In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: a bath cabinet component type mounting structure for kitchens and bathrooms comprises an anti-skidding foot pad, wherein a support column is fixedly connected to the upper surface of the anti-skidding foot pad, a bottom plate is fixedly connected to the upper surface of the support column, a T-shaped groove is formed in the upper surface of the bottom plate, a T-shaped sliding block is movably connected to the inside of the T-shaped groove, an A threaded hole is formed in one side of the bottom plate, an A bolt is movably connected to the inside of the A threaded hole, an A clamping groove is formed in the upper surface of the bottom plate, an A clamping block is movably connected to the inside of the clamping groove, a first side plate is fixedly connected to one end of the T-shaped sliding block, a second side plate is fixedly connected to one side of the clamping block, a B clamping block is fixedly connected to the upper surface of the second side plate, a top plate is movably connected to the, the LED lamp cabinet comprises a first side plate, a second side plate, a cabinet door, a cover plate, a drawer, a water outlet pipe, a water tap, a mirror, a cabinet door, a sliding groove, a sliding block and a mirror, wherein the first side plate is movably connected with the cover plate through an A hinge, the upper surface of the top plate is fixedly connected with the water tap, the upper surface of the top plate is provided with a water tank, one side of the second side plate is provided with an A groove, the interior of the A groove is movably connected with the drawer, the surface of the drawer is fixedly connected with an A handle, one side of the second side plate is movably connected with a B hinge, the second side plate is movably connected with the cabinet door through a B hinge, the surface of the cabinet door is fixedly connected with a B handle, one side of the second side plate is provided with a placing groove, the bottom of the, the fence is placed to the inside fixedly connected with of integrative cabinet, the inside of first curb plate has set gradually waterproof interlayer and fungi-proofing interlayer from a left side to the right side.

Optionally, one side of the mirror is fixedly connected with the magnetic suction block.

Optionally, the T-shaped groove and the T-shaped slider are mutually matched.

Optionally, a battery is arranged inside the battery container.

Optionally, the fixture block A and the fixture groove A are matched with each other.

Optionally, the upper surface of the top plate is fixedly connected with an anti-collision pad.

Optionally, the bottom of the bottom plate is fixedly connected with a water outlet.

Optionally, an LED lamp tube is arranged inside the LED lamp trough.

Optionally, an infrared sensing device is arranged at the bottom of the faucet.

(III) advantageous effects

The utility model provides a kitchen guarding is with bath cabinet modular mounting structure possesses following beneficial effect:

the utility model has the advantages of the utility model provides a kitchen guarding is with bath cabinet unit mount structure, insert the A draw-in groove with the A fixture block earlier, slide into T type slider type inslot, use the A bolt with carry out equipment connection between bottom plate and the first curb plate, insert the draw-in groove on the roof with the B fixture block, make and carry out equipment connection between roof and the second curb plate, end user can be at the drawer, place some article of bathing usefulness in fence and the standing groove, through the bottom plate, the first curb plate, the setting of second curb plate and roof, the user of being convenient for assembles the dismantlement to the bath cabinet, the adaptability of equipment has been improved, the availability factor of equipment has been improved.

The utility model has the advantages of the utility model provides a kitchen guarding is with bath cabinet modular mounting structure, through the setting of battery, LED fluorescent tube and mirror, the user washes one's face and rinses one's mouth in the bathing after, under the indoor light weak condition at night, can illuminate around the mirror through the LED fluorescent tube, has improved the reflection of light luminance of mirror, and the user of being convenient for washes one's face and rinses one's mouth and bathes one's mouth, has improved the multiple use of equipment, and then has improved user's use impression.

Drawings

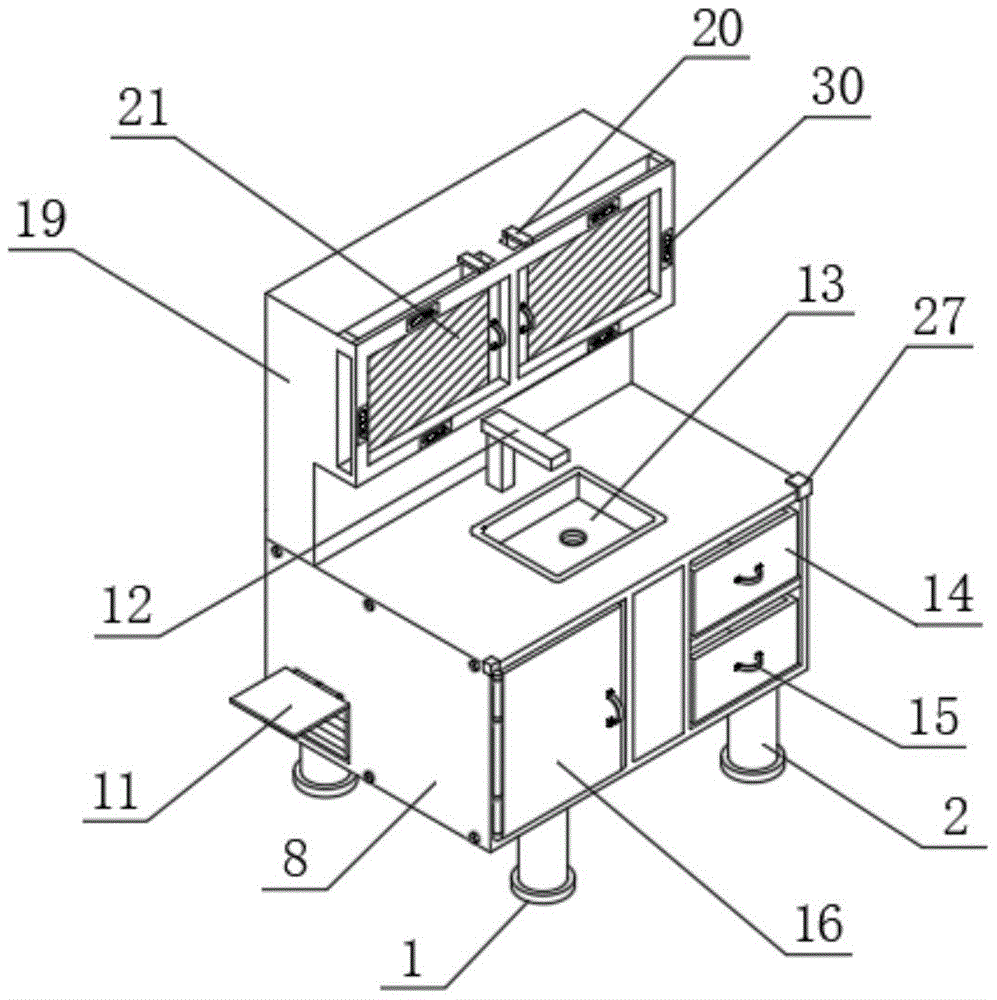

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic diagram of a second embodiment of the present invention;

fig. 3 is a schematic view of a first side plate structure of the present invention;

FIG. 4 is a schematic view of an integrated cabinet structure of the present invention;

FIG. 5 is a schematic sectional view of the structure of the present invention;

fig. 6 is a schematic view of a sectional structure of the first side plate of the present invention.

In the figure: 1. anti-skid foot pads; 2. a support pillar; 3. a base plate; 4. a T-shaped groove; 5. a T-shaped slider; 6. a, bolt; 7. a, clamping blocks; 8. a first side plate; 9. a second side plate; 10. a top plate; 11. a cover plate; 12. a faucet; 13. a water tank; 14. a drawer; 15. a, a handle; 16. a cabinet door; 17. b, a handle; 18. a water outlet pipe; 19. an integrated cabinet; 20. a slider; 21. a mirror; 22. placing a fence; 23. a waterproof interlayer; 24. an anti-bacterial interlayer; 25. a magnetic block; 26. a storage battery; 27. an anti-collision pad; 28. a water outlet; 29. an LED lamp tube; 30. an infrared sensing device.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

Referring to fig. 1 to 6, the present invention provides a technical solution: a bath cabinet component type mounting structure for kitchens and bathrooms comprises an anti-skidding foot pad 1, wherein a support column 2 is fixedly connected to the upper surface of the anti-skidding foot pad 1, a bottom plate 3 is fixedly connected to the upper surface of the support column 2, a T-shaped groove 4 is formed in the upper surface of the bottom plate 3, a T-shaped sliding block 5 is movably connected to the inside of the T-shaped groove 4, an A threaded hole is formed in one side of the bottom plate 3, an A bolt 6 is movably connected to the inside of the A threaded hole, an A clamping groove is formed in the upper surface of the bottom plate 3, an A clamping block 7 is movably connected to the inside of the clamping groove, a first side plate 8 is fixedly connected to one end of the T-shaped sliding block 5, a second side plate 9 is fixedly connected to one side of the clamping block 7, a B clamping block is fixedly connected to the upper surface of the second side, the first side plate 8 is movably connected with a cover plate 11 through an A hinge, the upper surface of the top plate 10 is fixedly connected with a faucet 12, the upper surface of the top plate 10 is provided with a water tank 13, one side of the second side plate 9 is provided with an A groove, the inside of the A groove is movably connected with a drawer 14, the surface of the drawer 14 is fixedly connected with an A handle 15, one side of the second side plate 9 is movably connected with a B hinge, the second side plate 9 is movably connected with a cabinet door 16 through the B hinge, the surface of the cabinet door 16 is fixedly connected with a B handle 17, one side of the second side plate 9 is provided with a placing groove, the bottom of the water tank 13 is fixedly connected with a water outlet pipe 18, the upper surface of the top plate 10 is fixedly connected with an integrated cabinet 19, one side of the integrated cabinet 19 is provided with an LED lamp groove, the upper surface of the integrated cabinet 19 is provided with a sliding groove, the, a waterproof interlayer 23 and an antibacterial interlayer 24 are sequentially arranged inside the first side plate 9 from left to right, one side of the mirror 21 is fixedly connected with a magnetic suction block 25, the T-shaped groove 4 and the T-shaped sliding block 5 are mutually matched, the storage battery 26 is arranged inside the storage battery groove, the A clamping block 7 and the A clamping groove are mutually matched, the upper surface of the top plate 10 is fixedly connected with an anti-collision pad 27, the bottom of the bottom plate 3 is fixedly connected with a water outlet 28, the LED lamp groove is internally provided with an LED lamp tube 29, the bottom of the faucet 12 is provided with an infrared sensing device 30, the A clamping block 7 is firstly inserted into the A clamping groove, the T-shaped sliding block 5 is slid into the T-shaped groove 4, the bottom plate 3 and the first side plate 8 are assembled and connected by using an A bolt 6, the B clamping block is inserted into the clamping groove on the top plate 10, so that the top plate 10 and the second side plate 9 are assembled and connected, and, through the arrangement of the bottom plate 3, the first side plate 8, the second side plate 9 and the top plate 10, the bath cabinet is convenient for a user to assemble and disassemble, the adaptability of equipment is improved, the use efficiency of the equipment is improved, through the arrangement of the storage battery, the LED lamp tube and the mirror, after the user washes and rinses in a bathing way, under the condition that the light in a night room is weak, the periphery of the mirror can be illuminated through the LED lamp tube, the reflection brightness of the mirror is improved, the user can conveniently wash and rinse the bath, the versatility of the equipment is improved, the use feeling of the user is improved, through the arrangement of the anti-collision cushion, the corners of the bath cabinet can be wrapped, children are prevented from accidentally colliding the corners of the bath cabinet to cause injury, the safety protection performance of the equipment is improved, through the arrangement of the faucet, the infrared sensing device and the storage battery, the infrared sensing device can automatically sense the infrared temperature, and, the user of being convenient for gets off to open tap in the inconvenient condition of hand, has improved the suitability of equipment, has improved the ease for use of equipment, and this kitchen guarding is with bath cabinet component formula mounting structure does not involve complicated technology and accurate component, simple structure, and is practical convenient, and the raw and other materials source of this equipment is extensive in addition, and is with low costs, can effectually satisfy the demand in market, consequently, kitchen guarding has good market prospect and space with bath cabinet component formula mounting structure.

The electrical components presented in the document are all electrically connected with an external master controller and 220V mains, and the master controller can be a conventional known device controlled by a computer or the like.

To sum up, when the bath cabinet component type mounting structure for kitchens and bathrooms is used, the A clamping block is firstly inserted into the A clamping groove, the T-shaped sliding block slides into the T-shaped groove, the bottom plate and the first side plate are assembled and connected by the A bolt, the B clamping block is inserted into the clamping groove on the top plate, so that the top plate and the second side plate are assembled and connected, finally, a user can put some articles for bathing in the drawer, the placing fence and the placing groove, the bath cabinet can be assembled and disassembled conveniently by the arrangement of the bottom plate, the first side plate, the second side plate and the top plate, the suitability of the bath cabinet is improved, the use efficiency of the bath cabinet is improved, after the user washes and rinses his/her hands, under the condition that the indoor light is weak at night, the periphery of the mirror can be illuminated by the LED lamp tube, the reflection brightness of the mirror is improved, and the user can wash and bathe conveniently, the device versatility is improved, and the user experience is improved.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. The utility model provides a kitchen guarding is with bath cabinet subassembly formula mounting structure, includes anti-skidding callus on the sole (1), its characterized in that: the anti-skidding foot pad is characterized in that a supporting column (2) is fixedly connected to the upper surface of the anti-skidding foot pad (1), a bottom plate (3) is fixedly connected to the upper surface of the supporting column (2), a T-shaped groove (4) is formed in the upper surface of the bottom plate (3), a T-shaped sliding block (5) is movably connected to the inside of the T-shaped groove (4), an A threaded hole is formed in one side of the bottom plate (3), an A bolt (6) is movably connected to the inside of the A threaded hole, an A clamping groove is formed in the upper surface of the bottom plate (3), an A clamping block (7) is movably connected to the inside of the clamping groove, a first side plate (8) is fixedly connected to one end of the T-shaped sliding block (5), a second side plate (9) is fixedly connected to one side of the clamping block (7), a B clamping block is fixedly connected to the, the surface of the first side plate (8) is provided with a storage battery groove, the surface of the first side plate (8) is movably connected with an A hinge, the first side plate (8) is movably connected with a cover plate (11) through the A hinge, the upper surface of the top plate (10) is fixedly connected with a faucet (12), the upper surface of the top plate (10) is provided with a water tank (13), one side of the second side plate (9) is provided with an A groove, the inside of the A groove is movably connected with a drawer (14), the surface of the drawer (14) is fixedly connected with an A handle (15), one side of the second side plate (9) is movably connected with a B hinge, the second side plate (9) is movably connected with a cabinet door (16) through the B hinge, the surface of the cabinet door (16) is fixedly connected with a B handle (17), and one side of the second side plate (9) is provided, the utility model discloses a LED (light emitting diode) lamp house, including roof (10), bottom fixedly connected with outlet pipe (18) of pond groove (13), the integrative cabinet of last fixed surface (19) of roof (10), the LED light trough has been seted up to one side of integrative cabinet (19), the spout has been seted up to the upper surface of integrative cabinet (19), the inside swing joint of spout has slider (20), one side fixedly connected with mirror (21) of slider (20), fence (22) are placed to the inside fixedly connected with of integrative cabinet (19), the inside of first curb plate (8) has set gradually waterproof interlayer (23) and fungi-proofing interlayer (24) from a left side to the right side.

2. A kitchen and bath cabinet assembly mounting arrangement as claimed in claim 1, in which: one side of the mirror (21) is fixedly connected with a magnetic suction block (25).

3. A kitchen and bath cabinet assembly mounting arrangement as claimed in claim 1, in which: the T-shaped groove (4) and the T-shaped sliding block (5) are matched with each other.

4. A kitchen and bath cabinet assembly mounting arrangement as claimed in claim 1, in which: and a storage battery (26) is arranged in the storage battery groove.

5. A kitchen and bath cabinet assembly mounting arrangement as claimed in claim 1, in which: the A clamping block (7) is matched with the A clamping groove.

6. A kitchen and bath cabinet assembly mounting arrangement as claimed in claim 1, in which: and the upper surface of the top plate (10) is fixedly connected with an anti-collision pad (27).

7. A kitchen and bath cabinet assembly mounting arrangement as claimed in claim 1, in which: the bottom of the bottom plate (3) is fixedly connected with a water outlet (28).

8. A kitchen and bath cabinet assembly mounting arrangement as claimed in claim 1, in which: and an LED lamp tube (29) is arranged in the LED lamp groove.

9. A kitchen and bath cabinet assembly mounting arrangement as claimed in claim 1, in which: an infrared sensing device (30) is arranged at the bottom of the water faucet (12).
