CN213656600U

CN213656600U - Outdoor dustproof solar street lamp

Info

Publication number: CN213656600U
Application number: CN202023210879.2U
Authority: CN
Inventors: 陈衍胜
Original assignee: Kunming Jingke Lighting Engineering Co ltd
Current assignee: Kunming Jingke Lighting Engineering Co ltd
Priority date: 2020-12-28
Filing date: 2020-12-28
Publication date: 2021-07-09
Anticipated expiration: 2030-12-28

Abstract

The utility model discloses an outdoor dust-proof solar street lamp, which comprises a fixing seat, a street lamp pole is arranged at the top position of the fixing seat, a support rod is arranged on one side outer wall of the street lamp pole, and the end position of the support pole is A lighting lamp is provided, a bearing frame is arranged at the top position of the street light pole, and a photovoltaic power generation panel is arranged at the top position of the bearing frame. In the outdoor dust-proof solar street lamp of the utility model, the transparent lamp cover can not only keep the light of the bulb passing through, but also prevent dust from floating into the lighting lamp; On the flow plate, the heat dissipation is not smooth, and the built-in fan can concentrate the heat generated when the light bulb is working, which helps to improve the heat dissipation performance of the street light and prolong the service life of the light bulb.

Description

Outdoor dustproof solar street lamp

Technical Field

The utility model relates to a solar energy technical field, in particular to outdoor dustproof solar street lamp.

Background

The solar street lamp is a novel road lighting facility. The LED lamp is powered by a crystalline silicon solar cell, a maintenance-free valve-controlled sealed storage battery (a colloid battery) stores electric energy, and the ultra-bright LED lamp is used as a light source and is controlled by an intelligent charging and discharging controller. The street lamp has the advantages of simple and convenient installation, less investment, good safety performance, energy conservation, environmental protection and the like, and is used for replacing the traditional public power lighting street lamp. Most solar street lamp when using for a long time now, because the roadside dust is more, and lead to falling the ash on the street lamp more, lead to the luminance decline of street lamp easily, in addition, the louvre of street lamp can be blockked up to too much dust, causes the heat dissipation unsmooth, is in the higher operational environment of temperature, and the life of bulb can obviously descend. Therefore, an outdoor dustproof solar street lamp is provided.

SUMMERY OF THE UTILITY MODEL

The utility model discloses a main aim at provides an outdoor dustproof solar street lamp can effectively solve the problem in the background art.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

the utility model provides an outdoor dustproof solar street lamp, includes the fixing base, the top position of fixing base is provided with the light pole, one side outer wall position of light pole is provided with the bracing piece, the terminal position of bracing piece is provided with the light, the top position of light pole is provided with bears the frame, the top position that bears the frame is provided with photovoltaic power generation board.

Preferably, light pole and bracing piece are all rolled up by q235 steel and are formed, and the surface is handled through hot-galvanize and spraying plastics technology, bear the frame and weld in the top position of light pole, photovoltaic power generation board fixed mounting bears the top position of frame, through the mutual electric connection of wire between photovoltaic power generation board and the light.

By adopting the technical scheme, the following technical effects can be achieved: hot galvanizing and plastic spraying processes can prevent the surfaces of the street lamp pole and the supporting rod from being rusted, and simultaneously, the street lamp pole and the supporting rod have better insulating effect.

Preferably, the bracing piece welds the position that is close to upper portion on the light pole lateral wall, the light includes shell, transparent cover, lamp stand and bulb, the bottom joint of shell is in bracing piece top outer wall position, transparent cover fixed mounting is in the below position of shell, transparent cover is made by engineering plastics, the fixed bottom position in the shell of cup joint, connected mode between bulb and the lamp stand is threaded connection.

By adopting the technical scheme, the following technical effects can be achieved: the transparent lampshade can protect the bulb in the shell and prevent dust from adhering to the surface of the bulb.

Preferably, a groove is formed in the upper surface of the shell, a heat dissipation port is formed in the bottom of the groove, the heat dissipation port is rectangular, a fan is arranged right above the bulb, and the fan and the heat dissipation port form a vertical corresponding relation.

By adopting the technical scheme, the following technical effects can be achieved: the fan can draw heat generated by the lamp during operation and discharge the heat to the outside through the heat dissipation port.

Preferably, a guide plate is arranged right above the fan, an up-down corresponding relation is formed between the guide plate and the heat dissipation port, and the guide plate is connected with the inner wall of the shell in a threaded manner.

By adopting the technical scheme, the following technical effects can be achieved: the guide plate can play the directional effect to the heat dissipation air current of fan, does benefit to the heat and discharges from the recess, prevents the accumulated temperature.

Preferably, the opening part on recess top is provided with the dust guard, the position of dust guard between the opening both sides lateral wall of spout joint on recess top, a plurality of groups of drainage grooves have been seted up to the upper surface position of dust guard, the drainage groove is parallel form evenly distributed.

By adopting the technical scheme, the following technical effects can be achieved: the dust guard can prevent that the dust from falling on the thermovent, and a period of time later, lead to the thermovent to gather the dust, and hinder the outflow of heat dissipation air current, the guiding gutter can let the rainwater pass through from the dust guard fast, simultaneously, the deposition on the clean dust guard of also being convenient for.

Compared with the prior art, the utility model discloses following beneficial effect has: this outdoor dustproof solar street lamp through being provided with light, shell, fluorescent tube and transparent lamp cover, after the fluorescent tube inside the light shines, the transparent lamp cover that is located the shell bottom both can let the light of fluorescent tube pass, throws light on the street, can also prevent that the raise dust from drifting into inside the light, prevents to accumulate daily and lead to fluorescent tube surface covering dust, causes the luminance decline of fluorescent tube. Through being provided with thermovent and fan, the fan that is located fluorescent tube top position can be taken away the heat that the fluorescent tube during operation produced to upwards discharge the exterior space with the help of the thermovent, cool down the fluorescent tube, prevent that the inside high temperature of light, and lead to fluorescent tube and circuit ageing. Through being provided with the guide plate, when the fan carries out the heat extraction, the hot gas flow can pass through the guide plate of fan top position, and the flow direction of hot gas flow takes place to deflect, concentrates to notch department and flows, helps with higher speed the heat extraction, prevents that the heat from piling up in the recess, is unfavorable for the heat dissipation. Through being provided with the recess, dust guard and drainage groove, the dust guard that is located recess top position can shelter from the thermovent, prevent effectively that the dust from falling into on thermovent and the guide plate, avoid a large amount of dusts to pile up on the guide plate, cause the guide plate to block, be unfavorable for thermal emission, when meetting sleet weather, rainwater and snow can fall on the dust guard, owing to receive the action of gravity, just can discharge domaticly in the recess fast through the drainage groove, prevent effectively that the rainwater from entering into the thermovent, cause the inside short circuit of light, and simultaneously, concentrate the rainwater with the help of the drainage groove, can wash away the laying dust on the dust guard.

Drawings

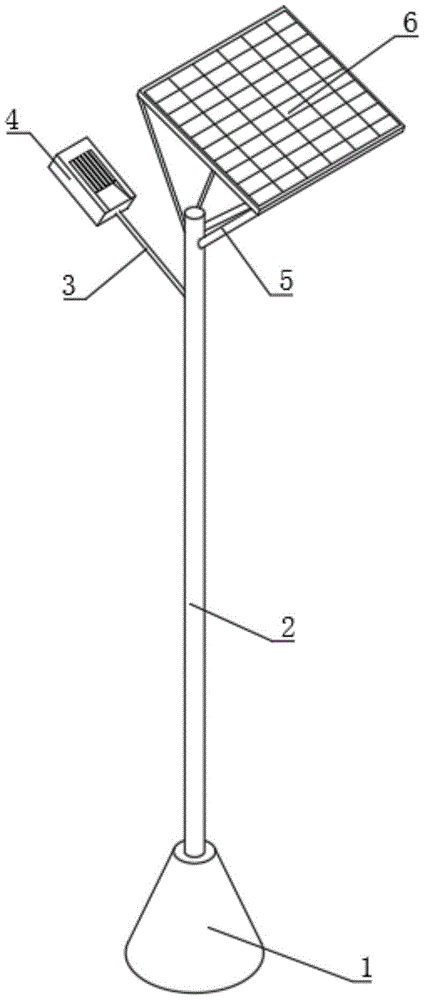

Fig. 1 is a schematic view of the overall structure of an outdoor dustproof solar street lamp of the present invention;

fig. 2 is a schematic view of an external structure of an illuminating lamp of the outdoor dustproof solar street lamp according to the present invention;

fig. 3 is the utility model relates to an outdoor dustproof solar street lamp's light left side longitudinal section.

In the figure: 1. a fixed seat; 2. a light pole; 3. a support bar; 4. an illuminating lamp; 5. a carrier; 6. a photovoltaic power generation panel; 7. a housing; 8. a transparent lampshade; 9. a lamp socket; 10. a bulb; 11. a groove; 12. a heat dissipation port; 13. a fan; 14. a baffle; 15. a dust-proof plate; 16. and (4) a drainage groove.

Detailed Description

In order to make the technical means, creation features, achievement purposes and functions of the present invention easy to understand, the present invention is further described below with reference to the following embodiments.

As shown in fig. 1-3, an outdoor dustproof solar street lamp comprises a fixing base 1, wherein a light pole 2 is arranged at the top end of the fixing base 1, a support rod 3 is arranged at the outer wall of one side of the light pole 2, a lighting lamp 4 is arranged at the tail end of the support rod 3, a bearing frame 5 is arranged at the top end of the light pole 2, and a photovoltaic power generation panel 6 is arranged at the top end of the bearing frame 5.

Light pole 2 and bracing piece 3 all are rolled up by q235 steel and are made and form, and the surface is handled through hot-galvanize and spraying plastics technology, bears 5 welding in the top position of light pole 2, and photovoltaic power generation board 6 fixed mounting bears the top position of 5, through the mutual electric connection of wire between photovoltaic power generation board 6 and the light 4.

Bracing piece 3 welds the position that is close to upper portion on 2 lateral walls of light pole, and light 4 includes shell 7, transparent lampshade 8, lamp stand 9 and bulb 10, and the bottom joint of shell 7 is in 3 top outer wall positions of bracing piece, and transparent lampshade 8 fixed mounting is in the below position of shell 7, and transparent lampshade 8 is by engineering plastics manufacturing, and lamp stand 9 is fixed cup joints bottom position in shell 7, and the connected mode between bulb 10 and the lamp stand 9 is threaded connection.

The upper surface position of shell 7 is seted up flutedly 11, the bottom position thermovent 12 of flutedly 11, and thermovent 12 is the rectangle, and the position is provided with fan 13 directly over bulb 10, forms corresponding relation from top to bottom between fan 13 and the thermovent 12.

A guide plate 14 is arranged right above the fan 13, the guide plate 14 and the heat dissipation port 12 form an up-down corresponding relation, and the guide plate 14 is connected with the inner wall of the shell 7 in a threaded manner.

The opening part on recess 11 top is provided with dust guard 15, and dust guard 15 passes through the position of spout joint between the opening both sides lateral wall on recess 11 top, and a plurality of groups drainage groove 16 have been seted up to the upper surface position of dust guard 15, and drainage groove 16 is parallel form evenly distributed.

It should be noted that, the utility model relates to an outdoor dustproof solar street lamp, during operation, the user installs the fixing base 1 to the position where the street lamp needs to be installed at first, in the sunny weather, the photovoltaic power generation panel 6 on the top of the bearing frame 5 can absorb the solar radiation and convert the light energy into electric energy, and then the electric energy is transmitted to the built-in electric storage device of the street lamp, at night, the electric storage device can release electric quantity to provide electric power support for the street lamp, the illuminating lamp 4 is lighted, the transparent lampshade 8 at the bottom of the illuminating lamp 4 can protect the internal bulb 10, prevent the flying dust from adhering to the bulb 10, the flying dust accumulates in the day and the month, and cause the brightness of the bulb 10 to be reduced, the heat generated during the operation of the bulb 10 can be sucked upwards by the fan 13 to form hot air flow, the hot air flow can pass through the guide plate 14, the guide plate 14 can play, preventing temperature build-up in the groove 11; after passing through the baffle 14, it is discharged to the outside from the heat dissipation port 12. The dust guard 15 that is located recess 11 top can play the effect of isolated dust, can effectively avoid the dust to fall on guide plate 14 and thermovent 12, long-term in the past, causes thermovent 12 and guide plate 14 to block, hinders fan 13 and dispels the heat, and the temperature is too high in the light 4, and damages other spare parts. When meetting sleet weather, rainwater and snow can fall on dust guard 15 to through drainage groove 16 quick drainage, can prevent effectively that the rainwater from entering into light 4 inside from thermovent 12, arouse the short circuit, in addition, drainage groove 16 assembles the rainwater, also helps better washing away the laying dust of dust guard 15 upper surface.

The basic principles and the main features of the invention and the advantages of the invention have been shown and described above. It will be understood by those skilled in the art that the present invention is not limited to the above embodiments, and that the foregoing embodiments and descriptions are provided only to illustrate the principles of the present invention without departing from the spirit and scope of the present invention. The scope of the invention is defined by the appended claims and equivalents thereof.

Claims

1. The utility model provides an outdoor dustproof solar street lamp, includes fixing base (1), its characterized in that: the top position of fixing base (1) is provided with light pole (2), one side outer wall position of light pole (2) is provided with bracing piece (3), the terminal position of bracing piece (3) is provided with light (4), the top position of light pole (2) is provided with bears frame (5), the top position that bears frame (5) is provided with photovoltaic power generation board (6).

2. The outdoor dustproof solar street lamp according to claim 1, characterized in that: light pole (2) and bracing piece (3) are all rolled up by q235 steel and are made and form, and the surface is handled through hot-galvanize and spraying plastics technology, bear frame (5) and weld in the top position of light pole (2), photovoltaic power generation board (6) fixed mounting bears the top position of frame (5), through the mutual electric connection of wire between photovoltaic power generation board (6) and light (4).

3. The outdoor dustproof solar street lamp according to claim 1, characterized in that: bracing piece (3) weld in the position that is close to upper portion on light pole (2) lateral wall, light (4) include shell (7), transparent lampshade (8), lamp stand (9) and bulb (10), the bottom joint of shell (7) is in bracing piece (3) top outer wall position, transparent lampshade (8) fixed mounting is in the below position of shell (7), transparent lampshade (8) are made by engineering plastics, lamp stand (9) fixed cup joint in bottom position in shell (7), connected mode between bulb (10) and lamp stand (9) is threaded connection.

4. The outdoor dustproof solar street lamp according to claim 3, characterized in that: the LED lamp is characterized in that a groove (11) is formed in the upper surface of the shell (7), a heat dissipation opening (12) is formed in the bottom of the groove (11), the heat dissipation opening (12) is rectangular, a fan (13) is arranged right above the bulb (10), and the fan (13) and the heat dissipation opening (12) form a vertically corresponding relation.

5. The outdoor dustproof solar street lamp according to claim 4, characterized in that: a guide plate (14) is arranged right above the fan (13), an up-down corresponding relation is formed between the guide plate (14) and the heat dissipation port (12), and the guide plate (14) is connected with the inner wall of the shell (7) in a threaded manner.

6. The outdoor dustproof solar street lamp according to claim 4, characterized in that: the opening part on recess (11) top is provided with dust guard (15), position between the opening both sides lateral wall on recess (11) top is passed through the spout joint in dust guard (15), a plurality of groups drainage groove (16) have been seted up to the upper surface position of dust guard (15), drainage groove (16) are parallel form evenly distributed.
