The utility model discloses a cloth rewinder for non-woven fabrics convenient to adjust especially relates to cloth rewinder technical field, including organism and base, the motor is installed at the organism below to the base setting, organism right-hand member, and the inboard rotation in organism top is connected with the cloth roller, the drive end and the cloth roller fixed connection of motor. The ship-shaped switch can control the lifting motor to drive the screw to rotate forwards or backwards, and the machine body is screwed to move up and down along with the forward rotation or the backward rotation of the screw in the threaded groove, so that the height of the machine body can be conveniently adjusted; when the non-woven fabrics is rolled up to the cloth roller anticlockwise, the lead screw is driven to rotate through the lead screw motor, the guide block can be twisted to slide left and right, the scraper can be driven to horizontally move left and right, so that the non-woven fabrics rolled up outside the cloth roller can be conveniently scraped, the existing cloth rolling machine for the non-woven fabrics is solved, the height of the machine body can be adjusted according to needs, the regulation is inconvenient, and the problem of the rolled non-woven fabrics is inconvenient to scrape when the cloth roller of the cloth rolling machine is used for rolling up the cloth.
Description
Technical Field
The utility model relates to a cloth rewinder technical field especially relates to a cloth rewinder for non-woven fabrics convenient to adjust.
Background
The non-woven fabric is also called non-woven fabric, is formed by directional or random fibers, is a new generation of environment-friendly material, has the characteristics of moisture resistance, air permeability, flexibility, light weight, no combustion supporting, easy decomposition, no toxicity, no irritation, rich colors, low price, recycling and the like, and needs to be rolled up by a cloth rolling machine when the non-woven fabric is produced.
Present cloth rewinder for non-woven fabrics when the height of organism is adjusted to needs, is not convenient for adjust, leads to using inconveniently, and the cloth roller of cloth rewinder is not convenient for strickle off the non-woven fabrics of curling up moreover when the batching, leads to the non-woven fabrics of curling up to appear the fold easily.
SUMMERY OF THE UTILITY MODEL
The to-be-solved technical problem of the utility model is overcome prior art's defect, provide a cloth rewinder for non-woven fabrics convenient to adjust, solved current cloth rewinder for non-woven fabrics, when the height of organism is adjusted to needs, be not convenient for adjust, the cloth roller of cloth rewinder is when the batching moreover, is not convenient for strickle off the problem of the non-woven fabrics of rolling up.
The utility model provides a technical scheme that its technical problem adopted is: a non-woven fabric cloth rolling machine convenient to adjust comprises a machine body and a base, wherein the base is arranged below the machine body, a motor is mounted at the right end of the machine body, a cloth rolling roller is rotatably connected to the inner side above the machine body, and the driving end of the motor is fixedly connected with the cloth rolling roller;
a lifting motor is embedded in the middle of the upper end of the base, a driving end of the lifting motor is rotatably connected with a screw rod, a thread groove is formed in the middle of the lower end of the machine body, the upper end of the screw rod extends into the thread groove and is in threaded connection with the thread groove, a ship-shaped switch is fixedly installed at the front end of the base, bottom cylinders are embedded and fixed in four corners of the upper end of the base, limiting rods are connected in the bottom cylinders in a sliding mode, and the upper ends of the limiting rods extend out of the bottom cylinders to be;
the lead screw motor is installed to the organism upper end, the lead screw motor is installed to the guide rail right-hand member, the inside rotation of guide rail is connected with the lead screw, the inside sliding connection of guide rail has the guide block, lead screw and guide block run through the setting, the guide block lower extreme is fixed with the sleeve pipe, the inside sliding connection of sleeve pipe has the slide bar, be fixed with the spring between slide bar upper end and the sleeve pipe, the slide bar lower extreme extends the sleeve pipe and is fixed with the scraper blade.
Specifically, the ship-shaped switch is electrically connected with the lifting motor.
Specifically, the driving end of the screw rod motor is rotatably connected with a motor shaft, and the motor shaft penetrates through the guide rail and is fixed with the screw rod.
Specifically, a screw hole is formed in the middle of the guide block, and the screw rod penetrates through the screw hole to be in threaded connection with the screw hole.
Specifically, two travel switches are symmetrically installed at the left end and the right end of the inner wall of the guide rail, the travel switches are located below the screw rod, the guide block is in contact with the travel switches, and the travel switches are electrically connected with the screw rod motor.
Specifically, the scraper blade is arc-shaped, and the scraper blade is clung to the cloth roller.
Compared with the prior art, the utility model discloses the beneficial effect who realizes: according to the conveniently-adjusted non-woven fabric rolling machine, the lifting motor can be controlled to drive the screw to rotate forwards or backwards by pressing the ship-shaped switch, and the machine body is screwed to move up and down along with the forward rotation or the backward rotation of the screw in the threaded groove, so that the height of the machine body can be conveniently adjusted; when the non-woven fabrics is rolled up counterclockwise by the cloth roller, the lead screw is driven to rotate by the lead screw motor, the guide block can be twisted to slide left and right, and the scraper can be driven to move left and right, so that the non-woven fabrics rolled up outside the cloth roller can be scraped.
Drawings
FIG. 1 is a general schematic view of the present invention;

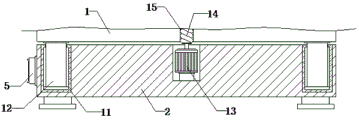

FIG. 2 is a schematic side view of the base of the present invention;
fig. 3 is a schematic front view of the guide rail of the present invention.
In the figure: 1-machine body, 2-base, 3-motor, 4-cloth roller, 5-ship type switch, 6-guide rail, 7-screw rod motor, 8-sleeve, 9-slide rod, 10-scraper, 11-bottom cylinder, 12-limit rod, 13-lifting motor, 14-screw rod, 15-thread groove, 16-spring, 17-screw rod, 18-guide block, 19-travel switch and 20-screw hole.
Detailed Description
The preferred embodiments of the present invention will be described in conjunction with the accompanying drawings, and it will be understood that they are presented herein only to illustrate and explain the present invention, and not to limit the present invention.
As shown in fig. 1 to 3, a cloth rolling machine for non-woven fabric convenient to adjust comprises a machine body 1 and a base 2, wherein the base 2 is arranged below the machine body 1, a motor 3 is installed at the right end of the machine body 1, a cloth rolling roller 4 is rotatably connected to the inner side above the machine body 1, a driving end of the motor 3 is fixedly connected with the cloth rolling roller 4, a lifting motor 13 is installed in the middle of the upper end of the base 2 in an embedded manner, a screw rod 14 is rotatably connected to the driving end of the lifting motor 13, a thread groove 15 is formed in the middle of the lower end of the machine body 1, the upper end of the screw rod 14 extends into the thread groove 15 to be in threaded connection with the thread groove 15, a boat-shaped switch 5 is fixedly installed at the front end of the base 2, bottom cylinders 11 are fixedly embedded into four corners of the upper end of the base 2, limiting rods 12 are slidably connected inside the bottom cylinders, the ship-shaped switch 5 is electrically connected with the lifting motor 13, the lifting motor 13 can be controlled to drive the screw 14 to rotate forwards by pressing the upper end of the ship-shaped switch 5 backwards, the machine body 1 is screwed to move upwards along with the forward rotation of the screw 14 in the threaded groove 15, and the limiting rod 12 can be driven to slide upwards in the bottom cylinder 11;
by pressing the lower end of the ship-shaped switch 5 backwards, the lifting motor 13 can be controlled to drive the screw 14 to rotate reversely, the machine body 1 is screwed to move downwards along with the reverse rotation of the screw 14 in the thread groove 15, and the limiting rod 12 can be driven to slide downwards in the bottom cylinder 11 at the moment, so that the height of the machine body 1 can be adjusted conveniently;
the upper end of the machine body 1 is fixedly provided with a guide rail 6, the right end of the guide rail 6 is provided with a lead screw motor 7, the guide rail 6 is internally and rotatably connected with a lead screw 17, the guide rail 6 is internally and slidably connected with a guide block 18, the lead screw 17 and the guide block 18 are arranged in a penetrating way, the lower end of the guide block 18 is fixedly provided with a sleeve 8, the sleeve 8 is internally and slidably connected with a slide rod 9, a spring 16 is fixed between the upper end of the slide rod 9 and the sleeve 8, the lower end of the slide rod 9 extends out of the sleeve 8 to be fixedly provided with a scraper 10, the drive end of the lead screw motor 7 is rotatably connected with a motor shaft, the motor shaft penetrates through the guide rail 6 and is fixedly provided with the lead screw 17, the middle part of the guide block 18 is provided with a screw hole 20, the lead screw 17 passes through the screw hole 20 and is in, the screw rod 17 is driven to rotate by the screw rod motor 7, when the screw rod 17 rotates forwards in the screw hole 20, the guide block 18 can be twisted to slide leftwards in the guide rail 6, at the moment, the guide block 18 drives the scraper 10 to slide leftwards through the sleeve 8 and the slide rod 9, and the slide rod 9 is pressed downwards by the spring 16 in the sleeve 8, so that the slide rod 9 drives the scraper 10 to be attached to the non-woven fabric rolled up outside the cloth roller 4, and the non-woven fabric can be scraped leftwards by the scraper 10 sliding leftwards;
two travel switches 19 are symmetrically installed at the left end and the right end of the inner wall of the guide rail 6, the travel switches 19 are located below the screw rod 17, the guide block 18 is in contact with the travel switches 19, the travel switches 19 are electrically connected with the screw rod motor 7, and when the guide block 18 slides leftwards to be pressed against the travel switches 19 on the left side, the travel switches 19 on the left side can control the screw rod motor 7 to drive the screw rod 17 to rotate reversely, so that the guide block 6 can be twisted to slide rightwards, and the scraping plate 10 can slide rightwards to scrape off the non-woven fabric;
when the guide block 6 slides right to press the travel switch 19 on the right side, the travel switch 19 on the right side can control the screw motor 7 to drive the screw 17 to rotate forward, so that the scraper 10 can move back and forth left and right, and the non-woven fabric rolled outside the cloth roller 4 can be scraped conveniently.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (6)
1. The utility model provides a cloth rewinder for non-woven fabrics convenient to adjust, includes organism (1) and base (2), base (2) set up in organism (1) below, motor (3) are installed to organism (1) right-hand member, organism (1) top inboard is rotated and is connected with cloth roller (4), the drive end and cloth roller (4) fixed connection, its characterized in that of motor (3):
a lifting motor (13) is embedded in the middle of the upper end of the base (2), a screw rod (14) is rotatably connected to the driving end of the lifting motor (13), a thread groove (15) is formed in the middle of the lower end of the machine body (1), the upper end of the screw rod (14) extends into the thread groove (15) and is in threaded connection with the thread groove (15), a ship-shaped switch (5) is fixedly installed at the front end of the base (2), bottom cylinders (11) are embedded and fixed in four corners of the upper end of the base (2), limiting rods (12) are slidably connected in the bottom cylinders (11), and the upper ends of the limiting rods (12) extend out of the bottom cylinders (11) and are fixed with the machine body (1);
organism (1) upper end is fixed with guide rail (6), lead screw motor (7) are installed to guide rail (6) right-hand member, guide rail (6) inside rotation is connected with lead screw (17), guide rail (6) inside sliding connection has guide block (18), lead screw (17) run through the setting with guide block (18), guide block (18) lower extreme is fixed with sleeve pipe (8), sleeve pipe (8) inside sliding connection has slide bar (9), be fixed with spring (16) between slide bar (9) upper end and sleeve pipe (8), slide bar (9) lower extreme extends sleeve pipe (8) and is fixed with scraper blade (10).
2. The conveniently adjustable non-woven fabric rewinder as claimed in claim 1, wherein: the ship-shaped switch (5) is electrically connected with the lifting motor (13).
3. The conveniently adjustable non-woven fabric rewinder as claimed in claim 1, wherein: the driving end of the screw rod motor (7) is rotatably connected with a motor shaft, and the motor shaft penetrates through the guide rail (6) and is fixed with the screw rod (17).
4. The conveniently adjustable non-woven fabric rewinder as claimed in claim 1, wherein: the middle part of the guide block (18) is provided with a screw hole (20), and the screw rod (17) penetrates through the screw hole (20) to be in threaded connection with the screw hole (20).
5. The conveniently adjustable non-woven fabric rewinder as claimed in claim 1, wherein: two travel switches (19) are symmetrically installed at the left end and the right end of the inner wall of the guide rail (6), the travel switches (19) are located below the screw rod (17), the guide block (18) is in contact with the travel switches (19), and the travel switches (19) are electrically connected with the screw rod motor (7).
6. The conveniently adjustable non-woven fabric rewinder as claimed in claim 1, wherein: the scraping plate (10) is arc-shaped, and the scraping plate (10) is tightly attached to the cloth roller (4).
