本实用新型公开了一种节能型丝网印刷机专用的物料运输装置，包括印刷机，印刷机的一侧中部连接有斜板，斜板的末端连接运输机构，运输机构设于工作台上；运输机构包括从动轮、主动轮，从动轮和主动轮上套设有传送带并与传送带传动连接，从动轮和主动轮之间连接有机架，机架的下表面等距固定有固定杆，机架通过固定杆固定于工作台上，机架的上表面均匀连接有弹簧，弹簧上端连接有横版，横版的两侧末端内嵌入有第一传感器和第二传感器。通过物料在传送带上运输时产生的压力被传递给横版，横版受力压缩弹簧，弹簧产生形变吸收这部分力，产生减震效果；通过传感器使传送带在受到一定压力时才开始运作，节约能源并且提高了传送带的使用寿命。
The utility model discloses a special material transport device for an energy-saving screen printing machine, which comprises a printing machine, a sloping plate is connected to the middle of one side of the printing machine, the end of the sloping plate is connected to a transport mechanism, and the transport mechanism is arranged on a workbench; The transport mechanism includes a driven wheel and a driving wheel. A conveyor belt is sleeved on the driven wheel and the driving wheel and is connected with the conveyor belt. A frame is connected between the driven wheel and the driving wheel. The lower surface of the frame is equidistantly fixed with fixed rods. The frame is fixed on the worktable through the fixing rod, the upper surface of the frame is evenly connected with springs, the upper end of the spring is connected with a horizontal plate, and the two ends of the horizontal plate are embedded with a first sensor and a second sensor. The pressure generated when the material is transported on the conveyor belt is transmitted to the horizontal plate, the horizontal plate is forced to compress the spring, the spring deforms to absorb this part of the force, and produces a shock absorption effect; through the sensor, the conveyor belt starts to operate when it is under a certain pressure, saving energy energy and increase the service life of the conveyor belt.
Description
Technical Field
The utility model relates to a screen printing machine technical field especially relates to a dedicated material transport device of energy-saving screen printing machine.
Background
A screen printing machine is a machine for applying a print with a screen plate, which is a generic name of machines or apparatuses for producing printed matters, and belongs to a relatively representative printing apparatus among stencil printing machines. The special material conveying device for the energy-saving screen printing machine is a device special for conveying materials related to the screen printing machine.
When the existing special material conveying device for the screen printing machine is used for conveying materials, the damping effect is not generated, the materials are easily jolted on a conveying belt to cause abrasion, the conveying belt always works, the energy consumption is large, the abrasion is large, and the service life is shortened.
SUMMERY OF THE UTILITY MODEL
In order to overcome the not enough of prior art, the utility model provides a dedicated material transportation device of energy-saving screen printer can carry out the shock attenuation when material transport, reduces the material and jolts on the conveyer belt to just begin work when making the conveyer belt receive certain pressure through pressure sensor.
In order to solve the technical problem, the utility model provides a following technical scheme: a material conveying device special for an energy-saving screen printing machine comprises a printing machine, an inclined plate, a conveying belt, a workbench and an ash removal mechanism, wherein the inclined plate is connected to the middle of one side of the printing machine, the tail end of the inclined plate is connected with a conveying mechanism, and the conveying mechanism is arranged on the workbench;
transport mechanism includes the conveyer belt, from driving wheel, action wheel, from the cover on driving wheel and the action wheel be equipped with the conveyer belt and be connected with the conveyer belt transmission, be connected with the frame between follow driving wheel and the action wheel, the lower surface equidistance of frame is fixed with the dead lever, the frame is fixed in on the workstation through the dead lever, the upper surface of frame evenly is connected with the spring, the spring upper end is connected with horizontal version, the top outer wall of horizontal version and the inner wall laminating of conveyer belt, the terminal interior embedding in both sides of horizontal version has first sensor and second sensor, first sensor and second sensor and conveyer belt laminating.
As a preferred technical scheme of the utility model, baffles are symmetrically arranged on the front side and the rear side of the upper end of the conveyor belt, and the inner side of the baffle close to one end of the inclined plate is provided with a dust cleaning mechanism;
the ash removal mechanism comprises a hairbrush, a supporting rod is installed at the upper end of the baffle, a hairbrush roller is vertically connected to the tail end of the supporting rod, the hairbrush roller is rotatably connected with the hairbrush, and the hairbrush is close to the outer surface of the conveying belt.
As a preferred technical scheme of the utility model, the equal symmetry all around of workstation is equipped with the supporting legs, the surface of supporting legs is equipped with the one deck slipmat.
As an optimized technical scheme of the utility model, the surface of conveyer belt is equipped with the one deck wearing layer.
As a preferred technical scheme of the utility model, the model of sensor is PT 1124G-210.
As an optimized technical proposal of the utility model, the brush hair arranged on the brush is the thin and soft brush hair.
As an optimized technical scheme of the utility model, be fixed with the motor in the one side of being close to the printing machine between two supporting legss around.
Compared with the prior art, the utility model discloses the beneficial effect that can reach is:
1. the pressure generated when the materials are conveyed on the conveyor belt is transmitted to the transverse plate, the transverse plate is stressed to compress the spring, the spring generates deformation to absorb the component force, the damping effect can be generated, jolts of the materials in the conveying process are reduced, and the materials are effectively prevented from being abraded; the sensor enables the conveyor belt to start to operate when the conveyor belt is under certain pressure, so that energy is saved, and the service life of the conveyor belt is prolonged.
2. Through the ash removal mechanism, when materials in the printing machine enter the conveying belt, the brush cleans the materials immediately, and dust attached to the materials in the printing machine can be removed.
Drawings

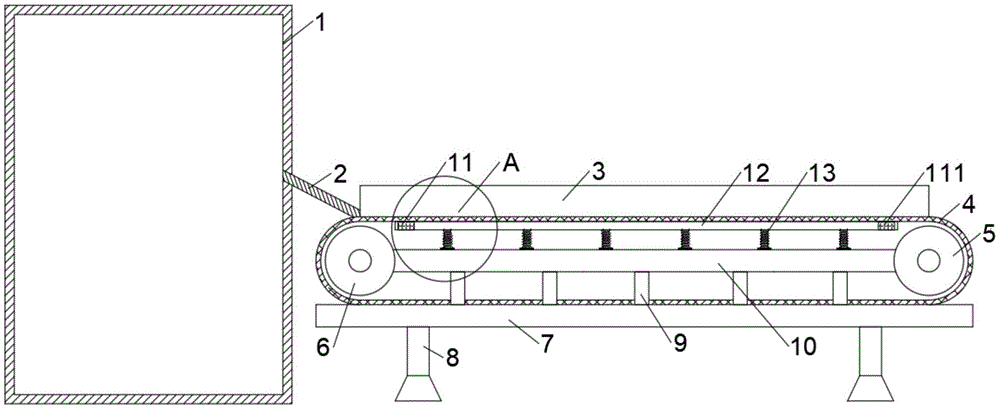

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic structural view of the ash removal mechanism of the present invention;
FIG. 3 is an enlarged view of the point A of the present invention;
wherein: 1. a printing press; 2. a sloping plate; 3. a baffle plate; 4. a conveyor belt; 5. a driven wheel; 6. a driving wheel; 7. a work table; 8. supporting legs; 9. fixing the rod; 10. a frame; 11. a first sensor; 111. a second sensor; 12. horizontal edition; 13. a spring; 14. a support bar; 15. and a brush.
Detailed Description
The present invention will be further described with reference to specific embodiments for the purpose of facilitating an understanding of technical means, characteristics of creation, objectives and functions realized by the present invention, but the following embodiments are only preferred embodiments of the present invention, and are not intended to be exhaustive. Based on the embodiments in the implementation, other embodiments obtained by those skilled in the art without any creative efforts belong to the protection scope of the present invention. The experimental methods in the following examples are conventional methods unless otherwise specified, and materials, reagents and the like used in the following examples are commercially available unless otherwise specified.
Example (b):
as shown in fig. 1 and 3, the utility model provides a special material transportation device for an energy-saving screen printing machine 1, which comprises a printing machine 1, an inclined plate 2, a conveyor belt 4, a workbench 7 and an ash removal mechanism, wherein the inclined plate 2 is connected to the middle part of one side of the printing machine 1, the end of the inclined plate 2 is connected with a transportation mechanism, and the transportation mechanism is arranged on the workbench 7;
the conveying mechanism comprises a conveying belt 4, a driven wheel 5 and a driving wheel 6, the driven wheel 5 and the driving wheel 6 are sleeved with the conveying belt 4 and are in transmission connection with the conveying belt 4, a rack 10 is connected between the driven wheel 5 and the driving wheel 6, fixing rods 9 are fixed on the lower surface of the rack 10 at equal intervals, the rack 10 is fixed on a workbench 7 through the fixing rods 9, springs 13 are evenly connected to the upper surface of the rack 10, the upper ends of the springs 13 are connected with a cross plate 12, the outer wall of the top end of the cross plate 12 is attached to the inner wall of the conveying belt 4, a first sensor 11 and a second sensor 111 are embedded into the tail ends of the two sides of the cross plate 12, and the first sensor 11 and the second sensor 111 are attached to;
when the device works, materials in the printing machine 1 slide down from the inclined plate 2 to enter the conveyor belt 4, the materials are cleaned immediately when falling into the conveyor belt 4, meanwhile, the first sensor 11 starts to monitor the pressure on the conveyor belt 4, when the pressure is accumulated to a certain degree, the motor is started, the conveyor belt 4 starts to transport the materials, and as the materials have a certain weight, the materials extrude the conveyor belt 4 in the transportation process, the conveyor belt 4 extrudes the transverse plate 12, the transverse plate 12 begins to extrude the spring 13 under the pressure, and the spring 13 recovers the original state to absorb the component force after being stressed and deformed, so that the damping effect is generated; when the material is transported to the end of the conveyor belt 4 and enters the receiving bin, the second sensor 111 senses that the pressure is zero, and the motor is turned off, so that the conveyor belt 4 stops operating.
In another embodiment, as shown in fig. 1 and 2, the ash removing mechanism is disclosed in this embodiment, baffles 3 are symmetrically arranged on the front side and the rear side of the upper end of a conveyor belt 4, and the ash removing mechanism is arranged on the inner side of the baffle 3 close to one end of an inclined plate 2;
the ash removal mechanism comprises a brush 15, a support rod 14 is installed at the upper end of the baffle 3, a brush roller is vertically connected to the tail end of the support rod 14, the brush roller is rotatably connected with the brush 15, and the brush 15 is close to the outer surface of the conveyor belt 4;
when the device works, materials in the printing machine 1 slide down from the inclined plate 2 to reach the front end of the conveyor belt 4, the brush 15 is immediately started, and the brush 15 rotates on the brush roller and cleans the materials one by one. Through the ash cleaning mechanism, the brush 15 cleans the materials in the printing machine 1 immediately when the materials enter the conveyor belt 4, and dust attached to the materials in the printing machine 1 can be removed.
In another embodiment, as shown in fig. 1, this embodiment discloses that the front, back, left and right of the workbench 7 are symmetrically provided with supporting feet 8, and the outer surfaces of the supporting feet 8 are provided with a layer of non-slip mat; when the device works, the anti-slip mat is fixed on the ground through the supporting legs 8, the anti-slip mat increases the friction force between the supporting legs 8 and the ground, and the transportation device is more stable and not easy to incline when working.
In another embodiment, as shown in fig. 1, this embodiment discloses that the outer surface of the conveyor belt 4 is provided with a wear layer; the device during operation, the material is transported on the surface of conveyer belt 4, and the wearing layer can reduce the friction between material and the conveyer belt 4, improves the life of conveyer belt 4.
In another embodiment, as shown in FIG. 1, the present embodiment discloses appliance models, sensor models PT 1124G-210; the sensor converts the pressure into a voltage signal, sends the voltage signal to the converter and then sends the voltage signal to the controller.
In another embodiment, as shown in fig. 2, this embodiment discloses that the bristles provided on the brush 15 are soft bristles; when the device works, the brush 15 cleans ash of materials, and the fine and soft bristles can clean dust more carefully and are not easy to damage the materials.
In another embodiment, as shown in fig. 1, in this embodiment, a motor is fixed between the front and rear support legs 8 at a side close to the printing machine 1, and the transportation mechanism and the brush 15 are electrically connected to the motor; when the device works, the motor is started, the conveyor belt 4 starts to work and transport materials, and the brush 15 starts to rotate to clean the materials.
In the present invention, unless otherwise expressly stated or limited, "above" or "below" a first feature means that the first and second features are in direct contact, or that the first and second features are not in direct contact but are in contact with each other via another feature therebetween. Also, the first feature being "on," "above" and "over" the second feature includes the first feature being directly on and obliquely above the second feature, or merely indicating that the first feature is at a higher level than the second feature. A first feature being "under," "below," and "beneath" a second feature includes the first feature being directly under and obliquely below the second feature, or simply meaning that the first feature is at a lesser elevation than the second feature.
The foregoing shows and describes the general principles, essential features, and advantages of the invention. It will be understood by those skilled in the art that the present invention is not limited to the embodiments described above, and the preferred embodiments of the present invention are described in the above embodiments and the description, and are not intended to limit the present invention. The scope of the invention is defined by the appended claims and equivalents thereof.
