Abstract
The utility model discloses a billet drilling equipment, including organism, longmen frame, positioning mechanism, the tight mechanism in top and drilling mechanism, the rear side of organism is equipped with longmen frame and positioning mechanism, and the front end both sides of organism are equipped with the tight mechanism in top respectively, are equipped with the intermediate transverse beam in the longmen frame, are equipped with cross guide on the top crossbeam of longmen frame and the preceding terminal surface of intermediate transverse beam respectively, can remove on the cross guide and be equipped with two sets of drilling mechanisms that move, and drilling mechanism includes translation slide, lift cylinder, indulges the guide rail, indulges the slide, including a motor, a plurality of shaft devices and drill bit. The utility model discloses a set up positioning mechanism and top tight mechanism and press from both sides the billet tightly, treat the Y axle location of processing the hole site to the billet, and positioning mechanism's fore-and-aft distance is adjustable, can adapt to the processing of different width billets, can treat the X axle location of processing the hole site to the billet through the flexible of control translation cylinder, can satisfy the operation of drilling simultaneously in porous position through setting up two sets of drilling mechanisms, improved machining efficiency.
Description
Technical Field
The utility model relates to a wood working technical field specifically relates to a billet drilling equipment.
Background
The wood amount of modern articles for daily use is more, and timber needs to be processed during production, and the wood processing technology includes basic processing technologies such as wood cutting, wood drying, wood gluing, wood surface decoration and the like, and functional processing technologies such as wood protection, wood modification and the like, and the wood cutting includes sawing, planing, milling, drilling, sanding and the like. However, in the existing wood board drilling process, a worker generally places a wood board on a drilling machine for processing, repositioning operation is required when one hole site is processed, the processing is very complicated, the processing efficiency is low, and the accuracy of the hole site is easily influenced by repeated positioning, so that a wood block drilling device is provided.
SUMMERY OF THE UTILITY MODEL
The utility model aims at overcoming the not enough of prior art, provide a billet drilling equipment.
The utility model discloses technical scheme:
a wood block drilling device comprises a machine body, a gantry frame, a positioning mechanism, a jacking mechanism and a drilling mechanism, wherein the gantry frame and the positioning mechanism are arranged on the rear side of the machine body, the jacking mechanism is respectively arranged on two sides of the front end of the machine body, a middle cross beam is arranged in the gantry frame, transverse guide rails are respectively arranged on the front end surfaces of the top cross beam and the middle cross beam of the gantry frame, two sets of drilling mechanisms are arranged on the transverse guide rails in a left-right moving mode, the drilling mechanism comprises a translation sliding plate, a lifting cylinder, a longitudinal guide rail, a longitudinal sliding plate, a motor, a multi-axis device and a drill bit, the translation sliding plate is of an inverted L-shaped structure, the translation sliding plate is arranged on the two transverse guide rails in a left-right moving mode, longitudinal guide rails are respectively arranged on two sides of the plate surface of the translation sliding plate, a longitudinal sliding plate is arranged on the longitudinal guide rails in a vertical moving mode, a lifting cylinder with an, the longitudinally-moving sliding plate is provided with a motor with a downward output shaft, and the output end of the motor is provided with a drill bit through a multi-axis device.
Preferably, the upright columns on two sides of the gantry frame are respectively provided with a translation cylinder through a cylinder bracket, and the output end of each translation cylinder is respectively connected with the translation sliding plate on the corresponding side to drive the translation sliding plates to move left and right on the transverse guide rail.
Preferably, the positioning mechanism comprises a lower cross beam, a positioning plate and an adjusting plate, the lower portion of the gantry frame is provided with the lower cross beam, the positioning plate is mounted on the front side of the lower cross beam through the adjusting plate, an adjusting groove is formed in the surface of the adjusting plate, one end of the adjusting plate penetrates through the adjusting groove through a bolt to be in threaded connection with a threaded hole in the lower cross beam, and the other end of the adjusting plate is welded with the positioning plate into a whole.
Preferably, the jacking mechanism comprises a jacking cylinder and a jacking block, the front side of the machine body is respectively provided with a set of jacking cylinder with an output end facing to the rear side, and the output end of the jacking cylinder is provided with the jacking block.
The utility model discloses a set up positioning mechanism and top tight mechanism and press from both sides the billet tightly, treat the Y axle location of processing the hole site to the billet, and positioning mechanism's fore-and-aft distance is adjustable, can adapt to the processing of different width billets, can treat the X axle location of processing the hole site to the billet through the flexible of control translation cylinder, can satisfy the operation of drilling simultaneously in porous position through setting up two sets of drilling mechanisms, improved machining efficiency.
Drawings
FIG. 1 is a front view of a preferred embodiment of the present invention;
fig. 2 is a side view of the preferred embodiment of the present invention;

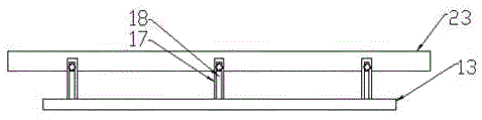

FIG. 3 is a top view of the positioning mechanism in the preferred embodiment of the present invention;
in the figure: the device comprises a machine body 1, a gantry frame 2, a transverse guide rail 3, a translation sliding plate 4, a lifting cylinder 5, a longitudinal guide rail 6, a longitudinal sliding plate 7, a multi-axis device 8, a drill bit 9, a cylinder support 10, a translation cylinder 11, a motor 12, a positioning plate 13, a wood block 14, a jacking cylinder 15, a jacking block 16, an adjusting plate 17, an adjusting groove 18, a top cross beam 21, a middle cross beam 22 and a lower cross beam 23.
Detailed Description
The present invention can be further described by the following embodiments, however, the scope of the present invention is not limited to the following embodiments.
Example 1: as shown in figures 1-3, the wood block drilling device comprises a machine body 1, a gantry frame 2, a positioning mechanism, a jacking mechanism and a drilling mechanism, wherein the gantry frame 2 and the positioning mechanism are arranged on the rear side of the machine body 1, the jacking mechanism is respectively arranged on two sides of the front end of the machine body 1, a middle cross beam 22 is arranged in the gantry frame 2, transverse guide rails 3 are respectively arranged on the front end surfaces of a top cross beam 21 and the middle cross beam 22 of the gantry frame 2, two sets of drilling mechanisms are arranged on the transverse guide rails 3 in a left-and-right moving manner, the drilling mechanism comprises a translation sliding plate 4, a lifting cylinder 5, a longitudinal guide rail 6, a longitudinal sliding plate 7, a motor 12, a multi-axis device 8 and a drill bit 9, the translation sliding plate 4 is in an inverted L-shaped structure, the translation sliding plate 4 is arranged on the two transverse guide rails 3 in a left-and right moving manner, longitudinal guide rails 6 are respectively arranged on two sides of, the top of translation slide 4 is equipped with output shaft lift cylinder 5 down, and the output of lift cylinder 5 is connected with the drive that moves the slide 7 longitudinally and is moved longitudinally and move slide 7 and reciprocate on vertical guide 6, moves longitudinally and is equipped with output shaft motor 12 down on the slide 7, and the drill bit 9 is installed through multiaxis ware 8 to the output of motor 12.
Preferably, the upright columns on two sides of the gantry frame 2 are respectively provided with a translation cylinder 11 through a cylinder bracket 10, and the output end of each translation cylinder 11 is respectively connected with the translation sliding plate 4 on the corresponding side to drive the translation sliding plate 4 to move left and right on the transverse guide rail 3.
Preferably, the positioning mechanism comprises a lower beam 23, a positioning plate 13 and an adjusting plate 17, the lower part of the gantry frame 2 is provided with the lower beam 23, the positioning plate 13 is installed on the front side of the lower beam 23 through the adjusting plate 17, an adjusting groove 18 is formed in the surface of the adjusting plate 17, one end of the adjusting plate 17 penetrates through the adjusting groove 18 through a bolt to be in threaded connection with a threaded hole in the lower beam 23, and the other end of the adjusting plate 17 is welded with the positioning plate 13 into a whole.
Preferably, the jacking mechanism comprises a jacking cylinder 15 and a jacking block 16, the front side of the machine body 1 is respectively provided with a set of jacking cylinder 15 with an output end facing to the rear side, and the output end of the jacking cylinder 15 is provided with the jacking block 16.
The utility model discloses the theory of operation: the front and rear positions of a positioning plate 13 are adjusted through bolts, a wood block 14 is arranged between the positioning plate 13 and a jacking block 16, output shafts of two sets of jacking cylinders 15 are controlled to extend synchronously, the jacking block 16 is driven by the extension of the output shafts of the jacking cylinders 15 to move backwards to be matched with the positioning plate 13 to clamp the wood block 14, so that Y-axis positioning of a hole position to be processed on the wood block is realized, then, an operator controls the extension of translation cylinders 11 on two sides of a gantry frame 2 to position X-axis of the hole position to be processed on the wood block, then, the operator starts two sets of motors 12 to rotate synchronously, controls two sets of lifting cylinders 5 to extend synchronously, the motors 12 rotate to drive a drill bit 9 to rotate synchronously by driving a multi-axis device 8, the output shafts of the lifting cylinders 5 extend to drive the drill bit 9 to descend along with a longitudinal sliding plate 7 to be in contact with the.
The basic principles and the main features of the invention and the advantages of the invention have been shown and described above, it will be evident to those skilled in the art that the invention is not limited to the details of the foregoing illustrative embodiments, but that the invention may be embodied in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.
Claims (4)
1. A wood block drilling device comprises a machine body (1), a gantry frame (2), a positioning mechanism, a jacking mechanism and a drilling mechanism, and is characterized in that the gantry frame (2) and the positioning mechanism are arranged on the rear side of the machine body (1), the jacking mechanism is respectively arranged on two sides of the front end of the machine body (1),
a middle cross beam (22) is arranged in the gantry frame (2), a transverse guide rail (3) is respectively arranged on the top cross beam (21) of the gantry frame (2) and the front end surface of the middle cross beam (22), two sets of drilling mechanisms are arranged on the transverse guide rail (3) in a manner of moving left and right,
the drilling mechanism comprises a translation sliding plate (4), a lifting cylinder (5), a longitudinal guide rail (6), a longitudinal sliding plate (7), a motor (12), a multi-axis device (8) and a drill bit (9), the translation sliding plate (4) is of an inverted L-shaped structure, the translation sliding plate (4) can be arranged on the two transverse guide rails (3) in a left-right moving mode, the two sides of the surface of the translation sliding plate (4) are respectively provided with a longitudinal guide rail (6), the longitudinal guide rail (6) is provided with a longitudinal sliding plate (7) in a vertical moving mode, the top of translation slide (4) is equipped with output shaft lift cylinder (5) down, and the output of lift cylinder (5) with indulge move slide (7) and be connected the drive and indulge move slide (7) and reciprocate on indulge guide rail (6), indulge and be equipped with output shaft motor (12) down on moving slide (7), drill bit (9) are installed through multiaxis ware (8) to the output of motor (12).
2. A wood block drilling device according to claim 1, characterized in that the two side columns of the gantry frame (2) are respectively provided with a translation cylinder (11) through a cylinder bracket (10), the output end of each translation cylinder (11) is respectively connected with the translation sliding plate (4) on the corresponding side, and the translation sliding plates (4) are driven to move left and right on the cross guide rail (3).
3. The wood block drilling device according to claim 1, wherein the positioning mechanism comprises a lower cross beam (23), a positioning plate (13) and an adjusting plate (17), the lower portion of the gantry frame (2) is provided with the lower cross beam (23), the positioning plate (13) is installed on the front side of the lower cross beam (23) through the adjusting plate (17), an adjusting groove (18) is formed in the plate surface of the adjusting plate (17), one end of the adjusting plate (17) penetrates through the adjusting groove (18) through a bolt to be in threaded connection with a threaded hole in the lower cross beam (23), and the other end of the adjusting plate (17) is welded with the positioning plate (13) into a whole.
4. A wood block drilling device according to claim 1, wherein the jacking mechanism comprises a jacking cylinder (15) and a jacking block (16), a set of jacking cylinders (15) with the output ends facing to the rear side are respectively arranged at the front side of the machine body (1), and the output ends of the jacking cylinders (15) are provided with the jacking blocks (16).
