CN213600060U

CN213600060U - A portable measuring device suitable for decoration engineering

Info

Publication number: CN213600060U
Application number: CN202022398754.0U
Authority: CN
Inventors: 管茂硕; 管茂
Original assignee: Anhui Huisen Decoration Engineering Co ltd
Current assignee: Anhui Huisen Decoration Engineering Co ltd
Priority date: 2020-10-26
Filing date: 2020-10-26
Publication date: 2021-07-02
Anticipated expiration: 2030-10-26

Abstract

The utility model relates to the technical field of building decoration equipment, and discloses a portable measuring device suitable for decoration engineering, comprising an outer frame and a movable block, an inner rod is fixedly installed in the middle of the inner cavity of the outer frame, and the inner rod is opened There are bolt holes, the movable block and the inner rod are movably installed by the second fixing bolt, the top surface of the outer frame is fixedly installed with a top plate, the top surface of the top plate is fixedly installed with a laser range finder, and the bottom surface of the top plate is fixedly installed with a laser range finder. The movable mount has side bars located on both sides of the outer frame. The portable measuring device suitable for decoration engineering can increase the angle between the side bar and the outer frame to a suitable angle, so that the portable measuring device suitable for decoration engineering is convenient for staff to use. The angle between the side bar and the outer frame can be controlled by the block until they fit each other, so that the portable measuring device suitable for decoration engineering is easy to be stored and moved without occupying a lot of space, so that it has the beneficial effect of portability.

Description

Portable measuring device suitable for decorate engineering

Technical Field

The utility model relates to an architectural decoration equipment technical field specifically is a portable measuring device suitable for decorate engineering.

Background

Often need use measuring tool to measure the distance between two positions in decorating engineering, and current measuring method uses laser range finder to survey the distance, and current decoration engineering measuring device, because actual conditions's difference, often need carry out the erection support to it, places the support on ground when using, and after the use is accomplished, it is great to accomodate shared space when removing, and the not convenient to remove, consequently can reduce its portability.

In the actual use process, distances with different heights are required to be measured, the height of the existing decoration engineering measuring device cannot be well adjusted, and a worker is required to use other tools or manually lift the height to a certain height for measurement, so that the working efficiency is reduced.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

Not enough to prior art, the utility model provides a portable measuring device suitable for decorate engineering has solved the problem of proposing in the above-mentioned background art.

(II) technical scheme

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a portable measuring device suitable for decorate engineering, includes frame and movable block, the middle part fixed mounting of frame inner chamber has interior pole, the bolt hole has been seted up to interior pole, movable block and interior pole pass through second fixing bolt movable mounting, the top surface fixed mounting of frame has the roof, the top surface fixed mounting of roof has laser range finder, the bottom surface of roof articulates there is the side lever that is located the frame both sides, two first hollow post, two have all been cup jointed through first fixing bolt activity to the bottom of side lever the equal movable mounting in bottom of first hollow post has first bottom plate, movable groove, two have all been seted up to the left and right sides face of frame the inboard equal movable mounting of side lever has the movable rod, two the medial extremity of movable rod all passes movable groove and with movable block swing joint.

Preferably, the middle part and the left and right sides of frame bottom surface all fixed mounting have movable post, every the bottom of activity post is all actively cup jointed the hollow post of second, and is three the bottom fixed mounting of the hollow post of second has the second bottom plate, every the surface of activity post is all actively cup jointed the second spring that is located between the hollow post of frame and second, every the both ends of second spring are equallyd divide do not with the hollow post fixed connection of frame and second.

Preferably, the number of bolt holes is ten.

Preferably, the thickness of the movable rod is matched with that of the movable groove.

Preferably, the surface of the inner rod is movably sleeved with a first spring positioned between the bottom surface of the inner cavity of the inner rod and the movable block, and two ends of the first spring are fixedly connected with the outer frame and the movable block respectively.

Preferably, the bottom end of the movable column is fixedly provided with a limiting block positioned in the inner cavity of the second hollow column.

(III) advantageous effects

Compared with the prior art, the utility model provides a portable measuring device suitable for decorate engineering possesses following beneficial effect:

1. this portable measuring device suitable for decorate engineering, take place to rotate through movable block control movable rod, the contained angle that drives side lever and frame increases suitable angle, make this portable measuring device suitable for decorate engineering make things convenient for staff's use, after accomplishing the measurement, still can control the contained angle of side lever and frame through the movable block and until laminating each other, make this portable measuring device suitable for decorate engineering be convenient for accomodate the removal, need not to occupy more space, make it possess handy beneficial effect.

2. This portable measuring device suitable for decorate engineering adjusts suitable relative position and fixes through the staff with side lever and first hollow post, and whole operation process is simple and not hard, required height when can adjusting the measurement for this portable measuring device suitable for decorate engineering has possessed height-adjustable's effect.

Drawings

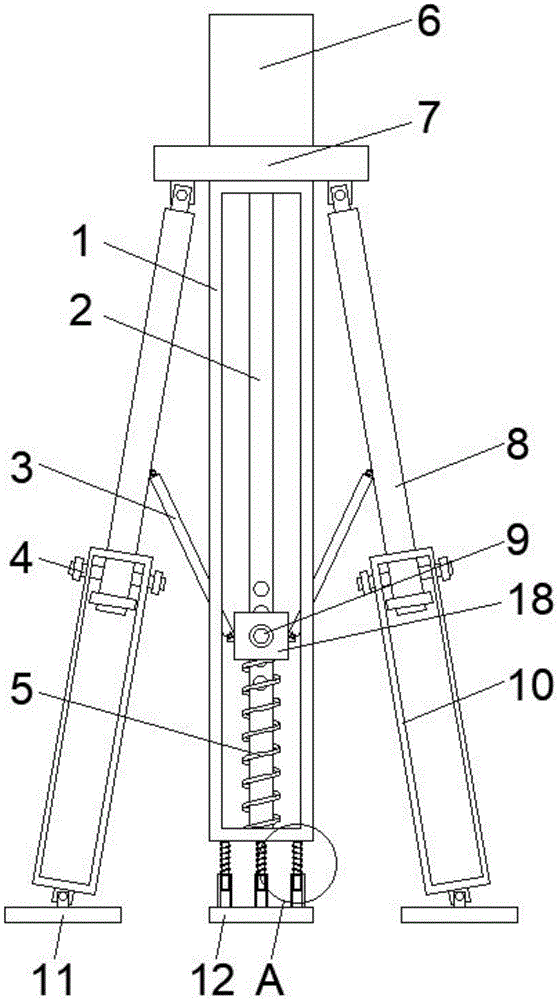

FIG. 1 is a schematic structural view of the present invention;

fig. 2 is an enlarged view of the structure at a point a of the present invention.

In the figure: 1. an outer frame; 2. an inner rod; 3. a movable rod; 4. a first fixing bolt; 5. a first spring; 6. A laser range finder; 7. a top plate; 8. a side lever; 9. a second fixing bolt; 10. a first hollow column; 11. A first base plate; 12. a second base plate; 13. a second hollow column; 14. a second spring; 15. a movable post; 16. a limiting block; 17. a movable groove; 18. a movable block.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-2, a portable measuring device suitable for decoration engineering comprises an outer frame 1 and a movable block 18, wherein an inner rod 2 is fixedly installed in the middle of an inner cavity of the outer frame 1, the inner rod 2 is provided with bolt holes, the number of the bolt holes is five, so that the included angle between the outer frame 1 and side rods 8 can be adjusted to five when in use, the practicability is improved, the movable block 18 and the inner rod 2 are movably installed through second fixing bolts 9, a top plate 7 is fixedly installed on the top surface of the outer frame 1, a laser range finder 6 is fixedly installed on the top surface of the top plate 7, the side rods 8 positioned on two sides of the outer frame 1 are hinged on the bottom surface of the top plate 7, first hollow columns 10 are movably sleeved at the bottom ends of the two side rods 8 through first fixing bolts 4, first bottom plates 11 are movably installed at the bottom ends of the two first hollow columns 10, and the two first bottom plates 11 are movably installed between the corresponding, so when using, two first bottom plates 11 all can the level place subaerial for this portable measuring device who is applicable to decoration engineering is in the horizontally state all the time, and movable groove 17 has all been seted up to the side about frame 1, and the equal movable mounting in inboard of two side levers 8 has movable rod 3, and the medial extremity of two movable rods 3 all passes movable groove 17 and with movable block 18 swing joint.

The electrical components presented in the document are all electrically connected with an external master controller and 220V mains, and the master controller can be a conventional known device controlled by a computer or the like.

When using, the staff at first places this portable measuring device suitable for decorate engineering in suitable position, two first bottom plates 11 are equal level and are placed subaerial, second bottom plate 12 and ground contact each other this moment, make ground and second bottom plate 12 have certain pressure under the effect of second spring 14, hold frame 1 simultaneously, through outwards twisting out second fixing bolt 9, adjust movable block 18 to suitable position, corresponding second fixing bolt 9 is twisted in again, make frame 1 and side lever 8's contained angle to suitable angle, the relative position of side lever 8 and first hollow post 10 is adjusted again, make its height be the required height of staff, after using, twist out second fixing bolt 9, pulling movable block 18 downwards, twist in again, make side lever 8 and frame 1 laminate each other can.

To sum up, this portable measuring device suitable for decorate engineering, take place to rotate through movable block 18 control movable rod 3, the contained angle that drives side lever 8 and frame 1 increases to suitable angle, make this portable measuring device suitable for decorate engineering make things convenient for staff's use, after accomplishing the measurement, still can control the contained angle of side lever and 8 frame 1 through movable block 18 and until laminating each other, adjust suitable relative position and fix with side lever 8 and first hollow post 10 through the staff, whole operation process is simple and not hard, can adjust required height when measuring, make this portable measuring device suitable for decorate engineering possess height-adjustable's effect.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. A portable measuring device suitable for decorating projects, comprising an outer frame (1) and a movable block (18), and is characterized in that: interior pole (2) are installed to the middle part fixed mounting of frame (1) inner chamber, the bolt hole has been seted up in interior pole (2), movable block (18) and interior pole (2) are through second fixing bolt (9) movable mounting, the top surface fixed mounting of frame (1) has roof (7), the top surface fixed mounting of roof (7) has laser range finder (6), the bottom surface of roof (7) articulates there is side lever (8) that is located frame (1) both sides, two the bottom of side lever (8) has all cup jointed first hollow post (10), two through first fixing bolt (4) activity, the equal movable mounting in bottom of first hollow post (10) has first bottom plate (11), movable groove (17) have all been seted up to the side about frame (1), two the inboard equal movable mounting of side lever (8) has movable rod (3), two the medial extremity of movable rod (3) all passes movable groove (17) and with movable block (18) activity And (4) connecting.

2. A portable measuring device suitable for use in decorative engineering, according to claim 1, characterized in that: the middle part and the equal fixed mounting in left and right sides of frame (1) bottom surface have movable post (15), every the bottom of activity post (15) is all movable and has been cup jointed the hollow post of second (13), and is three the bottom fixed mounting of the hollow post of second (13) has second bottom plate (12), every the surface of activity post (15) is all movable and is cup jointed second spring (14) that are located between the hollow post of frame (1) and second (13), every the both ends of second spring (14) are equallyd divide do not with the hollow post of frame (1) and second (13) fixed connection.

3. A portable measuring device suitable for use in decorative engineering, according to claim 1, characterized in that: the number of the bolt holes is ten.

4. A portable measuring device suitable for use in decorative engineering, according to claim 1, characterized in that: the thickness of the movable rod (3) is matched with that of the movable groove (17).

5. A portable measuring device suitable for use in decorative engineering, according to claim 1, characterized in that: the surface of the inner rod (2) is movably sleeved with a first spring (5) positioned between the bottom surface of the inner cavity of the inner rod (2) and the movable block (18), and two ends of the first spring (5) are fixedly connected with the outer frame (1) and the movable block (18) respectively.

6. A portable measuring device suitable for use in decorative engineering, according to claim 2, characterized in that: the bottom end of the movable column (15) is fixedly provided with a limiting block (16) positioned in the inner cavity of the second hollow column (13).
