CN213595077U

CN213595077U - A raw material storage tank for temporary storage of expansion agent

Info

Publication number: CN213595077U
Application number: CN202022576398.7U
Authority: CN
Inventors: 吴士舫
Original assignee: Tianjin Yongmeite Building Material Co ltd
Current assignee: Qingdao Ditai International Trade Co ltd
Priority date: 2020-11-10
Filing date: 2020-11-10
Publication date: 2021-07-02
Anticipated expiration: 2030-11-10

Abstract

The utility model discloses a raw material storage tank for temporary storage of an expansion agent, which relates to the field of storage of the expansion agent. There is a discharge pipe, and a temporary storage tank is movably connected on the discharge pipe, and a rotating mechanism is arranged in the tank. In the utility model, the device can ventilate and dry the expansion agent particles in the temporary storage tank to remove the moisture in the expansion agent, which is more conducive to preservation and prevents the expansion agent from deteriorating and becoming moldy. In this way, the expansion agent particles are collapsed and jacked up. During the process of collapse and jacking, the air is circulated. At the same time, the air heated by the air heater passes through the hollow shaft and the through holes on the bump to the temporary storage tank. The expansion agent particles are dried and dehumidified, and the rotation of the bumps causes less damage to the expansion agent particles, which is beneficial to preserve the expansion agent particles.

Description

Raw material storage tank for temporary storage of expanding agent

Technical Field

The utility model relates to an inflation agent field of depositing specifically is an inflation agent is kept in and is used raw materials storage tank.

Background

The expanding agent is a material which can cause volume expansion through physical and chemical reactions, and the volume expansion can be applied to a plurality of fields such as material production, silent blasting and the like, and the expanding agent has the following purposes: the concrete expanding agent and the refractory material expanding agent are common, are mainly used for compensating the shrinkage of the material in the hardening process and preventing cracking, and in recent years, according to the material characteristics, a static blasting agent is also developed, and the volume expansion caused by the material mainly breaks the structural structure of the knot, so that the core: the technical core is volume expansion with controllable period and controllable quantity.

The form of inflation agent has forms such as powder and granule, sometimes can not just use or transport immediately after the inflation agent production is accomplished, therefore needs to use inflation agent temporary storage device, and current inflation agent temporary storage device exists certain not enoughly: the expanding agent contains certain moisture, and needs to ventilate and dry to prevent that the expanding agent from rotting and going mouldy, the mobility of expanding agent is relatively poor, and current expanding agent temporary storage device uses the puddler to stir it usually, and the frictional force of puddler to the expanding agent can cause the damage to graininess expanding agent.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide an inflation agent is kept in and is used raw materials storage tank to solve the problem that proposes in the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme:

the utility model provides an inflation agent is kept in and is used raw materials storage tank, includes the jar of keeping in, the fixed intercommunication of the top surface of jar of keeping in has two inlet pipes, and the fixed intercommunication in jar side of keeping in has the discharging pipe, and swing joint has the interior slewing mechanism that is provided with of jar of keeping in on the discharging pipe.

As a further aspect of the present invention: slewing mechanism includes lug, carousel, through-hole, slewing bearing and well idle pulley, and the jar bottom surface of keeping in rotates through slewing bearing to be connected with the carousel, and fixedly connected with lug on carousel cavity setting and the carousel has seted up a plurality of evenly distributed's through-hole on the lug, and the bottom surface fixedly connected with of carousel runs through the cavity pivot of the jar bottom surface of keeping in, is provided with actuating mechanism and dehumidification mechanism in the cavity pivot.

As a further aspect of the present invention: the drive mechanism includes from driving wheel, action wheel and rotation motor, and the fixed cover of going up in the cavity pivot has connect from the driving wheel, and passes through the belt from the driving wheel and be connected with the action wheel transmission, and action wheel fixed connection is at the output that rotates the motor, rotates the motor and passes through frame fixed mounting in the side of jar of keeping in.

As a further aspect of the present invention: the dehumidification mechanism comprises a connecting pipe, an air heater and an air blower, the connecting pipe is fixedly sleeved on the hollow rotating shaft, the connecting pipe is fixedly communicated with the output end of the air heater, and the input end of the air heater is fixedly communicated with the output end of the air blower.

As a further aspect of the present invention: the bottom end of the hollow rotating shaft is fixedly communicated with the connecting pipe through a mechanical sealing element.

As a further aspect of the present invention: the utility model discloses a drying device, including a temporary storage tank, a hinge, a support plate, a drying agent, a spring, a drying tube, a hinge, a support plate, a drying agent, a spring, a hinge, a support plate, a drying agent, a spring, a drying tube, a drying plate, a spring, a drying tube, a drying device and a drying device.

Compared with the prior art, the beneficial effects of the utility model are that:

1. the utility model discloses in, this device can carry out through-air drying to the inflation agent granule in the jar of keeping in, detach the moisture in the inflation agent, more be favorable to preserving, prevent that the inflation agent from rotten and going mouldy, drive the lug through rotating the carousel in this device and rotate, and then make the inflation agent granule take place to sink and jack-up, in-process with the jack-up collapsing, make the circulation of air, and simultaneously, the air after air heater heating is dried and is dehumidified the inflation agent granule in the jar of keeping in through the through-hole on cavity pivot and the lug, and the lug rotates less to the damage of inflation agent granule, and then be favorable to preserving the inflation agent granule.

2. The utility model discloses in, the effect of carousel and through-hole is that the steam that can send dehumidification mechanism to send out conveys and to drying and dehumidification expanding agent granule in the jar of keeping in, thereby be favorable to storing, actuating mechanism's effect is that give cavity pivot power and rotate drive carousel and lug rotation, and then make and carry out the circulation of air in the jar of keeping in, dehumidification mechanism's effect is that send hot-air to the jar of keeping in and dry the dehumidification to expanding agent granule, mechanical seal spare stability when can improving the steam transmission, the manpower withholds the backup pad, can change drier roll-off drying tube, drying tube can assist dehumidification mechanism to dry the dehumidifying to the expanding agent granule that is located the top.

Drawings

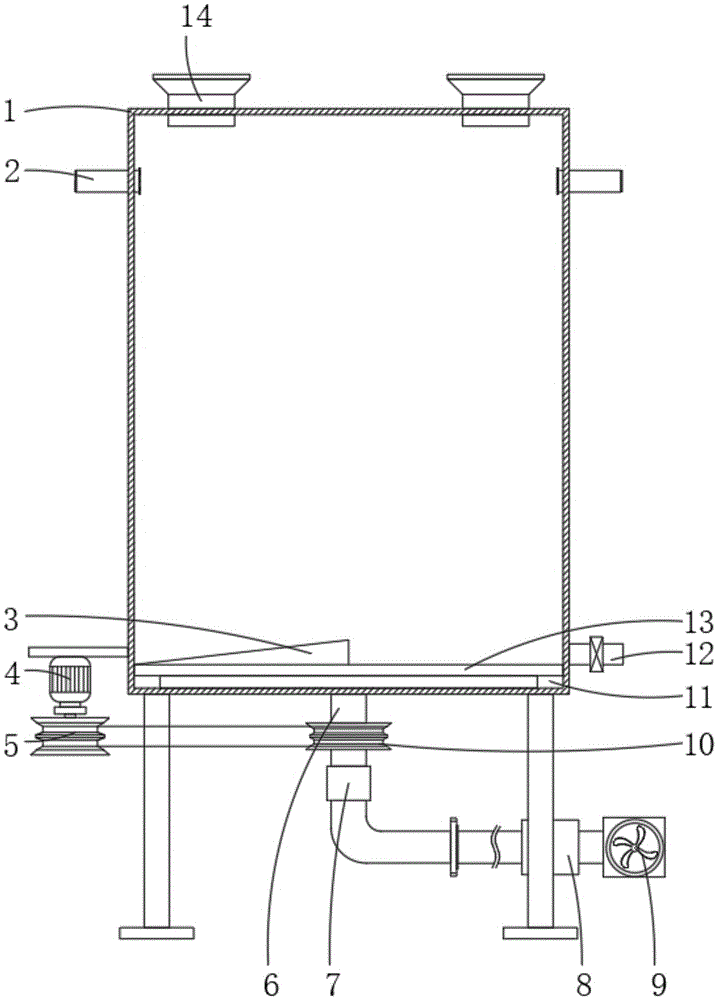

Fig. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic structural view of the turntable of the present invention;

fig. 3 is a schematic structural diagram of the drying tube of the present invention.

In the figure: 1. a temporary storage tank; 2. a drying tube; 3. a bump; 4. rotating the motor; 5. a driving wheel; 6. a hollow rotating shaft; 7. A mechanical seal; 8. an air heater; 9. a blower; 10. a driven wheel; 11. a slewing bearing; 12. a discharge pipe; 13. A turntable; 14. a feed pipe; 15. a through hole; 16. turning over the cover; 17. a support plate; 18. a spring; 19. a desiccant; 20. And (4) filtering the plates.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, in the embodiment of the present invention, a raw material storage tank for temporary storage of an expanding agent comprises a temporary storage tank 1, wherein two feeding pipes 14 are fixedly communicated with the top surface of the temporary storage tank 1, a discharging pipe 12 is fixedly communicated with the side surface of the temporary storage tank 1, and a rotating mechanism is movably connected to the discharging pipe 12 and arranged in the temporary storage tank 1, the device can perform ventilation drying on expanding agent particles in the temporary storage tank 1 to remove moisture in the expanding agent, thereby facilitating storage and preventing the expanding agent from going bad and mildewing, the device drives a lug 3 to rotate by rotating a rotary disc 13, so as to collapse and jack the expanding agent particles, and air circulation is realized during collapse and jack-up, and simultaneously, air heated by an air heater 8 is used for drying and dehumidifying the expanding agent particles in the temporary storage tank 1 through a hollow rotating shaft 6 and a through hole 15 on the lug 3, and the rotating of the lug 3 has less damage to the expanding agent particles, thereby being beneficial to storing the expanding agent particles.

Slewing mechanism includes lug 3, carousel 13, through-hole 15, slewing bearing 11 and well idle pivot 6, the bottom rotates through slewing bearing 11 in the jar of keeping in 1 and is connected with carousel 13, fixedly connected with lug 3 on 13 cavity settings of carousel and the carousel 13, set up a plurality of evenly distributed's through-hole 15 on the lug 3, the bottom surface fixedly connected with of carousel 13 runs through the cavity pivot 6 of the jar 1 bottom surface of keeping in, be provided with actuating mechanism and dehumidification mechanism on the cavity pivot 6, the effect of carousel 13 and through-hole 15 is that can convey the steam that dehumidification mechanism sent to jar 1 interior drying and dehumidification to the expanding agent granule of keeping in, thereby be favorable to storing.

Actuating mechanism includes from driving wheel 10, action wheel 5 and rotation motor 4, and fixed the cup jointing has from driving wheel 10 on the cavity pivot 6, and is connected with the transmission of action wheel 5 through the belt from

driving wheel

10, and 5 fixed connection of action wheel are at the output of rotating motor 4, rotate motor 4 and pass through frame fixed mounting in the side of jar 1 of keeping in, actuating mechanism's effect is that 6 power of giving the cavity pivot rotate and drive carousel 13 and lug 3 and rotate, and then make and carry out the circulation of air in the jar 1 of keeping in.

Dehumidification mechanism includes connecting pipe, air heater 8 and air-blower 9, and cavity pivot 6 is fixed to be cup jointed the connecting pipe, and the connecting pipe is fixed with air heater 8's output and is communicate, and air heater 8's input then with the fixed intercommunication of air-blower 9's output, dehumidification mechanism's effect is sent hot-air to and is dried the dehumidification to the expanding agent granule in the jar 1 of keeping in.

The bottom of cavity pivot 6 is passed through mechanical seal 7 and the fixed intercommunication of connecting pipe, and mechanical seal 7 can improve the stability when steam transmits.

Fixed intercommunication has two parallel symmetric distribution's drying tube 2 on the jar inner wall of keeping in 1, the one end of drying tube 2 is connected with flip lid 16 through hinge rotation, and the other end of drying tube 2 runs through jar 1's of keeping in inner wall and fixedly connected with filter plate 20, the side of filter plate 20 is rotated and is connected with backup pad 17, the top surface of backup pad 17 is provided with drier 19, and the bottom surface of backup pad 17 then with the one end fixed connection of spring 18, the other end of spring 18 then with the interior bottom surface fixed connection of drying tube 2, open flip lid 16, manpower withhold backup pad 17, can change 19 roll-off drying tube 2 of drier, drying tube 2 can assist dehumidification mechanism and dry the dehumidification to the expanding agent granule that is located the top.

The electric elements that appear here all are connected through transformer and external master controller and 220V commercial power electricity to the master controller can play the conventional known equipment of control for the computer and so on, the utility model provides a product model is only for the use that this technical scheme goes on according to the structural feature of product, and its product can be adjusted and reformed transform after purchasing, makes it match more and accord with the utility model discloses technical scheme belongs to, it is the technical scheme of this technical scheme best application, and the model of its product can be according to the technical parameter of its needs and replace and reform transform, and it is known for technical personnel that belong to in the field, consequently, what technical personnel that belong to in the field can be clear passes through the utility model provides a corresponding result of use.

Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.

Claims

1. A raw material storage tank for temporary storage of an expansion agent, comprising a temporary storage tank (1), characterized in that the top surface of the temporary storage tank (1) is fixedly communicated with two feeding pipes (14), which temporarily store A discharge pipe (12) is fixedly communicated with the side of the tank (1), and a temporary storage tank (1) is movably connected to the discharge pipe (12) and is provided with a rotating mechanism.

2 . The raw material storage tank for temporary storage of the expansion agent according to claim 1 , wherein the rotating mechanism comprises a convex block ( 3 ), a turntable ( 13 ), a through hole ( 15 ), a slewing bearing ( 11 ). 3 . ) and the hollow shaft (6), the inner bottom surface of the temporary storage tank (1) is rotatably connected to a turntable (13) through a slewing bearing (11), the turntable (13) is hollow and the turntable (13) is fixedly connected with a bump (3) , a plurality of evenly distributed through holes (15) are opened on the bump (3), and the bottom surface of the turntable (13) is fixedly connected with a hollow rotating shaft (6) penetrating the bottom surface of the temporary storage tank (1). A drive mechanism and a dehumidification mechanism are provided.

3. The raw material storage tank for temporary storage of the expansion agent according to claim 2, wherein the drive mechanism comprises a driven wheel (10), a driving wheel (5) and a rotating motor (4), and the hollow rotating shaft ( 6) A driven wheel (10) is fixedly sleeved on the upper part, and the driven wheel (10) is connected with the driving wheel (5) through a belt, and the driving wheel (5) is fixedly connected to the output end of the rotating motor (4), and the rotating motor ( 4) It is fixedly installed on the side of the temporary storage tank (1) through the machine base.

4. The raw material storage tank for temporary storage of expansion agent according to claim 2, wherein the dehumidifying mechanism comprises a connecting pipe, an air heater (8) and a blower (9), and the hollow shaft (6) is fixed A connecting pipe is sleeved, and the connecting pipe is fixedly connected with the output end of the air heater (8), and the input end of the air heater (8) is fixedly connected with the output end of the blower (9).

5 . The raw material storage tank for temporary storage of the expansion agent according to claim 4 , wherein the bottom end of the hollow shaft ( 6 ) is in fixed communication with the connecting pipe through a mechanical seal ( 7 ). 6 .

6. A kind of raw material storage tank for temporary storage of expansion agent according to claim 1, characterized in that, two drying pipes (2) distributed in parallel and symmetrically are fixedly connected on the inner wall of the temporary storage tank (1), and the drying One end of the pipe (2) is connected with a flip cover (16) through hinge rotation, and the other end of the drying pipe (2) penetrates through the inner wall of the temporary storage tank (1) and is fixedly connected with a filter plate (20), the filter plate (20) ) side is rotatably connected with a support plate (17), the top surface of the support plate (17) is provided with a desiccant (19), and the bottom surface of the support plate (17) is fixedly connected with one end of the spring (18), the spring (18) ) is fixedly connected with the inner bottom surface of the drying pipe (2).
