A surgical extremity sterilizing cover

technical field

The utility model relates to the technical field of medical treatment, in particular to a surgical extremity disinfection cover.

Background technique

Before the operation, the surgical site needs to be thoroughly disinfected to eliminate the bacteria on the intended incision and the surrounding skin to prevent wound infection caused by incomplete disinfection.

The existing disinfection method is generally smeared and sterilized manually with gauze cotton balls, but when sterilizing a large range of human limbs, the operation is cumbersome and there will be uneven disinfection. A surgical extremity sterilization cover.

Utility model content

The purpose of the present utility model is to provide a surgical extremity sterilization cover to solve the problems raised in the above-mentioned background technology.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a surgical extremity sterilization cover, comprising a cover body, two ends of the cover body are respectively provided with a piercing port and a stretching port, and the cover body is from the inside to the outside. A first disinfection layer, a second disinfection layer and a third disinfection layer are arranged in sequence, the inner wall of the first disinfection layer is provided with a first ring-shaped sterile gauze cotton and is dipped in a first-level disinfectant, and the second disinfection layer is dipped in The secondary disinfectant compresses the cotton ring, which is arranged on the side close to the wearing opening, the second disinfecting layer is wrapped with a detachable sealing bag, and the two sides of the second disinfecting layer are respectively connected to the first disinfecting layer through tethers. Connected with the third sterilizing layer, the outer wall of the third sterilizing layer is provided with a second annular sterile gauze cotton and is dipped in a secondary disinfectant, and the first annular aseptic gauze cotton and the second annular aseptic gauze cotton are both Covered with a sealing film; pull rings, there are two groups of pull rings, which are symmetrically arranged at the stretching opening to be fixedly connected to the first disinfection layer, and each group of pull rings is provided with an adhesive tape to connect with the outer wall of the sleeve; a guide ring The guide ring is movably installed on the insertion opening of the sleeve body, and a connecting groove is arranged on the guide ring to be clamped with the sleeve body.

As a preferred technical solution of the present invention, the cover body, the first disinfection layer and the third disinfection layer are made of polyurethane transparent film materials.

As a preferred technical solution of the present invention, the sleeve body, the pull ring and the guide ring are made of sterile materials.

As a preferred technical solution of the present invention, a plurality of pressure rings are sewn on the sleeve body, and adjustment fasteners are respectively connected with the plurality of pressure rings.

As a preferred technical solution of the present invention, the adhesive tape is a medical adhesive tape.

Compared with the prior art, the beneficial effects of the present utility model are as follows: the utility model is a surgical extremity sterilization cover, through the set cover body, the pull ring and the guide ring, the human limbs can be penetrated into the cover body, and the limbs can be sterilized. Carry out comprehensive disinfection to avoid uneven disinfection, convenient and fast operation, simple structure and good practicability.

Description of drawings

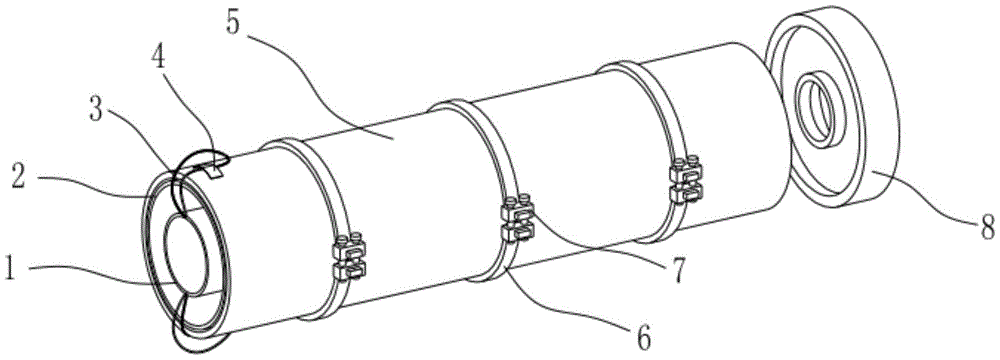

1 is a schematic diagram of the overall structure of the present utility model;

2 is a view of the internal structure of the sleeve body of the present invention;

Fig. 3 is the enlarged view of the utility model A;

Fig. 4 is the top view of the utility model guide ring;

In the figure: 1, the first disinfection layer; 2, the third disinfection layer; 3, the pull ring; 4, the adhesive tape; 5, the sleeve body; 6, the pressure ring; The second sterilizing layer; 10, the sealing bag; 11, the tether; 12, the first ring-shaped sterile gauze cotton; 13, the sealing film; 14, the second ring-shaped aseptic gauze cotton.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

In the description of the present invention, it should be noted that the orientation or positional relationship indicated by the terms "vertical", "upper", "lower", "horizontal", etc. is based on the orientation or positional relationship shown in the accompanying drawings, only It is for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the indicated device or element must have a specific orientation, be constructed and operated in a specific orientation, and therefore should not be construed as a limitation of the present invention.

In the description of the present invention, it should also be noted that, unless otherwise expressly specified and limited, the terms "arrangement", "installation", "connection" and "connection" should be understood in a broad sense, for example, it may be a fixed connection It can also be a detachable connection or an integral connection; it can be a mechanical connection or an electrical connection; it can be a direct connection, or an indirect connection through an intermediate medium, or the internal communication between the two components. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood according to specific situations.

Please refer to FIGS. 1-4 , the present utility model provides a technical solution: a surgical extremity sterilization cover, comprising a cover body 5 , the two ends of the cover body 5 are respectively provided with a wearing port and a stretching port, and the cover body 5 is A first disinfecting layer 1, a second disinfecting layer 9 and a third disinfecting layer 2 are arranged outwards in turn, the inner wall of the first disinfecting layer 1 is provided with a first annular sterile cotton 12 and is dipped in a first-level disinfectant, and the second disinfecting layer is 9 is a compressed cotton ring dipped in secondary disinfectant, which is arranged on the side close to the wearing port, the second disinfecting layer 9 is wrapped with a detachable sealing bag 10, and the two sides of the second disinfecting layer 9 are respectively connected to the The first sterilizing layer 1 is connected with the third sterilizing layer 2, the outer wall of the third sterilizing layer 2 is provided with the second annular sterile gauze 14 and is dipped in the secondary disinfectant, the first annular aseptic gauze 12 and the second annular The gauze cotton 14 is covered with a sealing film 13; the first-level disinfectant disinfects the skin for the first time, and the second-level disinfectant disinfects the skin for the second and third times. When the liquid is removed, the sealing bag 10 and the sealing film 13 can avoid the volatilization of the primary disinfectant and the secondary disinfectant, which affects the disinfection effect. When using, the sealing bag 10 and the sealing film 13 can be torn off.

There are two groups of pull rings 3, which are symmetrically arranged at the stretching opening to be fixedly connected to the first disinfection layer 1, each group of pull rings 3 is provided with an adhesive tape 4 to connect with the outer wall of the sleeve body 5, and the pull rings 3 are pasted through the adhesive tape 4. On the outer wall of the sleeve body 5, it is convenient for the limbs to be inserted through the wearing opening and out through the stretching opening. When in use, the adhesive tape 4 is torn off, and the first disinfection layer 1, the second The disinfection layer 9 and the third disinfection layer 2 are slowly pulled out, the inner wall of the first disinfection layer 1 is in contact with the skin of the limb, and the skin of the limb is disinfected for the first time through iodine tincture. After the first disinfection layer 1 is pulled out, the second disinfection is driven by the tether 11. Layer 9 moves, so that the compressed cotton ring is stretched to disinfect the limb skin for the second time through alcohol, and after the second disinfection layer 9 is pulled out, the third disinfection layer 2 is driven by the tether 11 to move, so that the outer wall of the third disinfection layer 2 and the limb skin are moved. Contact, disinfect the skin of the limbs for the third time with alcohol, carry out three comprehensive disinfections, disinfect evenly, and remove the bacteria on the skin of the limbs.

The guide ring 8 is movably installed on the insertion opening of the sleeve body 5 , and a connecting groove is provided on the guide ring 8 to be clamped with the sleeve body 5 .

The cover body 5, the first disinfection layer 1 and the third disinfection layer 2 are polyurethane transparent film materials, so that the first disinfection layer 1, the second disinfection layer 9 and the third disinfection layer 2 in the cover body 5 can be observed from the outside. Pulled out, it is convenient for medical staff to carry out disinfection operations.

The cover body 5, the pull ring 3 and the guide ring 8 are made of sterile materials, so that there is no residual bacteria on the limb disinfection cover, and the disinfection effect is ensured.

A plurality of pressure rings 6 are sewn on the sleeve body 5, and the plurality of pressure rings 6 are respectively connected with adjustment fasteners 7. The tightness of the pressure rings 6 can be adjusted by adjusting the fasteners 7, so that the first disinfection layer 1 and the second disinfection layer The layer 9 and the third disinfection layer 2 are more closely fitted with the skin of the limbs, which further improves the disinfection effect.

The adhesive tape 4 is a medical adhesive tape 4, which is convenient for medical staff to use.

working principle:

When in use, the medical staff snaps the guide ring 8 to the fitting opening of the sleeve body 5, inserts the limb into the sleeve body 5 from the fitting opening and passes it out from the stretching opening, and tear off the sealing bag 10 and the sealing film 13. , control the tightness of the pressure ring 6 by adjusting the fastener 7 to fit the limb, tear off the adhesive tape 4, and slowly pull the first disinfection layer 1, the second disinfection layer 9 and the third disinfection layer 2 through the pull ring 3 in turn Completely disinfect the limbs three times, disinfect evenly, and remove the bacteria on the skin of the limbs.

Among them, the first-level disinfectant is 3% iodine tincture; the second-level disinfectant is alcohol with a concentration of 70%.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (5)

1. A surgical limb disinfection sleeve is characterized by comprising:

the cover body, the cover body both ends are provided with respectively wears to adorn mouthful and tensile mouthful, the cover body has set gradually first disinfection layer, second disinfection layer and third disinfection layer from the lining outwards, first disinfection layer inner wall is provided with the aseptic yarn cotton of first annular and has dipped in the primary disinfectant, the second disinfection layer is for dipping in the compression cotton ring of second grade antiseptic, sets up in the one side that is close to wearing to adorn the mouth, the parcel has the detachable seal bag on the second disinfection layer, second disinfection layer both sides are connected with first disinfection layer and third disinfection layer respectively through the tether, third disinfection layer outer wall is provided with the aseptic yarn cotton of second annular and has dipped in the secondary disinfectant, all cover on the aseptic yarn cotton of first annular and second annular and have the seal membrane;

the two groups of pull rings are symmetrically arranged at the stretching opening and fixedly connected with the first disinfection layer, and each group of pull rings is provided with an adhesive tape connected with the outer wall of the sleeve body;

the guide ring is movably mounted on the penetrating opening of the sleeve body, and a connecting groove is formed in the guide ring and is clamped with the sleeve body.

2. The surgical limb disinfection sleeve as claimed in claim 1, wherein the sleeve body, the first disinfection layer and the third disinfection layer are made of polyurethane transparent film material.

3. The surgical extremity disinfecting cover as claimed in claim 1, wherein the cover body, the pull ring and the guide ring are made of a sterile material.

4. The surgical limb disinfection sleeve as claimed in claim 1, wherein a plurality of compression rings are sewn on the sleeve body, and the plurality of compression rings are respectively connected with an adjusting fastener.

5. The surgical limb disinfecting cover according to claim 1, wherein the adhesive tape is a medical adhesive tape.
