本实用新型公开了智能家居弱电控制箱，包括箱体，所述箱体的两侧表面设有多个固定块，且固定块两两均匀分布在箱体的两侧表面上，两个所述固定块之间设有散热扇，且散热扇的一侧位于箱体的表面贯穿设有通风孔。有益效果：本实用新型通过设置的散热扇、通风孔、散热孔，通过散热扇工作，在通过通风孔把散热扇吹出的风输送到控制箱内部，能够有效对控制箱内部的电器元件进行散热处理，通过散热孔把控制箱内部的热量进行发散，使得控制箱内部空气流通更加迅速，其中通过散热扇、通风孔、散热孔的配合使用，能够有效对控制箱内部进行散热，避免控制箱内部因散热效果不好而影响控制箱内部电器元件的使用，有利于提高散热效果，延长其使用寿命。
The utility model discloses a smart home weak current control box, comprising a box body, a plurality of fixing blocks are arranged on the two side surfaces of the box body, and the fixing blocks are evenly distributed on the two side surfaces of the box body, the two said A cooling fan is arranged between the fixing blocks, and one side of the cooling fan is located on the surface of the box body with a ventilation hole running through it. Beneficial effects: The utility model works through the cooling fan, the ventilation holes and the cooling holes, and the air blown out by the cooling fan is transported to the inside of the control box through the ventilation holes, which can effectively dissipate the electrical components inside the control box. Treatment, the heat inside the control box is dissipated through the heat dissipation holes, so that the air circulation inside the control box is more rapid, and the combination of cooling fans, ventilation holes and heat dissipation holes can effectively dissipate heat inside the control box and avoid the interior of the control box. The use of electrical components inside the control box is affected by the poor heat dissipation effect, which is beneficial to improve the heat dissipation effect and prolong its service life.
Description
Technical Field
The utility model relates to an intelligence house technical field especially relates to intelligence house weak current control box.
Background
The smart home is a living environment, a residence with a smart home system installed on a residence as a platform, and the process of implementing the smart home system is called smart home integration. The method has the advantages that a house is used as a platform, facilities related to home life are integrated by utilizing a comprehensive wiring technology, a network communication technology, an intelligent home-system design scheme safety precaution technology, an automatic control technology and an audio and video technology, an efficient management system of home facilities and family schedule affairs is constructed, home safety, convenience, comfortableness and artistry are improved, and environment-friendly and energy-saving living environment is realized. The smart home needs to be understood in two parts, namely smart home and home. The household is various devices for people to live; the intelligent home is the key point that the intelligent home should be highlighted, automatic control management should be achieved, manual operation control is not needed, the use habits of current users can be learned, and the requirements of people can be met.
The existing smart home weak current control box has certain limitations when in use, for example, the whole box body is inconvenient for radiating electrical appliances in the box in the use process, the radiating effect is not ideal, and the service life of the box body is easily influenced; the internal space of the existing smart home weak current control box is inconvenient to adjust, and the utilization rate of the internal space is low; the dust removal effect of the existing smart home weak current control box is to be improved, after the smart home weak current control box is used for a long time, dust accumulation easily occurs in the control box, and if the dust is not timely treated, the problem that electrical elements in the control box are damaged is easily caused.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
The utility model provides a not enough to prior art, the utility model provides a smart home weak current control box possesses that the radiating effect is good, and control box inner space utilization is high, can effectively carry out the advantage of handling to the dust that the control box inside produced, and then solve the problem among the above-mentioned background.
(II) technical scheme
In order to achieve the above purpose, the utility model adopts the following technical scheme: intelligence house weak current control box, the power distribution box comprises a box body, the both sides surface of box is equipped with a plurality of fixed blocks, and two liang of evenly distributed of fixed block is on the both sides surface of box, two be equipped with the heat dissipation fan between the fixed block, and the surface that one side of heat dissipation fan is located the box runs through and is equipped with the ventilation hole, the inner wall both sides of box all are equipped with the fixed plate, and a side surface of two fixed plates has seted up the spout, be equipped with the mounting panel between the spout, the top and the bottom of box all are equipped with the recess, and the inside of recess is equipped with the dust absorption net, the both sides surface of dust absorption net all passes through adjusting bolt with the both sides surface of recess and.
Preferably, the number of the heat dissipation fans is two, and the two heat dissipation fans are respectively distributed on two sides of the box body.
Preferably, the sliding groove is provided in plurality, and the sliding grooves are uniformly distributed on one side surface of the fixing plate.
Preferably, the number of the dust collection nets is two, and the two dust collection nets are respectively distributed at the top and the bottom of the box body.
Preferably, the heat dissipation holes are formed in the box body, and the heat dissipation holes are distributed on the surfaces of the two sides of the box body in a pairwise uniform mode.
Preferably, the front end surface of the box body is hinged with a box door through a hinge, and the front end surface of the box door is provided with a visual window.
Preferably, the bottom surface of box is equipped with a plurality of pillars, and a plurality of pillars evenly distributed is in four corners of box, the bottom surface of pillar is equipped with the backup pad.
Preferably, the front end surface of the mounting plate is provided with a plurality of mounting holes, and the plurality of mounting holes are uniformly distributed on the mounting plate.
(III) advantageous effects
Compared with the prior art, the utility model provides an intelligence house weak current control box possesses following beneficial effect:
(1) the utility model discloses in, heat dissipation fan through setting up, the ventilation hole, the louvre, work through the heat dissipation fan, the control box is carried to the wind that blows off the heat dissipation fan through the ventilation hole inside, can effectively carry out the heat dissipation treatment to the electrical components of control box inside, disperse the heat of control box inside through the louvre, make the inside circulation of air of control box more rapid, wherein through the heat dissipation fan, the ventilation hole, the cooperation of louvre is used, can effectively dispel the heat to the control box inside, avoid the inside use that influences the electrical components of control box inside because of the radiating effect is not good of control box, be favorable to improving the radiating effect, prolong its life.
(2) The utility model discloses in, through spout, the mounting panel that sets up, wherein can effectively adjust the position of mounting panel through the spout, be convenient for adjust the distance between the mounting panel, can effectively change the big or small overall arrangement of control box inner space, be favorable to satisfying in the not electrical components's of equidimension demand of putting, be convenient for improve the space utilization of control box inside.
(3) The utility model discloses in, through the recess that sets up, the dust absorption net, adjusting bolt, can effectively collect the dust of control box inside through the dust absorption net, avoid the dust to remain inside the control box, cause the damage to the electrical components of control box inside, use a period of time when the control box after, through the adjusting bolt on the not hard up recess, be convenient for take off the dust absorption net, can effectively clear up the dust that the dust was netted, avoid long-time the use after, the dust is too much on the dust absorption net, and lead to the dust to collect the unsatisfactory problem of effect, be favorable to improving the dust and collect the effect.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings required to be used in the embodiments will be briefly described below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without creative efforts.

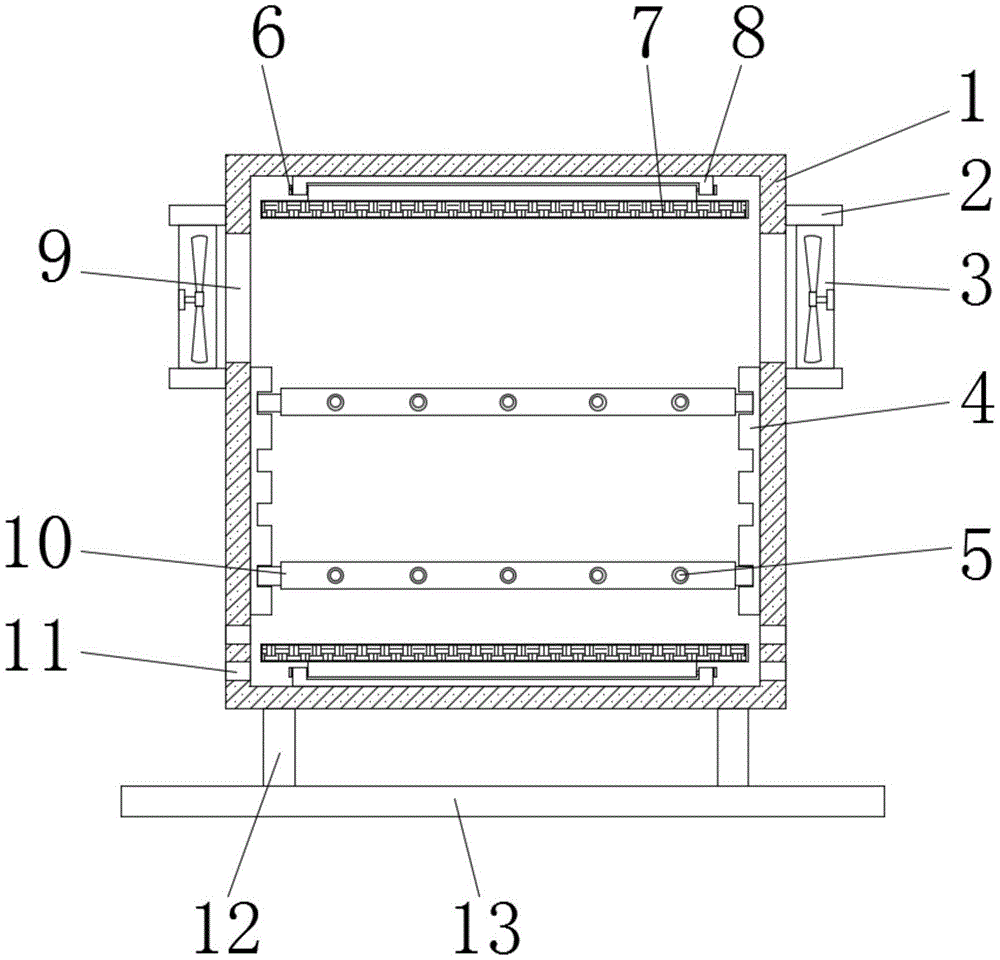

Fig. 1 is a schematic view of the overall structure of the smart home weak current control box provided by the present invention;
fig. 2 is a front view of the smart home weak current control box provided by the present invention;
fig. 3 is the utility model provides a fixed plate structure schematic diagram of smart home weak current control box.
Illustration of the drawings:
1. a box body; 2. a fixed block; 3. a heat dissipation fan; 4. a fixing plate; 5. mounting holes; 6. adjusting the bolt; 7. a dust collection net; 8. a groove; 9. a vent hole; 10. mounting a plate; 11. heat dissipation holes; 12. a pillar; 13. a support plate; 14. a hinge; 15. a box door; 16. a visual window; 17. a chute.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention; the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance; furthermore, unless expressly stated or limited otherwise, the terms "mounted," "connected," and "connected" are to be construed broadly, as they may be fixedly connected, detachably connected, or integrally connected, for example; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Referring to fig. 1-3, the smart home weak current control box comprises a box body 1, wherein a plurality of fixing blocks 2 are arranged on the two side surfaces of the box body 1, two fixing blocks 2 are uniformly distributed on the two side surfaces of the box body 1, a heat dissipation fan 3 is arranged between the two fixing blocks 2, a ventilation hole 9 is arranged on one side of the heat dissipation fan 3, which is positioned on the surface of the box body 1, fixing plates 4 are arranged on the two sides of the inner wall of the box body 1, a sliding groove 17 is arranged on one side surface of each fixing plate 4, a mounting plate 10 is arranged between the sliding grooves 17, grooves 8 are arranged on the top and the bottom of the box body 1, a dust collection net 7 is arranged inside each groove 8, the two side surfaces of the dust collection net 7 are connected with the two side surfaces of each groove 8 through adjusting bolts 6, heat dissipation holes 11 are arranged below the two side surfaces of the box body 1, the, can effectively carry out the heat dissipation to the electrical components of control box inside and handle, disperse the heat of control box inside through louvre 11, make the inside circulation of air of control box rapider, wherein use through the cooperation of heat dissipation fan 3, ventilation hole 9, louvre 11, can effectively dispel the heat to the control box inside, avoid the inside use because of the not good use that influences the electrical components of control box of radiating effect of control box, be favorable to improving the radiating effect, prolong its life.
In one embodiment, two heat dissipation fans 3 are provided, and the two heat dissipation fans 3 are respectively distributed on two sides of the box body 1, wherein the two heat dissipation fans 3 are used for simultaneously dissipating heat inside the control box, so that electrical components inside the control box can be effectively dissipated, and the heat dissipation effect is improved.
In one embodiment, the sliding grooves 17 are provided in plurality, and the sliding grooves 17 are uniformly distributed on one side surface of the fixing plate 4, wherein the positions of the mounting plates 10 can be effectively adjusted through the sliding grooves 17, so that the distance between the mounting plates 10 can be conveniently adjusted, the size layout of the inner space of the control box can be effectively changed, the placing requirements of electrical components with different sizes can be favorably met, and the space utilization rate of the inner part of the control box can be conveniently improved.
In one embodiment, two dust collection nets 7 are arranged, and the two dust collection nets 7 are respectively distributed at the top and the bottom of the box body 1, wherein dust inside the control box can be effectively collected through the dust collection nets 7, and the dust is prevented from remaining inside the control box and damaging electrical components inside the control box.
In one embodiment, the heat dissipation holes 11 are provided in plural, and the plural heat dissipation holes 11 are uniformly distributed on the two side surfaces of the box 1 in pairs, wherein the heat dissipation holes 11 are used for dissipating heat, so as to facilitate dissipation of heat generated inside the control box, which is beneficial to improving the heat dissipation effect.
In one embodiment, the front end surface of the cabinet 1 is hinged with a cabinet door 15 by a hinge 14, and the front end surface of the cabinet door 15 is provided with a visual window 16, so that when the electric elements inside the control cabinet are out of order, the electric elements of the control cabinet can be easily repaired by opening the cabinet door 15.
In one embodiment, the bottom surface of the box body 1 is provided with a plurality of pillars 12, the plurality of pillars 12 are uniformly distributed at four corners of the box body 1, the bottom surface of the pillars 12 is provided with a supporting plate 13, wherein the supporting is performed through the pillars 12, and the use of the supporting plate 13 is beneficial to improving the stability of the control box.
In one embodiment, the front end surface of the mounting plate 10 is provided with a plurality of mounting holes 5, and the plurality of mounting holes 5 are uniformly distributed on the mounting plate 10, wherein the mounting is facilitated through the mounting holes 5.
The working principle is as follows:
when in use, firstly the box door 15 is opened, the distance between the mounting plates 10 is adjusted, then the box door 15 is mounted through the mounting holes 5 on the mounting plates 10, after the mounting is finished, the box door 15 is closed, the heat dissipation fan 3 works, the air blown out by the heat dissipation fan 3 is conveyed to the inside of the control box through the vent holes 9, the heat dissipation treatment can be effectively carried out on the electric elements in the control box, the heat in the control box is dissipated through the heat dissipation holes 11, so that the air circulation in the control box is quicker, wherein the heat dissipation fan 3, the vent holes 9 and the heat dissipation holes 11 are matched for use, the heat dissipation can be effectively carried out on the inside of the control box, the influence on the use of the electric elements in the control box due to poor heat dissipation effect in the control box is avoided, the heat dissipation effect is favorably improved, the service life of the box is prolonged, avoid the dust to remain inside the control box, cause the damage to the electrical components of control box inside, after the control box used a period, through the adjusting bolt 6 on the not hard up recess 8, be convenient for take off dust absorption net 7, can effectively clear up the dust on the dust absorption net 7, avoid long-time after using, dust is too much on the dust absorption net 7, and lead to the unsatisfactory problem of dust collection effect, be favorable to improving the dust collection effect.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (8)
1. The smart home weak current control box comprises a box body (1) and is characterized in that a plurality of fixed blocks (2) are arranged on the surfaces of the two sides of the box body (1), the fixed blocks (2) are distributed on the surfaces of the two sides of the box body (1) in a pairwise uniform manner, a heat dissipation fan (3) is arranged between the two fixed blocks (2), a ventilation hole (9) penetrates through the surface, located on the box body (1), of one side of the heat dissipation fan (3), fixing plates (4) are arranged on the two sides of the inner wall of the box body (1), a sliding groove (17) is formed in one side surface of each of the two fixing plates (4), a mounting plate (10) is arranged between the sliding grooves (17), grooves (8) are formed in the top and the bottom of the box body (1), a dust collection net (7) is arranged inside the grooves (8), the surfaces of the two sides of the dust collection net (7) are, the lower parts of the surfaces of the two sides of the box body (1) are provided with heat dissipation holes (11) in a penetrating way.
2. The smart home weak current control box according to claim 1, wherein two heat dissipation fans (3) are provided, and the two heat dissipation fans (3) are respectively distributed on two sides of the box body (1).
3. The smart home weak current control box according to claim 1, wherein the sliding grooves (17) are provided in plurality, and the sliding grooves (17) are uniformly distributed on one side surface of the fixing plate (4).
4. The smart home weak current control box according to claim 1, wherein two dust collection nets (7) are arranged, and the two dust collection nets (7) are respectively distributed at the top and the bottom of the box body (1).
5. The smart home weak current control box according to claim 1, wherein the heat dissipation holes (11) are provided in plurality, and the plurality of heat dissipation holes (11) are uniformly distributed on two side surfaces of the box body (1) in pairs.
6. The smart home weak current control box according to claim 1, wherein a box door (15) is hinged to the front end surface of the box body (1) through a hinge (14), and a visual window (16) is arranged on the front end surface of the box door (15).
7. The smart home weak current control box according to claim 1, wherein a plurality of pillars (12) are provided on the bottom surface of the box body (1), the plurality of pillars (12) are uniformly distributed at four corners of the box body (1), and a support plate (13) is provided on the bottom surface of each pillar (12).
8. The smart home weak current control box according to claim 1, wherein a plurality of mounting holes (5) are formed in the front end surface of the mounting plate (10), and the mounting holes (5) are uniformly distributed on the mounting plate (10).
