The utility model relates to a takeaway bag, comprising a bag body, first and second extension sheets are integrally formed on the opposite sides of the opening of the bag body, respectively, and the other opposite sides of the bag body are integrally formed respectively. There is a third extension piece, and the inner surface of the edge of the first extension piece away from the bag body is bonded to the double-sided tape, and the side of the third extension piece away from the bag body is located at a side of the double-sided tape close to the bag body. Between the side and the edge of the first extension piece away from the bag body, the packaging box of the present application solves the problems of complicated packaging process and poor sealing.

Description

Takeout bag

Technical Field

The utility model relates to a packing articles for use field especially relates to a takeaway bag.

Background

At present, the takeaway bag on the market is at the in-process of envelope and turns over the takeaway bag opening part a few often, the final use is sealed and is pasted the bonding and fix, not only the envelope process is troublesome under such a condition, and can influence the inside usage space of takeaway bag, the seal part of takeaway can not be fine play prevent the effect that the sack was opened, and in the use, the takeaway personnel can act as the handle with the opening part after folding usually and use, can destroy more easily like this and seal and paste and make it drop, therefore above-mentioned problem needs to be solved.

SUMMERY OF THE UTILITY MODEL

The utility model aims to solve the technical problem that a takeaway bag is provided, it is complicated to have solved the packaging process, problem that the leakproofness is poor.

The utility model provides an above-mentioned technical problem's technical scheme as follows: the utility model provides a take-out bag, includes the bag body, the first extension piece of bag body opening part relative both sides difference integrated into one piece and second extension piece, the other relative both sides difference integrated into one piece of the bag body are provided with the third extension piece, the marginal internal surface bonding double-sided adhesive tape of one side of the bag body is kept away from to the first extension piece, one side that the bag body was kept away from to the third extension piece is located one side that the double-sided adhesive tape is close to the bag body and the edge that the bag body was kept away from to the first extension piece between.

Further, first extension piece surface forms the easy tear tape, the easy tear tape is located between two-sided adhesive tape and the bag body, the easy tear tape surface bonding strengthening rib, the one end of the at least one end of easy tear tape and first extension piece one end parallel and level or surpass first extension piece, the one end of easy tear tape and first extension piece parallel and level is seted up jaggedly.

Further, easily tear a both ends with first extension piece both sides parallel and level, the strengthening rib with easily tear a length the same, the both sides of easily tearing the at least one end of strip are seted up jaggedly.

Further, bag body both sides edge integrated into one piece fourth extension piece, fourth extension piece one side is connected through the crease line with the third extension piece, and the third extension piece is close to the setting of second extension piece, and the fourth extension piece is close to the setting of first extension piece, and the fourth extension piece is kept away from one side of the bag body and is easily torn a highly uniform.

Further, the bag body is connected the vertical first crease that sets up in both sides surface middle part position of third extension piece and fourth extension piece, and first crease extends to third extension piece and fourth extension piece junction, and the position department that the bag body surface is close to the bag body bottom surface encircles and establishes the second crease, is provided with two third creases to the bag body bottom surface in the crossing department of first crease and second crease, third crease one end is located the crossing department of first crease and second crease, and the other end of third crease is located the both ends of bag body bottom surface respectively.

Further, a handle is fixedly arranged on the inner surface of the first extension sheet or the second extension sheet.

Further, the take-out bag is made of kraft paper.

The beneficial effects brought by the technical scheme at least comprise: the bag body is kept away from to the third extension piece, one side that the bag body was kept away from to the third extension piece is located one side that two-sided adhesive tape is close to the bag body and the edge that the bag body was kept away from to first extension piece, consequently the in-process third extension piece that bonds fixedly in first extension piece and second extension piece internal surface also is bonded fixedly between first extension piece and second extension piece, the takeaway bag envelope process of this application is simple and convenient to the both sides of takeaway bag are also because the bonding of third extension piece is fixed can't take it out, the leakproofness of takeaway bag has been guaranteed.

Drawings

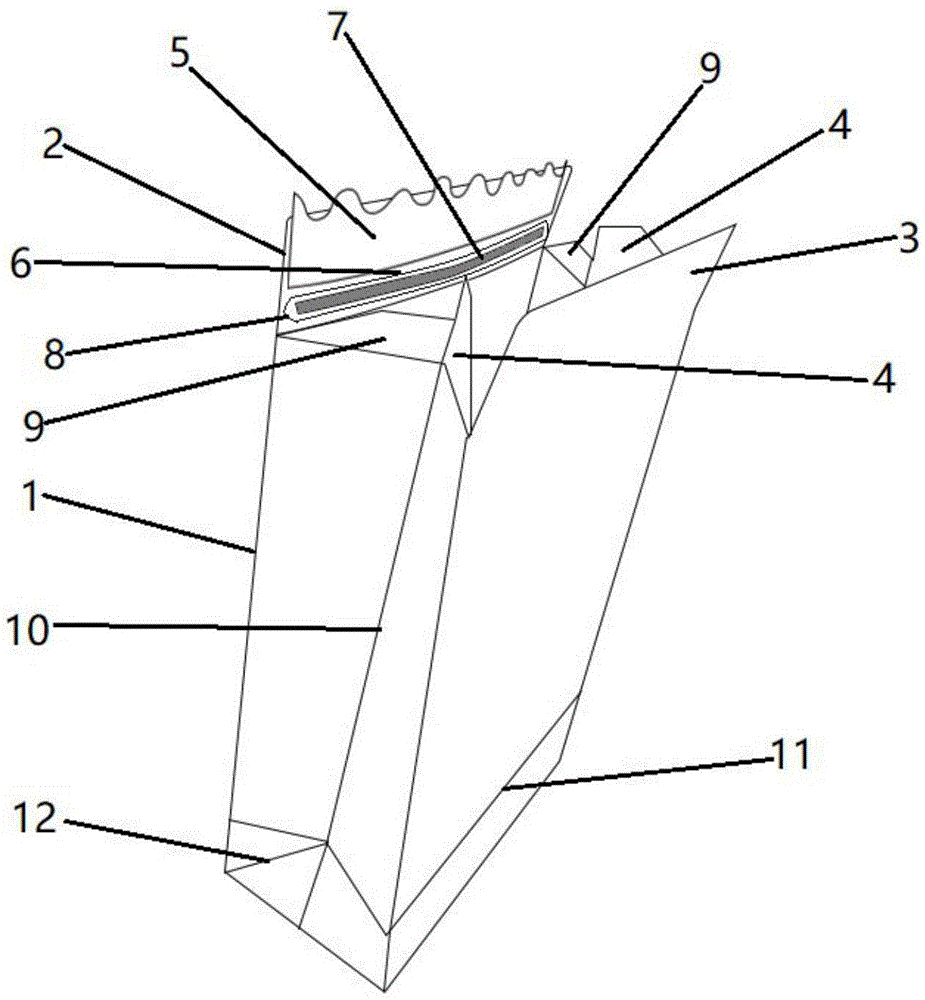

Fig. 1 is a schematic view of the overall structure of the takeout bag of the present invention.

In the drawings, the components represented by the respective reference numerals are listed below:

1. the bag body, 2, first extension piece, 3, second extension piece, 4, third extension piece, 5, two-sided adhesive tape, 6, easy tear strip, 7, strengthening rib, 8, breach, 9, fourth extension piece, 10, first crease, 11, second crease, 12, third crease.

Detailed Description

The principles and features of the present invention are described below in conjunction with the following drawings, the examples given are only intended to illustrate the present invention and are not intended to limit the scope of the present invention.

In the description of the present invention, it is to be understood that the terms "upper", "lower", "center", "inner", "outer", "top", "bottom", and the like, indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention.

In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.

As shown in fig. 1, the utility model provides a takeout bag, which comprises a bag body 1, wherein two opposite sides of an opening of the bag body 1 are respectively provided with a first extension sheet 2 and a second extension sheet 3, the other two opposite sides of the bag body 1 are respectively provided with a third extension sheet 4, a double-sided adhesive tape 5 is adhered to the inner surface of one edge of the first extension sheet 2 far away from the bag body 1, one side of the third extension sheet 4 far away from the bag body 1 is positioned between one side of the double-sided adhesive tape 5 near the bag body 1 and the edge of the first extension sheet 2 far away from the bag body 1, the takeout bag is used for packaging articles, the opening of the takeout bag is usually turned over several times during the bag sealing process, the final use of the takeout bag is sealed and adhered and fixed, under the condition, the bag sealing process is troublesome, the use space inside the takeout bag can be influenced, and most importantly, the sealed part of the takeout bag can not play a good role of preventing the, in addition, in the using process, a takeout bag of the present application usually uses the folded opening as a handle, which can more easily break the sealing tape to make the sealing tape fall off, and therefore the above-mentioned problems need to be solved, in the using process, firstly, the article is put into the takeout bag from the opening of the bag body 1, and further, two sides of the bag body 1 where the third extension sheet 4 is located are folded toward the inside of the bag body 1, so that the third extension plate is located between the first extension sheet 2 and the second extension sheet 3, further, the inner surface edges of the first extension sheet 2 and the second extension sheet 3 are bonded and fixed by the double-sided adhesive tape 5, because the side of the third extension sheet 4 away from the bag body 1 is located between the side of the double-sided adhesive tape 5 close to the bag body 1 and the edge of the first extension sheet 2 away from the bag body 1, the third extension sheet 4 is also bonded and fixed between the first extension sheet 2 and the second extension sheet 3 in the process of bonding and fixing the inner surfaces of the first extension sheet 2 and the second extension sheet 3, the takeaway bag envelope process of this application is simple and convenient to the leakproofness of takeaway bag has also been guaranteed because the bonding of third extension piece 4 is fixed can't be taken it out to the both sides of takeaway bag.

The take-out bag of the utility model, as shown in fig. 1, can also be on the basis of the technical scheme described in the foregoing: the surface of the first extension sheet 2 is provided with an easy-tear strip 6, the easy-tear strip 6 is positioned between a double-sided adhesive tape 5 and a bag body 1, the surface of the easy-tear strip 6 is bonded with a reinforcing rib 7, at least one end of the easy-tear strip 6 is parallel to one end of the first extension sheet 2 or exceeds one end of the first extension sheet 2, one end of the easy-tear strip 6, which is parallel to the first extension sheet 2, is provided with a notch 8, the notch 8 is used for facilitating the opening of the easy-tear strip 6, the reinforcing rib 7 has a guiding function on the opening direction of the easy-tear strip 6 and enhances the structural strength of the easy-tear strip 6, the easy-tear strip 6 is prevented from being broken in the opening process, the reinforcing rib 7 can be a strip-shaped plastic sheet or a strip-shaped paper sheet structure, when a packaging box needs to be opened, the easy-to-tear strip 6 can be broken along a track to form an object taking opening, it should be noted that: the easy-to-tear strip 6 is required to be opened when the takeaway bag is opened, and the easy-to-tear strip 6 is irreversibly damaged, so that the takeaway bag has an anti-theft effect and is better in anti-theft effect.

The take-out bag of the utility model, as shown in fig. 1, can also be on the basis of the technical scheme described in the foregoing: easy tear strip 6 both ends with 2 both sides parallel and level of first extension piece, strengthening rib 7 with easy tear strip 6 length is the same, breach 8 has been seted up to the both sides of the at least one end of easy tear strip 6, further makes things convenient for opening of easy tear strip 6 for the consumer has better bag body 1 of opening and tests.

The take-out bag of the utility model, as shown in fig. 1, can also be on the basis of the technical scheme described in the foregoing: the edges of the two sides of the bag body 1 are integrally formed with fourth extending pieces 9, one side of each fourth extending piece 9 is connected with the third extending piece 4 through a crease line, the third extending piece 4 is arranged close to the second extending piece 3, the fourth extending pieces 9 are arranged close to the first extending pieces 2, the side, far away from the bag body 1, of each fourth extending piece 9 is consistent with the height of the easy-to-tear strip 6, in the bag sealing process, the third extension sheet 4 is bonded and fixed when the edges of the inner surfaces of the first extension sheet 2 and the second extension sheet 3 are bonded by the double-sided adhesive tape 5, the side of the fourth extending sheet 9 far away from the bag body 1 is consistent with the height of the easy-to-tear strip 6, namely the height of the fourth extending sheet 9 is not more than the height of the easy-to-tear strip 6, the fourth extension piece 9 is not fixed when the first extension piece 2 and the second extension piece 3 are fixed by bonding, therefore, the opening of the easy-to-tear strip 6 when people open the bag is not influenced, and meanwhile, the fourth extending sheet 9 further plays a role in enhancing the sealing performance of the bag body 1.

The take-out bag of the utility model, as shown in fig. 1, can also be on the basis of the technical scheme described in the foregoing: the vertical first crease 10 that sets up in the both sides surface middle part position of the body 1 connection third extension piece 4 and fourth extension piece 9, first crease 10 extends to third extension piece 4 and fourth extension piece 9 junction, and the position department ring that the body 1 surface is close to the body 1 bottom surface of the bag establishes second crease 11, is provided with two third creases 12 to the body 1 bottom surface of the bag at the crossing of first crease 10 and second crease 11, third crease 12 one end is located the crossing of first crease 10 and second crease 11, and the other end of third crease 12 is located the both ends of the body 1 bottom surface of the bag respectively, can fold the takeaway bag through first crease 10, second crease 11 and third crease 12 when the takeaway bag does not use to reach the purpose of saving parking space.

The take-out bag of the utility model can also be on the basis of the technical scheme described in the foregoing: the inner surface of the first extension sheet 2 or the second extension sheet 3 is fixedly provided with a handle, and when the inner surfaces of the first extension sheet 2 and the second extension sheet 3 are fixedly bonded through the double-sided adhesive tape 5, the handle is further fixed between the first extension sheet 2 and the second extension sheet 3, so that the structure of the handle is more stable.

The take-out bag of the utility model can also be on the basis of the technical scheme described in the foregoing: the take-out bag is made of kraft paper, and has the beneficial effects of environment-friendly materials, reusability and recycling, and cost reduction.

The above description is only for the preferred embodiment of the present invention, and is not intended to limit the present invention, and any modifications, equivalent replacements, improvements, etc. made within the spirit and principle of the present invention should be included within the protection scope of the present invention.

Claims

1. A take-out bag, comprising: including the bag body (1), the first extension piece of both sides difference integrated into one piece (2) and second extension piece (3) that the bag body (1) opening part is relative, the other relative both sides difference integrated into one piece of the bag body (1) are provided with third extension piece (4), the two-sided adhesive tape (5) of a side edge internal surface bonding of the bag body (1) are kept away from to first extension piece (2), one side that the bag body (1) was kept away from in third extension piece (4) is located between one side that two-sided adhesive tape (5) are close to the bag body (1) and the edge that the bag body (1) was kept away from to first extension piece (2).

2. A take-out bag according to claim 1, wherein: first extension piece (2) surface forms easy tear tape (6), easy tear tape (6) are located between two-sided adhesive tape (5) and the bag body (1), easy tear tape (6) surface bonding strengthening rib (7), easy tear tape (6) at least one end and first extension piece (2) one end parallel and level or surpass the one end of first extension piece (2), easy tear tape (6) are seted up jaggedly (8) with the one end of first extension piece (2) parallel and level.

3. A take-out bag according to claim 2, wherein: easy tear strip (6) both ends with first extension piece (2) both sides parallel and level, strengthening rib (7) with easy tear strip (6) length is the same, breach (8) are seted up to the both sides of the at least one end of easy tear strip (6).

4. A take-out bag according to claim 3, wherein: bag body (1) both sides edge integrated into one piece fourth extension piece (9), fourth extension piece (9) one side is connected through the crease line with third extension piece (4), and third extension piece (4) are close to second extension piece (3) and set up, and fourth extension piece (9) are close to first extension piece (2) and set up, and one side and easy tear strip (6) highly uniform of the bag body (1) are kept away from to fourth extension piece (9).

5. The take-out bag of claim 4, wherein: the both sides surface middle part position that third extension piece (4) and fourth extension piece (9) are connected in the bag body (1) is vertical to be set up first crease (10), and first crease (10) extend to third extension piece (4) and fourth extension piece (9) junction, and second crease (11) are established to the position department ring that the bag body (1) surface is close to bag body (1) bottom surface, are provided with two third creases (12) to bag body (1) bottom surface in the crossing department of first crease (10) and second crease (11), third crease (12) one end is located the crossing department of first crease (10) and second crease (11), and the other end of third crease (12) is located the both ends of the bag body (1) bottom surface respectively.

6. The take-out bag of claim 5, wherein: and a handle is fixedly arranged on the inner surface of the first extension sheet (2) or the second extension sheet (3).

7. A take-out bag according to claim 6, wherein: the take-out bag is made of kraft paper.
