The utility model discloses a feeding machine stripping plate of an injection molding machine, which comprises a base, a supporting leg, a feeding box, a cylinder, a bottom plate, a center plate, a feeding plate, a first spring and a second spring. Two springs are welded on the base. The top of the support leg is welded with a feeding box, a cylinder is fixed on the base, the extension end of the cylinder extends into the feeding box, a bottom plate is fixed on the inner bottom of the feeding box, and a center plate is arranged above the bottom plate. A feeding plate is arranged above the plate, the inner end of the cylinder is fixed at the bottom center of the center plate, and the feeding plate is fixed on the center plate by the first spring, and three second springs are evenly fixed at the bottom of the feeding plate. The unloading plate of the feeding machine is convenient for conveying and feeding, which can avoid being stuck in the feeding box, improve the stability of feeding, and is convenient to provide a penetration force to the feeding plate, which is convenient for it to vibrate up and down, and realize the function of automatic feeding. .

Description

Material loading machine stripper plate of injection molding machine

Technical Field

The utility model relates to an injection molding machine field specifically is a material loading machine stripper plate of injection molding machine.

Background

An injection molding machine is also known as an injection molding machine or an injection machine. It is a main forming equipment for making various shaped plastic products from thermoplastic plastics or thermosetting plastics by using plastic forming mould. The device is divided into a vertical type, a horizontal type and a full-electric type. The injection molding machine can heat the plastic, apply high pressure to the molten plastic, make it inject out and fill the die cavity, the injection molding machine needs to utilize the continuous material loading of the feeder while injecting plastics.

The material loading machine that uses at present takes off the flitch, all is fixed in on the material loading machine, can't remove by oneself, does not possess the function of automatic material of taking off, and it is extremely inconvenient to use.

In order to solve the problems, a stripper plate of a feeding machine of an injection molding machine is provided.

SUMMERY OF THE UTILITY MODEL

The to-be-solved technical problem of the utility model is to overcome prior art's defect, a material loading machine stripper plate of injection molding machine is provided, in order to solve above-mentioned technical problem, the utility model provides a following technical scheme:

the utility model relates to a stripper plate of a feeding machine of an injection molding machine, which comprises a base, supporting legs, a feeding box, a cylinder, a bottom plate, a central plate, a feeding plate, a first spring and a second spring, wherein two supporting legs are welded on the base, the feeding box is welded on the tops of the supporting legs, used for feeding materials upwards, an air cylinder is fixed on the base and used for feeding materials upwards, the extending end of the air cylinder extends into the feeding box, a bottom plate is fixed at the bottom of the inner side of the feeding box, a central plate is arranged above the bottom plate, a feeding plate is arranged above the central plate, the inner end of the cylinder is fixed at the center of the bottom of the central plate, and the feeding plate is fixed on the central plate through the first springs, and three second springs are uniformly fixed at the bottom of the feeding plate, so that the feeding plate can jack up raw materials conveniently for conveying, can shake automatically, and realizes the function of automatically taking off the materials.

Preferably, three first insertion holes are uniformly formed in the central plate, the second springs penetrate through the first insertion holes, and second magnet blocks are fixed at the bottoms of the second springs.

Preferably, a seat groove is formed in the center of the upper surface of the central plate, and the upper end and the lower end of the first spring are fixed to the feeding plate and the seat groove respectively.

Preferably, a second jack is formed in the center of the bottom plate, and the extending end of the cylinder penetrates through the second jack.

Preferably, three first magnet blocks are uniformly fixed on the upper surface of the bottom plate, and the first magnet blocks are respectively positioned right below the second magnet blocks.

Preferably, the top both sides of going up the workbin are communicate respectively has filling tube and discharging pipe, just the filling tube is located the below of discharging pipe.

Compared with the prior art, the utility model discloses the beneficial effect who reaches is: the cylinder is arranged below the feeding box and used for pushing the central plate and the feeding plate to ascend, so that feeding is facilitated; the first spring is arranged below the feeding plate and used for limiting the feeding plate, so that the feeding plate is prevented from being clamped in the feeding box in an inclined mode, and the feeding stability is improved; the second spring is arranged below the feeding plate, and the second magnet block is arranged at the bottom of the second spring and matched with the first iron block, so that the feeding plate is convenient to provide the penetrating force, the feeding plate is convenient to vibrate up and down, and the function of automatically removing materials is realized.

Drawings

The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention. In the drawings:

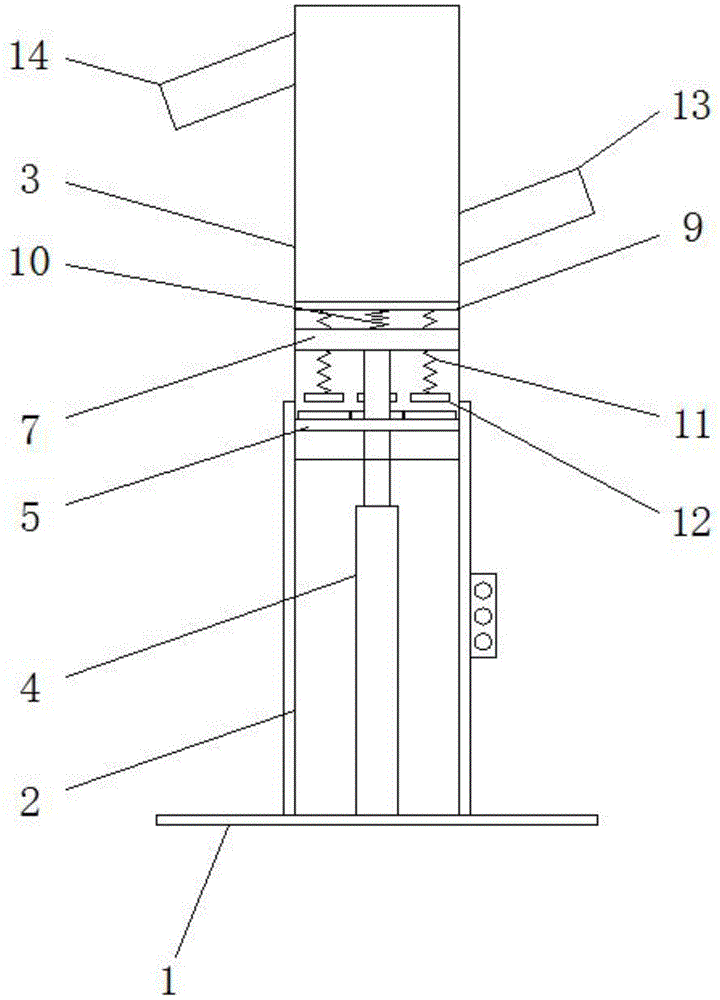

fig. 1 is a schematic view of the overall structure of a stripper plate of a feeding machine of an injection molding machine according to the present invention;

FIG. 2 is a schematic structural diagram of the middle bottom plate of the present invention;

fig. 3 is a schematic structural diagram of the center plate of the present invention.

In the figure: 1. a base; 2. supporting legs; 3. feeding a material box; 4. a cylinder; 5. a base plate; 6. a first magnet block; 7. a center plate; 8. a first jack; 9. a feeding plate; 10. a first spring; 11. a second spring; 12. a second magnet block; 13. a feed tube; 14. a discharge pipe; 15. a seat groove; 16. a second receptacle.

Detailed Description

The preferred embodiments of the present invention will be described in conjunction with the accompanying drawings, and it will be understood that they are presented herein only to illustrate and explain the present invention, and not to limit the present invention.

Examples

As shown in fig. 1-3, a material loading machine stripper plate of an injection molding machine comprises a base 1, supporting legs 2, a material loading box 3, a cylinder 4, a bottom plate 5, a central plate 7, a feeding plate 9, a first spring 10 and a second spring 11, wherein two supporting legs 2 are welded on the base 1, the material loading box 3 is welded on the top of each supporting leg 2, the cylinder 4 is fixed on the base 1, the extending end of the cylinder 4 extends into the material loading box 3 and is used for jacking up the material, the bottom plate 5 is fixed at the bottom of the inner side of the material loading box 3, the central plate 7 is arranged above the bottom plate 5, the feeding plate 9 is arranged above the central plate 7 and is used for jacking up the material, the inner end of the cylinder 4 is fixed at the center of the bottom of the central plate 7, the feeding plate 9 is fixed on the central plate 7 through the first spring 10, and three second springs 11 are uniformly.

In this embodiment, three first insertion holes 8 are uniformly formed in the central plate 7, the second springs 11 penetrate through the first insertion holes 8, and the second magnet blocks 12 are fixed to the bottoms of the second springs 11, so that the first magnet blocks 6 are in contact with the second magnet blocks 12.

In this embodiment, a seat groove 15 is formed in the center of the upper surface of the central plate 7, and the upper end and the lower end of the first spring 10 are respectively fixed to the feeding plate 9 and the seat groove 15, so as to facilitate firm fixing.

In this embodiment, the center of the bottom plate 5 is provided with a second insertion hole 16, and the extending end of the cylinder 4 passes through the second insertion hole 16, so as to be convenient for lifting up the material.

In this embodiment, three first magnet blocks 6 are uniformly fixed on the upper surface of the bottom plate 5, and the first magnet blocks 6 are respectively located right below the second magnet blocks 12, so as to be tightly adsorbed together.

In this embodiment, go up the top both sides of workbin 3 and communicate respectively there are filling tube 13 and discharging pipe 14, and filling tube 13 is located the below of discharging pipe 14, is convenient for reinforced and the ejection of compact.

The utility model discloses a principle and advantage: the material is added into the feeding box 3 from the feeding pipe 13, then the air cylinder 4 is opened to drive the central plate 7 and the feeding plate 9 to ascend, the material is jacked up and conveyed to the position above the discharging pipe 14, the material slides out from the discharging pipe 14, thereby completing the feeding, when the air cylinder 4 drives the central plate 7 and the feeding plate 9 to descend, the first magnet block 6 is contacted with the second magnet block 12, the two magnets attract each other, when the air cylinder 4 pushes up against the feeding plate 9, the first magnet block 6 and the second magnet block 12 are attracted together, so that the second spring 11 can be stretched, when the feeding plate 9 ascends for a distance, the first magnet block 6 is separated from the second magnet block 12, the second spring 11 retracts rapidly, thereby providing the feeding plate 9 with the penetrating force for moving up and down, when the feeding plate 9 is influenced by the penetrating force, the feeding plate ascends instantly, and starts to descend under the pulling force of the first spring 10 when ascending, the repeated movement is carried out, the shaking phenomenon is formed, and the feeding plate 9 shakes continuously, so that the raw materials adhered above the feeding plate can shake off, the raw materials are prevented from being adhered to the feeding plate 9, and the function of automatically removing the materials is realized.

Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.

Claims

1. The utility model provides a material loading machine stripper plate of injection molding machine, includes base (1), supporting leg (2), goes up workbin (3), cylinder (4), bottom plate (5), well core plate (7), feed plate (9), first spring (10) and second spring (11), its characterized in that: the welding has two supporting legs (2) on base (1), workbin (3) are gone up in the top welding of supporting leg (2), be fixed with cylinder (4) on base (1), the end that stretches out of cylinder (4) stretches into workbin (3), the inboard bottom of going up workbin (3) is fixed with bottom plate (5), the top of bottom plate (5) is provided with well core plate (7), the top of well core plate (7) is provided with delivery sheet (9), the inner of cylinder (4) is fixed in the bottom center department of well core plate (7), just delivery sheet (9) are fixed in on well core plate (7) through first spring (10), the bottom of delivery sheet (9) evenly is fixed with three second spring (11).

2. The feeder stripper plate of an injection molding machine as set forth in claim 1, wherein: three first jacks (8) are uniformly formed in the central plate (7), the second springs (11) penetrate through the first jacks (8), and second magnet blocks (12) are fixed at the bottoms of the second springs (11).

3. The feeder stripper plate of an injection molding machine as set forth in claim 1, wherein: a seat groove (15) is formed in the center of the upper surface of the central plate (7), and the upper end and the lower end of the first spring (10) are fixed to the feeding plate (9) and the seat groove (15) respectively.

4. The feeder stripper plate of an injection molding machine as set forth in claim 1, wherein: a second jack (16) is formed in the center of the bottom plate (5), and the extending end of the cylinder (4) penetrates through the second jack (16).

5. The feeder stripper plate of an injection molding machine as set forth in claim 1, wherein: the upper surface of bottom plate (5) is fixed with three magnet piece (6) evenly, just first magnet piece (6) are located the second magnet piece (12) under respectively.

6. The feeder stripper plate of an injection molding machine as set forth in claim 1, wherein: go up the top both sides of workbin (3) and communicate respectively there are filling tube (13) and discharging pipe (14), just filling tube (13) are located the below of discharging pipe (14).
