Abstract
本实用新型公开了一种工业用水管道的清除装置，包括底座、第一轨道、定位锚栓、转动轴和控制面板，所述底座顶端的一侧固定有装置主体，且装置主体一侧的底座顶端转动安装有转动轴，并且转动轴表面的一侧固定有主动齿轮，主动齿轮表面的一侧安装有连接皮带，所述装置主体一侧的内壁上固定有支板，且支板表面的一侧固定有第一轨道，并且第一轨道表面的一侧滑动安装有第一滑块，第一滑块顶端的一侧固定有装置主板，所述装置主板表面的两侧皆固定有第二轨道。本实用新型不仅提升装置的工作使用范围，省去工作人员手动清理的工作，降低工作人员的作业强度，还提高装置的碎屑清除效果。
The utility model discloses a cleaning device for industrial water pipes, comprising a base, a first track, a positioning anchor bolt, a rotating shaft and a control panel. A device main body is fixed on one side of the top of the base, and a base on one side of the device main body The top end is rotatably installed with a rotating shaft, and a driving gear is fixed on one side of the surface of the rotating shaft, a connecting belt is installed on one side of the surface of the driving gear, a support plate is fixed on the inner wall of one side of the main body of the device, and one side of the surface of the support plate is fixed. A first track is fixed on the side, a first slider is slidably installed on one side of the surface of the first track, a device mainboard is fixed on one side of the top of the first slider, and a second track is fixed on both sides of the surface of the device mainboard . The utility model not only increases the working range of the device, saves the manual cleaning work of the staff, reduces the work intensity of the staff, but also improves the debris removal effect of the device.
Description
Technical Field
The utility model relates to an industrial water pipeline makes technical field, specifically is a clearing device of industrial water pipeline.
Background
The water pipe is the pipeline that supplies water, and modern fitment water pipe adopts the wall buried formula construction mostly, need punch, operation such as cutting it at industrial water pipeline in the course of working, and the pipeline surface after the processing remains a large amount of pieces, just needs to use clearing device this moment, cleans its surface.
The cleaning devices on the market are various and can basically meet the use requirements of people, but certain defects still exist, and the specific problems are as follows.
(1) When the existing cleaning device is used, the cleaning brush needs to be manually held on the surface of the pipeline to move, so that time and labor are wasted in the operation process, and the operation intensity of workers is greatly increased;
(2) the existing cleaning device is difficult to operate according to pipelines with different specifications, so that the working and use range of the device is reduced;
(3) when the existing clearing device is used for clearing the pipeline, the wrapping performance of the pipeline is limited, and the debris clearing effect of the device is reduced.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a clearing device of industrial water pipeline to the operation intensity that provides the device among the above-mentioned background art is higher, work application range is limited and clear away the not good problem of effect.
In order to achieve the above object, the utility model provides a following technical scheme: a clearing device for an industrial water pipeline comprises a base, a first rail, a positioning anchor bolt, a rotating shaft and a control panel, wherein a device main body is fixed on one side of the top end of the base, the rotating shaft is rotatably installed on the top end of the base on one side of the device main body, a driving gear is fixed on one side of the surface of the rotating shaft, a connecting belt is installed on one side of the surface of the driving gear, a supporting plate is fixed on the inner wall on one side of the device main body, the first rail is fixed on one side of the surface of the supporting plate, a first sliding block is slidably installed on one side of the surface of the first rail, a device main board is fixed on one side of the top end of the first sliding block, second rails are fixed on two sides of the surface of the device main board, a second sliding block is slidably installed on one side of the surface of the second rail, an air, the location crab-bolt is installed to the one end of connecting the belt, and the top of location crab-bolt extends to the inside of first slider, one side on second slider surface is provided with clears away the structure, install control panel on the outer wall of device main part one side, the output of the inside singlechip of control panel and the input electric connection of cylinder.
Preferably, a driving motor is installed on one side of the surface of the device main body, a rotating shaft is installed at the output end of the driving motor through a coupler, a transmission belt is wound on one side of the surface of the rotating shaft, and one end of the transmission belt is connected with one end of the rotating shaft.
Preferably, one side on device mainboard surface rotates installs the connecting plate, and the both ends on connecting plate surface all articulate has the connecting rod.
Preferably, one side of the top end of the connecting rod is provided with a fisheye joint, and the bottom end of the fisheye joint is hinged with the surface of the second sliding block.
Preferably, clear away the inside of structure and set gradually spacing frame, spring, guide bar and brush cleaner, the both sides on second slider surface all are fixed with spacing frame, and one side at spacing frame top is fixed with the spring.
Preferably, one side of spring bottom is fixed with the guide bar, and the brush cleaner is installed to one side of guide bar bottom, and the bottom of brush cleaner extends to the outside of spacing frame.
Compared with the prior art, the beneficial effects of the utility model are that: the cleaning device for the industrial water pipeline not only improves the working application range of the device, saves the manual cleaning work of workers, reduces the working intensity of the workers, but also improves the debris cleaning effect of the device;
(1) the pipeline is placed between the two groups of cleaning brushes 1704 through external hoisting equipment by arranging the second sliding blocks and the air cylinders, then the air cylinders 14 are controlled by the control panel 10 to work, so that the second sliding blocks 12 are pulled to slide on the surface of the second track 13, and the two groups of second sliding blocks 12 are connected with each other through the connecting rods 16 and the fisheye joints 18, so that the two groups of second sliding blocks 12 can be close to each other, namely the second sliding blocks 12 drive the two groups of cleaning brushes 1704 to be close to each other until the cleaning brushes 1704 are attached to the upper surface and the lower surface of the pipeline, so that the device can clamp and fix the pipelines with different specifications, and the working application range of the device is expanded;
(2) through the arrangement of the rotating shaft and the transmission belt, the driving motor 19 is controlled to work through the control panel 10, so that the rotating shaft 20 is driven to rotate, the rotating shaft 20 drives the transmission belt 21, the rotating shaft 8 and the driving gear 9 to rotate, and finally the driving gear 9 drives the connecting belt 6 to rotate, because one end of the connecting belt 6 is connected with the first slider 4 through the positioning anchor bolt 3, the connecting belt 6 can slide on the surface of the first track 2 while rotating, namely the first slider 4 drives the device main board 11 and the cleaning brush 1704 to horizontally move, so that the cleaning brush 1704 slides on the surface of the pipeline to remove scraps and stains on the surface of the pipeline, the manual cleaning work of workers is omitted, and the working strength of the workers is reduced;
(3) by providing the sweeper brush and the guide bar, when the sweeper brush 1704 contacts the pipe, the spring 1702 will force the guide bar 1703 to move downward, i.e., the guide bar 1703 will push the sweeper brush 1704 to move toward the pipe, thereby fully clamping the pipe, tightly attaching the sweeper brush 1704 to the surface of the pipe, and improving the debris removal effect of the device.
Drawings

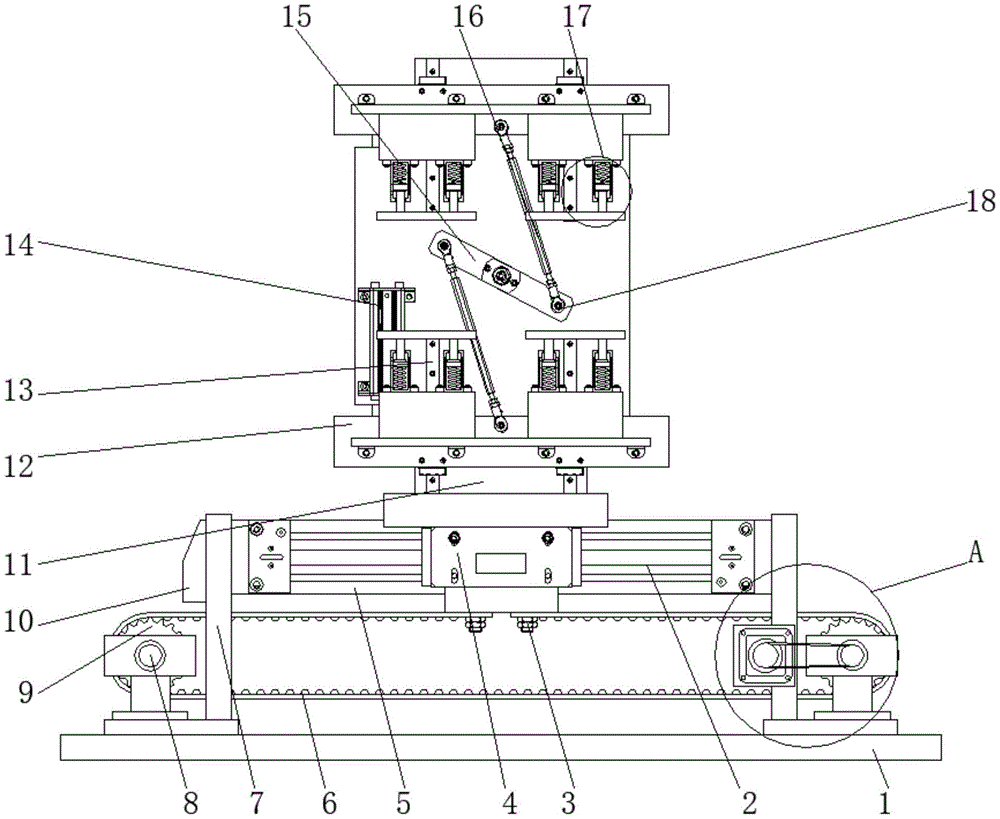

Fig. 1 is a schematic view of a front view cross-sectional structure of the present invention;
FIG. 2 is an enlarged schematic view of the structure at A of FIG. 1 according to the present invention;
FIG. 3 is a schematic view of the main sectional structure of the device main board of the present invention;
FIG. 4 is an enlarged schematic view of the cleaning structure of the present invention;
in the figure: 1. a base; 2. a first track; 3. positioning an anchor bolt; 4. a first slider; 5. a support plate; 6. connecting a belt; 7. a device main body; 8. a rotating shaft; 9. a driving gear; 10. a control panel; 11. a device main board; 12. a second slider; 13. a second track; 14. a cylinder; 15. a connecting plate; 16. a connecting rod; 17. clearing the structure; 1701. a limiting frame; 1702. a spring; 1703. a guide bar; 1704. cleaning with a brush; 18. a fisheye joint; 19. a drive motor; 20. a rotating shaft; 21. a drive belt.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides an embodiment: a clearing device for an industrial water pipeline comprises a base 1, a first rail 2, a positioning anchor bolt 3, a rotating shaft 8 and a control panel 10, wherein a device main body 7 is fixed on one side of the top end of the base 1, the rotating shaft 8 is rotatably installed on the top end of the base 1 on one side of the device main body 7, a driving gear 9 is fixed on one side of the surface of the rotating shaft 8, a connecting belt 6 is installed on one side of the surface of the driving gear 9, a support plate 5 is fixed on the inner wall on one side of the device main body 7, a first rail 2 is fixed on one side of the surface of the support plate 5, a first slide block 4 is slidably installed on one side of the surface of the first rail 2, a device main board 11 is fixed on one side of the top end of the first slide block 4, second rails 13 are fixed on two sides of the surface of the device main board 11, a second slide block 12 is, the type of the air cylinder 14 can be SC50X20, the bottom end of the air cylinder 14 is fixedly connected with the top end of the second sliding block 12, one end of the connecting belt 6 is provided with a positioning anchor bolt 3, and the top end of the positioning anchor bolt 3 extends into the first sliding block 4;
a driving motor 19 is arranged on one side of the surface of the device main body 7, the type of the driving motor 19 can be RS-385SH, the output end of the driving motor 19 is provided with a rotating shaft 20 through a coupler, a transmission belt 21 is wound on one side of the surface of the rotating shaft 20, and one end of the transmission belt 21 is connected with one end of the rotating shaft 8;
the driving motor 19 is controlled to work through the control panel 10, so that the driving motor drives the rotating shaft 20 to rotate, the rotating shaft 20 drives the transmission belt 21, the rotating shaft 8 and the driving gear 9 to rotate, finally, the driving gear 9 drives the connecting belt 6 to rotate, and because one end of the connecting belt 6 is connected with the first slider 4 through the positioning anchor bolt 3, the connecting belt 6 can slide on the surface of the first track 2 while rotating, namely, the first slider 4 drives the device main board 11 and the cleaning brush 1704 to horizontally move, so that the cleaning brush 1704 is used for sliding on the surface of the pipeline to remove scraps and stains on the surface of the pipeline, and the manual cleaning work of workers is omitted;
a connecting plate 15 is rotatably arranged on one side of the surface of the device main plate 11, and two ends of the surface of the connecting plate 15 are hinged with connecting rods 16;
one side of the top end of the connecting rod 16 is provided with a fisheye joint 18, and the bottom end of the fisheye joint 18 is hinged with the surface of the second sliding block 12;
the pipeline is placed between the two groups of cleaning brushes 1704 through external hoisting equipment, then the cylinder 14 is controlled to work through the control panel 10, so that the second sliding blocks 12 are pulled to slide on the surface of the second track 13, and the two groups of second sliding blocks 12 are connected with each other through the connecting rod 16 and the fisheye joint 18, so that the two groups of second sliding blocks 12 can be close to each other, namely the second sliding blocks 12 drive the two groups of cleaning brushes 1704 to be close to each other until the cleaning brushes 1704 are attached to the upper surface and the lower surface of the pipeline, so that the device can clamp and fix the pipelines with different specifications, and the working application range of the device is expanded;
one side of the surface of the second sliding block 12 is provided with a clearing structure 17;
a limiting frame 1701, a spring 1702, a guide rod 1703 and a cleaning brush 1704 are sequentially arranged in the cleaning structure 17, the limiting frame 1701 is fixed on both sides of the surface of the second slider 12, and the spring 1702 is fixed on one side of the top of the limiting frame 1701;
a guide rod 1703 is fixed on one side of the bottom end of the spring 1702, a cleaning brush 1704 is installed on one side of the bottom end of the guide rod 1703, and the bottom end of the cleaning brush 1704 extends to the outside of the limiting frame 1701;
when the cleaning brush 1704 contacts the pipeline, the elastic force of the spring 1702 forces the guide rod 1703 to move downwards, namely the guide rod 1703 pushes the cleaning brush 1704 to move towards the direction of the pipeline, so that the pipeline is sufficiently clamped, the cleaning brush 1704 is tightly attached to the surface of the pipeline, and the debris removing effect of the device is improved;
the outer wall of one side of the device main body 7 is provided with a control panel 10, the type of the control panel 10 can be LK1N-56R, and the output end of the single chip microcomputer in the control panel 10 is electrically connected with the input ends of the air cylinder 14 and the driving motor 19 respectively.
The working principle is as follows: when the pipeline cleaning device is used, firstly, a pipeline is placed between the two groups of cleaning brushes 1704 through external hoisting equipment, then the cylinder 14 is controlled by the control panel 10 to work, so that the second sliding blocks 12 are pulled to slide on the surface of the second track 13, because the two groups of second sliding blocks 12 are connected with each other through the connecting rod 16 and the fisheye joint 18, the two groups of second sliding blocks 12 can be close to each other, namely the second sliding blocks 12 drive the two groups of cleaning brushes 1704 to be close to each other until the cleaning brushes 1704 are attached to the upper surface and the lower surface of the pipeline, so that the device can clamp and fix pipelines with different specifications, the working application range of the device is improved, then the driving motor 19 is controlled by the control panel 10 to work, the rotating shaft 20 is driven to rotate, the rotating shaft 20 drives the transmission belt 21, the rotating shaft 8 and the driving gear 9 to rotate, and finally the driving gear 9 drives the connecting, because one end of the connecting belt 6 is connected with the first sliding block 4 through the positioning anchor bolt 3, the connecting belt 6 rotates and simultaneously enables the first sliding block 4 to slide on the surface of the first track 2, namely the first sliding block 4 drives the device main board 11 and the cleaning brush 1704 to horizontally move, so that the cleaning brush 1704 slides on the surface of the pipeline to clean debris and stains on the surface of the pipeline, the manual cleaning work of workers is omitted, the operation intensity of the workers is reduced, when the cleaning brush 1704 contacts the pipeline, the guide rod 1703 is forced to downwards move by the elastic force of the spring 1702, namely the guide rod 1703 pushes the cleaning brush 1704 to move towards the pipeline, the pipeline is fully clamped, the cleaning brush 1704 is tightly attached to the surface of the pipeline, and the debris cleaning effect of the device is improved.
It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Claims (6)
1. The utility model provides a clearing device of industrial water pipeline, includes base (1), first track (2), location crab-bolt (3), axis of rotation (8) and control panel (10), its characterized in that: a device main body (7) is fixed on one side of the top end of the base (1), a rotating shaft (8) is rotatably installed on the top end of the base (1) on one side of the device main body (7), a driving gear (9) is fixed on one side of the surface of the rotating shaft (8), a connecting belt (6) is installed on one side of the surface of the driving gear (9), a support plate (5) is fixed on the inner wall on one side of the device main body (7), a first track (2) is fixed on one side of the surface of the support plate (5), a first slider (4) is slidably installed on one side of the surface of the first track (2), a device main board (11) is fixed on one side of the top end of the first slider (4), second tracks (13) are fixed on two sides of the surface of the device main board (11), a second slider (12) is slidably installed on one side of the surface of the second track (13), and a cylinder, the bottom of cylinder (14) and the top fixed connection of second slider (12), location crab-bolt (3) are installed to the one end of connecting belt (6), and the top of location crab-bolt (3) extends to the inside of first slider (4), one side on second slider (12) surface is provided with clears away structure (17), install control panel (10) on the outer wall of device main part (7) one side, the output of the inside singlechip of control panel (10) and the input electric connection of cylinder (14).
2. The clearing device for industrial water pipes according to claim 1, characterized in that: driving motor (19) are installed to one side on device main part (7) surface, and the output of driving motor (19) installs pivot (20) through the shaft coupling to one side winding on pivot (20) surface has drive belt (21), the one end of drive belt (21) and the one end interconnect of axis of rotation (8).
3. The clearing device for industrial water pipes according to claim 1, characterized in that: one side on device mainboard (11) surface rotates installs connecting plate (15), and the both ends on connecting plate (15) surface all articulate there is connecting rod (16).
4. The clearing device for industrial water pipes according to claim 3, characterized in that: one side at connecting rod (16) top is installed fisheye and is connected (18), and the bottom of fisheye connects (18) and the surface of second slider (12) is articulated each other.
5. The clearing device for industrial water pipes according to claim 1, characterized in that: clear away the inside of structure (17) and set gradually spacing frame (1701), spring (1702), guide bar (1703) and brush cleaner (1704), the both sides on second slider (12) surface all are fixed with spacing frame (1701), and one side at spacing frame (1701) top is fixed with spring (1702).
6. The clearing device for industrial water pipes according to claim 5, wherein: a guide rod (1703) is fixed on one side of the bottom end of the spring (1702), a cleaning brush (1704) is installed on one side of the bottom end of the guide rod (1703), and the bottom end of the cleaning brush (1704) extends to the outside of the limiting frame (1701).
