CN213553057U

CN213553057U - ICU child uses head heat sink

Info

Publication number: CN213553057U
Application number: CN202022606494.1U
Authority: CN
Inventors: 汪守平
Original assignee: West China Hospital of Sichuan University
Current assignee: West China Hospital of Sichuan University
Priority date: 2020-11-12
Filing date: 2020-11-12
Publication date: 2021-06-29
Anticipated expiration: 2030-11-12

Abstract

The utility model belongs to the technical field of medical equipment, in particular to a head cooling device for ICU children. The rotating rod, the inner side of the clamping block is provided with a tie rod, the outer surface of the rotating rod and the outer surface of the tie rod are provided with binding straps, the outer surface of the support rod is provided with a telescopic rod, the outer surface of the telescopic rod is provided with a panel, and the A water outlet pipe and a water return pipe are respectively arranged on the upper end face, and a sealing cover is arranged on the inner side of the water injection port. In the utility model, a pull rod, a clamping block and a binding belt are arranged, the pull rod is pulled to make the binding belt go around the top of the child's body, the pull rod is clamped into the clamping block, and the child is fixed on the bed board, which is convenient for the cooling process. The panel can fix children with different head circumferences, optimize the fixation of the children's head during the cooling process, improve the cooling effect and save time.

Description

ICU child uses head heat sink

Technical Field

The utility model relates to the technical field of medical equipment, specifically a child head heat sink for ICU.

Background

Pediatrics is a comprehensive medical science for comprehensively researching physical and mental development, health care and disease prevention and treatment of children, fever and high fever are one of common emergency symptoms of hospitals, alcohol, cold water and the like are generally adopted as a physical cooling mode in clinic, a head cooling device is an instrument for guiding a patient to place the head on a diagnosis and treatment table and enable the cold water to be placed at the forehead of the patient, so that physical cooling is performed, the device can cool the patient at high temperature to a sub-low temperature state, clinical curative effect is improved, and life safety of the patient is guaranteed.

There are the following problems:

1. in the process of cooling, the body of the child is easy to move disorderly, and the child cannot be fixed on the bed board, which brings inconvenience to the cooling process.

2. The head circumference of the children is different, the head cooling device cannot fix the children with different head circumferences, cold water cannot be effectively attached to the forehead of the children, the cooling effect is poor, and time is wasted.

SUMMERY OF THE UTILITY MODEL

Aiming at the defects of the prior art, the utility model provides a child head cooling device for ICU, which solves the problem that the child can not move around and fix on the bed board and the child with different head circumference.

In order to achieve the above object, the utility model provides a following technical scheme: an ICU head cooling device for children comprises a bed plate, wherein a seat foot is arranged on the lower end face of the bed plate, a fixed block is arranged on one side of the bed plate, a fixture block is arranged on the other side of the bed plate, a rotating rod is arranged on the inner side face of the fixed block, a pull rod is arranged on the inner side face of the fixture block, binding bands are arranged on the outer surface of the rotating rod and the outer surface of the pull rod, a pillow block and a support rod are respectively arranged on the upper end face of the bed plate, a telescopic rod is arranged on the outer surface of the support rod, a panel is arranged on the outer surface of the telescopic rod, a spring is arranged on the outer surface of the panel, an installation table is arranged on the upper end face of the support rod, a lifting rod is arranged on the lower end face of the lifting rod, a cold water bag is arranged on the lower end, the upper end face of the mounting table is provided with a cold water tank and a display screen respectively, the inner side face of the cold water tank is provided with a circulating pump, a water filling port is arranged inside the cold water tank, and a sealing cover is arranged on the inner side face of the water filling port.

As an optimal technical scheme of the utility model, the seat foot welds in the lower terminal surface of bed board, fixed block fixed connection is in one side of bed board, fixture block fixed connection is in the opposite side of bed board.

As a preferred technical scheme of the utility model, bull stick swing joint is in the medial surface of fixed block, pull rod swing joint is in the medial surface of fixture block, bind area fixed connection respectively in the surface of bull stick and the surface of pull rod.

As an optimal technical scheme of the utility model, the pillow is in the up end of bed board with the equal fixed connection of bracing piece, telescopic link fixed connection is in the surface of bracing piece.

As a preferred technical scheme of the utility model, panel fixed connection is in the surface of telescopic link, spring swing joint is in the surface of panel.

As a preferred technical scheme of the utility model, mount table threaded connection is in the up end of bracing piece, lifter swing joint is in the lower terminal surface of mount table, cold water bag fixed connection is in the lower terminal surface of lifter, the shape of cold water bag is helmet form, the material of cold water bag is silica gel.

As a preferred technical scheme of the utility model, the material of outlet pipe and the material of wet return are the PVC hose, the outlet pipe is in the up end of cold water bag with the equal fixed connection of wet return, sensor fixed connection is in the medial surface of cold water bag, cold water storage cistern and the equal swing joint of display screen in the up end of mount table.

As a preferred technical scheme of the utility model, circulating pump swing joint is in the medial surface of cold water storage cistern, water filling port fixed connection is in the inside of cold water storage cistern, sealed lid swing joint is in the water filling port medial surface.

Compared with the prior art, the utility model provides a child uses head heat sink in ICU possesses following beneficial effect:

1. according to the ICU head cooling device for the children, the pull rod, the clamping blocks and the binding belts are arranged, the pull rod is pulled to enable the binding belts to pass over the bodies of the children, the pull rod is clamped into the clamping blocks, the children are fixed on the bed board, and the cooling process is convenient to carry out.

2. This ICU is child uses head heat sink through setting up telescopic link and panel, can fix the child of different head circumferences, optimizes the cooling in-process to the fixed of child's head, promotes the cooling effect, facilitates for work, saves time.

Drawings

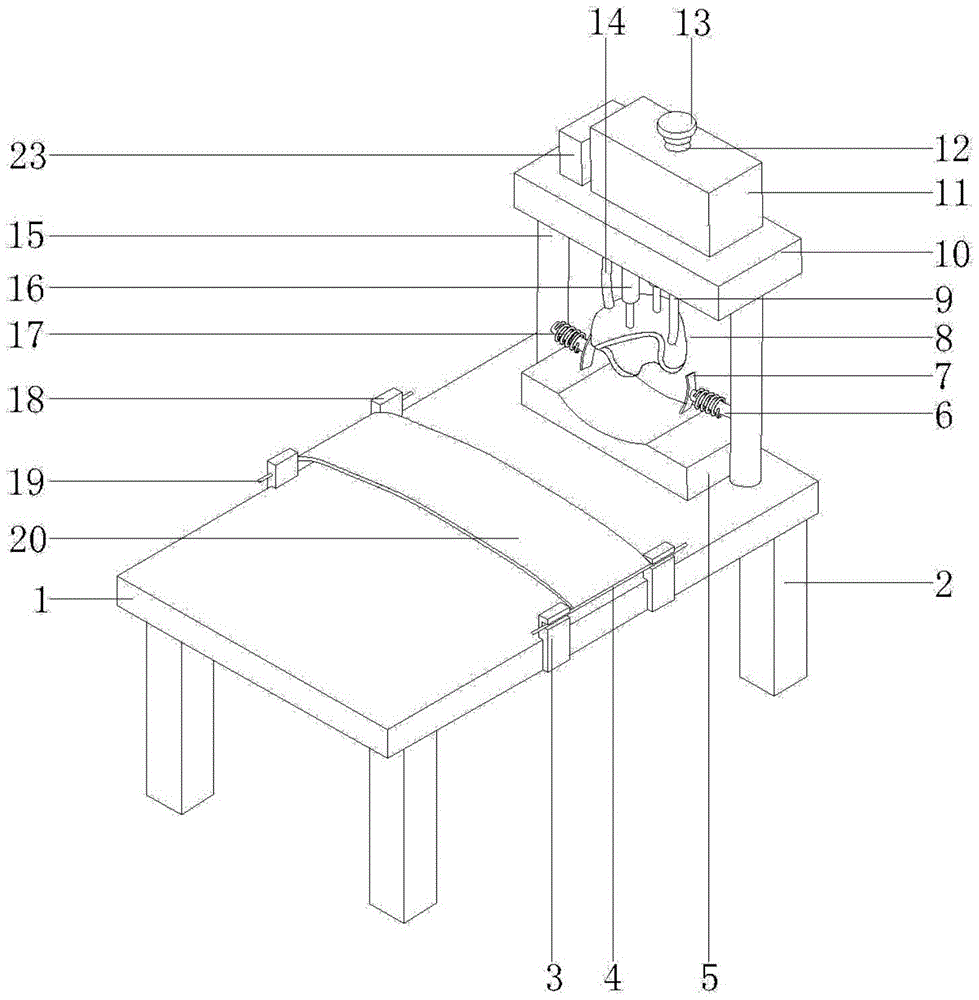

FIG. 1 is a schematic structural view of the present invention;

fig. 2 is a front view of the telescopic rod of the present invention;

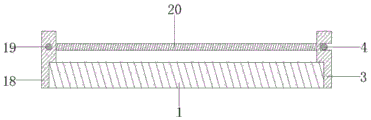

fig. 3 is a sectional view of the binding band of the present invention.

In the figure: 1. a bed board; 2. a seat leg; 3. a clamping block; 4. a pull rod; 5. a pillow block; 6. a telescopic rod; 7. a panel; 8. a cold water bag; 9. a water outlet pipe; 10. an installation table; 11. a cold water tank; 12. a water injection port; 13. a sealing cover; 14. a water return pipe; 15. a support bar; 16. a lifting rod; 17. a spring; 18. a fixed block; 19. a rotating rod; 20. a binding band; 21. a circulation pump; 22. a sensor; 23. a display screen.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Examples

Referring to fig. 1-3, the present invention provides the following technical solutions: an ICU head cooling device for children comprises a bed plate 1, a seat foot 2 is arranged on the lower end face of the bed plate 1, a fixed block 18 is arranged on one side of the bed plate 1, a fixture block 3 is arranged on the other side of the bed plate 1, a rotating rod 19 is arranged on the inner side face of the fixed block 18, a pull rod 4 is arranged on the inner side face of the fixture block 3, binding bands 20 are arranged on the outer surfaces of the rotating rod 19 and the pull rod 4, pillow blocks 5 and supporting rods 15 are respectively arranged on the upper end face of the bed plate 1, a telescopic rod 6 is arranged on the outer surface of the supporting rod 15, a panel 7 is arranged on the outer surface of the telescopic rod 6, a spring 17 is arranged on the outer surface of the panel 7, an installation table 10 is arranged on the upper end face of the supporting rod 15, a lifting rod 16 is arranged on the lower end face of the mounting table 10, a cold water bag 8 is arranged on, the upper end surface of the mounting table 10 is respectively provided with a cold water tank 11 and a display screen 23, the inner side surface of the cold water tank 11 is provided with a circulating pump 21, the inside of the cold water tank 11 is provided with a water filling port 12, and the inner side surface of the water filling port 12 is provided with a sealing cover 13.

In this embodiment, the bed board 1 can make the child lie flat and cool down the treatment, and cold water bag 8 wraps up the child head, and for the child cooling to the sub-low temperature state facilitate, lifter 16 is convenient for cold water bag 8's removal, and the cooperation of binding area 20 and fixture block 3 and pull rod 4 is used to do benefit to the child and is fixed on bed board 1, and sensor 22 detects child's body temperature in real time.

Specifically, the seat leg 2 is welded on the lower end surface of the bed plate 1, the fixing block 18 is fixedly connected to one side of the bed plate 1, and the fixture block 3 is fixedly connected to the other side of the bed plate 1.

In this embodiment, the seat leg 2 supports the bed plate 1, the welding connection improves the connection stability between the bed plate 1 and the seat leg 2, the fixing block 18 provides a working condition for the rotating rod 19, and the fixture block 3 limits the moving space of the pull rod 4.

Specifically, the rotating rod 19 is movably connected to the inner side surface of the fixing block 18, the pull rod 4 is movably connected to the inner side surface of the fixture block 3, and the binding band 20 is fixedly connected to the outer surface of the rotating rod 19 and the outer surface of the pull rod 4 respectively.

In this embodiment, the rotating rod 19 facilitates the retraction and storage of the tying band 20, and the pull rod 4 facilitates the pulling and fixing of the tying band 20.

Specifically, the pillow block 5 and the support rod 15 are both fixedly connected to the upper end face of the bed board 1, and the telescopic rod 6 is fixedly connected to the outer surface of the support rod 15.

In this embodiment, the pillow block 5 supports the neck of the child, the support rod 15 prevents the mounting platform 10 from falling, and the telescopic rod 6 enables the panel 7 to move more smoothly.

Specifically, the panel 7 is fixedly connected to the outer surface of the telescopic rod 6, and the spring 17 is movably connected to the outer surface of the panel 7.

In this embodiment, the panel 7 fixes the position of the head of the child, and the spring 17 provides the telescopic power for the telescopic rod 6.

Specifically, the mounting table 10 is in threaded connection with the upper end face of the supporting rod 15, the lifting rod 16 is movably connected with the lower end face of the mounting table 10, the cold water bag 8 is fixedly connected with the lower end face of the lifting rod 16, the cold water bag 8 is in a helmet shape, and the cold water bag 8 is made of silica gel.

In this embodiment, the cold water tank 11 is supported to mount table 10, and threaded connection makes things convenient for the installation and the dismantlement of mount table 10, and cold water bag 8 is helmet-shaped can cool down the whole head parcel of child, makes the child more quick entering sub-low temperature state, and the silica gel material has better cold resistance and ductility, satisfies cold water bag 8 and is suitable for the child's of different head circumferences condition.

Specifically, the material of outlet pipe 9 and the material of wet return 14 are the PVC hose, and outlet pipe 9 and the equal fixed connection of wet return 14 in the up end of cold water bag 8, sensor 22 fixed connection in the medial surface of cold water bag 8, cold water tank 11 and the equal swing joint of display screen 23 in the up end of mount table 10.

In this embodiment, outlet pipe 9 and wet return 14 provide the passageway of circulation for cold water, and the PVC hose makes outlet pipe 9 and wet return 14 flexible convenient, and cold water tank 11 makes cold water deposit more convenient, and display screen 23 receives child's body temperature data and sends out the prompt tone when inferior low temperature.

Specifically, circulating pump 21 swing joint is in cold water tank 11's medial surface, and water filling port 12 fixed connection is in cold water tank 11's inside, and sealed lid 13 swing joint is in water filling port 12 medial surface.

In this embodiment, the circulation pump 21 provides power for circulation of cold water, the water filling port 12 facilitates the injection of cold water, and the sealing cover 13 prevents the volatilization of cold water.

In the embodiment, the circulating pump 21, the sensor 22 and the display screen 23 are publicly known technologies widely used in daily life, the model of the circulating pump 21 is TL-B10-B/3, the model of the sensor 22 is AMG8831, and the model of the display screen 23 is JWST-10.

The utility model discloses a theory of operation and use flow: the children lie on the bed board 1, the pull rod 4 is pulled to enable the binding belt 20 to bypass the upper part of the bodies of the children, the pull rod 4 is clamped into the clamping block 3, the binding of the bodies of the children is realized, the children are effectively fixed on the bed board 1, the smooth development of the cooling process is facilitated, the strength for transversely pressing the panel 7 is controlled according to the head circumference of the children, the panel 7 compresses the spring 17, the neck of the children is placed on the pillow block 5, the panel 7 is loosened to be fixed at the temple of the children, the spring 17 is stretched to drive the telescopic rod 6 to compress the panel 7, the children with different head circumferences can be fixed by the matching of the telescopic rod 6 and the panel 7, the fixing of the heads of the children in the cooling process is optimized, the children are cooled to the sub-low temperature state more quickly, the cooling effect is improved, the convenience is provided for the work, the time is saved, the cold water bag 8 is sleeved on the heads of the children, start circulating pump 21, make the cold water in cold water tank 11 and the cold water bag 8 pass through outlet pipe 9 and wet return 14 circulation, the cold water bag 8 of helmet form can cool down the whole head of child, make child's body temperature drop to the speed of inferior low temperature state simultaneously and accelerate, sensor 22 real-time detection child's body temperature and with data transfer to display screen 23, when child's body temperature drops to inferior low temperature state, display screen 23 sends the prompt tone, make things convenient for the doctor to know child's body temperature condition.

Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.

Claims

1. The utility model provides a child uses head heat sink in ICU, includes bed board (1), its characterized in that: the bed is characterized in that a seat foot (2) is arranged on the lower end face of the bed board (1), a fixed block (18) is arranged on one side of the bed board (1), a fixture block (3) is arranged on the other side of the bed board (1), a rotating rod (19) is arranged on the inner side face of the fixed block (18), a pull rod (4) is arranged on the inner side face of the fixture block (3), binding belts (20) are arranged on the outer surfaces of the rotating rod (19) and the pull rod (4), pillow blocks (5) and supporting rods (15) are respectively arranged on the upper end face of the bed board (1), a telescopic rod (6) is arranged on the outer surface of the supporting rod (15), a panel (7) is arranged on the outer surface of the telescopic rod (6), a spring (17) is arranged on the outer surface of the panel (7), an installation table (10) is arranged on the upper end face of the supporting, the utility model discloses a solar water heater, including mount table (10), lifter (16), the lower terminal surface of lifter (16) is provided with cold water bag (8), the up end of cold water bag (8) is provided with outlet pipe (9) and wet return (14) respectively, the medial surface of cold water bag (8) is provided with sensor (22), the up end of mount table (10) is provided with cold water storage cistern (11) and display screen (23) respectively, the medial surface of cold water storage cistern (11) is provided with circulating pump (21), the inside of cold water storage cistern (11) is provided with water filling port (12), water filling port (12) medial surface is provided with sealed lid (13).

2. An ICU pediatric head cooling device as defined in claim 1, wherein: the seat leg (2) is welded on the lower end face of the bed board (1), the fixing block (18) is fixedly connected to one side of the bed board (1), and the clamping block (3) is fixedly connected to the other side of the bed board (1).

3. An ICU pediatric head cooling device as defined in claim 1, wherein: the rotating rod (19) is movably connected to the inner side face of the fixed block (18), the pull rod (4) is movably connected to the inner side face of the fixed block (3), and the binding bands (20) are fixedly connected to the outer surface of the rotating rod (19) and the outer surface of the pull rod (4) respectively.

4. An ICU pediatric head cooling device as defined in claim 1, wherein: the pillow blocks (5) and the supporting rods (15) are both fixedly connected to the upper end face of the bed board (1), and the telescopic rods (6) are fixedly connected to the outer surfaces of the supporting rods (15).

5. An ICU pediatric head cooling device as defined in claim 1, wherein: the panel (7) is fixedly connected to the outer surface of the telescopic rod (6), and the spring (17) is movably connected to the outer surface of the panel (7).

6. An ICU pediatric head cooling device as defined in claim 1, wherein: mounting table (10) threaded connection is in the up end of bracing piece (15), lifter (16) swing joint is in the lower terminal surface of mounting table (10), cold water bag (8) fixed connection is in the lower terminal surface of lifter (16), the shape of cold water bag (8) is helmet form, the material of cold water bag (8) is silica gel.

7. An ICU pediatric head cooling device as defined in claim 1, wherein: the material of outlet pipe (9) and the material of wet return (14) are the PVC hose, outlet pipe (9) and the equal fixed connection of wet return (14) in the up end of cold water bag (8), sensor (22) fixed connection is in the medial surface of cold water bag (8), cold water tank (11) and the equal swing joint of display screen (23) are in the up end of mount table (10).

8. An ICU pediatric head cooling device as defined in claim 1, wherein: circulating pump (21) swing joint is in the medial surface of cold water storage cistern (11), water filling port (12) fixed connection is in the inside of cold water storage cistern (11), sealed lid (13) swing joint is in water filling port (12) medial surface.
