Abstract
本实用新型公开了用于园林养护的水肥一体化喷灌机，包括混合罐、设置于混合罐顶端的储料罐和进水管、竖直设置于混合罐内的搅拌轴、固定在搅拌轴上的搅拌杆以及驱动搅拌轴转动的驱动机构；所述喷灌机还包括喷洒机构；所述喷洒机构包括第一隔板、水泵、喷管以及喷头。本实用新型的用于园林养护的水肥一体化喷灌机，通过空气上升带动混合罐底部物料上升，避免物料在混合罐底部沉积，提高肥料和水的混合速度及混合效果；另一方面，通过混合液腔、过液孔以及滤网的设置，使混合液通过过滤后进入喷管，喷管和喷头不易堵塞；更重要的是，空气可将滤网上粘附的肥料吹走，避免滤网处堵塞，大大提高了滤网的更换周期。
The utility model discloses an integrated water and fertilizer sprinkler for garden maintenance, comprising a mixing tank, a material storage tank and a water inlet pipe arranged at the top of the mixing tank, a stirring shaft vertically arranged in the mixing tank, and a a stirring rod and a driving mechanism for driving the stirring shaft to rotate; the sprinkler also includes a spraying mechanism; the spraying mechanism includes a first partition, a water pump, a spray pipe and a spray head. The water and fertilizer integrated sprinkler irrigation machine of the utility model for garden maintenance drives the material at the bottom of the mixing tank to rise through air rising, avoids material deposition at the bottom of the mixing tank, and improves the mixing speed and mixing effect of fertilizer and water; on the other hand, by mixing The setting of the liquid cavity, the liquid passing hole and the filter screen makes the mixed liquid enter the nozzle after filtering, and the nozzle and nozzle are not easy to be blocked; more importantly, the air can blow away the fertilizer adhering to the filter screen, avoiding the filter screen. Clogging, greatly improving the replacement cycle of the filter.
Description
Technical Field
The utility model relates to an afforestation technical field especially relates to a liquid manure integration sprinkling irrigation machine for gardens maintenance.
Background
The garden design is a process of building beautiful natural environment and living and rest domains by means of garden art and engineering technical means in a certain region and by means of terrain reconstruction (or further building mountains, stacking stones and managing water), tree planting, flower planting, building, garden path arrangement and the like.
The most important in garden design is planting green plants. In the green plant planting and maintenance process, irrigation and fertilization are needed for green plants. Water and fertilizer integrated irrigation is an irrigation method. The existing water and fertilizer integrated irrigation device has the problems of poor fertilization effect and easy blockage of pipelines due to uneven mixing of fertilizer and water. Based on this, how to design a liquid manure integration sprinkling irrigation machine for gardens maintenance is the utility model discloses the technical problem that will solve.
SUMMERY OF THE UTILITY MODEL
The utility model discloses to prior art not enough, provide a liquid manure integration sprinkling irrigation machine for gardens maintenance.
The utility model discloses a following technical means realizes solving above-mentioned technical problem:
the water and fertilizer integrated sprinkler for garden maintenance comprises a mixing tank, a storage tank and a water inlet pipe which are arranged at the top end of the mixing tank, a stirring shaft vertically arranged in the mixing tank, a stirring rod fixed on the stirring shaft and a driving mechanism for driving the stirring shaft to rotate;
the stirring shaft is of a hollow tubular structure with openings at two ends; the top end of the mixing tank is provided with a fan for supplying air into the stirring shaft; the air outlet of the fan is connected with the top end of the stirring shaft; the lower end of the stirring shaft extends into the bottom end of the interior of the mixing tank;
the sprinkler also comprises a sprinkling mechanism; the spraying mechanism comprises a first partition plate, a water pump, a spray pipe and a spray head; the first partition plate is horizontally arranged in the mixing tank; a mixed liquid cavity is enclosed between the first clapboard and the bottom end of the mixing tank; the spray pipe is communicated with the mixed liquid cavity; the water pump is arranged on the spray pipe; the spray head is arranged at one end of the spray pipe, which is far away from the mixed liquid cavity; the lower end of the stirring shaft extends into the mixed liquid cavity; the partition plate is provided with a liquid passing hole; and a filter screen is arranged on the liquid passing hole.
Preferably, the water and fertilizer integrated sprinkler for garden maintenance is characterized in that a second partition plate is arranged inside the mixing tank; the second partition plate is horizontally arranged; and an equipment bin is enclosed between the second partition plate and the top end of the mixing tank.
Preferably, the liquid-fertilizer integrated sprinkler for garden maintenance is characterized in that a liquid mixing cavity is defined between the first partition plate and the second partition plate; a discharge pipe is arranged at the bottom end of the storage tank; the bottom of discharging pipe and the bottom of inlet tube all pass equipment storehouse back and stretch into and mix the liquid intracavity.
Preferably, the water and fertilizer integrated sprinkler for garden maintenance comprises a driving gear, a driven gear and a motor; the driving teeth, the driven teeth and the motor are all arranged in the equipment bin; an output shaft of the motor is connected with the driving gear; the driving teeth are meshed with the driven teeth; the driven teeth are fixed on the stirring shaft.
Preferably, the water and fertilizer integrated sprinkler for garden maintenance is characterized in that a box body is arranged in the equipment bin; the top end of the stirring shaft is rotatably arranged on the box body through a bearing, and the interior of the stirring shaft is communicated with the interior of the box body; the air outlet of the fan extends into the box body; air discharged from the fan enters the box body and then enters the stirring shaft.
Preferably, the water and fertilizer integrated sprinkler for garden maintenance is characterized in that a first observation window is arranged on the side wall of the storage tank; the material storage tank is provided with scales at the first observation window; and a valve is arranged on the discharge pipe.
Preferably, the water and fertilizer integrated sprinkler for garden maintenance is characterized in that a second observation window is arranged on the side wall of the mixing tank; the mixing tank is provided with scales at the position of the observation window.
Preferably, the top end of the mixing tank is provided with an exhaust port; and the second clapboard is provided with a vent hole.
The utility model has the advantages that: the utility model discloses a liquid manure integration sprinkling irrigation machine for gardens maintenance, on the one hand design the (mixing) shaft for hollow tubulose, send into the air in the hybrid tank through fan and stirring axle, rise through the air and drive the material of hybrid tank bottom and rise, avoid the material to deposit in the hybrid tank bottom, improve the mixing speed and the mixed effect of fertilizer and water; on the other hand, through the arrangement of the mixed liquid cavity, the liquid passing hole and the filter screen, the mixed liquid enters the spray pipe after being filtered, and the spray pipe and the spray head are not easy to block; more importantly, the air from the stirring shaft passes through the filter screen at the liquid passing hole; when the air passes through the filter screen, can blow away the fertilizer of adhesion on the filter screen, avoid filter screen department to block up, improved the change cycle of filter screen greatly.
Drawings
Fig. 1 is a schematic structural diagram of the present invention.

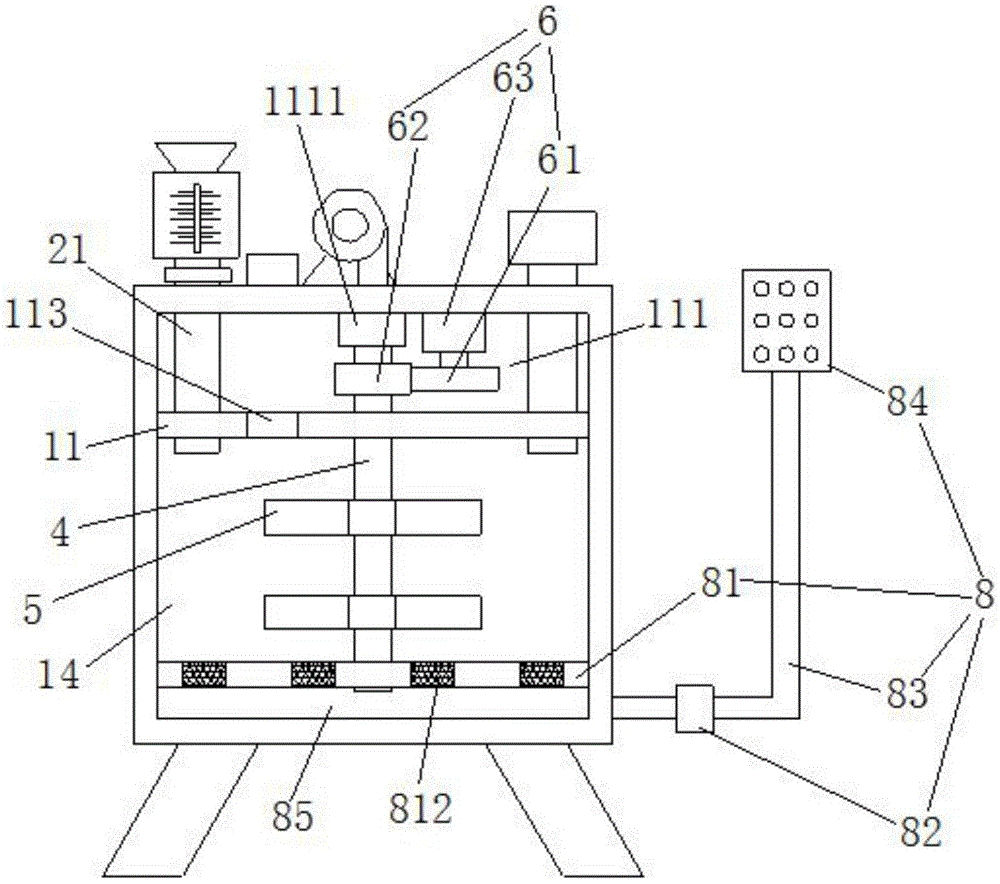

Fig. 2 is the schematic diagram of the internal structure of the mixing tank of the present invention.
Fig. 3 is a schematic structural diagram of the first separator of the present invention.
Fig. 4 is a schematic structural diagram of the box body of the present invention.
Detailed Description
In order to make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are some, but not all, embodiments of the present invention. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts belong to the protection scope of the present invention.
Example 1, referring to the drawings, a water and fertilizer integrated sprinkler for garden maintenance comprises a mixing tank 1, a container for mixing fertilizer and water, a storage tank 2 and a water inlet pipe 3 which are arranged at the top end of the mixing tank 1, fertilizer and water which are respectively added into the mixing tank 1 through the storage tank 2 and the water inlet pipe 3, a stirring shaft 4 which is vertically arranged in the mixing tank 1, a stirring rod 5 which is fixed on the stirring shaft 4 and a driving mechanism 6 which drives the stirring shaft 4 to rotate, wherein the driving mechanism 6 drives the stirring shaft 4 to rotate, drives the stirring rod 5 to move, stirs the fertilizer and the water in the mixing tank 1, and promotes the mixing of the fertilizer and the water;
the stirring shaft 4 is of a hollow tubular structure with openings at two ends; the top end of the mixing tank 1 is provided with a fan 7 for supplying air into the stirring shaft 4; an air outlet of the fan 7 is connected with the top end of the stirring shaft 4; the lower end of the stirring shaft 4 extends into the bottom end position inside the mixing tank 1;
the stirring shaft 4 is designed into a hollow tubular shape with openings at two ends, so that air from an air outlet of the fan 7 enters the stirring shaft 4 from the top end of the stirring shaft 4 and enters the bottom of the mixing tank 1 from the bottom end of the stirring shaft 4; the air moves upwards after entering the mixing tank 1 to drive the fertilizer at the bottom of the mixing tank 1 to move upwards, so that the fertilizer is prevented from being accumulated at the bottom of the mixing tank, and the mixing speed and the mixing effect of the fertilizer and water are greatly improved by matching the stirring action of the stirring rod 5 on the stirring shaft 4;
the sprinkler also comprises a sprinkling mechanism 8; the spraying mechanism 8 comprises a first partition plate 81, a water pump 82, a spray pipe 83 and a spray head 84; the first partition plate 81 is horizontally arranged in the mixing tank 1; a mixed liquid cavity 85 is enclosed between the first clapboard 81 and the bottom end of the mixing tank 1; the spray pipe 83 is communicated with the mixed liquid cavity 85; the water pump 82 is arranged on the spray pipe 83; the spray head 84 is arranged at one end of the spray pipe 83 far away from the mixed liquid cavity 85; the lower end of the stirring shaft 4 extends into the mixed liquid cavity 85; the partition plate 81 is provided with a liquid passing hole 811; a filter screen 812 is arranged on the liquid passing hole 811;
the mixed liquid cavity 85, the liquid passing hole 811 and the filter screen 812 are arranged, so that the water-fertilizer mixed liquid enters the mixed liquid cavity 85 after being filtered by the filter screen 812, is pumped into the spray pipe 83 by the water pump 82, and is sprayed out by the spray head 84 for sprinkling irrigation; the spray pipe 83 and the spray head 84 cannot be blocked; the stirring shaft 4 extends into the mixed liquid cavity 85, so that air is sprayed out of the stirring shaft 4 and enters the upper part of the mixed liquid cavity 85 through the liquid passing hole 811, when the air passes through the liquid passing hole 811, fertilizer adhered to the filter screen 812 can be blown away, the filter screen 812 is prevented from being blocked, and the replacement period of the filter screen 812 is greatly prolonged;
the utility model discloses a liquid manure integration sprinkling irrigation machine for gardens maintenance, on the one hand design the (mixing) shaft for hollow tubulose, send into the air in the hybrid tank through fan and stirring axle, rise through the air and drive the material of hybrid tank bottom and rise, avoid the material to deposit in the hybrid tank bottom, improve the mixing speed and the mixed effect of fertilizer and water; on the other hand, through the arrangement of the mixed liquid cavity, the liquid passing hole and the filter screen, the mixed liquid enters the spray pipe after being filtered, and the spray pipe and the spray head are not easy to block; more importantly, the air from the stirring shaft passes through the filter screen at the liquid passing hole; when the air passes through the filter screen, can blow away the fertilizer of adhesion on the filter screen, avoid filter screen department to block up, improved the change cycle of filter screen greatly.
Preferably, a second partition plate 11 is arranged inside the mixing tank 1; the second partition plate 11 is horizontally arranged; an equipment bin 111 is defined by the second partition plate 11 and the top end of the mixing tank 1;
and an equipment bin 111 is arranged for installing and accommodating various equipment and pipelines.
Preferably, a liquid mixing cavity 14 is defined between the first partition plate 81 and the second partition plate 11; a discharge pipe 21 is arranged at the bottom end of the material storage tank 2; the bottom end of the discharge pipe 21 and the bottom end of the water inlet pipe 3 both penetrate through the equipment bin 111 and then extend into the liquid mixing cavity 14.
Preferably, the driving mechanism 6 comprises a driving tooth 61, a driven tooth 62 and a motor 63; the driving teeth 61, the driven teeth 62 and the motor 63 are all arranged in the equipment bin 111; an output shaft of the motor 63 is connected with the driving tooth 61; the driving teeth 61 and the driven teeth 62 are meshed; the driven teeth 61 are fixed on the stirring shaft 4; through the cooperation of driving tooth 61 and driven tooth 62, motor 63 realizes the drive to (mixing) shaft 4, and then carries out the stirring operation.
Preferably, a box 1111 is arranged in the equipment bin 111; the top end of the stirring shaft 4 is rotatably arranged on the box body 1111 through a bearing, and the interior of the stirring shaft 4 is communicated with the interior of the box body 1111; an air outlet of the fan 7 extends into the box body 1111; air discharged from the fan 7 enters the box body and then enters the stirring shaft 4; the box body 1111 is arranged and used for communicating the fan 7 and the stirring shaft 4 and providing a foundation for the rotation of the stirring shaft 4; of course, the stirring shaft 4 is connected to the first partition plate 81 and the second partition plate 11 via bearings for rotation of the stirring shaft 4.
Preferably, in order to conveniently control the amount of the added fertilizer, a first observation window 23 is arranged on the side wall of the storage tank 2; the material storage tank 2 is provided with scales at the first observation window 23; a valve 212 is arranged on the discharge pipe 21.
Preferably, in order to observe the mixing condition of the fertilizer and the water inside the mixing tank 1 and control the added water amount, a second observation window 12 is arranged on the side wall of the mixing tank 1; the mixing tank 1 is provided with scales at the position of the observation window 12.
Preferably, in order to discharge the air entering the mixing tank 1, the top end of the mixing tank 1 is provided with an exhaust port 13; the second partition board 11 is provided with a vent hole 113; the air rises and first enters the equipment room 111 through the air vent 113, and then is discharged through the air outlet 13.
It is noted that, in this document, relational terms such as first and second, and the like, if any, are used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.
The above embodiments are only used to illustrate the technical solution of the present invention, and not to limit it; although the present invention has been described in detail with reference to the foregoing embodiments, it should be understood by those skilled in the art that: the technical solutions described in the foregoing embodiments may still be modified, or some technical features may be equivalently replaced; such modifications and substitutions do not depart from the spirit and scope of the present invention in its corresponding aspects.
