CN213545352U

CN213545352U - Entrance guard communication device

Info

Publication number: CN213545352U
Application number: CN202021735165.0U
Authority: CN
Inventors: 闫国辉
Original assignee: Yangling Xingtai Electronic Technology Co ltd
Current assignee: Sichuan Boshu Property Management Co.,Ltd.
Priority date: 2020-08-18
Filing date: 2020-08-18
Publication date: 2021-06-25
Anticipated expiration: 2030-08-18

Abstract

The utility model discloses an access control communication device, comprising an installation panel and an operation panel. A liquid storage tank built into the installation panel is symmetrically installed on both sides of the operation panel, an air pump cavity is installed in the liquid storage tank, and the air pump A piston head is installed in the cavity, and the bottom of the piston head is connected with a U-shaped connecting rod that penetrates the air pump cavity. The liquid storage tank is provided with a liquid outlet pipe that penetrates the top of the liquid storage tank, and the liquid outlet pipe is located outside the liquid storage tank. One end communicates with There is a mixing chamber, and several atomizing nozzles are evenly installed through the bottom of one side of the front surface of the installation panel, and a push switch is installed in the mixing chamber. Beneficial effects: The utility model can disinfect and sterilize the operation buttons on the operation panel, the card swipe, the fingerprint collector and the call module. After the disinfection and sterilization is completed, the user can use it with confidence, which effectively reduces the number of people during the epidemic. The risk of viral disease transmission caused by the use of access control communication devices is conducive to the prevention and control of the epidemic.

Description

Entrance guard communication device

Technical Field

The utility model relates to an entrance guard technical field particularly, relates to an entrance guard communication device.

Background

The entrance guard is an effective measure for realizing safety precaution management at the entrance and exit of important departments, is suitable for various important departments, such as banks, hotels, machine rooms, military mechanical warehouses, machine key rooms, offices, intelligent districts, factories and the like, and under the rapid development of a digital technology network technology, the entrance guard technology is rapidly developed and surpasses the simple gateway and key management, and the entrance guard has been gradually developed into a set of complete entrance and exit management systems which play a great role in the administrative management work such as work environment safety, personnel attendance management and the like.

However, there are some weak points in the middle of current entrance guard communication device uses, the last operation button of its operating panel, the ware of punching the card, fingerprint sampler and conversation module often directly expose outside, lack dustproof protection architecture, not only easily receive external force impact damage, and easy deposition collection dirt, difficult clearance, influence entrance guard communication device's normal use, and to the hospital, the intensive region of crowd such as district, take place the epidemic situation in the period, because entrance guard communication device mostly does not possess degassing unit, many people use the risk that easily increases infection virus disease simultaneously, be unfavorable for the prevention and control prevention and cure of epidemic situation.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

Not enough to prior art, the utility model provides an entrance guard communication device possesses operating panel protection device that prevents dust, and convenient to use person washs sterile advantage, and then solves the problem among the above-mentioned background art.

(II) technical scheme

For realizing above-mentioned operating panel protection device that prevents dust, and convenient to use person cleaning and disinfecting's advantage, the utility model discloses a concrete technical scheme as follows: the utility model provides an access control communication device, includes installation panel and operating panel, installation panel's front surface is provided with operating panel, and operating panel bilateral symmetry installs the inside liquid reserve tank of place installation panel in, install the air pump chamber in the liquid reserve tank, and install the piston head in the air pump chamber to the U-shaped connecting rod that runs through the air pump chamber is connected to piston head bottom, be provided with the drain pipe that runs through the liquid reserve tank top in the liquid reserve tank, and the drain pipe is located liquid reserve tank outside one end intercommunication and has the mixing chamber, and the mixing chamber runs through installation panel front surface one side bottom and evenly installs a plurality of atomizer, built-in press switch of installing of mixing chamber.

Further, operating panel bilateral symmetry is equipped with the fixed axle of welding on the installation panel, install the guard plate between the fixed axle, and the guard plate inboard installs the slip sleeve pipe of mutual symmetry to slip sleeve pipe cup joints on the fixed axle, two the below that lies in the guard plate on the fixed axle cup joints and is fixed with reset spring, the guard plate is provided with the cleaning brush of installing in the one side relative with operating panel.

Furthermore, the two ends of the protection plate are symmetrically welded with connecting blocks, and the bottom of each connecting block is connected with one end of a U-shaped connecting rod.

Further, video probe is installed at operating panel's front surface top, and installs the display screen below the video probe to the conversation module is installed to display screen both ends symmetry, operating button is installed to display screen below one side, and operating button installs the ware of punching the card on one side to the fingerprint collection ware is installed to the ware below of punching the card.

Furthermore, movable grooves are symmetrically formed in two sides of the installation panel, and U-shaped connecting rods are embedded in the movable grooves in a clamping mode.

Furthermore, the top of the liquid storage tank is communicated with a liquid supplementing pipe, and the liquid supplementing pipe penetrates through one end of the front surface of the installation panel to be provided with a sealing cover.

Furthermore, the protection plate is located the operation button, and the card reader just in front of fingerprint sampler, and protection plate width is greater than operating panel width.

Further, the inner diameter of the sliding sleeve is slightly larger than the diameter of the fixing shaft.

(III) advantageous effects

Compared with the prior art, the utility model provides an entrance guard communication device possesses following beneficial effect:

(1) the utility model is provided with the liquid storage tank at the two ends of the operation panel of the entrance guard communication device, disinfectant can be added into the liquid storage tank through the fluid infusion pipe and tightly covered by the sealing cover, when in use, a user pushes the protection plate to move up and down along the fixed shaft, so that the U-shaped connecting rod connected with the two ends of the protection plate through the connecting block also moves up and down, because one end of the U-shaped connecting rod is connected with the piston head in the air pump cavity arranged in the liquid storage tank, the air pressure in the liquid storage tank can be increased, the disinfectant in the liquid storage tank is pushed into the mixing chamber through the liquid outlet pipe, then the user can spray the disinfectant from the atomizing nozzle arranged below the mixing chamber by only pressing the press switch, and further the operation key on the operation panel is brushed by the card reader, the fingerprint collector and the communication module are sterilized, and the user, the virus disease spreading risk caused by the fact that a plurality of people use the access control communication device during the epidemic situation is effectively reduced, and prevention, control and prevention of the epidemic situation are facilitated.

(2) The utility model is provided with a protection plate at the outer side of the operation panel of the entrance guard communication device, the protection plate is sleeved on the fixed shaft through the sliding sleeve at the inner side, the fixed shaft is welded on the surface of the installation panel at the two ends of the operation panel, thereby ensuring that the protection plate is stably positioned in front of the operation panel, effectively protecting the operation keys, the card reader, the fingerprint collector and the communication module on the operation panel, not only reducing the damage of the operation panel caused by the impact of external force, but also effectively preventing external dust from accumulating in gaps, simultaneously, the user need promote the guard plate downwards when using, makes reset spring compressed, exposes the operation button, and operating means such as ware of punching the card set up the inboard cleaning brush of guard plate then can clean operating panel surface, and cooperation antiseptic solution uses simultaneously, the promotion entrance guard communication device's that can be better cleanness and disinfection effect.

Drawings

In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings required to be used in the embodiments will be briefly described below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without creative efforts.

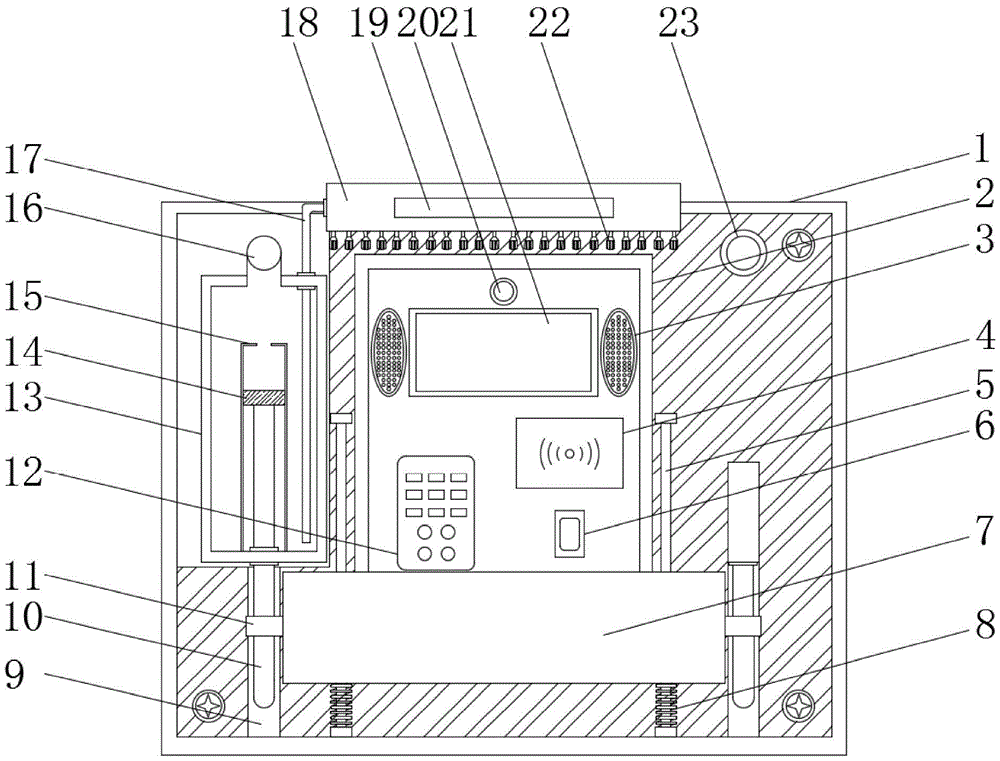

Fig. 1 is a schematic structural diagram of an access control communication device according to an embodiment of the present invention;

fig. 2 is a side view of a U-shaped connecting rod connection of an access control communication device according to an embodiment of the present invention;

fig. 3 is a schematic structural diagram of a protection plate of an access control communication device according to the present invention.

In the figure:

1. installing a panel; 2. an operation panel; 3. a call module; 4. a card reader; 5. a fixed shaft; 6. a fingerprint collector; 7. a protection plate; 8. a return spring; 9. a movable groove; 10. a U-shaped connecting rod; 11. connecting blocks; 12. operating a key; 13. a liquid storage tank; 14. a piston head; 15. an air pump cavity; 16. a liquid supplementing pipe; 17. a liquid outlet pipe; 18. a mixing chamber; 19. a push switch; 20. a video probe; 21. a display screen; 22. an atomizing spray head; 23. a sealing cover; 24. a cleaning brush; 25. a sliding sleeve.

Detailed Description

For further explanation of the embodiments, the drawings are provided as part of the disclosure and serve primarily to illustrate the embodiments and, together with the description, to explain the principles of operation of the embodiments, and to provide further explanation of the invention and advantages thereof, it will be understood by those skilled in the art that various other embodiments and advantages of the invention are possible, and that elements in the drawings are not to scale and that like reference numerals are generally used to designate like elements.

According to the utility model discloses an embodiment provides an access control communication device.

Referring to the drawings and the detailed description, as shown in fig. 1-3, an access control communication device according to an embodiment of the present invention includes an installation panel 1 and an operation panel 2, the front surface of the installation panel 1 is provided with the operation panel 2, and two sides of the operation panel 2 are symmetrically provided with a liquid storage tank 13 disposed inside the installation panel 1, an air pump cavity 15 is disposed in the liquid storage tank 13, a piston head 14 is disposed in the air pump cavity 15, the bottom of the piston head 14 is connected with a U-shaped connecting rod 10 penetrating through the air pump cavity 15, a liquid outlet pipe 17 penetrating through the top of the liquid storage tank 13 is disposed in the liquid storage tank 13, one end of the liquid outlet pipe 17 located outside the liquid storage tank 13 is communicated with a mixing chamber 18, the mixing chamber 18 is uniformly provided with a plurality of atomizing nozzles 22 penetrating through the bottom of one side of the front surface of the installation panel 1, a press, air pump chamber 15 is current maturation technology with push switch 19, does not do the detailed description here, has played and to have carried out the operation button 12 on the operating panel 2, and ware 4 of punching the card, fingerprint collector 6 and conversation module 3 carry out disinfection's effect, treats that disinfection accomplishes the back user and can use at ease, and the effectual virus disease that many people used entrance guard communication device to lead to during the epidemic situation spreads the risk, is favorable to the prevention and control prevention and cure of epidemic situation.

In one embodiment, the operation panel 2 is symmetrically provided with fixing shafts 5 welded on the installation panel 1 at both sides, a protection plate 7 is installed between the fixing shafts 5, and sliding sleeves 25 are installed at the inner side of the protection plate 7 symmetrically, the sliding sleeve 25 is sleeved on the fixed shafts 5, the reset springs 8 are sleeved and fixed below the protection plates 7 on the two fixed shafts 5, the protection plates 7 are provided with the cleaning brushes 24 which are arranged on the surfaces opposite to the operation panel 2, the damage of the operation panel 2 caused by external force impact is reduced, the accumulation of external dust in gaps can be effectively prevented, meanwhile, when the user uses the cleaning device, the user needs to push the protection plate 7 downwards to compress the return spring 8, so that the operation keys 12, the card reader 4 and other operation parts are exposed, and the cleaning brush 24 arranged on the inner side of the protection plate 7 can clean the surface of the operation panel 2.

In one embodiment, the connecting blocks 11 are symmetrically welded at two ends of the protection plate 7, and one end of the U-shaped connecting rod 10 is connected to the bottom of the connecting block 11, so that the cleaning brush 24 is matched with the disinfectant to be used simultaneously, and the cleaning and disinfecting effects of the entrance guard communication device can be better improved.

In one embodiment, the video probe 20 is installed on the top of the front surface of the operation panel 2, the display screen 21 is installed below the video probe 20, the call modules 3 are symmetrically installed at two ends of the display screen 21, the operation keys 12 are installed on one side below the display screen 21, the card reader 4 is installed on one side of the operation keys 12, and the fingerprint collector 6 is installed below the card reader 4, so that the function of realizing the entrance guard communication device is achieved.

In one embodiment, the two sides of the installation panel 1 are symmetrically provided with movable grooves 9, and the movable grooves 9 are embedded with U-shaped connecting rods 10 in a clamping manner, so that the U-shaped connecting rods 10 can move up and down along with the protection plate 7.

In one embodiment, the top of the liquid storage tank 13 is communicated with a liquid supplementing pipe 16, and one end of the liquid supplementing pipe 16 penetrating through the front surface of the mounting panel 1 is provided with a sealing cover 23, which plays a role of supplementing the disinfectant.

In one embodiment, the protection plate 7 is located right in front of the operation keys 12, the card reader 4 and the fingerprint acquirer 6, and the width of the protection plate 7 is larger than that of the operation panel 2.

In one embodiment, the inner diameter of the sliding sleeve 25 is slightly larger than the diameter of the stationary shaft 5.

The working principle is as follows: the utility model is provided with liquid storage tanks 13 at two ends of an operation panel 2 of an entrance guard communication device, disinfectant can be added into the liquid storage tanks 13 through a liquid supplementing pipe 16 and tightly covered by a sealing cover 23, when in use, a user pushes a protection plate 7 to move up and down along a fixed shaft 5, so that a U-shaped connecting rod 10 connected with two ends of the protection plate 7 through a connecting block 11 also moves up and down along a movable groove 9 on an installation panel 1, because one end of the U-shaped connecting rod 10 is connected with a piston head 14 in an air pump cavity 15 arranged in the liquid storage tank 13, the air pressure in the liquid storage tank 13 can be increased, the disinfectant in the liquid storage tank 13 is pushed into a mixing chamber 18 through a liquid outlet pipe 17, then the user only needs to press a switch 19, the disinfectant can be sprayed out from an atomizing nozzle 22 arranged below the mixing chamber 18, and further to the operation keys 12 on, the card reader 4, the fingerprint collector 6 and the call module 3 are sterilized, and a user can use the card reader at ease after the sterilization is finished, thereby effectively reducing the virus disease propagation risk caused by using the entrance guard communication device by a plurality of people during the epidemic situation, being beneficial to the prevention and control of the epidemic situation, and the utility model discloses a protection plate 7 arranged at the outer side of the operation panel 2 of the entrance guard communication device, the protection plate 7 is sleeved on the fixing shaft 5 through the sliding sleeve 25 at the inner side, the fixing shaft 5 is welded on the surfaces of the installation panels 1 at the two ends of the operation panel 2, thereby ensuring that the protection plate 7 is stably positioned in front of the operation panel 2, effectively protecting the operation keys 12 on the operation panel 2, the card reader 4, the fingerprint collector 6 and the call module 3, not only reducing the damage caused by the impact of the operation panel 2 by external force, but also effectively preventing the accumulation of external dust in, simultaneously, the user need promote guard plate 7 downwards when using, makes reset spring 8 compressed, exposes operating button 12, and operating means such as ware 4 of punching the card sets up and then can clean 2 surfaces of operating panel at the inboard cleaning brush 24 of guard plate 7, and the cooperation antiseptic solution uses simultaneously, promotion entrance guard communication device's that can be better cleanness and disinfection effect.

In the present invention, unless otherwise expressly stated or limited, the terms "mounted," "disposed," "connected," "fixed," "screwed" and the like are to be construed broadly, e.g., as meaning fixedly connected, detachably connected, or integrally formed; can be mechanically or electrically connected; they may be directly connected or indirectly connected through an intermediate medium, and may be connected through the inside of two elements or in an interaction relationship between two elements, unless otherwise specifically defined, and the specific meaning of the above terms in the present invention will be understood by those skilled in the art according to specific situations.

The above description is only a preferred embodiment of the present invention, and should not be taken as limiting the invention, and any modifications, equivalent replacements, improvements, etc. made within the spirit and principle of the present invention should be included in the protection scope of the present invention.

Claims

1. An access control communication device, comprising an installation panel (1) and an operation panel (2), wherein the front surface of the installation panel (1) is provided with an operation panel (2), and the operation panel (2) two A liquid storage tank (13) built into the installation panel (1) is installed symmetrically on the side, an air pump cavity (15) is installed in the liquid storage tank (13), and a piston head (14) is installed in the air pump cavity (15) ), and the bottom of the piston head (14) is connected to the U-shaped connecting rod (10) running through the air pump cavity (15), and the liquid storage tank (13) is provided with a liquid outlet pipe (17) running through the top of the liquid storage tank (13). ), and the liquid outlet pipe (17) is connected with a mixing chamber (18) at the outer end of the liquid storage tank (13), and the mixing chamber (18) runs through the bottom of the front surface of the installation panel (1). In the spray head (22), a push switch (19) is installed inside the mixing chamber (18).

2. An access control communication device according to claim 1, characterized in that, two sides of the operation panel (2) are symmetrically provided with a fixed shaft (5) welded on the installation panel (1), the fixed shaft A protective plate (7) is installed between (5), and a sliding sleeve (25) symmetrical to each other is installed on the inner side of the protective plate (7), and the sliding sleeve (25) is sleeved on the fixed shaft (5), and the two A return spring (8) is sleeved and fixed on each of the fixed shafts (5) below the protective plate (7), and the protective plate (7) is provided with a cleaning brush (8) installed on the side opposite to the operation panel (2). twenty four).

3. An access control communication device according to claim 2, wherein a connecting block (11) is symmetrically welded at both ends of the protective plate (7), and the bottom of the connecting block (11) is connected with a U-shaped connecting rod ( 10) One end.

4. a kind of access control communication device according to claim 1, is characterized in that, the front surface top of described operation panel (2) is equipped with video probe (20), and video probe (20) is installed with display screen (20) below. 21), and a call module (3) is installed symmetrically at both ends of the display screen (21), an operation button (12) is installed on the lower side of the display screen (21), and a card reader is installed on one side of the operation button (12). (4), and a fingerprint collector (6) is installed under the card reader (4).

5. An access control communication device according to claim 1, characterized in that, two sides of the installation panel (1) are symmetrically provided with movable grooves (9), and U-shaped connections are embedded in the movable grooves (9). rod (10).

6. An access control communication device according to claim 1, characterized in that, a liquid replenishing pipe (16) is communicated with the top of the liquid storage tank (13), and the liquid replenishing pipe (16) runs through the front surface of the installation panel (1) One end is provided with a sealing cover (23).

7. A kind of access control communication device according to claim 2, is characterized in that, described protective plate (7) is located in operating button (12), in front of card reader (4) and fingerprint collector (6), and The width of the protective plate (7) is larger than the width of the operation panel (2).

8 . The access control communication device according to claim 2 , wherein the inner diameter of the sliding sleeve ( 25 ) is slightly larger than the diameter of the fixed shaft ( 5 ). 9 .
