本实用新型涉及采集装置技术领域，公开了一种地质勘察用便捷式岩石采样装置，包括安装底板，所述安装底板的内部设置有安装腔，安装底板内固定连接有电动伸缩杆，电动伸缩杆的驱动端固定连接有防护箱，防护箱的内部设置有空腔，防护箱的底部转动连接有螺旋钻头。本实用新型通过水平拉动镊钳，可将镊钳从滑槽内拉出，通过转动螺栓，使螺栓带动推块边旋转边水平移动的推动传动架，在此过程中，限位板会水平移动，将卡紧块从限位板内滑出，最后通过向上拉动盖板即可将盖板打开，然后将镊钳夹取的岩土放入收集槽内，可全自动的将岩土钻开并收集，从而增加了该采取装置的便捷性，也增加了该采样装置的采样速率。
The utility model relates to the technical field of collection devices, and discloses a convenient rock sampling device for geological exploration, comprising an installation base plate, an installation cavity is arranged inside the installation base plate, and an electric telescopic rod is fixedly connected in the installation base plate. The driving end of the protective box is fixedly connected with a protective box, the interior of the protective box is provided with a cavity, and the bottom of the protective box is rotatably connected with an auger bit. In the utility model, the tweezers can be pulled out from the chute by horizontally pulling the tweezers, and by rotating the bolts, the bolts drive the pusher to move the push block horizontally while rotating. During this process, the limit plate will move horizontally. , slide the clamping block out of the limit plate, and finally open the cover plate by pulling up the cover plate, and then put the rock and soil gripped by the tweezers into the collection tank, and the rock and soil can be drilled automatically. and collection, thereby increasing the convenience of the sampling device and increasing the sampling rate of the sampling device.
Description
Technical Field
The utility model relates to an acquisition device technical field especially relates to a portable rock sampling device is used in geological survey.
Background
Engineering geological exploration is a geological investigation work carried out to find out geological factors affecting engineering buildings, and the geological factors to be explored include geological structures or geological structures, landforms, hydrogeological conditions, physical and mechanical properties of soil and rocks, natural geological phenomena, natural building materials and the like, which are generally called engineering geological conditions; soil sample collecting devices are frequently used for sampling soil in engineering geological exploration work, but most of the existing soil sample collecting devices have the problem of inconvenience in use, so that when deep layer sampling is needed, the sampling devices need to be manually pressed down forcibly, time and labor are wasted, a large amount of time is wasted, and unnecessary troubles are brought to subsequent detection work;
the prior patent (publication number: CN 206710130U) discloses a novel geological sampling investigation and ground temperature measurement device, the utility model can carry out geological sampling operation in two modes of manual rotation and motor drive, the operation mode is flexible, and the physical burden of workers is reduced;
however, the following disadvantages of the patent still exist in the practical use process: this ground sampling device does not have the stock mechanism by itself for foretell ground sampling device need take the collecting vat alone to carry out the ground sample after having bored the soil layer, thereby has reduced this sampling device's practicality, and foretell sampling device volume is too huge, is not convenient for the staff to use and transport and carries, especially samples at the higher mountain region of relief, has the less problem of application scope.
For this reason, we propose a portable rock sampling device for geological exploration to solve the above problems.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the problem that exists among the prior art, and the portable rock sampling device is used in geological survey who proposes.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
a portable rock sampling device for geological exploration comprises an installation bottom plate, wherein an installation cavity is arranged inside the installation bottom plate, an electric telescopic rod is fixedly connected inside the installation bottom plate, a driving end of the electric telescopic rod is fixedly connected with a protection box, a cavity is arranged inside the protection box, the bottom of the protection box is rotatably connected with a spiral drill bit, a servo motor is fixedly connected inside the protection box, the servo motor is in transmission connection with one end of the spiral drill bit, a pull ring is fixedly connected to the center of the top of the installation bottom plate, two collecting tanks are symmetrically and fixedly connected to the top of the installation bottom plate, a material receiving cavity is arranged inside the collecting tanks, a fixed port is formed in the top of the collecting tanks, installation ports are formed in two sides of the top of each collecting tank, clamping rods are slidably connected inside the installation ports, cover plates are fixedly connected to the tops of the, the flexible end fixedly connected with limiting plate of piston rod, the bottom fixedly connected with chucking board of apron, one side fixedly connected with chucking piece of chucking board, the end of chucking piece is pegged graft in the limiting plate, one side fixedly connected with drive frame of limiting plate, one side threaded connection of collecting vat has the bolt, the end of bolt runs through collecting vat and drive frame and fixedly connected with ejector pad, the ejector pad offsets with the inner wall of drive frame.
Preferably, a sliding groove is formed in one side of the mounting base plate, the tweezers are connected in the sliding groove in a sliding mode, a rubber pad is fixedly connected in the sliding groove, and the rubber pad is attached to the tweezers.
Preferably, the fixed connection cushion in the installing port, the material of cushion is silica gel, and the cushion is laminated with the kelly mutually.
Preferably, the front side fixedly connected with button of pull ring, button and electric telescopic handle and the equal electric connection of servo motor.
Preferably, a handle is fixedly connected to the top of the cover plate, and the handle is C-shaped.
Preferably, the two sides of one end, far away from the end head, of the bolt are fixedly connected with rotating rods, and the rotating rods are made of stainless steel.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model discloses, through setting up the rubber pad, multiplicable tweezers pincers frictional force in the spout, greatly reduced from the probability of roll-off in the spout when tweezers pincers need not to use to guaranteed that this sampling device can normal use, through setting up the button, can the person of facilitating the use open and close electric telescopic handle and servo motor, through setting up the handle, the pulling handle can drive the apron and remove together, can be at the better application of force of the in-process of pulling the apron.
2. The utility model discloses, through horizontal pulling tweezers pincers, can pull out tweezers pincers from the spout in, through rotating the bolt, make the bolt drive the promotion driving frame of the rotatory limit horizontal migration in ejector pad limit, at this in-process, limiting plate meeting horizontal migration, with chucking piece from the limiting plate in roll-off, can open the apron through upwards pulling the apron at last, then put into the collecting vat with the ground that tweezers were got, can be full-automatic drill the ground and collect, thereby the convenience of this sampling device has been increased, this sampling device's sampling rate has also been increased.
Drawings

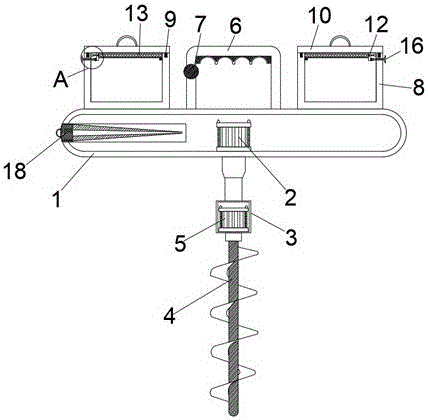

Fig. 1 is a schematic structural diagram of the inside of a portable rock sampling device for geological exploration, which is provided by the utility model;
FIG. 2 is an enlarged view of the structure at A in FIG. 1;
fig. 3 is the utility model provides a geological survey is with outside schematic structure of portable rock sampling device.
In the figure: 1. mounting a bottom plate; 2. an electric telescopic rod; 3. a protective box; 4. a helical drill bit; 5. a servo motor; 6. a pull ring; 7. a button; 8. collecting tank; 9. a clamping rod; 10. a cover plate; 11. a piston rod; 12. a limiting plate; 13. a chucking plate; 14. a clamping block; 15. a transmission frame; 16. a bolt; 17. a push block; 18. tweezers.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.
Referring to fig. 1-3, a portable rock sampling device for geological exploration, comprising an installation base plate 1, an installation cavity is arranged inside the installation base plate 1, an electric telescopic rod 2 is fixedly connected inside the installation base plate 1, a protection box 3 is fixedly connected to a driving end of the electric telescopic rod 2, a cavity is arranged inside the protection box 3, a spiral drill bit 4 is rotatably connected to the bottom of the protection box 3, a servo motor 5 is fixedly connected inside the protection box 3, the servo motor 5 is in transmission connection with one end of the spiral drill bit 4, a pull ring 6 is fixedly connected to the center of the top of the installation base plate 1, two collecting tanks 8 are symmetrically and fixedly connected to the top of the installation base plate 1, a material receiving cavity is arranged inside the collecting tanks 8, a fixed port is formed at the top of each collecting tank 8, installation ports are respectively formed at two sides of the top of each collecting tank 8, clamping rods 9 are slidably, apron 10 offsets with the fixed port, fixedly connected with piston rod 11 in the collecting vat 8, the flexible end fixedly connected with limiting plate 12 of piston rod 11, the bottom fixedly connected with clamping plate 13 of apron 10, one side fixedly connected with clamping block 14 of clamping plate 13, one side fixedly connected with clamping block 14's end is pegged graft in limiting plate 12, one side fixedly connected with driving frame 15 of limiting plate 12, one side threaded connection of collecting vat 8 has bolt 16, one side threaded connection of bolt 16 has collecting vat 8 and driving frame 15 and fixedly connected with ejector pad 17, ejector pad 17 offsets with driving frame 15's inner wall.
Wherein, the spout has been seted up to one side of mounting plate 1, and sliding connection has tweezers 18 in the spout, fixedly connected with rubber pad in the spout, and the rubber pad is laminated mutually with tweezers 18, through setting up the rubber pad, multiplicable tweezers 18 frictional force in the spout, greatly reduced when tweezers 18 need not to use, tweezers 18 from the probability of roll-off in the spout to guaranteed that this sampling device can normal use.
Wherein, the fixed connection cushion in the installing port, the material of cushion is silica gel, and the cushion is laminated with kelly 9 mutually, increases the steadiness of apron 10.
Wherein, the front side fixedly connected with button 7 of pull ring 6, button 7 and electric telescopic handle 2 and the equal electric connection of servo motor 5, through setting up button 7, but the person of facilitating the use opens and closes electric telescopic handle 2 and servo motor 5.
The top of the cover plate 10 is fixedly connected with a handle, the handle is C-shaped, the cover plate 10 can be driven to move together by pulling the handle, and better force can be applied in the process of pulling the cover plate 10.
Wherein, the equal fixedly connected with bull stick in both sides that end one end was kept away from to bolt 16, the material of bull stick is stainless steel, can be at more laborsaving of the in-process of rotating bolt 16.
The working principle is as follows: the utility model discloses in, when this sampling device need use, at first the user will four indicate to hold pull ring 6, then the thumb presses down button 7, make electric telescopic handle 2 and servo motor 5 open simultaneously, make 4 limit downwardly moving limits of auger bit high-speed rotations, bore hard ground, then horizontal pulling tweezers 18, can pull out tweezers 18 from the spout, bore the soil clamp of auger bit 4 and get, then rotate bolt 16, make bolt 16 drive the promotion driving frame 15 of the rotatory limit horizontal migration in ejector pad 17 limits, at this in-process, limiting plate 12 can horizontal migration, with chucking piece 14 roll-off in the limiting plate 12, can open apron 10 through upwards pulling apron 10 at last, put into collecting vat 8 with the ground that tweezers 18 clamps were got at last, can accomplish the collection.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
